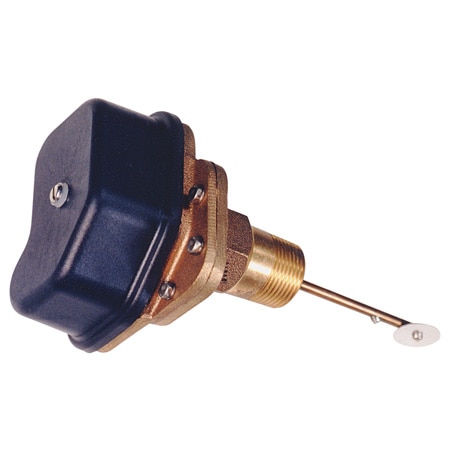

FSW40-50-Series | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 7개의 상품

제품 번호 / 가격	Brand	Electrical Connection	Electrical Connection Note	Features	Linear Flow Rate, Max	Linear Flow Rate, Min	Material Construction Option	Materials	Media Compatibility	Operating Pressure, Max	Operating Temperature, Max	Operating Temperature, Min	Pipe Size, Max	Pipe Size, Min	Pressure Drop Note	Pressure Drop, Max	Process Connection Size	Process Connection Type	Sensitivity	Switch Rating	Switch Rating Note	Switch Type	Weight
FSW-42A-SS1,683,980 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Cable Gland for 1/4 in Cable with Screw Terminal block	Electrical Cable Fitting: Water resistant for cable diameter 0.250" ±0.025"	Number of Extra Disks Included: 3	15 ft/s	2 ft/s	316 Stainless Steel	Brass, Stainless Steel, FKM, PTFE	Liquids	300 psi	82 °C	4 °C	10 in	3 in	1 to 3" pipe, less than 1 psi; 4" and above, negligible	-	1 in	NPT Male	10% @ upper end of range; 30% @ lower end of range	15 A	15 A @ 125 or 250 Vac; 10,000,000 operations median	SPDT NO/NC, Selectable	3.5 lb
FSW-43A1,064,210 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Cable Gland for 1/4 in Cable with Screw Terminal block	Electrical Cable Fitting: Water resistant for cable diameter 0.250" ±0.025"	Number of Extra Disks Included: 3	15 ft/s	2 ft/s	Standard	Brass, Stainless Steel, Bronze	Liquids	300 psi	82 °C	4 °C	48 in	10 in	1 to 3" pipe, less than 1 psi; 4" and above, negligible	-	1 in	NPT Male	10% @ upper end of range; 30% @ lower end of range	15 A	15 A @ 125 or 250 Vac; 10,000,000 operations median	SPDT NO/NC, Selectable	3.5 lb
FSW-42A1,062,970 원3 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Cable Gland for 1/4 in Cable with Screw Terminal block	Electrical Cable Fitting: Water resistant for cable diameter 0.250" ±0.025"	Number of Extra Disks Included: 3	15 ft/s	2 ft/s	Standard	Brass, Stainless Steel, Bronze	Liquids	300 psi	82 °C	4 °C	10 in	3 in	1 to 3" pipe, less than 1 psi; 4" and above, negligible	-	1 in	NPT Male	10% @ upper end of range; 30% @ lower end of range	15 A	15 A @ 125 or 250 Vac; 10,000,000 operations median	SPDT NO/NC, Selectable	3.5 lb
FSW-41A1,064,210 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Cable Gland for 1/4 in Cable with Screw Terminal block	Electrical Cable Fitting: Water resistant for cable diameter 0.250" ±0.025"	Number of Extra Disks Included: 2	15 ft/s	2 ft/s	Standard	Brass, Stainless Steel, Bronze	Liquids	300 psi	82 °C	4 °C	2.5 in	1.5 in	1 to 3" pipe, less than 1 psi; 4" and above, negligible	1 psi	1 in	NPT Male	10% @ upper end of range; 30% @ lower end of range	15 A	15 A @ 125 or 250 Vac; 10,000,000 operations median	SPDT NO/NC, Selectable	3.5 lb
FSW-51555,890 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Cable Gland for 1/4 in Cable with Screw Terminal block	Electrical Cable Fitting: Water resistant for cable diameter 0.250" ±0.025"	Number of Extra Disks Included: 1	10.8 ft/s	2.7 ft/s	Standard	Stainless Steel, Polyphenylene, FKM	Liquids	100 psi	93 °C	4 °C	2.5 in	1.5 in	1 to 3" pipe, less than 1 psi; 4" and above, negligible	1 psi	1 1/4 in	NPT Male	10% @ upper end of range; 30% @ lower end of range	15 A	15 A @ 125 or 250 Vac; 10,000,000 operations median	SPDT NO/NC, Selectable	6 oz
FSW-50544,380 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Cable Gland for 1/4 in Cable with Screw Terminal block	Electrical Cable Fitting: Water resistant for cable diameter 0.250" ±0.025"	Number of Extra Disks Included: 1	11.5 ft/s	3.3 ft/s	Standard	Stainless Steel, Polyphenylene, FKM	Liquids	100 psi	93 °C	4 °C	1 in	0 in	1 to 3" pipe, less than 1 psi; 4" and above, negligible	1 psi	1 1/4 in	NPT Male	10% @ upper end of range; 30% @ lower end of range	15 A	15 A @ 125 or 250 Vac; 10,000,000 operations median	SPDT NO/NC, Selectable	6 oz
FSW-40A1,007,350 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Cable Gland for 1/4 in Cable with Screw Terminal block	Electrical Cable Fitting: Water resistant for cable diameter 0.250" ±0.025"	Number of Extra Disks Included: 1	15 ft/s	2 ft/s	Standard	Brass, Stainless Steel, Bronze	Liquids	300 psi	82 °C	4 °C	1 in	0 in	1 to 3" pipe, less than 1 psi; 4" and above, negligible	1 psi	1 in	NPT Male	10% @ upper end of range; 30% @ lower end of range	15 A	15 A @ 125 or 250 Vac; 10,000,000 operations median	SPDT NO/NC, Selectable	3.5 lb

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Electrical Connection

Electrical Connection Note

Features

Linear Flow Rate, Max

Linear Flow Rate, Min

Material Construction Option

Materials

Media Compatibility

Operating Pressure, Max

Operating Temperature, Max

Operating Temperature, Min

Pipe Size, Max

Pipe Size, Min

Pressure Drop Note

Pressure Drop, Max

Process Connection Size

Process Connection Type

Sensitivity

Switch Rating

Switch Rating Note

Switch Type

Volumetric Flow Rate, Max

Volumetric Flow Rate, Min

Weight

수량 / 장바구니

FSW-42A-SS1,683,980 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Cable Gland for 1/4 in Cable with Screw Terminal block

Electrical Cable Fitting: Water resistant for cable diameter 0.250" ±0.025"

Number of Extra Disks Included: 3

15 ft/s

2 ft/s

316 Stainless Steel

Brass, Stainless Steel, FKM, PTFE

Liquids

300 psi

82 °C

4 °C

10 in

3 in

1 to 3" pipe, less than 1 psi; 4" and above, negligible

1 in

NPT Male

10% @ upper end of range; 30% @ lower end of range

15 A

15 A @ 125 or 250 Vac; 10,000,000 operations median

SPDT NO/NC, Selectable

0 GPM

3.5 lb

FSW-43A1,064,210 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Cable Gland for 1/4 in Cable with Screw Terminal block

Electrical Cable Fitting: Water resistant for cable diameter 0.250" ±0.025"

Number of Extra Disks Included: 3

15 ft/s

2 ft/s

Standard

Brass, Stainless Steel, Bronze

Liquids

300 psi

82 °C

4 °C

48 in

10 in

1 to 3" pipe, less than 1 psi; 4" and above, negligible

1 in

NPT Male

10% @ upper end of range; 30% @ lower end of range

15 A

15 A @ 125 or 250 Vac; 10,000,000 operations median

SPDT NO/NC, Selectable

0 GPM

3.5 lb

FSW-42A1,062,970 원3 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Cable Gland for 1/4 in Cable with Screw Terminal block

Electrical Cable Fitting: Water resistant for cable diameter 0.250" ±0.025"

Number of Extra Disks Included: 3

15 ft/s

2 ft/s

Standard

Brass, Stainless Steel, Bronze

Liquids

300 psi

82 °C

4 °C

10 in

3 in

1 to 3" pipe, less than 1 psi; 4" and above, negligible

1 in

NPT Male

10% @ upper end of range; 30% @ lower end of range

15 A

15 A @ 125 or 250 Vac; 10,000,000 operations median

SPDT NO/NC, Selectable

0 GPM

3.5 lb

FSW-41A1,064,210 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Cable Gland for 1/4 in Cable with Screw Terminal block

Electrical Cable Fitting: Water resistant for cable diameter 0.250" ±0.025"

Number of Extra Disks Included: 2

15 ft/s

2 ft/s

Standard

Brass, Stainless Steel, Bronze

Liquids

300 psi

82 °C

4 °C

2.5 in

1.5 in

1 to 3" pipe, less than 1 psi; 4" and above, negligible

1 psi

1 in

NPT Male

10% @ upper end of range; 30% @ lower end of range

15 A

15 A @ 125 or 250 Vac; 10,000,000 operations median

SPDT NO/NC, Selectable

0 GPM

3.5 lb

FSW-51555,890 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Cable Gland for 1/4 in Cable with Screw Terminal block

Electrical Cable Fitting: Water resistant for cable diameter 0.250" ±0.025"

Number of Extra Disks Included: 1

10.8 ft/s

2.7 ft/s

Standard

Stainless Steel, Polyphenylene, FKM

Liquids

100 psi

93 °C

4 °C

2.5 in

1.5 in

1 to 3" pipe, less than 1 psi; 4" and above, negligible

1 psi

1 1/4 in

NPT Male

10% @ upper end of range; 30% @ lower end of range

15 A

15 A @ 125 or 250 Vac; 10,000,000 operations median

SPDT NO/NC, Selectable

0 GPM

6 oz

FSW-50544,380 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Cable Gland for 1/4 in Cable with Screw Terminal block

Electrical Cable Fitting: Water resistant for cable diameter 0.250" ±0.025"

Number of Extra Disks Included: 1

11.5 ft/s

3.3 ft/s

Standard

Stainless Steel, Polyphenylene, FKM

Liquids

100 psi

93 °C

4 °C

1 in

0 in

1 to 3" pipe, less than 1 psi; 4" and above, negligible

1 psi

1 1/4 in

NPT Male

10% @ upper end of range; 30% @ lower end of range

15 A

15 A @ 125 or 250 Vac; 10,000,000 operations median

SPDT NO/NC, Selectable

0 GPM

6 oz

FSW-40A1,007,350 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Cable Gland for 1/4 in Cable with Screw Terminal block

Electrical Cable Fitting: Water resistant for cable diameter 0.250" ±0.025"

Number of Extra Disks Included: 1

15 ft/s

2 ft/s

Standard

Brass, Stainless Steel, Bronze

Liquids

300 psi

82 °C

4 °C

1 in

0 in

1 to 3" pipe, less than 1 psi; 4" and above, negligible

1 psi

1 in

NPT Male

10% @ upper end of range; 30% @ lower end of range

15 A

15 A @ 125 or 250 Vac; 10,000,000 operations median

SPDT NO/NC, Selectable

0 GPM

3.5 lb
