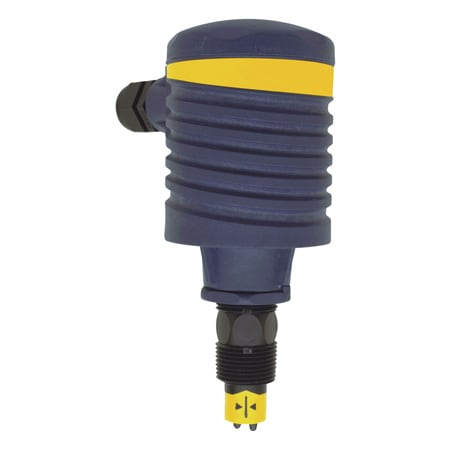

FST200R-Series | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 2개의 상품

제품 번호 / 가격	Brand	Accuracy	Accuracy Detail	Additional Features 1	Adjustments	Approvals	Approvals Note	Cable Length	Diameter	Electrical Connection	Enclosure Ratings	Length	Linear Flow Rate, Max	Linear Flow Rate, Min	Materials	Media Compatibility	Operating Pressure Note	Operating Pressure, Max	Operating Temperature, Max	Operating Temperature, Min	Pipe Size, Max	Pipe Size, Min	Power Consumption	Process Connection Size	Process Connection Type	Process Temperature, Max	Process Temperature, Min	Response Time	Supply Power Note	Supply Voltage	Switch Rating	Switch Rating Note	Switch Type	Thermal Effects	Time Delay	Viscosity Range	Wire Gauge	수량 / 장바구니
FST-221-R1,333,590 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 5 %	±5% of setpoint at constant temperature and flowrate	300° swivel base	-	CE	CE compliance: EN 61326 EMC EN 61010‐1 safety	10 ft	2.8 in	1/2 in NPT female Conduit with Screw Terminal block	IP66, NEMA Type 4X	8.2 in	3 ft/s	0.04 ft/s	Polypropylene, PVDF	Liquids	Maximum Fluid Pressure: PP or PVDF: 150 psi @ 25°C (77°F) derated @ 1.667 psi per °C above 25°C (77°F)	150 psi	60 °C	-40 °C	12 in	2 in	250 mA	3/4 in	NPT Male	60 °C	0 °C	10 sec	120/240 Vac, 50/60 Hz	120/240 Vac	10 A	10 A, 250 Vac, 1⁄2 hp	spdt_no_nc_selectable	0.5%/°C	0 to 60 sec	1 to 200 cPs	22 AWG
FST-211-R1,446,350 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 5 %	±5% of setpoint at constant temperature and flowrate	300° swivel base	Potentiometer	CE	CE compliance: EN 61326 EMC EN 61010‐1 safety	10 ft	2.8 in	1/2 in NPT female Conduit with Screw Terminal block	IP66, NEMA Type 4X	8.2 in	3 ft/s	0.04 ft/s	Polypropylene, PVDF	Liquids	Maximum Fluid Pressure: PP or PVDF: 150 psi @ 25°C (77°F) derated @ 1.667 psi per °C above 25°C (77°F)	150 psi	60 °C	-40 °C	1.5 in	0.75 in	250 mA	3/4 in	NPT Male	60 °C	0 °C	10 sec	120/240 Vac, 50/60 Hz	120/240 Vac	10 A	10 A, 250 Vac, 1⁄2 hp	spdt_no_nc_selectable	0.5%/°C	0 to 60 sec	1 to 200 cPs	22 AWG

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Accuracy Detail

Additional Features 1

Adjustments

Approvals

Approvals Note

Cable Length

Diameter

Electrical Connection

Enclosure Ratings

Length

Linear Flow Rate, Max

Linear Flow Rate, Min

Materials

Media Compatibility

Operating Pressure Note

Operating Pressure, Max

Operating Temperature, Max

Operating Temperature, Min

Pipe Size, Max

Pipe Size, Min

Power Consumption

Process Connection Size

Process Connection Type

Process Temperature, Max

Process Temperature, Min

Response Time

Supply Power Note

Supply Voltage

Switch Rating

Switch Rating Note

Switch Type

Thermal Effects

Time Delay

Viscosity Range

Wire Gauge

수량 / 장바구니

FST-221-R1,333,590 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 5 %

±5% of setpoint at constant temperature and flowrate

300° swivel base

CE compliance: EN 61326 EMC EN 61010‐1 safety

10 ft

2.8 in

1/2 in NPT female Conduit with Screw Terminal block

IP66, NEMA Type 4X

8.2 in

3 ft/s

0.04 ft/s

Polypropylene, PVDF

Liquids

Maximum Fluid Pressure: PP or PVDF: 150 psi @ 25°C (77°F) derated @ 1.667 psi per °C above 25°C (77°F)

150 psi

60 °C

-40 °C

12 in

2 in

250 mA

3/4 in

NPT Male

60 °C

0 °C

10 sec

120/240 Vac, 50/60 Hz

120/240 Vac

10 A

10 A, 250 Vac, 1⁄2 hp

spdt_no_nc_selectable

0.5%/°C

0 to 60 sec

1 to 200 cPs

22 AWG

FST-211-R1,446,350 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 5 %

±5% of setpoint at constant temperature and flowrate

300° swivel base

Potentiometer

CE compliance: EN 61326 EMC EN 61010‐1 safety

10 ft

2.8 in

1/2 in NPT female Conduit with Screw Terminal block

IP66, NEMA Type 4X

8.2 in

3 ft/s

0.04 ft/s

Polypropylene, PVDF

Liquids

Maximum Fluid Pressure: PP or PVDF: 150 psi @ 25°C (77°F) derated @ 1.667 psi per °C above 25°C (77°F)

150 psi

60 °C

-40 °C

1.5 in

0.75 in

250 mA

3/4 in

NPT Male

60 °C

0 °C

10 sec

120/240 Vac, 50/60 Hz

120/240 Vac

10 A

10 A, 250 Vac, 1⁄2 hp

spdt_no_nc_selectable

0.5%/°C

0 to 60 sec

1 to 200 cPs

22 AWG
