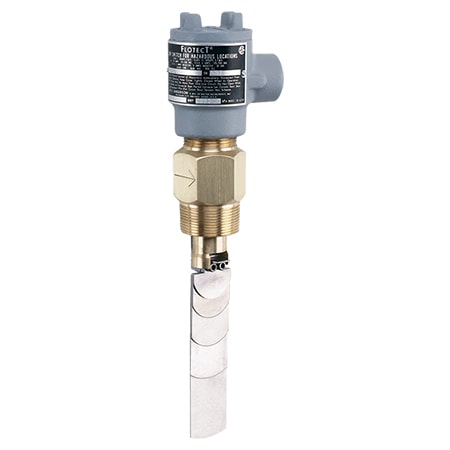

Flotect® 유량 스위치: 방수형, 방폭형, 저유량 보호
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 4개의 상품
| 제품 번호 / 가격 | Brand | Applications | Compliance | Electrical Connection | Enclosure Ratings | Enclosure Ratings Note | Media Compatibility | Mounting Orientation | Operating Temperature, Max | Operating Temperature, Min | Pipe Size, Min | Process Connection Size | Process Connection Type | Process Temperature, Max | Process Temperature, Min | Proof Pressure | Sensor Material | Set Point Adjustment | Switch Rating | Switch Rating Note | Switch Type | Weight | Wire Gauge | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
V4-SS-2-D-U1,738,050 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | Fluid Measurement and Control, HVAC, Oil, Pump Control, Fluid Measurement and Control, HVAC, Oil, Pump Control | Hazardous Location Rated, Hazardous Location Rated | 3/4 in NPT male Conduit with Screw Terminal block, 3/4 in NPT male Conduit with Screw Terminal block | Hazardous Location Rated, Weatherproof, Hazardous Location Rated, Weatherproof | Weatherproof and Explosion-proof. **Listed with UL and CSA for Class I, Groups C and D; Class II, Groups E, F, and G. ATEX 2813 II 2 G Ex db IIB T6 Gb -20°C≤Tamb≤73°C, -20°C≤Process Temp≤73°C. EU-Type Certificate No.: KEMA 03 ATEX 2383. ATEX Standards: EN 60079-0:2012+A11:2013; EN 60079-1:2014. IECEx Certified: For Ex db IIB T6 Gb -20°C≤Tamb≤73°C. -20°C≤ProcessTemp≤73°C. IECEx Certificate of Conformity: IECEx DEK 11.0071.IECEx Standards: IEC 60079-0:2011; IEC 60079-1:2014. Zone I. Also FM approved., Weatherproof and Explosion-proof. **Listed with UL and CSA for Class I, Groups C and D; Class II, Groups E, F, and G. ATEX 2813 II 2 G Ex db IIB T6 Gb -20°C≤Tamb≤73°C, -20°C≤Process Temp≤73°C. EU-Type Certificate No.: KEMA 03 ATEX 2383. ATEX Standards: EN 60079-0:2012+A11:2013; EN 60079-1:2014. IECEx Certified: For Ex db IIB T6 Gb -20°C≤Tamb≤73°C. -20°C≤ProcessTemp≤73°C. IECEx Certificate of Conformity: IECEx DEK 11.0071.IECEx Standards: IEC 60079-0:2011; IEC 60079-1:2014. Zone I. Also FM approved. | Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water, Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water | ± 5° from Vertical, ± 5° from Vertical | 275 °F, 275 °F | -4 °F, -4 °F | 1.5 in, 1.5 in | 1 1/2 in, 1 1/2 in | NPT Male, NPT Male | 163 °F, 163 °F | -4 °F, -4 °F | Up to 2000 psi, Up to 2000 psi | Stainless Steel, Stainless Steel | Vane adjustments, Vane adjustments | 10 A @ 125/250 Vac, 10 A @ 125/250 Vac | UL, FM, ATEX and IECEx models 10 A @ 125/250 VAC (V~). CSA models: 5 A @ 125/250 VAC (V~); 5 A res., 3 A ind. @ 30 VDC(V ). MV option: 1 A @125 VAC (V~); 1 A res., .5 A ind. @ 30 VDC (V ). MT option: 5 A @ 125/250 VAC (V~). [MT and MV option not UL, CSA, FM, ATEX or IECEx], UL, FM, ATEX and IECEx models 10 A @ 125/250 VAC (V~). CSA models: 5 A @ 125/250 VAC (V~); 5 A res., 3 A ind. @ 30 VDC(V ). MV option: 1 A @125 VAC (V~); 1 A res., .5 A ind. @ 30 VDC (V ). MT option: 5 A @ 125/250 VAC (V~). [MT and MV option not UL, CSA, FM, ATEX or IECEx] | DPDT Snap, DPDT Snap | 1.9 kg, 1.9 kg | 16 AWG, 16 AWG | |
V4-SS-2-U1,636,070 원재고 5개 | Dwyer a DwyerOmega Brand | Fluid Measurement and Control, HVAC, Oil, Pump Control, Fluid Measurement and Control, HVAC, Oil, Pump Control | Hazardous Location Rated, Hazardous Location Rated | 3/4 in NPT male Conduit with Screw Terminal block, 3/4 in NPT male Conduit with Screw Terminal block | Hazardous Location Rated, Weatherproof, Hazardous Location Rated, Weatherproof | Weatherproof and Explosion-proof. **Listed with UL and CSA for Class I, Groups C and D; Class II, Groups E, F, and G. ATEX 2813 II 2 G Ex db IIB T6 Gb -20°C≤Tamb≤73°C, -20°C≤Process Temp≤73°C. EU-Type Certificate No.: KEMA 03 ATEX 2383. ATEX Standards: EN 60079-0:2012+A11:2013; EN 60079-1:2014. IECEx Certified: For Ex db IIB T6 Gb -20°C≤Tamb≤73°C. -20°C≤ProcessTemp≤73°C. IECEx Certificate of Conformity: IECEx DEK 11.0071.IECEx Standards: IEC 60079-0:2011; IEC 60079-1:2014. Zone I. Also FM approved., Weatherproof and Explosion-proof. **Listed with UL and CSA for Class I, Groups C and D; Class II, Groups E, F, and G. ATEX 2813 II 2 G Ex db IIB T6 Gb -20°C≤Tamb≤73°C, -20°C≤Process Temp≤73°C. EU-Type Certificate No.: KEMA 03 ATEX 2383. ATEX Standards: EN 60079-0:2012+A11:2013; EN 60079-1:2014. IECEx Certified: For Ex db IIB T6 Gb -20°C≤Tamb≤73°C. -20°C≤ProcessTemp≤73°C. IECEx Certificate of Conformity: IECEx DEK 11.0071.IECEx Standards: IEC 60079-0:2011; IEC 60079-1:2014. Zone I. Also FM approved. | Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water, Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water | ± 5° from Vertical, ± 5° from Vertical | 275 °F, 275 °F | -4 °F, -4 °F | 1.5 in, 1.5 in | 1 1/2 in, 1 1/2 in | NPT Male, NPT Male | 163 °F, 163 °F | -4 °F, -4 °F | Up to 2000 psi, Up to 2000 psi | 316 Stainless Steel, 430 Stainless Steel, 316 Stainless Steel, 430 Stainless Steel | Vane adjustments, Vane adjustments | 10 A @ 125/250 Vac, 10 A @ 125/250 Vac | UL, FM, ATEX and IECEx models 10 A @ 125/250 VAC (V~). CSA models: 5 A @ 125/250 VAC (V~); 5 A res., 3 A ind. @ 30 VDC(V ). MV option: 1 A @125 VAC (V~); 1 A res., .5 A ind. @ 30 VDC (V ). MT option: 5 A @ 125/250 VAC (V~). [MT and MV option not UL, CSA, FM, ATEX or IECEx], UL, FM, ATEX and IECEx models 10 A @ 125/250 VAC (V~). CSA models: 5 A @ 125/250 VAC (V~); 5 A res., 3 A ind. @ 30 VDC(V ). MV option: 1 A @125 VAC (V~); 1 A res., .5 A ind. @ 30 VDC (V ). MT option: 5 A @ 125/250 VAC (V~). [MT and MV option not UL, CSA, FM, ATEX or IECEx] | SPDT Snap, SPDT Snap | 1.9 kg, 1.9 kg | 16 AWG, 16 AWG | |
V4-2-D-U1,276,420 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | Fluid Measurement and Control, HVAC, Oil, Pump Control, Fluid Measurement and Control, HVAC, Oil, Pump Control | Hazardous Location Rated, Hazardous Location Rated | 3/4 in NPT male Conduit with Screw Terminal block, 3/4 in NPT male Conduit with Screw Terminal block | Hazardous Location Rated, Weatherproof, Hazardous Location Rated, Weatherproof | Weatherproof and Explosion-proof. **Listed with UL and CSA for Class I, Groups C and D; Class II, Groups E, F, and G. ATEX 2813 II 2 G Ex db IIB T6 Gb -20°C≤Tamb≤73°C, -20°C≤Process Temp≤73°C. EU-Type Certificate No.: KEMA 03 ATEX 2383. ATEX Standards: EN 60079-0:2012+A11:2013; EN 60079-1:2014. IECEx Certified: For Ex db IIB T6 Gb -20°C≤Tamb≤73°C. -20°C≤ProcessTemp≤73°C. IECEx Certificate of Conformity: IECEx DEK 11.0071.IECEx Standards: IEC 60079-0:2011; IEC 60079-1:2014. Zone I. Also FM approved., Weatherproof and Explosion-proof. **Listed with UL and CSA for Class I, Groups C and D; Class II, Groups E, F, and G. ATEX 2813 II 2 G Ex db IIB T6 Gb -20°C≤Tamb≤73°C, -20°C≤Process Temp≤73°C. EU-Type Certificate No.: KEMA 03 ATEX 2383. ATEX Standards: EN 60079-0:2012+A11:2013; EN 60079-1:2014. IECEx Certified: For Ex db IIB T6 Gb -20°C≤Tamb≤73°C. -20°C≤ProcessTemp≤73°C. IECEx Certificate of Conformity: IECEx DEK 11.0071.IECEx Standards: IEC 60079-0:2011; IEC 60079-1:2014. Zone I. Also FM approved. | Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water, Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water | ± 5° from Vertical, ± 5° from Vertical | 275 °F, 275 °F | -4 °F, -4 °F | 1.5 in, 1.5 in | 1 1/2 in, 1 1/2 in | NPT Male, NPT Male | 163 °F, 163 °F | -4 °F, -4 °F | Up to 1000 psi, Up to 1000 psi | Stainless Steel, Brass, Stainless Steel, Brass | Vane adjustments, Vane adjustments | 10 A @ 125/250 Vac, 10 A @ 125/250 Vac | UL, FM, ATEX and IECEx models 10 A @ 125/250 VAC (V~). CSA models: 5 A @ 125/250 VAC (V~); 5 A res., 3 A ind. @ 30 VDC(V ). MV option: 1 A @125 VAC (V~); 1 A res., .5 A ind. @ 30 VDC (V ). MT option: 5 A @ 125/250 VAC (V~). [MT and MV option not UL, CSA, FM, ATEX or IECEx], UL, FM, ATEX and IECEx models 10 A @ 125/250 VAC (V~). CSA models: 5 A @ 125/250 VAC (V~); 5 A res., 3 A ind. @ 30 VDC(V ). MV option: 1 A @125 VAC (V~); 1 A res., .5 A ind. @ 30 VDC (V ). MT option: 5 A @ 125/250 VAC (V~). [MT and MV option not UL, CSA, FM, ATEX or IECEx] | DPDT Snap, DPDT Snap | 1.9 kg, 1.9 kg | 16 AWG, 16 AWG | |
V4-2-U1,160,640 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | Fluid Measurement and Control, HVAC, Oil, Pump Control, Fluid Measurement and Control, HVAC, Oil, Pump Control | Hazardous Location Rated, Hazardous Location Rated | 3/4 in NPT male Conduit with Screw Terminal block, 3/4 in NPT male Conduit with Screw Terminal block | Hazardous Location Rated, Weatherproof, Hazardous Location Rated, Weatherproof | Weatherproof and Explosion-proof. **Listed with UL and CSA for Class I, Groups C and D; Class II, Groups E, F, and G. ATEX 2813 II 2 G Ex db IIB T6 Gb -20°C≤Tamb≤73°C, -20°C≤Process Temp≤73°C. EU-Type Certificate No.: KEMA 03 ATEX 2383. ATEX Standards: EN 60079-0:2012+A11:2013; EN 60079-1:2014. IECEx Certified: For Ex db IIB T6 Gb -20°C≤Tamb≤73°C. -20°C≤ProcessTemp≤73°C. IECEx Certificate of Conformity: IECEx DEK 11.0071.IECEx Standards: IEC 60079-0:2011; IEC 60079-1:2014. Zone I. Also FM approved., Weatherproof and Explosion-proof. **Listed with UL and CSA for Class I, Groups C and D; Class II, Groups E, F, and G. ATEX 2813 II 2 G Ex db IIB T6 Gb -20°C≤Tamb≤73°C, -20°C≤Process Temp≤73°C. EU-Type Certificate No.: KEMA 03 ATEX 2383. ATEX Standards: EN 60079-0:2012+A11:2013; EN 60079-1:2014. IECEx Certified: For Ex db IIB T6 Gb -20°C≤Tamb≤73°C. -20°C≤ProcessTemp≤73°C. IECEx Certificate of Conformity: IECEx DEK 11.0071.IECEx Standards: IEC 60079-0:2011; IEC 60079-1:2014. Zone I. Also FM approved. | Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water, Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water | ± 5° from Vertical, ± 5° from Vertical | 275 °F, 275 °F | -4 °F, -4 °F | 1.5 in, 1.5 in | 1 1/2 in, 1 1/2 in | NPT Male, NPT Male | 163 °F, 163 °F | -4 °F, -4 °F | Up to 1000 psi, Up to 1000 psi | Stainless Steel, Brass, Stainless Steel, Brass | Vane adjustments, Vane adjustments | 10 A @ 125/250 Vac, 10 A @ 125/250 Vac | UL, FM, ATEX and IECEx models 10 A @ 125/250 VAC (V~). CSA models: 5 A @ 125/250 VAC (V~); 5 A res., 3 A ind. @ 30 VDC(V ). MV option: 1 A @125 VAC (V~); 1 A res., .5 A ind. @ 30 VDC (V ). MT option: 5 A @ 125/250 VAC (V~). [MT and MV option not UL, CSA, FM, ATEX or IECEx], UL, FM, ATEX and IECEx models 10 A @ 125/250 VAC (V~). CSA models: 5 A @ 125/250 VAC (V~); 5 A res., 3 A ind. @ 30 VDC(V ). MV option: 1 A @125 VAC (V~); 1 A res., .5 A ind. @ 30 VDC (V ). MT option: 5 A @ 125/250 VAC (V~). [MT and MV option not UL, CSA, FM, ATEX or IECEx] | SPDT Snap, SPDT Snap | 1.9 kg, 1.9 kg | 16 AWG, 16 AWG |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
