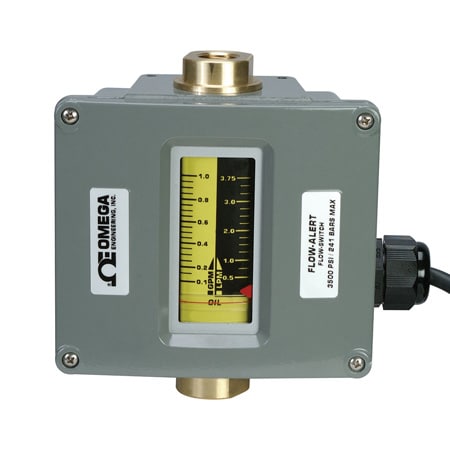

리미트 스위치가 장착된 인라인 가변 면적 유량계
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 14개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Additional Features 1 | Air Flow, Max | Cable Length | Contact Rating | Diameter | Enclosure Ratings | Length | Materials, Wetted | Media Compatibility | Number of Tubes | Operating Pressure, Max | Pressure Drop, Max | Process Connection Size | Process Connection Type | Process Temperature, Max | Repeatability | Scale | Scale Media Calibration | Specific Gravity | Switch Type | Valve Included | Water Flow, Max | Water Flow, Min | Width | Air Flow, Min | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FL-6304B-R21,395,100 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 2 % | 2 Limit Switches | 0 m³/s | 34 in | 10 A @ 250 Vac maximum; 0.5 A @ 125 Vdc maximum | 4 in | IP65, NEMA Type 12 | 6.6 in | Aluminum, Brass, Carbon Steel, Ceramic, FKM, PPS, Silicone, Stainless Steel | Water | 1 | 3500 psi | 3 psi | 1/2 in | NPT Female | 116 °C | ± 1% | Direct Read | Water | 1 | (2) SPDT | false | 5 GPM | 0.5 GPM | 2.82 in | - | |
FL-7940B1,337,930 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 2 % | 1 Limit Switch | 50 SCFM | 34 in | 10 A @ 250 Vac maximum; 0.5 A @ 125 Vdc maximum | 3.3 in | IP65, NEMA Type 12 | 7.2 in | Aluminum, Brass, Carbon Steel, Ceramic, FKM, PPS, Silicone, Stainless Steel | Air | 1 | 1000 psi | 3 psi | 3/4 in | NPT Female | 116 °C | ± 1% | Direct Read | Air @ 100 psi | 1 | SPDT NO/NC, Selectable | false | 0 m³/s | - | 7.3 in | - | |
FL-7918B1,337,930 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 2 % | 1 Limit Switch | 250 SCFM | 34 in | 10 A @ 250 Vac maximum; 0.5 A @ 125 Vdc maximum | 3.3 in | IP65, NEMA Type 12 | 7.2 in | Aluminum, Brass, Carbon Steel, Ceramic, FKM, PPS, Silicone, Stainless Steel | Air | 1 | 1000 psi | 3 psi | 3/4 in | NPT Female | 116 °C | ± 1% | Direct Read | Air @ 100 psi | 1 | SPDT NO/NC, Selectable | false | 0 m³/s | - | 7.3 in | 25 SCFM | |
FL-7825B1,578,050 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 2 % | 1 Limit Switch | 0 m³/s | 34 in | 10 A @ 250 Vac maximum; 0.5 A @ 125 Vdc maximum | 3.3 in | IP65, NEMA Type 12 | 7.2 in | Aluminum, Brass, Carbon Steel, Ceramic, FKM, PPS, Silicone, Stainless Steel | Water | 1 | 3500 psi | 3 psi | 3/4 in | NPT Female | 116 °C | ± 1% | Direct Read | Water | 1 | SPDT NO/NC, Selectable | false | 30 GPM | 3 GPM | 7.3 in | - | |
FL-7615B1,337,930 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 2 % | 1 Limit Switch | 0 m³/s | 34 in | 10 A @ 250 Vac maximum; 0.5 A @ 125 Vdc maximum | 3.3 in | IP65, NEMA Type 12 | 7.2 in | Aluminum, Brass, Carbon Steel, Ceramic, FKM, PPS, Silicone, Stainless Steel | Hydraulic Oil, Light Oil, Oil | 1 | 3500 psi | 3 psi | 3/4 in | NPT Female | 116 °C | ± 1% | Direct Read | Oil | 0.876 | SPDT NO/NC, Selectable | false | 20 GPM | 2 GPM | 7.3 in | - | |
FL-7625B1,337,930 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 2 % | 1 Limit Switch | 0 m³/s | 34 in | 10 A @ 250 Vac maximum; 0.5 A @ 125 Vdc maximum | 3.3 in | IP65, NEMA Type 12 | 7.2 in | Aluminum, Brass, Carbon Steel, Ceramic, FKM, PPS, Silicone, Stainless Steel | Hydraulic Oil, Light Oil, Oil | 1 | 3500 psi | 3 psi | 3/4 in | NPT Female | 116 °C | ± 1% | Direct Read | Oil | 0.876 | SPDT NO/NC, Selectable | false | 30 GPM | 3 GPM | 7.3 in | - | |
FL-7609B1,337,930 원21 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 2 % | 1 Limit Switch | 0 m³/s | 34 in | 10 A @ 250 Vac maximum; 0.5 A @ 125 Vdc maximum | 3.3 in | IP65, NEMA Type 12 | 7.2 in | Aluminum, Brass, Carbon Steel, Ceramic, FKM, PPS, Silicone, Stainless Steel | Hydraulic Oil, Light Oil, Oil | 1 | 3500 psi | 3 psi | 3/4 in | NPT Female | 116 °C | ± 1% | Direct Read | Oil | 0.876 | SPDT NO/NC, Selectable | false | 10 GPM | 1 GPM | 7.3 in | - | |
FL-7605B1,337,930 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 2 % | 1 Limit Switch | 0 m³/s | 34 in | 10 A @ 250 Vac maximum; 0.5 A @ 125 Vdc maximum | 3.3 in | IP65, NEMA Type 12 | 7.2 in | Aluminum, Brass, Carbon Steel, Ceramic, FKM, PPS, Silicone, Stainless Steel | Hydraulic Oil, Light Oil, Oil | 1 | 3500 psi | 3 psi | 3/4 in | NPT Female | 116 °C | ± 1% | Direct Read | Oil | 0.876 | SPDT NO/NC, Selectable | false | 5 GPM | 0.5 GPM | 7.3 in | - | |
FL-6720B1,109,180 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 2 % | 1 Limit Switch | 25 SCFM | 34 in | 10 A @ 250 Vac maximum; 0.5 A @ 125 Vdc maximum | 4 in | IP65, NEMA Type 12 | 6.6 in | Aluminum, Brass, Carbon Steel, Ceramic, FKM, PPS, Silicone, Stainless Steel | Air | 1 | 1000 psi | 3 psi | 1/2 in | NPT Female | 116 °C | ± 1% | Direct Read | Air @ 100 psi | 1 | SPDT NO/NC, Selectable | false | 0 m³/s | - | 2.82 in | 3 SCFM | |
FL-6312B1,235,010 원14 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 2 % | 1 Limit Switch | 0 m³/s | 34 in | 10 A @ 250 Vac maximum; 0.5 A @ 125 Vdc maximum | 4 in | IP65, NEMA Type 12 | 6.6 in | Aluminum, Brass, Carbon Steel, Ceramic, FKM, PPS, Silicone, Stainless Steel | Water | 1 | 3500 psi | 3 psi | 1/2 in | NPT Female | 116 °C | ± 1% | Direct Read | Water | 1 | SPDT NO/NC, Selectable | false | 15 GPM | 1 GPM | 2.82 in | - | |
FL-6304B1,235,010 원17 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 2 % | 1 Limit Switch | 0 m³/s | 34 in | 10 A @ 250 Vac maximum; 0.5 A @ 125 Vdc maximum | 4 in | IP65, NEMA Type 12 | 6.6 in | Aluminum, Brass, Carbon Steel, Ceramic, FKM, PPS, Silicone, Stainless Steel | Water | 1 | 3500 psi | 3 psi | 1/2 in | NPT Female | 116 °C | ± 1% | Direct Read | Water | 1 | SPDT NO/NC, Selectable | false | 5 GPM | 0.5 GPM | 2.82 in | - | |
FL-6102B1,109,180 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 2 % | 1 Limit Switch | 0 m³/s | 34 in | 10 A @ 250 Vac maximum; 0.5 A @ 125 Vdc maximum | 4 in | IP65, NEMA Type 12 | 6.6 in | Aluminum, Brass, Carbon Steel, Ceramic, FKM, PPS, Silicone, Stainless Steel | Hydraulic Oil, Light Oil, Oil | 1 | 3500 psi | 3 psi | 1/2 in | NPT Female | 116 °C | ± 1% | Direct Read | Oil | 0.876 | SPDT NO/NC, Selectable | false | 2 GPM | 0.2 GPM | 2.82 in | - | |
FL-6101B1,109,180 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 2 % | 1 Limit Switch | 0 m³/s | 34 in | 10 A @ 250 Vac maximum; 0.5 A @ 125 Vdc maximum | 4 in | IP65, NEMA Type 12 | 6.6 in | Aluminum, Brass, Carbon Steel, Ceramic, FKM, PPS, Silicone, Stainless Steel | Hydraulic Oil, Light Oil, Oil | 1 | 3500 psi | 3 psi | 1/2 in | NPT Female | 116 °C | ± 1% | Direct Read | Oil | 0.876 | SPDT NO/NC, Selectable | false | 1 GPM | 0.1 GPM | 2.82 in | - | |
FL-6318B1,235,010 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 2 % | 1 Limit Switch | 0 m³/s | 34 in | 10 A @ 250 Vac maximum; 0.5 A @ 125 Vdc maximum | 4 in | IP65, NEMA Type 12 | 6.6 in | Aluminum, Brass, Carbon Steel, Ceramic, FKM, PPS, Silicone, Stainless Steel | Water | 1 | 3500 psi | 3 psi | 1/2 in | NPT Female | 116 °C | ± 1% | Direct Read | Water | 1 | SPDT NO/NC, Selectable | false | 2 GPM | 0.2 GPM | 2.82 in | - |
