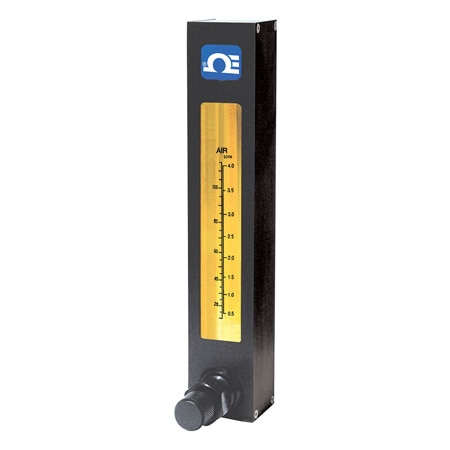

직독 인라인 가변 면적 유량계
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 16개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Additional Features 1 | Air Flow, Max | Air Flow, Min | Leak Rate Under Vacuum | Materials | Materials, Wetted | Media Compatibility | Mounting | Mounting Orientation | Number of Tubes | Operating Pressure, Max | Process Connection Size | Process Connection Type | Process Temperature, Max | Scale | Scale Length | Scale Length Note | Valve Included | Water Flow, Max | Water Flow, Min | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FLD12061,570,390 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 5 % | Dual Reading Scale | 22 SCFM | 2.2 SCFM | less than 10^⁻⁷ cc He/s | Polycarbonate, PTFE | Borosilicate, PTFE | Air, Water | In-Line | In-Line | 1 | 100 psi | 3/8 in | NPT Female | 65 °C | Direct Read | 127 mm | Scales: Rotatable, direct reading air (SCFM-SLPM) and water (GPM-LPM). Scale length is 127 mm (5") nominal | true | 4.1 GPM | 0.41 GPM | |
FLD12051,570,390 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 5 % | Dual Reading Scale | 17.5 SCFM | 1.75 SCFM | less than 10^⁻⁷ cc He/s | Polycarbonate, PTFE | Borosilicate, PTFE | Air, Water | In-Line | In-Line | 1 | 100 psi | 3/8 in | NPT Female | 65 °C | Direct Read | 127 mm | Scales: Rotatable, direct reading air (SCFM-SLPM) and water (GPM-LPM). Scale length is 127 mm (5") nominal | true | 3.5 GPM | 0.35 GPM | |
FLD12041,570,390 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 5 % | Dual Reading Scale | 14 SCFM | 1.4 SCFM | less than 10^⁻⁷ cc He/s | Polycarbonate, PTFE | Borosilicate, PTFE | Air, Water | In-Line | In-Line | 1 | 100 psi | 3/8 in | NPT Female | 65 °C | Direct Read | 127 mm | Scales: Rotatable, direct reading air (SCFM-SLPM) and water (GPM-LPM). Scale length is 127 mm (5") nominal | true | 2.9 GPM | 0.29 GPM | |
FLD12021,570,390 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 5 % | Dual Reading Scale | 7 SCFM | 0.7 SCFM | less than 10^⁻⁷ cc He/s | Polycarbonate, PTFE | Borosilicate, PTFE | Air, Water | In-Line | In-Line | 1 | 100 psi | 3/8 in | NPT Female | 65 °C | Direct Read | 127 mm | Scales: Rotatable, direct reading air (SCFM-SLPM) and water (GPM-LPM). Scale length is 127 mm (5") nominal | true | 1.5 GPM | 0.15 GPM | |
FLD12031,570,390 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 5 % | Dual Reading Scale | 10.5 SCFM | 1.05 SCFM | less than 10^⁻⁷ cc He/s | Polycarbonate, PTFE | Borosilicate, PTFE | Air, Water | In-Line | In-Line | 1 | 100 psi | 3/8 in | NPT Female | 65 °C | Direct Read | 127 mm | Scales: Rotatable, direct reading air (SCFM-SLPM) and water (GPM-LPM). Scale length is 127 mm (5") nominal | true | 2.2 GPM | 0.22 GPM | |
FLD11051,031,370 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 5 % | Dual Reading Scale | 30 SCFM | 3 SCFM | less than 10^⁻⁷ cc He/s | Brass, Polycarbonate, FKM | 316 Stainless Steel, Borosilicate, Brass | Air, Water | In-Line | In-Line | 1 | 150 psi | 3/8 in | NPT Female | 121 °C | Direct Read | 127 mm | Scales: Rotatable, direct reading air (SCFM-SLPM) and water (GPM-LPM). Scale length is 127 mm (5") nominal | true | 5 GPM | 0.5 GPM | |
FLD12011,570,390 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 5 % | Dual Reading Scale | 3.5 SCFM | 0.35 SCFM | less than 10^⁻⁷ cc He/s | Polycarbonate, PTFE | Borosilicate, PTFE | Air, Water | In-Line | In-Line | 1 | 100 psi | 3/8 in | NPT Female | 65 °C | Direct Read | 127 mm | Scales: Rotatable, direct reading air (SCFM-SLPM) and water (GPM-LPM). Scale length is 127 mm (5") nominal | true | 0.8 GPM | 0.08 GPM | |
FLD11041,031,370 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 5 % | Dual Reading Scale | 20 SCFM | 2 SCFM | less than 10^⁻⁷ cc He/s | Brass, Polycarbonate, FKM | 316 Stainless Steel, Borosilicate, Brass | Air, Water | In-Line | In-Line | 1 | 150 psi | 3/8 in | NPT Female | 121 °C | Direct Read | 127 mm | Scales: Rotatable, direct reading air (SCFM-SLPM) and water (GPM-LPM). Scale length is 127 mm (5") nominal | true | 4 GPM | 0.4 GPM | |
FLD11031,031,370 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 5 % | Dual Reading Scale | 15 SCFM | 1.5 SCFM | less than 10^⁻⁷ cc He/s | Brass, Polycarbonate, FKM | 316 Stainless Steel, Borosilicate, Brass | Air, Water | In-Line | In-Line | 1 | 150 psi | 3/8 in | NPT Female | 121 °C | Direct Read | 127 mm | Scales: Rotatable, direct reading air (SCFM-SLPM) and water (GPM-LPM). Scale length is 127 mm (5") nominal | true | 3 GPM | 0.3 GPM | |
FLD1101959,860 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 5 % | Dual Reading Scale | 5 SCFM | 0.5 SCFM | less than 10^⁻⁷ cc He/s | Brass, Polycarbonate, FKM | 316 Stainless Steel, Borosilicate, Brass | Air, Water | In-Line | In-Line | 1 | 150 psi | 3/8 in | NPT Female | 121 °C | Direct Read | 127 mm | Scales: Rotatable, direct reading air (SCFM-SLPM) and water (GPM-LPM). Scale length is 127 mm (5") nominal | true | 1.2 GPM | 0.12 GPM | |
FLD11021,031,370 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 5 % | Dual Reading Scale | 10 SCFM | 1 SCFM | less than 10^⁻⁷ cc He/s | Brass, Polycarbonate, FKM | 316 Stainless Steel, Borosilicate, Brass | Air, Water | In-Line | In-Line | 1 | 150 psi | 3/8 in | NPT Female | 121 °C | Direct Read | 127 mm | Scales: Rotatable, direct reading air (SCFM-SLPM) and water (GPM-LPM). Scale length is 127 mm (5") nominal | true | 2 GPM | 0.2 GPM | |
FLD10051,461,680 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 5 % | Dual Reading Scale | 30 SCFM | 3 SCFM | less than 10^⁻⁷ cc He/s | Stainless Steel, Polycarbonate, FKM | 316 Stainless Steel, Borosilicate, Stainless Steel | Air, Water | In-Line | In-Line | 1 | 150 psi | 3/8 in | NPT Female | 121 °C | Direct Read | 127 mm | Scales: Rotatable, direct reading air (SCFM-SLPM) and water (GPM-LPM). Scale length is 127 mm (5") nominal | true | 5 GPM | 0.5 GPM | |
FLD10041,461,680 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 5 % | Dual Reading Scale | 20 SCFM | 2 SCFM | less than 10^⁻⁷ cc He/s | Stainless Steel, Polycarbonate, FKM | 316 Stainless Steel, Borosilicate, Stainless Steel | Air, Water | In-Line | In-Line | 1 | 150 psi | 3/8 in | NPT Female | 121 °C | Direct Read | 127 mm | Scales: Rotatable, direct reading air (SCFM-SLPM) and water (GPM-LPM). Scale length is 127 mm (5") nominal | true | 4 GPM | 0.4 GPM | |
FLD10031,461,680 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 5 % | Dual Reading Scale | 15 SCFM | 1.5 SCFM | less than 10^⁻⁷ cc He/s | Stainless Steel, Polycarbonate, FKM | 316 Stainless Steel, Borosilicate, Stainless Steel | Air, Water | In-Line | In-Line | 1 | 150 psi | 3/8 in | NPT Female | 121 °C | Direct Read | 127 mm | Scales: Rotatable, direct reading air (SCFM-SLPM) and water (GPM-LPM). Scale length is 127 mm (5") nominal | true | 3 GPM | 0.3 GPM | |
FLD10021,461,680 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 5 % | Dual Reading Scale | 10 SCFM | 1 SCFM | less than 10^⁻⁷ cc He/s | Stainless Steel, Polycarbonate, FKM | 316 Stainless Steel, Borosilicate, Stainless Steel | Air, Water | In-Line | In-Line | 1 | 150 psi | 3/8 in | NPT Female | 121 °C | Direct Read | 127 mm | Scales: Rotatable, direct reading air (SCFM-SLPM) and water (GPM-LPM). Scale length is 127 mm (5") nominal | true | 2 GPM | 0.2 GPM | |
FLD10011,480,950 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 5 % | Dual Reading Scale | 5 SCFM | 0.5 SCFM | less than 10^⁻⁷ cc He/s | Stainless Steel, Polycarbonate, FKM | 316 Stainless Steel, Borosilicate, Stainless Steel | Air, Water | In-Line | In-Line | 1 | 150 psi | 3/8 in | NPT Female | 121 °C | Direct Read | 127 mm | Scales: Rotatable, direct reading air (SCFM-SLPM) and water (GPM-LPM). Scale length is 127 mm (5") nominal | true | 1.2 GPM | 0.12 GPM |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
