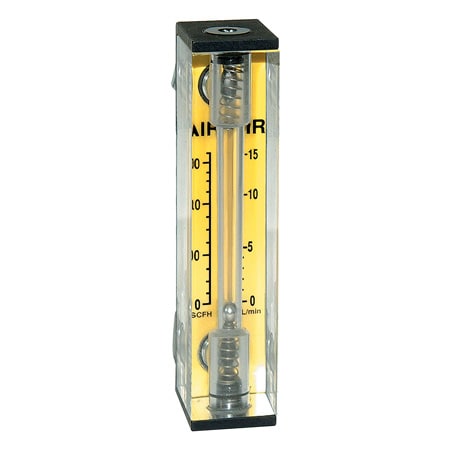

FL-2500-Series | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 28개의 상품 · 1 - 20 표시

제품 번호 / 가격	Brand	Accuracy	Air Flow, Max	Air Flow, Min	Argon Flow, Max	Argon Flow, Min	CO2 Flow, Max	CO2 Flow, Min	Float Type	Helium Flow, Max	Helium Flow, Min	Materials	Materials, Wetted	Media Compatibility	Mounting	Nitrogen Flow, Max	Nitrogen Flow, Min	Operating Pressure, Max	Oxygen Flow, Max	Oxygen Flow, Min	Process Connection Note	Process Connection Size	Process Connection Type	Process Temperature, Max	Scale	Valve Included	Water Flow, Max	Water Flow, Min
FL-2517-V257,130 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 5 %	50 SLM	5 SLM	40 SLM	3.5 SLM	35 SLM	3.5 SLM	Stainless Steel	110 SLM	11 SLM	Acrylic, Stainless Steel	Acrylic, FKM, Stainless Steel	Air, Argon, Carbon dioxide, Helium, Nitrogen, Oxygen, Water	Panel Mount	45 SLM	4.5 SLM	100 psi	45 SLM	4.5 SLM	1⁄8 NPT female connections, built-in needle valves and seal plugs, brass or stainless (model dependent)	1/8 in	NPT Female	65 °C	Direct Read	true	1400 cm³/min	140 cm³/min
FL-2516-V220,720 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 5 %	22 SLM	2.2 SLM	18 SLM	1.8 SLM	18 SLM	1.8 SLM	Carboloy	55 SLM	5.5 SLM	Acrylic, Stainless Steel	Acrylic, FKM, Stainless Steel, Tungsten Carbide	Air, Argon, Carbon dioxide, Helium, Nitrogen, Oxygen, Water	Panel Mount	22 SLM	2.2 SLM	100 psi	20 SLM	2 SLM	1⁄8 NPT female connections, built-in needle valves and seal plugs, brass or stainless (model dependent)	1/8 in	NPT Female	65 °C	Direct Read	true	700 cm³/min	70 cm³/min
FL-2515-V203,440 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 5 %	16 SLM	1.6 SLM	13 SLM	1.3 SLM	12 SLM	1.2 SLM	Stainless Steel	35 SLM	3.5 SLM	Acrylic, Stainless Steel	Acrylic, FKM, Stainless Steel	Air, Argon, Carbon dioxide, Helium, Nitrogen, Oxygen, Water	Panel Mount	16 SLM	1.6 SLM	100 psi	15 SLM	1.5 SLM	1⁄8 NPT female connections, built-in needle valves and seal plugs, brass or stainless (model dependent)	1/8 in	NPT Female	65 °C	Direct Read	true	450 cm³/min	45 cm³/min
FL-2514-V203,440 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 5 %	8.5 SLM	0.85 SLM	7 SLM	0.7 SLM	7 SLM	0.7 SLM	Borosilicate Glass	18 SLM	1.8 SLM	Acrylic, Stainless Steel	Acrylic, FKM, Glass, Stainless Steel	Air, Argon, Carbon dioxide, Helium, Nitrogen, Oxygen, Water	Panel Mount	8 SLM	0.8 SLM	100 psi	8 SLM	0.8 SLM	1⁄8 NPT female connections, built-in needle valves and seal plugs, brass or stainless (model dependent)	1/8 in	NPT Female	65 °C	Direct Read	true	175 cm³/min	17.5 cm³/min
FL-2512-V200,810 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 5 %	2.75 SLM	0.275 SLM	2.2 SLM	0.22 SLM	2.2 SLM	0.22 SLM	Stainless Steel	5.5 SLM	0.55 SLM	Acrylic, Stainless Steel	Acrylic, FKM, Stainless Steel	Air, Argon, Carbon dioxide, Helium, Nitrogen, Oxygen, Water	Panel Mount	2.75 SLM	0.275 SLM	100 psi	2.5 SLM	0.25 SLM	1⁄8 NPT female connections, built-in needle valves and seal plugs, brass or stainless (model dependent)	1/8 in	NPT Female	65 °C	Direct Read	true	70 cm³/min	7 cm³/min
FL-2513-V203,440 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 5 %	3.5 SLM	0.35 SLM	3 SLM	0.3 SLM	3 SLM	0.3 SLM	Carboloy	8 SLM	0.8 SLM	Acrylic, Stainless Steel	Acrylic, FKM, Stainless Steel, Tungsten Carbide	Air, Argon, Carbon dioxide, Helium, Nitrogen, Oxygen, Water	Panel Mount	3.5 SLM	0.35 SLM	100 psi	3.5 SLM	0.35 SLM	1⁄8 NPT female connections, built-in needle valves and seal plugs, brass or stainless (model dependent)	1/8 in	NPT Female	65 °C	Direct Read	true	100 cm³/min	10 cm³/min
FL-2511-V200,810 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 5 %	1.4 SLM	0.14 SLM	1.1 SLM	0.11 SLM	1.1 SLM	0.11 SLM	Borosilicate Glass	2 SLM	0.2 SLM	Acrylic, Stainless Steel	Acrylic, FKM, Glass, Stainless Steel	Air, Argon, Carbon dioxide, Helium, Nitrogen, Oxygen, Water	Panel Mount	1.3 SLM	0.13 SLM	100 psi	1.2 SLM	0.12 SLM	1⁄8 NPT female connections, built-in needle valves and seal plugs, brass or stainless (model dependent)	1/8 in	NPT Female	65 °C	Direct Read	true	20 cm³/min	2 cm³/min
FL-2507-V236,350 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 5 %	50 SLM	5 SLM	40 SLM	3.5 SLM	35 SLM	3.5 SLM	Stainless Steel	110 SLM	11 SLM	Acrylic, Brass	Acrylic, Brass, Buna-N (NBR), Stainless Steel	Air, Argon, Carbon dioxide, Helium, Nitrogen, Oxygen, Water	Panel Mount	45 SLM	4.5 SLM	100 psi	45 SLM	4.5 SLM	1⁄8 NPT female connections, built-in needle valves and seal plugs, brass or stainless (model dependent)	1/8 in	NPT Female	65 °C	Direct Read	true	1400 cm³/min	140 cm³/min
FL-2505-V202,960 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 5 %	16 SLM	1.6 SLM	13 SLM	1.3 SLM	12 SLM	1.2 SLM	Stainless Steel	35 SLM	3.5 SLM	Acrylic, Brass	Acrylic, Brass, Buna-N (NBR), Stainless Steel	Air, Argon, Carbon dioxide, Helium, Nitrogen, Oxygen, Water	Panel Mount	16 SLM	1.6 SLM	100 psi	15 SLM	1.5 SLM	1⁄8 NPT female connections, built-in needle valves and seal plugs, brass or stainless (model dependent)	1/8 in	NPT Female	65 °C	Direct Read	true	450 cm³/min	45 cm³/min
FL-2506-V205,630 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 5 %	22 SLM	2.2 SLM	18 SLM	1.8 SLM	18 SLM	1.8 SLM	Carboloy	55 SLM	5.5 SLM	Acrylic, Brass	Acrylic, Brass, Buna-N (NBR), Tungsten Carbide	Air, Argon, Carbon dioxide, Helium, Nitrogen, Oxygen, Water	Panel Mount	22 SLM	2.2 SLM	100 psi	20 SLM	2 SLM	1⁄8 NPT female connections, built-in needle valves and seal plugs, brass or stainless (model dependent)	1/8 in	NPT Female	65 °C	Direct Read	true	700 cm³/min	70 cm³/min
FL-2504-V205,630 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 5 %	8.5 SLM	0.85 SLM	7 SLM	0.7 SLM	7 SLM	0.7 SLM	Borosilicate Glass	18 SLM	1.8 SLM	Acrylic, Brass	Acrylic, Brass, Buna-N (NBR), Glass	Air, Argon, Carbon dioxide, Helium, Nitrogen, Oxygen, Water	Panel Mount	8 SLM	0.8 SLM	100 psi	8 SLM	0.8 SLM	1⁄8 NPT female connections, built-in needle valves and seal plugs, brass or stainless (model dependent)	1/8 in	NPT Female	65 °C	Direct Read	true	175 cm³/min	17.5 cm³/min
FL-2503-V202,960 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 5 %	3.5 SLM	0.35 SLM	3 SLM	0.3 SLM	3 SLM	0.3 SLM	Carboloy	8 SLM	0.8 SLM	Acrylic, Brass	Acrylic, Brass, Buna-N (NBR), Tungsten Carbide	Air, Argon, Carbon dioxide, Helium, Nitrogen, Oxygen, Water	Panel Mount	3.5 SLM	0.35 SLM	100 psi	3.5 SLM	0.35 SLM	1⁄8 NPT female connections, built-in needle valves and seal plugs, brass or stainless (model dependent)	1/8 in	NPT Female	65 °C	Direct Read	true	100 cm³/min	10 cm³/min
FL-2502-V202,960 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 5 %	2.75 SLM	0.275 SLM	2.2 SLM	0.22 SLM	2.2 SLM	0.22 SLM	Stainless Steel	5.5 SLM	0.55 SLM	Acrylic, Brass	Acrylic, Brass, Buna-N (NBR), Stainless Steel	Air, Argon, Carbon dioxide, Helium, Nitrogen, Oxygen, Water	Panel Mount	2.75 SLM	0.275 SLM	100 psi	2.5 SLM	0.25 SLM	1⁄8 NPT female connections, built-in needle valves and seal plugs, brass or stainless (model dependent)	1/8 in	NPT Female	65 °C	Direct Read	true	70 cm³/min	7 cm³/min
FL-2517209,100 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 5 %	50 SLM	5 SLM	40 SLM	3.5 SLM	35 SLM	3.5 SLM	Stainless Steel	110 SLM	11 SLM	Acrylic, Stainless Steel	Acrylic, FKM, Stainless Steel	Air, Argon, Carbon dioxide, Helium, Nitrogen, Oxygen, Water	Panel Mount	45 SLM	4.5 SLM	100 psi	45 SLM	4.5 SLM	1⁄8 NPT female connections, built-in needle valves and seal plugs, brass or stainless (model dependent)	1/8 in	NPT Female	65 °C	Direct Read	false	1400 cm³/min	140 cm³/min
FL-2501-V202,960 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 5 %	1.4 SLM	0.14 SLM	1.1 SLM	0.11 SLM	1.1 SLM	0.11 SLM	Borosilicate Glass	2 SLM	0.2 SLM	Acrylic, Brass	Acrylic, Brass, Buna-N (NBR), Glass	Air, Argon, Carbon dioxide, Helium, Nitrogen, Oxygen, Water	Panel Mount	1.3 SLM	0.13 SLM	100 psi	1.2 SLM	0.12 SLM	1⁄8 NPT female connections, built-in needle valves and seal plugs, brass or stainless (model dependent)	1/8 in	NPT Female	65 °C	Direct Read	true	20 cm³/min	2 cm³/min
FL-2516182,220 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 5 %	22 SLM	2.2 SLM	18 SLM	1.8 SLM	18 SLM	1.8 SLM	Carboloy	55 SLM	5.5 SLM	Acrylic, Stainless Steel	Acrylic, FKM, Stainless Steel, Tungsten Carbide	Air, Argon, Carbon dioxide, Helium, Nitrogen, Oxygen, Water	Panel Mount	22 SLM	2.2 SLM	100 psi	20 SLM	2 SLM	1⁄8 NPT female connections, built-in needle valves and seal plugs, brass or stainless (model dependent)	1/8 in	NPT Female	65 °C	Direct Read	false	700 cm³/min	70 cm³/min
FL-2515182,220 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 5 %	16 SLM	1.6 SLM	13 SLM	1.3 SLM	12 SLM	1.2 SLM	Stainless Steel	35 SLM	3.5 SLM	Acrylic, Stainless Steel	Acrylic, FKM, Stainless Steel	Air, Argon, Carbon dioxide, Helium, Nitrogen, Oxygen, Water	Panel Mount	16 SLM	1.6 SLM	100 psi	15 SLM	1.5 SLM	1⁄8 NPT female connections, built-in needle valves and seal plugs, brass or stainless (model dependent)	1/8 in	NPT Female	65 °C	Direct Read	false	450 cm³/min	45 cm³/min
FL-2513182,220 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 5 %	3.5 SLM	0.35 SLM	3 SLM	0.3 SLM	3 SLM	0.3 SLM	Carboloy	8 SLM	0.8 SLM	Acrylic, Stainless Steel	Acrylic, FKM, Stainless Steel, Tungsten Carbide	Air, Argon, Carbon dioxide, Helium, Nitrogen, Oxygen, Water	Panel Mount	3.5 SLM	0.35 SLM	100 psi	3.5 SLM	0.35 SLM	1⁄8 NPT female connections, built-in needle valves and seal plugs, brass or stainless (model dependent)	1/8 in	NPT Female	65 °C	Direct Read	false	100 cm³/min	10 cm³/min
FL-2514184,640 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 5 %	8.5 SLM	0.85 SLM	7 SLM	0.7 SLM	7 SLM	0.7 SLM	Borosilicate Glass	18 SLM	1.8 SLM	Acrylic, Stainless Steel	Acrylic, FKM, Glass, Stainless Steel	Air, Argon, Carbon dioxide, Helium, Nitrogen, Oxygen, Water	Panel Mount	8 SLM	0.8 SLM	100 psi	8 SLM	0.8 SLM	1⁄8 NPT female connections, built-in needle valves and seal plugs, brass or stainless (model dependent)	1/8 in	NPT Female	65 °C	Direct Read	false	175 cm³/min	17.5 cm³/min
FL-2511184,640 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 5 %	1.4 SLM	0.14 SLM	1.1 SLM	0.11 SLM	1.1 SLM	0.11 SLM	Borosilicate Glass	2 SLM	0.2 SLM	Acrylic, Stainless Steel	Acrylic, FKM, Glass, Stainless Steel	Air, Argon, Carbon dioxide, Helium, Nitrogen, Oxygen, Water	Panel Mount	1.3 SLM	0.13 SLM	100 psi	1.2 SLM	0.12 SLM	1⁄8 NPT female connections, built-in needle valves and seal plugs, brass or stainless (model dependent)	1/8 in	NPT Female	65 °C	Direct Read	false	20 cm³/min	2 cm³/min

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Air Flow, Max

Air Flow, Min

Argon Flow, Max

Argon Flow, Min

CO2 Flow, Max

CO2 Flow, Min

Float Type

Helium Flow, Max

Helium Flow, Min

Materials

Materials, Wetted

Media Compatibility

Mounting

Nitrogen Flow, Max

Nitrogen Flow, Min

Operating Pressure, Max

Oxygen Flow, Max

Oxygen Flow, Min

Process Connection Note

Process Connection Size

Process Connection Type

Process Temperature, Max

Scale

Valve Included

Water Flow, Max

Water Flow, Min

수량 / 장바구니

FL-2517-V257,130 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 5 %

50 SLM

5 SLM

40 SLM

3.5 SLM

35 SLM

3.5 SLM

Stainless Steel

110 SLM

11 SLM

Acrylic, Stainless Steel

Acrylic, FKM, Stainless Steel

Air, Argon, Carbon dioxide, Helium, Nitrogen, Oxygen, Water

Panel Mount

45 SLM

4.5 SLM

100 psi

45 SLM

4.5 SLM

1⁄8 NPT female connections, built-in needle valves and seal plugs, brass or stainless (model dependent)

1/8 in

NPT Female

65 °C

Direct Read

true

1400 cm³/min

140 cm³/min

FL-2516-V220,720 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 5 %

22 SLM

2.2 SLM

18 SLM

1.8 SLM

18 SLM

1.8 SLM

Carboloy

55 SLM

5.5 SLM

Acrylic, Stainless Steel

Acrylic, FKM, Stainless Steel, Tungsten Carbide

Air, Argon, Carbon dioxide, Helium, Nitrogen, Oxygen, Water

Panel Mount

22 SLM

2.2 SLM

100 psi

20 SLM

2 SLM

1⁄8 NPT female connections, built-in needle valves and seal plugs, brass or stainless (model dependent)

1/8 in

NPT Female

65 °C

Direct Read

true

700 cm³/min

70 cm³/min

FL-2515-V203,440 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 5 %

16 SLM

1.6 SLM

13 SLM

1.3 SLM

12 SLM

1.2 SLM

Stainless Steel

35 SLM

3.5 SLM

Acrylic, Stainless Steel

Acrylic, FKM, Stainless Steel

Air, Argon, Carbon dioxide, Helium, Nitrogen, Oxygen, Water

Panel Mount

16 SLM

1.6 SLM

100 psi

15 SLM

1.5 SLM

1⁄8 NPT female connections, built-in needle valves and seal plugs, brass or stainless (model dependent)

1/8 in

NPT Female

65 °C

Direct Read

true

450 cm³/min

45 cm³/min

FL-2514-V203,440 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 5 %

8.5 SLM

0.85 SLM

7 SLM

0.7 SLM

7 SLM

0.7 SLM

Borosilicate Glass

18 SLM

1.8 SLM

Acrylic, Stainless Steel

Acrylic, FKM, Glass, Stainless Steel

Air, Argon, Carbon dioxide, Helium, Nitrogen, Oxygen, Water

Panel Mount

8 SLM

0.8 SLM

100 psi

8 SLM

0.8 SLM

1⁄8 NPT female connections, built-in needle valves and seal plugs, brass or stainless (model dependent)

1/8 in

NPT Female

65 °C

Direct Read

true

175 cm³/min

17.5 cm³/min

FL-2512-V200,810 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 5 %

2.75 SLM

0.275 SLM

2.2 SLM

0.22 SLM

2.2 SLM

0.22 SLM

Stainless Steel

5.5 SLM

0.55 SLM

Acrylic, Stainless Steel

Acrylic, FKM, Stainless Steel

Air, Argon, Carbon dioxide, Helium, Nitrogen, Oxygen, Water

Panel Mount

2.75 SLM

0.275 SLM

100 psi

2.5 SLM

0.25 SLM

1⁄8 NPT female connections, built-in needle valves and seal plugs, brass or stainless (model dependent)

1/8 in

NPT Female

65 °C

Direct Read

true

70 cm³/min

7 cm³/min

FL-2513-V203,440 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 5 %

3.5 SLM

0.35 SLM

3 SLM

0.3 SLM

3 SLM

0.3 SLM

Carboloy

8 SLM

0.8 SLM

Acrylic, Stainless Steel

Acrylic, FKM, Stainless Steel, Tungsten Carbide

Air, Argon, Carbon dioxide, Helium, Nitrogen, Oxygen, Water

Panel Mount

3.5 SLM

0.35 SLM

100 psi

3.5 SLM

0.35 SLM

1⁄8 NPT female connections, built-in needle valves and seal plugs, brass or stainless (model dependent)

1/8 in

NPT Female

65 °C

Direct Read

true

100 cm³/min

10 cm³/min

FL-2511-V200,810 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 5 %

1.4 SLM

0.14 SLM

1.1 SLM

0.11 SLM

1.1 SLM

0.11 SLM

Borosilicate Glass

2 SLM

0.2 SLM

Acrylic, Stainless Steel

Acrylic, FKM, Glass, Stainless Steel

Air, Argon, Carbon dioxide, Helium, Nitrogen, Oxygen, Water

Panel Mount

1.3 SLM

0.13 SLM

100 psi

1.2 SLM

0.12 SLM

1⁄8 NPT female connections, built-in needle valves and seal plugs, brass or stainless (model dependent)

1/8 in

NPT Female

65 °C

Direct Read

true

20 cm³/min

2 cm³/min

FL-2507-V236,350 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 5 %

50 SLM

5 SLM

40 SLM

3.5 SLM

35 SLM

3.5 SLM

Stainless Steel

110 SLM

11 SLM

Acrylic, Brass

Acrylic, Brass, Buna-N (NBR), Stainless Steel

Air, Argon, Carbon dioxide, Helium, Nitrogen, Oxygen, Water

Panel Mount

45 SLM

4.5 SLM

100 psi

45 SLM

4.5 SLM

1⁄8 NPT female connections, built-in needle valves and seal plugs, brass or stainless (model dependent)

1/8 in

NPT Female

65 °C

Direct Read

true

1400 cm³/min

140 cm³/min

FL-2505-V202,960 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 5 %

16 SLM

1.6 SLM

13 SLM

1.3 SLM

12 SLM

1.2 SLM

Stainless Steel

35 SLM

3.5 SLM

Acrylic, Brass

Acrylic, Brass, Buna-N (NBR), Stainless Steel

Air, Argon, Carbon dioxide, Helium, Nitrogen, Oxygen, Water

Panel Mount

16 SLM

1.6 SLM

100 psi

15 SLM

1.5 SLM

1⁄8 NPT female connections, built-in needle valves and seal plugs, brass or stainless (model dependent)

1/8 in

NPT Female

65 °C

Direct Read

true

450 cm³/min

45 cm³/min

FL-2506-V205,630 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 5 %

22 SLM

2.2 SLM

18 SLM

1.8 SLM

18 SLM

1.8 SLM

Carboloy

55 SLM

5.5 SLM

Acrylic, Brass

Acrylic, Brass, Buna-N (NBR), Tungsten Carbide

Air, Argon, Carbon dioxide, Helium, Nitrogen, Oxygen, Water

Panel Mount

22 SLM

2.2 SLM

100 psi

20 SLM

2 SLM

1⁄8 NPT female connections, built-in needle valves and seal plugs, brass or stainless (model dependent)

1/8 in

NPT Female

65 °C

Direct Read

true

700 cm³/min

70 cm³/min

FL-2504-V205,630 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 5 %

8.5 SLM

0.85 SLM

7 SLM

0.7 SLM

7 SLM

0.7 SLM

Borosilicate Glass

18 SLM

1.8 SLM

Acrylic, Brass

Acrylic, Brass, Buna-N (NBR), Glass

Air, Argon, Carbon dioxide, Helium, Nitrogen, Oxygen, Water

Panel Mount

8 SLM

0.8 SLM

100 psi

8 SLM

0.8 SLM

1⁄8 NPT female connections, built-in needle valves and seal plugs, brass or stainless (model dependent)

1/8 in

NPT Female

65 °C

Direct Read

true

175 cm³/min

17.5 cm³/min

FL-2503-V202,960 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 5 %

3.5 SLM

0.35 SLM

3 SLM

0.3 SLM

3 SLM

0.3 SLM

Carboloy

8 SLM

0.8 SLM

Acrylic, Brass

Acrylic, Brass, Buna-N (NBR), Tungsten Carbide

Air, Argon, Carbon dioxide, Helium, Nitrogen, Oxygen, Water

Panel Mount

3.5 SLM

0.35 SLM

100 psi

3.5 SLM

0.35 SLM

1⁄8 NPT female connections, built-in needle valves and seal plugs, brass or stainless (model dependent)

1/8 in

NPT Female

65 °C

Direct Read

true

100 cm³/min

10 cm³/min

FL-2502-V202,960 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 5 %

2.75 SLM

0.275 SLM

2.2 SLM

0.22 SLM

2.2 SLM

0.22 SLM

Stainless Steel

5.5 SLM

0.55 SLM

Acrylic, Brass

Acrylic, Brass, Buna-N (NBR), Stainless Steel

Air, Argon, Carbon dioxide, Helium, Nitrogen, Oxygen, Water

Panel Mount

2.75 SLM

0.275 SLM

100 psi

2.5 SLM

0.25 SLM

1⁄8 NPT female connections, built-in needle valves and seal plugs, brass or stainless (model dependent)

1/8 in

NPT Female

65 °C

Direct Read

true

70 cm³/min

7 cm³/min

FL-2517209,100 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 5 %

50 SLM

5 SLM

40 SLM

3.5 SLM

35 SLM

3.5 SLM

Stainless Steel

110 SLM

11 SLM

Acrylic, Stainless Steel

Acrylic, FKM, Stainless Steel

Air, Argon, Carbon dioxide, Helium, Nitrogen, Oxygen, Water

Panel Mount

45 SLM

4.5 SLM

100 psi

45 SLM

4.5 SLM

1⁄8 NPT female connections, built-in needle valves and seal plugs, brass or stainless (model dependent)

1/8 in

NPT Female

65 °C

Direct Read

false

1400 cm³/min

140 cm³/min

FL-2501-V202,960 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 5 %

1.4 SLM

0.14 SLM

1.1 SLM

0.11 SLM

1.1 SLM

0.11 SLM

Borosilicate Glass

2 SLM

0.2 SLM

Acrylic, Brass

Acrylic, Brass, Buna-N (NBR), Glass

Air, Argon, Carbon dioxide, Helium, Nitrogen, Oxygen, Water

Panel Mount

1.3 SLM

0.13 SLM

100 psi

1.2 SLM

0.12 SLM

1⁄8 NPT female connections, built-in needle valves and seal plugs, brass or stainless (model dependent)

1/8 in

NPT Female

65 °C

Direct Read

true

20 cm³/min

2 cm³/min

FL-2516182,220 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 5 %

22 SLM

2.2 SLM

18 SLM

1.8 SLM

18 SLM

1.8 SLM

Carboloy

55 SLM

5.5 SLM

Acrylic, Stainless Steel

Acrylic, FKM, Stainless Steel, Tungsten Carbide

Air, Argon, Carbon dioxide, Helium, Nitrogen, Oxygen, Water

Panel Mount

22 SLM

2.2 SLM

100 psi

20 SLM

2 SLM

1⁄8 NPT female connections, built-in needle valves and seal plugs, brass or stainless (model dependent)

1/8 in

NPT Female

65 °C

Direct Read

false

700 cm³/min

70 cm³/min

FL-2515182,220 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 5 %

16 SLM

1.6 SLM

13 SLM

1.3 SLM

12 SLM

1.2 SLM

Stainless Steel

35 SLM

3.5 SLM

Acrylic, Stainless Steel

Acrylic, FKM, Stainless Steel

Air, Argon, Carbon dioxide, Helium, Nitrogen, Oxygen, Water

Panel Mount

16 SLM

1.6 SLM

100 psi

15 SLM

1.5 SLM

1⁄8 NPT female connections, built-in needle valves and seal plugs, brass or stainless (model dependent)

1/8 in

NPT Female

65 °C

Direct Read

false

450 cm³/min

45 cm³/min

FL-2513182,220 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 5 %

3.5 SLM

0.35 SLM

3 SLM

0.3 SLM

3 SLM

0.3 SLM

Carboloy

8 SLM

0.8 SLM

Acrylic, Stainless Steel

Acrylic, FKM, Stainless Steel, Tungsten Carbide

Air, Argon, Carbon dioxide, Helium, Nitrogen, Oxygen, Water

Panel Mount

3.5 SLM

0.35 SLM

100 psi

3.5 SLM

0.35 SLM

1⁄8 NPT female connections, built-in needle valves and seal plugs, brass or stainless (model dependent)

1/8 in

NPT Female

65 °C

Direct Read

false

100 cm³/min

10 cm³/min

FL-2514184,640 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 5 %

8.5 SLM

0.85 SLM

7 SLM

0.7 SLM

7 SLM

0.7 SLM

Borosilicate Glass

18 SLM

1.8 SLM

Acrylic, Stainless Steel

Acrylic, FKM, Glass, Stainless Steel

Air, Argon, Carbon dioxide, Helium, Nitrogen, Oxygen, Water

Panel Mount

8 SLM

0.8 SLM

100 psi

8 SLM

0.8 SLM

1⁄8 NPT female connections, built-in needle valves and seal plugs, brass or stainless (model dependent)

1/8 in

NPT Female

65 °C

Direct Read

false

175 cm³/min

17.5 cm³/min

FL-2511184,640 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 5 %

1.4 SLM

0.14 SLM

1.1 SLM

0.11 SLM

1.1 SLM

0.11 SLM

Borosilicate Glass

2 SLM

0.2 SLM

Acrylic, Stainless Steel

Acrylic, FKM, Glass, Stainless Steel

Air, Argon, Carbon dioxide, Helium, Nitrogen, Oxygen, Water

Panel Mount

1.3 SLM

0.13 SLM

100 psi

1.2 SLM

0.12 SLM

1⁄8 NPT female connections, built-in needle valves and seal plugs, brass or stainless (model dependent)

1/8 in

NPT Female

65 °C

Direct Read

false

20 cm³/min

2 cm³/min
