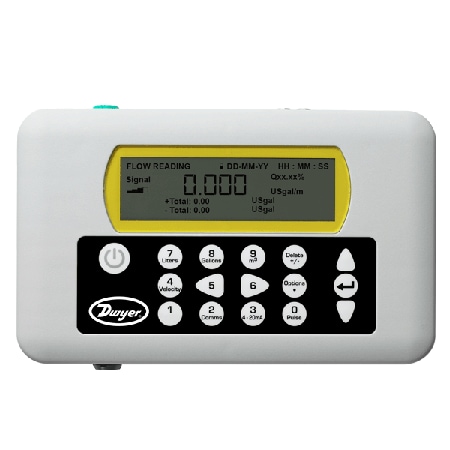

초음파 유량계 키트 – 비침투식, IP67, 20시간 배터리
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 1개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Detail | Applications | Battery Size and Type | Compliance | Data Interface | Display Note | Display Type | Electrical Connection | Enclosure Ratings | Linear Flow Rate, Max | Linear Flow Rate, Min | Load Resistance | Materials | Media Compatibility | Operating Temperature, Max | Operating Temperature, Min | Output Detail | Output Signal | Permissible Air Content | Pipe Size, Max | Pipe Size, Min | Power Adaptor Size | Power Consumption | Repeatability | Repeatability Note | Response Time | Supply Power Note | Supply Power Type | Supply Voltage | Tube Wall Thickness | Turbidity | Weight | Weight Note | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PUB-20가격 문의23 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 0.5 % | ± 0.5 to 2% of flow reading for flow rate > 0.66 ft/s (0.2 m/s) and pipe ID > 2.95 in (75 mm); ± 3% of flow reading for flow rate > 0.66 ft/s (0.2 m/s) and pipe ID in range 0.512 to 2.95˝ (13 to 75 mm); ± 6% of flow reading for flow rate < 0.66 ft/s (0.2 m/s) | Environmental Monitoring, Fluid Measurement and Control, Water Quality Monitoring | NiMh | CE | USB | 240 x 64 pixel graphic display, high contrast black on white with backlight; Languages: English, French, German, Swedish, Italian, Spanish, Portuguese, Russian, Norwegian, and Dutch; 5.2˝ W x 1.5˝ H | LCD | Lemo 7-pin with cable | IP51, IP54 | 65.62 ft/s | 0.33 ft/s | 620 Ω max | ABS | Liquids | 275 °F | -4 °F | Analog: 1 opto-isolated output: 4-20 mA, 0-16 mA or 0-20 mA (selectable); Error current: 0-26 mA (selectable); Load resistance: 620 Ω max; Pulse: 1 opto-isolated MOSFET relay, 150 mA max, 500 pps max, 200 Hz max | Current, DC Pulse | <3% by Volume | 40 in | 2 in | 110/240 Vac Adaptor. UK,US, European Adaptors Included | 10.5 W | ± 0.5% | ± 0.5% of measured value or ± 0.066 ft/s (0.02 m/s) | <500 ms | 9-24 VDC, (1) 5-Cell NiMH battery, internal, factory replaceable (continuous operation time: 20 hours with back-light and output off) (recharging time: 6.5 hours, power adaptor used) | DC/Battery | 9 to 24 Vdc | 3 in | <3% by Volume of Particulate Content | 13.23 lb | Unit without Accessories: 2.3, Unit with Accessories in Carring Case: 13.23 |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
