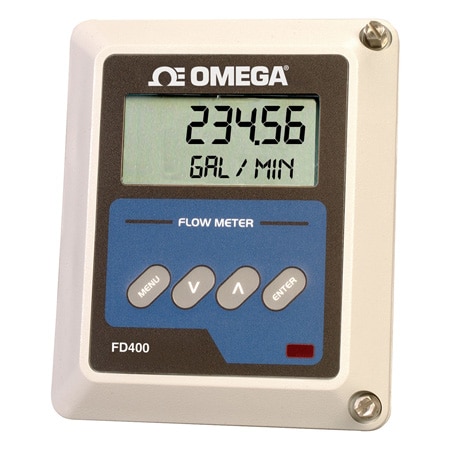

도플러 초음파 유량계
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 11개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Detail | Cable Length | Calibration Option | Control Output | Display Note | Display Type | Electrical Output | Enclosure Ratings | Form factor | Keypad | Materials | Measurement Type | Number of Digits | Operating Temperature, Max | Operating Temperature, Min | Output Detail | Pipe Size, Max | Pipe Size, Min | Response Time | Supply Power | Supply Power Note | Supply Power Type | Velocity, Max | Velocity, Min | Number of Outputs | Certifications | Pulse Rates | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FD-412-24VDC가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 2 % | ±2% FS over calibrated span | 6 m | NIST | Two Relay | 2-line x 8-character LCD; LED backlighting; top row, 7-segment 18 mm (0.7"); bottom row, 14-segment 9 mm (0.35"); 8-digit rate, 8-digit total (resettable) | LCD | 4 to 20 mA | IP66, NEMA Type 4X | Wall Mount | Yes | Polycarbonate, Stainless steel, Brass, Plated-steel mounting brackets | Doppler Ultrasonic | 8 | 85 °C | -40 °C | 4 to 20 mA, 800 Ω max; internal or external power supply; 12-bit resolution; optically isolated;Open Collector Output - 1 A at 100 Vmax | 120 in | 0.3333 in | 1 to 60 sec | 24 Vdc | 115/230 Vac, 50/60 Hz ±15% @ 5 VA max; 12 to 28 Vdc @ 2.5 VA max | DC | 9 m/s | 0.05 m/s | 1 | CE | - | |
FD-4335,933,810 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 2 % | ±2% FS over calibrated span | 6 m | NIST | N/A | 2-line x 8-character LCD; LED backlighting; top row, 7-segment 18 mm (0.7"); bottom row, 14-segment 9 mm (0.35"); 8-digit rate, 8-digit total (resettable) | LCD | 4 to 20 mA, Two Amplified Square Wave | IP66, NEMA Type 4X | Wall Mount | Yes | Polycarbonate, Stainless steel, Brass, Plated-steel mounting brackets | Doppler Ultrasonic | 8 | 85 °C | -40 °C | Open Collector Output - 1 A at 100 Vmax | 120 in | 0.3333 in | 1 to 60 sec | 115 Vac | 115/230 Vac, 50/60 Hz ±15% @ 5 VA max; 12 to 28 Vdc @ 2.5 VA max | AC | 9 m/s | 0.05 m/s | 2 | CE | 2500 Hz | |
FD-4305,933,810 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 2 % | ±2% FS over calibrated span | 6 m | NIST | N/A | 2-line x 8-character LCD; LED backlighting; top row, 7-segment 18 mm (0.7"); bottom row, 14-segment 9 mm (0.35"); 8-digit rate, 8-digit total (resettable) | LCD | Amplified Square Wave | IP66, NEMA Type 4X | Wall Mount | Yes | Polycarbonate, Stainless steel, Brass, Plated-steel mounting brackets | Doppler Ultrasonic | 8 | 85 °C | -40 °C | Open Collector Output - 1 A at 100 Vmax | 120 in | 0.3333 in | 1 to 60 sec | 115 Vac | 115/230 Vac, 50/60 Hz ±15% @ 5 VA max; 12 to 28 Vdc @ 2.5 VA max | AC | 9 m/s | 0.05 m/s | 1 | CE | 2500 Hz | |
FD-4235,933,810 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 2 % | ±2% FS over calibrated span | 6 m | NIST | Two Relay | 2-line x 8-character LCD; LED backlighting; top row, 7-segment 18 mm (0.7"); bottom row, 14-segment 9 mm (0.35"); 8-digit rate, 8-digit total (resettable) | LCD | Amplified Square Wave | IP66, NEMA Type 4X | Wall Mount | Yes | Polycarbonate, Stainless steel, Brass, Plated-steel mounting brackets | Doppler Ultrasonic | 8 | 85 °C | -40 °C | Open Collector Output - 1 A at 100 Vmax | 120 in | 0.3333 in | 1 to 60 sec | 115 Vac | 115/230 Vac, 50/60 Hz ±15% @ 5 VA max; 12 to 28 Vdc @ 2.5 VA max | AC | 9 m/s | 0.05 m/s | 1 | CE | 2500 Hz | |
FD-4225,933,810 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 2 % | ±2% FS over calibrated span | 6 m | NIST | Four Relays | 2-line x 8-character LCD; LED backlighting; top row, 7-segment 18 mm (0.7"); bottom row, 14-segment 9 mm (0.35"); 8-digit rate, 8-digit total (resettable) | LCD | 4 to 20 mA | IP66, NEMA Type 4X | Wall Mount | Yes | Polycarbonate, Stainless steel, Brass, Plated-steel mounting brackets | Doppler Ultrasonic | 8 | 85 °C | -40 °C | Open Collector Output - 1 A at 100 Vmax | 120 in | 0.3333 in | 1 to 60 sec | 115 Vac | 115/230 Vac, 50/60 Hz ±15% @ 5 VA max; 12 to 28 Vdc @ 2.5 VA max | AC | 9 m/s | 0.05 m/s | 1 | CE | - | |
FD-4135,933,810 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 2 % | ±2% FS over calibrated span | 6 m | NIST | N/A | 2-line x 8-character LCD; LED backlighting; top row, 7-segment 18 mm (0.7"); bottom row, 14-segment 9 mm (0.35"); 8-digit rate, 8-digit total (resettable) | LCD | 4 to 20 mA, Amplified Square Wave | IP66, NEMA Type 4X | Wall Mount | Yes | Polycarbonate, Stainless steel, Brass, Plated-steel mounting brackets | Doppler Ultrasonic | 8 | 85 °C | -40 °C | 4 to 20 mA, 800 Ω max; internal or external power supply; 12-bit resolution; optically isolated; Open Collector Output - 1 A at 100 Vmax | 120 in | 0.3333 in | 1 to 60 sec | 115 Vac | 115/230 Vac, 50/60 Hz ±15% @ 5 VA max; 12 to 28 Vdc @ 2.5 VA max | AC | 9 m/s | 0.05 m/s | 2 | CE | 2500 Hz | |
FD-4205,345,240 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 2 % | ±2% FS over calibrated span | 6 m | NIST | Two Relay | 2-line x 8-character LCD; LED backlighting; top row, 7-segment 18 mm (0.7"); bottom row, 14-segment 9 mm (0.35"); 8-digit rate, 8-digit total (resettable) | LCD | N/A | IP66, NEMA Type 4X | Wall Mount | Yes | Polycarbonate, Stainless steel, Brass, Plated-steel mounting brackets | Doppler Ultrasonic | 8 | 85 °C | -40 °C | Open Collector Output - 1 A at 100 Vmax | 120 in | 0.3333 in | 1 to 60 sec | 115 Vac | 115/230 Vac, 50/60 Hz ±15% @ 5 VA max; 12 to 28 Vdc @ 2.5 VA max | AC | 9 m/s | 0.05 m/s | 1 | CE | - | |
FD-4125,933,810 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 2 % | ±2% FS over calibrated span | 6 m | NIST | Two Relay | 2-line x 8-character LCD; LED backlighting; top row, 7-segment 18 mm (0.7"); bottom row, 14-segment 9 mm (0.35"); 8-digit rate, 8-digit total (resettable) | LCD | 4 to 20 mA | IP66, NEMA Type 4X | Wall Mount | Yes | Polycarbonate, Stainless steel, Brass, Plated-steel mounting brackets | Doppler Ultrasonic | 8 | 85 °C | -40 °C | 4 to 20 mA, 800 Ω max; internal or external power supply; 12-bit resolution; optically isolated; Open Collector Output - 1 A at 100 Vmax | 120 in | 0.3333 in | 1 to 60 sec | 115 Vac | 115/230 Vac, 50/60 Hz ±15% @ 5 VA max; 12 to 28 Vdc @ 2.5 VA max | AC | 9 m/s | 0.05 m/s | 1 | CE | - | |
FD-4115,955,160 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 2 % | ±2% FS over calibrated span | 6 m | NIST | N/A | 2-line x 8-character LCD; LED backlighting; top row, 7-segment 18 mm (0.7"); bottom row, 14-segment 9 mm (0.35"); 8-digit rate, 8-digit total (resettable) | LCD | two_4_to_20ma | IP66, NEMA Type 4X | Wall Mount | Yes | Polycarbonate, Stainless steel, Brass, Plated-steel mounting brackets | Doppler Ultrasonic | 8 | 85 °C | -40 °C | 4 to 20 mA, 800 Ω max; internal or external power supply; 12-bit resolution; optically isolated; Open Collector Output - 1 A at 100 Vmax | 120 in | 0.3333 in | 1 to 60 sec | 115 Vac | 115/230 Vac, 50/60 Hz ±15% @ 5 VA max; 12 to 28 Vdc @ 2.5 VA max | AC | 9 m/s | 0.05 m/s | 1 | - | - | |
FD-4105,445,830 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 2 % | ±2% FS over calibrated span | 6 m | NIST | N/A | 2-line x 8-character LCD; LED backlighting; top row, 7-segment 18 mm (0.7"); bottom row, 14-segment 9 mm (0.35"); 8-digit rate, 8-digit total (resettable) | LCD | 4 to 20 mA | IP66, NEMA Type 4X | Wall Mount | Yes | Polycarbonate, Stainless steel, Brass, Plated-steel mounting brackets | Doppler Ultrasonic | 8 | 85 °C | -40 °C | 4 to 20 mA, 800 Ω max; internal or external power supply; 12-bit resolution; optically isolated; Open Collector Output - 1 A at 100 Vmax | 120 in | 0.3333 in | 1 to 60 sec | 115 Vac | 115/230 Vac, 50/60 Hz ±15% @ 5 VA max; 12 to 28 Vdc @ 2.5 VA max | AC | 9 m/s | 0.05 m/s | 1 | - | - | |
FD-4004,687,500 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 2 % | ±2% FS over calibrated span | 6 m | NIST | N/A | 2-line x 8-character LCD; LED backlighting; top row, 7-segment 18 mm (0.7"); bottom row, 14-segment 9 mm (0.35"); 8-digit rate, 8-digit total (resettable) | LCD | N/A | IP66, NEMA Type 4X | Wall Mount | Yes | Polycarbonate, Stainless steel, Brass, Plated-steel mounting brackets | Doppler Ultrasonic | 8 | 85 °C | -40 °C | Open Collector Output - 1 A at 100 Vmax | 120 in | 0.3333 in | 1 to 60 sec | 115 Vac | 115/230 Vac, 50/60 Hz ±15% @ 5 VA max; 12 to 28 Vdc @ 2.5 VA max | AC | 9 m/s | 0.05 m/s | - | - | - |
