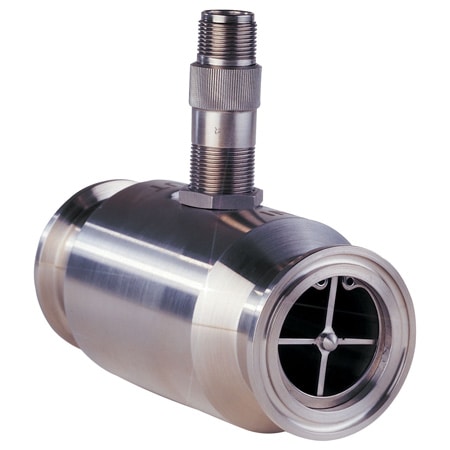

위생용 터빈 유량계 (Tri-Clamp 연결 포함)
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 11개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Approvals | Certifications | Display | Electrical Output | K-Factor | Length | Materials, Wetted | Media Compatibility | Operating Pressure, Max | Output Detail | Output Signal | Pipe Size, Max | Process Connection Size | Process Connection Type | Repeatability | Volumetric Flow Rate, Max | Volumetric Flow Rate, Min | Weight | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FTB-411A6,452,540 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | RoHS, CE | NIST Traceable Calibration | No Display | Sinusoidal Wave | 45 pulses/gal | 10 in | 15-7 PH Stainless Steel, 17-4 PH Stainless Steel, 316 Stainless Steel, Hard Carbon Composite | Liquids | 200 psi | 10 mV rms or greater into a 10 kΩ load at minimum flowrate | DC Pulse | 3 in | 4 in | Tri-Clamp | ±0.1% | 650 GPM | 40 GPM | 4.5 kg | |
FTB-410A5,833,750 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | RoHS, CE | NIST Traceable Calibration | No Display | Sinusoidal Wave | 95 pulses/gal | 10 in | 15-7 PH Stainless Steel, 17-4 PH Stainless Steel, 316 Stainless Steel, Hard Carbon Composite | Liquids | 350 psi | 10 mV rms or greater into a 10 kΩ load at minimum flowrate | DC Pulse | 2.5 in | 3 in | Tri-Clamp | ±0.1% | 400 GPM | 25 GPM | 3.6 kg | |
FTB-409A4,751,150 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | RoHS, CE | NIST Traceable Calibration | No Display | Sinusoidal Wave | 120 pulses/gal | 10 in | 15-7 PH Stainless Steel, 17-4 PH Stainless Steel, 316 Stainless Steel, Hard Carbon Composite | Liquids | 450 psi | 10 mV rms or greater into a 10 kΩ load at minimum flowrate | DC Pulse | 2 in | 2 in | Tri-Clamp | ±0.1% | 225 GPM | 15 GPM | 3.2 kg | |
FTB-407A3,762,580 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | RoHS, CE | NIST Traceable Calibration | No Display | Sinusoidal Wave | 400 pulses/gal | 4.59 in | 15-7 PH Stainless Steel, 17-4 PH Stainless Steel, 316 Stainless Steel, Hard Carbon Composite | Liquids | 500 psi | 10 mV rms or greater into a 10 kΩ load at minimum flowrate | DC Pulse | 1.25 in | 1 1/2 in | Tri-Clamp | ±0.1% | 93 GPM | 6 GPM | 2.3 kg | |
FTB-408A6,762,290 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | RoHS, CE | NIST Traceable Calibration | No Display | Sinusoidal Wave | 230 pulses/gal | 4.59 in | 15-7 PH Stainless Steel, 17-4 PH Stainless Steel, 316 Stainless Steel, Hard Carbon Composite | Liquids | 500 psi | 10 mV rms or greater into a 10 kΩ load at minimum flowrate | DC Pulse | 1.5 in | 1 1/2 in | Tri-Clamp | ±0.1% | 130 GPM | 8 GPM | 2.7 kg | |
FTB-406A6,157,060 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | RoHS, CE | NIST Traceable Calibration | No Display | Sinusoidal Wave | 840 pulses/gal | 3.56 in | 15-7 PH Stainless Steel, 17-4 PH Stainless Steel, 316 Stainless Steel, Hard Carbon Composite | Liquids | 500 psi | 10 mV rms or greater into a 10 kΩ load at minimum flowrate | DC Pulse | 1 in | 1 1/2 in | Tri-Clamp | ±0.1% | 60 GPM | 4 GPM | 1.4 kg | |
FTB-405A5,595,990 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | RoHS, CE | NIST Traceable Calibration | No Display | Sinusoidal Wave | 2200 pulses/gal | 3.25 in | 15-7 PH Stainless Steel, 17-4 PH Stainless Steel, 316 Stainless Steel, Hard Carbon Composite | Liquids | 500 psi | 10 mV rms or greater into a 10 kΩ load at minimum flowrate | DC Pulse | 0.75 in | 1 1/2 in | Tri-Clamp | ±0.1% | 29 GPM | 2.5 GPM | 1.4 kg | |
FTB-403A3,324,160 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | RoHS, CE | NIST Traceable Calibration | No Display | Sinusoidal Wave | 5800 pulses/gal | 3.56 in | 15-7 PH Stainless Steel, 17-4 PH Stainless Steel, 316 Stainless Steel, Hard Carbon Composite | Liquids | 500 psi | 10 mV rms or greater into a 10 kΩ load at minimum flowrate | DC Pulse | 0.25 in | 1 1/2 in | Tri-Clamp | ±0.1% | 9.5 GPM | 1.25 GPM | 1.4 kg | |
FTB-404A3,324,160 원15 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | RoHS, CE | NIST Traceable Calibration | No Display | Sinusoidal Wave | 5200 pulses/gal | 3.56 in | 15-7 PH Stainless Steel, 17-4 PH Stainless Steel, 316 Stainless Steel, Hard Carbon Composite | Liquids | 500 psi | 10 mV rms or greater into a 10 kΩ load at minimum flowrate | DC Pulse | 0.625 in | 1 1/2 in | Tri-Clamp | ±0.1% | 16 GPM | 1.75 GPM | 1.4 kg | |
FTB-402A3,324,160 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | RoHS, CE | NIST Traceable Calibration | No Display | Sinusoidal Wave | 8900 pulses/gal | 3.56 in | 15-7 PH Stainless Steel, 17-4 PH Stainless Steel, 316 Stainless Steel, Hard Carbon Composite | Liquids | 500 psi | 10 mV rms or greater into a 10 kΩ load at minimum flowrate | DC Pulse | 0.375 in | 1 1/2 in | Tri-Clamp | ±0.1% | 7.5 GPM | 0.75 GPM | 1.4 kg | |
FTB-401A3,324,160 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | RoHS, CE | NIST Traceable Calibration | No Display | Sinusoidal Wave | 15000 pulses/gal | 3.56 in | 15-7 PH Stainless Steel, 17-4 PH Stainless Steel, 316 Stainless Steel, Hard Carbon Composite | Liquids | 500 psi | 10 mV rms or greater into a 10 kΩ load at minimum flowrate | DC Pulse | 0.25 in | 1 1/2 in | Tri-Clamp | ±0.1% | 3.5 GPM | 0.35 GPM | 1.4 kg |
