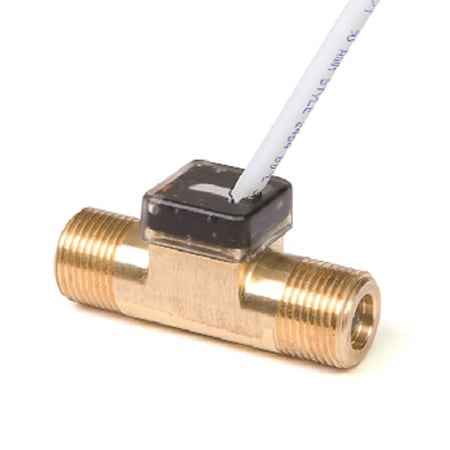

저가형 황동 본체 터빈 유량계
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 8개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Approvals | Burst Pressure | Electrical Connection | Electrical Output | Filter | K-Factor | Materials, Wetted | Media Compatibility | Operating Pressure, Max | Operating Temperature, Max | Operating Temperature, Min | Output Detail | Output Signal | Pipe Size, Max | Pressure Drop Note | Pressure Drop, Max | Process Connection Size | Process Connection Type | Repeatability | Repeatability Note | Supply Current | Supply Voltage | Viscosity Range | Volumetric Flow Rate, Max | Volumetric Flow Rate, Min | Weight | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BV2000BRN250B294,300 원4 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 3 % | KTW, W270, FDA - 21 CFR 175.300 | 2900 psi Maximum | Cable | Amplified Square Wave | 20 to 40 microns Recommended | 3785 pulses/gal | Brass, Graphite, PA12 Ferrite, PTFE | Liquids | 360 psi | 100 °C | -20 °C | Max. 20 mA (Pull-up resistor required. See wiring diagram in User Manual.), Output (Hz): NPN sinking open collector | DC Pulse | 8 in | 9.43 psi Pressure Drop ∆p with Water Flow at 68° F (20°C) | 9.43 psi | 3/8 in | NPT Male | <0.50% | <0.50% under the same operating conditions | 8 mA | 5 to 24 Vdc | 0 to 16 cSt | 25 l/min | 3 l/min | 15 g | |
BV2000BRN250A271,670 원21 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 3 % | KTW, W270, FDA - 21 CFR 175.300 | 2900 psi Maximum | DIN 43650-C 3-pin | Amplified Square Wave | 20 to 40 microns Recommended | 3785 pulses/gal | Brass, Graphite, PA12 Ferrite, PTFE | Liquids | 360 psi | 100 °C | -20 °C | Max. 20 mA (Pull-up resistor required. See wiring diagram in User Manual.), Output (Hz): NPN sinking open collector | DC Pulse | 8 in | 9.43 psi Pressure Drop ∆p with Water Flow at 68° F (20°C) | 9.43 psi | 3/8 in | NPT Male | <0.50% | <0.50% under the same operating conditions | 8 mA | 5 to 24 Vdc | 0 to 16 cSt | 25 l/min | 3 l/min | 15 g | |
BV2000BRN080B294,300 원21 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 3 % | KTW, W270, FDA - 21 CFR 175.300 | 2900 psi Maximum | Cable | Amplified Square Wave | 20 to 40 microns Recommended | 12500 pulses/gal | Brass, Graphite, PA12 Ferrite, PTFE | Liquids | 360 psi | 100 °C | -20 °C | Max. 20 mA (Pull-up resistor required. See wiring diagram in User Manual.), Output (Hz): NPN sinking open collector | DC Pulse | 6 in | 10.15 psi Pressure Drop ∆p with Water Flow at 68° F (20°C) | 10.15 psi | 3/8 in | NPT Male | <0.50% | <0.50% under the same operating conditions | 8 mA | 5 to 24 Vdc | 0 to 16 cSt | 8 l/min | 2 l/min | 15 g | |
BV2000BRN080A271,670 원21 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 3 % | KTW, W270, FDA - 21 CFR 175.300 | 2900 psi Maximum | DIN 43650 C 3-pin | Amplified Square Wave | 20 to 40 microns Recommended | 12500 pulses/gal | Brass, Graphite, PA12 Ferrite, PTFE | Liquids | 360 psi | 100 °C | -20 °C | Max. 20 mA (Pull-up resistor required. See wiring diagram in User Manual.), Output (Hz): NPN sinking open collector | DC Pulse | 6 in | 10.15 psi Pressure Drop ∆p with Water Flow at 68° F (20°C) | 10.15 psi | 3/8 in | NPT Male | <0.50% | <0.50% under the same operating conditions | 8 mA | 5 to 24 Vdc | 0 to 16 cSt | 8 l/min | 2 l/min | 15 g | |
BV2000BRG250B294,300 원21 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 3 % | KTW, W270, FDA - 21 CFR 175.300 | 2900 psi Maximum | Cable | Amplified Square Wave | 20 to 40 microns Recommended | 3785 pulses/gal | Brass, Graphite, PA12 Ferrite, PTFE | Liquids | 360 psi | 100 °C | -20 °C | Max. 20 mA (Pull-up resistor required. See wiring diagram in User Manual.), Output (Hz): NPN sinking open collector | DC Pulse | 8 in | 9.43 psi Pressure Drop ∆p with Water Flow at 68° F (20°C) | 9.43 psi | 3/8 in | BSPP Male | <0.50% | <0.50% under the same operating conditions | 8 mA | 5 to 24 Vdc | 0 to 16 cSt | 25 l/min | 3 l/min | 15 g | |
BV2000BRG080B294,300 원21 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 3 % | KTW, W270, FDA - 21 CFR 175.300 | 2900 psi Maximum | Cable | Amplified Square Wave | 20 to 40 microns Recommended | 12500 pulses/gal | Brass, Graphite, PA12 Ferrite, PTFE | Liquids | 360 psi | 100 °C | -20 °C | Max. 20 mA (Pull-up resistor required. See wiring diagram in User Manual.), Output (Hz): NPN sinking open collector | DC Pulse | 6 in | 10.15 psi Pressure Drop ∆p with Water Flow at 68° F (20°C) | 10.15 psi | 3/8 in | BSPP Male | <0.50% | <0.50% under the same operating conditions | 8 mA | 5 to 24 Vdc | 0 to 16 cSt | 8 l/min | 2 l/min | 15 g | |
BV2000BRG250A271,670 원21 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 3 % | KTW, W270, FDA - 21 CFR 175.300 | 2900 psi Maximum | DIN 43650-C 3-pin | Amplified Square Wave | 20 to 40 microns Recommended | 3785 pulses/gal | Brass, Graphite, PA12 Ferrite, PTFE | Liquids | 360 psi | 100 °C | -20 °C | Max. 20 mA (Pull-up resistor required. See wiring diagram in User Manual.), Output (Hz): NPN sinking open collector | DC Pulse | 8 in | 9.43 psi Pressure Drop ∆p with Water Flow at 68° F (20°C) | 9.43 psi | 3/8 in | BSPP Male | <0.50% | <0.50% under the same operating conditions | 8 mA | 5 to 24 Vdc | 0 to 16 cSt | 25 l/min | 3 l/min | 15 g | |
BV2000BRG080A271,670 원21 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 3 % | KTW, W270, FDA - 21 CFR 175.300 | 2900 psi Maximum | DIN 43650-C 3-pin | Amplified Square Wave | 20 to 40 microns Recommended | 12500 pulses/gal | Brass, Graphite, PA12 Ferrite, PTFE | Liquids | 360 psi | 100 °C | -20 °C | Max. 20 mA (Pull-up resistor required. See wiring diagram in User Manual.), Output (Hz): NPN sinking open collector | DC Pulse | 6 in | 10.15 psi Pressure Drop ∆p with Water Flow at 68° F (20°C) | 10.15 psi | 3/8 in | BSPP Male | <0.50% | <0.50% under the same operating conditions | 8 mA | 5 to 24 Vdc | 0 to 16 cSt | 8 l/min | 2 l/min | 15 g |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
