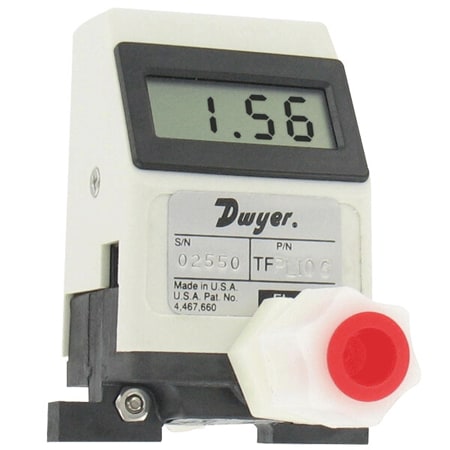

액체 터빈 유량계 – 0~5 Vdc 출력, LCD, 터보 휠 기술
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 7개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Compliance | Display Note | Display Type | Electrical Connection | Enclosure Ratings | Length | Linearity | Materials, Wetted | Measurement Pressure Type | Media Compatibility | Operating Temperature, Max | Operating Temperature, Min | Output Detail | Output Signal | Port 1 Size | Port 1 Type | Port 2 Size | Port 2 Type | Power Consumption | Pressure Limits | Repeatability | Sensitivity | Storage Temperature, Max | Storage Temperature, Min | Supply Power Type | Supply Voltage | Volumetric Flow Rate, Max | Volumetric Flow Rate, Min | Weight | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TFP-LI08가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1 % | CE | LCD, 0.39˝ (10 mm) digits (only in LPM) | LCD | Four-Pin | IP10, NEMA Type 1 | 4.125 in | ± 1% | Acetal, Epoxy, Fluoroelastomer, Glass, PPS, Sapphire | Gauge | Alcohols, Compatible Liquids, Oils, Water | 131 °F | 41 °F | 0 to 5 VDC: Minimum 2.5 kΩ Load | Voltage | 3/8 in | Compression Fitting | 3/8 in | Compression Fitting | 35 mA @ 12 Vdc | Up to 100 psi | ± 0.2% | ± 0.2% FS/°C | 158 °F | 32 °F | DC | 11.5 to 15 Vdc | 5 l/min | 0.5 l/min | 0.27 lb | |
TFP-LI09가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1 % | CE | LCD, 0.39˝ (10 mm) digits (only in LPM) | LCD | Four-Pin | IP10, NEMA Type 1 | 4.125 in | ± 1% | Acetal, Epoxy, Fluoroelastomer, Glass, PPS, Sapphire | Gauge | Alcohols, Compatible Liquids, Oils, Water | 131 °F | 41 °F | 0 to 5 VDC: Minimum 2.5 kΩ Load | Voltage | 3/8 in | Compression Fitting | 3/8 in | Compression Fitting | 35 mA @ 12 Vdc | Up to 100 psi | ± 0.2% | ± 0.2% FS/°C | 158 °F | 32 °F | DC | 11.5 to 15 Vdc | 10 l/min | 1 l/min | 0.27 lb | |
TFP-LI07가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1 % | CE | LCD, 0.39˝ (10 mm) digits (only in LPM) | LCD | Four-Pin | IP10, NEMA Type 1 | 3.8125 in | ± 1% | Acetal, Epoxy, Fluoroelastomer, Glass, PPS, Sapphire | Gauge | Alcohols, Compatible Liquids, Oils, Water | 131 °F | 41 °F | 0 to 5 VDC: Minimum 2.5 kΩ Load | Voltage | 1/4 in | Compression Fitting | 1/4 in | Compression Fitting | 35 mA @ 12 Vdc | Up to 100 psi | ± 0.2% | ± 0.2% FS/°C | 158 °F | 32 °F | DC | 11.5 to 15 Vdc | 2 l/min | 0.2 l/min | 0.27 lb | |
TFP-LI06가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1 % | CE | LCD, 0.39˝ (10 mm) digits (only in LPM) | LCD | Four-Pin | IP10, NEMA Type 1 | 3.8125 in | ± 1% | Acetal, Epoxy, Fluoroelastomer, Glass, PPS, Sapphire | Gauge | Alcohols, Compatible Liquids, Oils, Water | 131 °F | 41 °F | 0 to 5 VDC: Minimum 2.5 kΩ Load | Voltage | 1/4 in | Compression Fitting | 1/4 in | Compression Fitting | 35 mA @ 12 Vdc | Up to 100 psi | ± 0.2% | ± 0.2% FS/°C | 158 °F | 32 °F | DC | 11.5 to 15 Vdc | 1 l/min | 0.1 l/min | 0.27 lb | |
TFP-LI05가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1 % | CE | LCD, 0.39˝ (10 mm) digits (only in LPM) | LCD | Four-Pin | IP10, NEMA Type 1 | 3.8125 in | ± 1% | Acetal, Epoxy, Fluoroelastomer, Glass, PPS, Sapphire | Gauge | Alcohols, Compatible Liquids, Oils, Water | 131 °F | 41 °F | 0 to 5 VDC: Minimum 2.5 kΩ Load | Voltage | 1/4 in | Compression Fitting | 1/4 in | Compression Fitting | 35 mA @ 12 Vdc | Up to 100 psi | ± 0.2% | ± 0.2% FS/°C | 158 °F | 32 °F | DC | 11.5 to 15 Vdc | 0.5 l/min | 0.05 l/min | 0.27 lb | |
TFP-LI04가격 문의4 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1 % | CE | LCD, 0.39˝ (10 mm) digits (only in LPM) | LCD | Four-Pin | IP10, NEMA Type 1 | 3.8125 in | ± 1% | Acetal, Epoxy, Fluoroelastomer, Glass, PPS, Sapphire | Gauge | Alcohols, Compatible Liquids, Oils, Water | 131 °F | 41 °F | 0 to 5 VDC: Minimum 2.5 kΩ Load | Voltage | 1/4 in | Compression Fitting | 1/4 in | Compression Fitting | 35 mA @ 12 Vdc | Up to 100 psi | ± 0.2% | ± 0.2% FS/°C | 158 °F | 32 °F | DC | 11.5 to 15 Vdc | 0.2 l/min | 0.02 l/min | 0.27 lb | |
TFP-LI03가격 문의4 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1 % | CE | LCD, 0.39˝ (10 mm) digits (only in LPM) | LCD | Four-Pin | IP10, NEMA Type 1 | 3.4219 in | ± 1% | Acetal, Epoxy, Fluoroelastomer, Glass, PPS, Sapphire | Gauge | Alcohols, Compatible Liquids, Oils, Water | 131 °F | 41 °F | 0 to 5 VDC: Minimum 2.5 kΩ Load | Voltage | 1/8 in | Compression Fitting | 1/8 in | Compression Fitting | 35 mA @ 12 Vdc | Up to 100 psi | ± 0.2% | ± 0.2% FS/°C | 158 °F | 32 °F | DC | 11.5 to 15 Vdc | 0.1 l/min | 0.013 l/min | 0.27 lb |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
