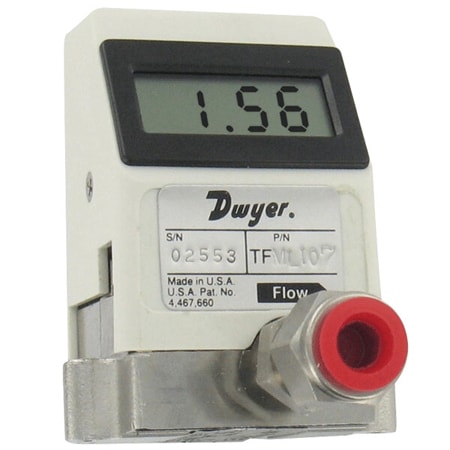

액체 터빈 유량계 - 0~5 Vdc 출력, LCD 디스플레이, 터보 휠
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 4개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Compliance | Display Note | Display Type | Electrical Connection | Enclosure Ratings | Length | Linearity | Materials, Wetted | Measurement Pressure Type | Media Compatibility | Operating Temperature, Max | Operating Temperature, Min | Output Detail | Output Signal | Port 1 Size | Port 1 Type | Port 2 Size | Port 2 Type | Power Consumption | Pressure Limits | Repeatability | Sensitivity | Storage Temperature, Max | Storage Temperature, Min | Supply Power Type | Supply Voltage | Volumetric Flow Rate, Max | Volumetric Flow Rate, Min | Weight | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TFM-LI09가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1 % | CE | LCD, 0.39" (10 mm) digits | LCD | Four-Pin | IP10, NEMA Type 1 | 3.8438 in | ± 1% | 316 Stainless Steel, Acetal, Epoxy, Fluoroelastomer, Glass, Sapphire | Gauge | Alcohols, Compatible Liquids, Oils, Water | 131 °F | 41 °F | 0 to 5 VDC: Minimum 2.5 kΩ Load | Voltage | 3/8 in | Compression Fitting | 3/8 in | Compression Fitting | 35 mA @ 12 Vdc | Up to 500 psi | ± 0.2% | ± 0.2% FS/°C | 158 °F | 32 °F | DC | 11.5 to 15 Vdc | 160 GPM | 16 GPM | 0.8 lb | |
TFM-LI07가격 문의4 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1 % | CE | LCD, 0.39" (10 mm) digits | LCD | Four-Pin | IP10, NEMA Type 1 | 3.6406 in | ± 1% | 316 Stainless Steel, Acetal, Epoxy, Fluoroelastomer, Glass, Sapphire | Gauge | Alcohols, Compatible Liquids, Oils, Water | 131 °F | 41 °F | 0 to 5 VDC: Minimum 2.5 kΩ Load | Voltage | 1/4 in | Compression Fitting | 1/4 in | Compression Fitting | 35 mA @ 12 Vdc | Up to 500 psi | ± 0.2% | ± 0.2% FS/°C | 158 °F | 32 °F | DC | 11.5 to 15 Vdc | 32 GPM | 3.2 GPM | 0.8 lb | |
TFM-LI05가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1 % | CE | LCD, 0.39" (10 mm) digits | LCD | Four-Pin | IP10, NEMA Type 1 | 3.6406 in | ± 1% | 316 Stainless Steel, Acetal, Epoxy, Fluoroelastomer, Glass, Sapphire | Gauge | Alcohols, Compatible Liquids, Oils, Water | 131 °F | 41 °F | 0 to 5 VDC: Minimum 2.5 kΩ Load | Voltage | 1/4 in | Compression Fitting | 1/4 in | Compression Fitting | 35 mA @ 12 Vdc | Up to 500 psi | ± 0.2% | ± 0.2% FS/°C | 158 °F | 32 °F | DC | 11.5 to 15 Vdc | 7.9 GPM | 0.79 GPM | 0.8 lb | |
TFM-LI06가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 1 % | CE | LCD, 0.39" (10 mm) digits | LCD | Four-Pin | IP10, NEMA Type 1 | 3.6406 in | ± 1% | 316 Stainless Steel, Acetal, Epoxy, Fluoroelastomer, Glass, Sapphire | Gauge | Alcohols, Compatible Liquids, Oils, Water | 131 °F | 41 °F | 0 to 5 VDC: Minimum 2.5 kΩ Load | Voltage | 1/4 in | Compression Fitting | 1/4 in | Compression Fitting | 35 mA @ 12 Vdc | Up to 500 psi | ± 0.2% | ± 0.2% FS/°C | 158 °F | 32 °F | DC | 11.5 to 15 Vdc | 16 GPM | 1.6 GPM | 0.8 lb |
