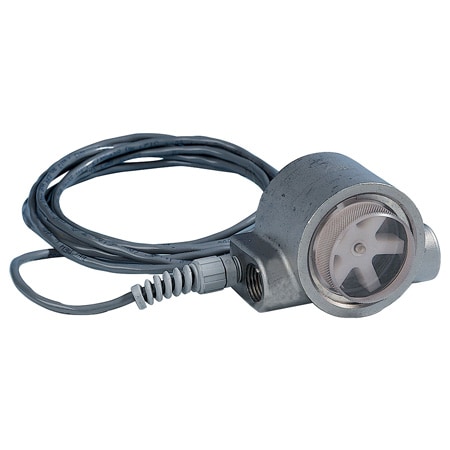

시각적 표시가 있는 액체 유량 송신기
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 29개의 상품 · 1 - 20 표시
| 제품 번호 / 가격 | Brand | Accuracy | Cable Length | Display Type | Electrical Connection | Electrical Output | Height | Length | Material Construction Option | Materials | Materials, Wetted | Media Compatibility | Operating Pressure, Max | Output Detail | Output Signal | Process Connection Size | Process Connection Type | Repeatability Error | Response Time | Response Time Note | Supply Voltage | Switch Rating | Type of Operation | Viscosity Range | Volumetric Flow Rate, Max | Volumetric Flow Rate, Min | Width | Switch Type | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FPR205P-PC-PS370,650 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.02 % | 10 m | None | Cable | Amplified Square Wave | 2.63 in | 3.7 in | Visual Indicator | Polypropylene, Stainless Steel, Epoxy, Nylon, PVC | Acetal Copolymer, Buna-N (NBR), Glass, PEEK, Polycarbonate, Polypropylene, Stainless Steel | Liquids | 150 psi | Pulse Dry-Contact Output (-PS Models), Maximum Voltage: 5 to 24 Vdc, Maximum Current: 10 mA ac/dc, Maximum Power: 0.25 W, Relay Output: Form C (SPDT), rated 5A@120/240 Vac; Load Driving Capacity: 1150 Ω max | DC Pulse | 1/2 in | NPT Female | 0.005 | 2 sec | 2 s to 90% (step change in flow rate) | 12 to 35 Vdc | 5 A @ 120/240 Vac | Sensor Transmitter | 0 to 5 cPs | 56.8 l/min | 5.7 l/min | 2.45 in | - | |
FPR204P-PC-PS370,650 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.02 % | 10 m | None | Cable | Amplified Square Wave | 2.63 in | 3.7 in | Visual Indicator | Polypropylene, Stainless Steel, Epoxy, Nylon, PVC | Acetal Copolymer, Buna-N (NBR), Glass, PEEK, Polycarbonate, Polypropylene, Stainless Steel | Liquids | 150 psi | Pulse Dry-Contact Output (-PS Models), Maximum Voltage: 5 to 24 Vdc, Maximum Current: 10 mA ac/dc, Maximum Power: 0.25 W, Relay Output: Form C (SPDT), rated 5A@120/240 Vac; Load Driving Capacity: 1150 Ω max | DC Pulse | 1/2 in | NPT Female | 0.005 | 2 sec | 2 s to 90% (step change in flow rate) | 12 to 35 Vdc | 5 A @ 120/240 Vac | Sensor Transmitter | 0 to 5 cPs | 18.9 l/min | 1.9 l/min | 2.45 in | - | |
FPR206-PC-PS1,004,470 원13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.02 % | 10 m | None | Cable | Amplified Square Wave | 2.63 in | 3.7 in | Visual Indicator | Stainless Steel, Epoxy, Nylon, PVC | 316 SS, Acetal Copolymer, Buna-N (NBR), EPR, FKM, PEEK, Polycarbonate | Liquids | 200 psi | Pulse Dry-Contact Output (-PS Models), Maximum Voltage: 5 to 24 Vdc, Maximum Current: 10 mA ac/dc, Maximum Power: 0.25 W, Relay Output: Form C (SPDT), rated 5A@120/240 Vac; Load Driving Capacity: 1150 Ω max | DC Pulse | 3/4 in | NPT Female | 0.005 | 2 sec | 2 s to 90% (step change in flow rate) | 12 to 35 Vdc | 5 A @ 120/240 Vac | Sensor Transmitter | 0 to 5 cPs | 189.3 l/min | 18.9 l/min | 2.45 in | - | |
FPR205-PC-PS857,310 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.02 % | 10 m | None | Cable | Amplified Square Wave | 2.63 in | 3.7 in | Visual Indicator | Stainless Steel, Epoxy, Nylon, PVC | 316 SS, Acetal Copolymer, Buna-N (NBR), EPR, FKM, PEEK, Polycarbonate | Liquids | 200 psi | Pulse Dry-Contact Output (-PS Models), Maximum Voltage: 5 to 24 Vdc, Maximum Current: 10 mA ac/dc, Maximum Power: 0.25 W, Relay Output: Form C (SPDT), rated 5A@120/240 Vac; Load Driving Capacity: 1150 Ω max | DC Pulse | 1/2 in | NPT Female | 0.005 | 2 sec | 2 s to 90% (step change in flow rate) | 12 to 35 Vdc | 5 A @ 120/240 Vac | Sensor Transmitter | 0 to 5 cPs | 56.8 l/min | 5.7 l/min | 2.45 in | - | |
FPR203-PC-PS1,004,470 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.02 % | 10 m | None | Cable | Amplified Square Wave | 2.63 in | 3.7 in | Visual Indicator | Stainless Steel, Epoxy, Nylon, PVC | 316 SS, Acetal Copolymer, Buna-N (NBR), EPR, FKM, PEEK, Polycarbonate | Liquids | 200 psi | Pulse Dry-Contact Output (-PS Models), Maximum Voltage: 5 to 24 Vdc, Maximum Current: 10 mA ac/dc, Maximum Power: 0.25 W, Relay Output: Form C (SPDT), rated 5A@120/240 Vac; Load Driving Capacity: 1150 Ω max | DC Pulse | 3/4 in | NPT Female | 0.005 | 2 sec | 2 s to 90% (step change in flow rate) | 12 to 35 Vdc | 5 A @ 120/240 Vac | Sensor Transmitter | 0 to 5 cPs | 113.6 l/min | 11.4 l/min | 2.45 in | - | |
FPR204-PC-PS857,310 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.02 % | 10 m | None | Cable | Amplified Square Wave | 2.63 in | 3.7 in | Visual Indicator | Stainless Steel, Epoxy, Nylon, PVC | 316 SS, Acetal Copolymer, Buna-N (NBR), EPR, FKM, PEEK, Polycarbonate | Liquids | 200 psi | Pulse Dry-Contact Output (-PS Models), Maximum Voltage: 5 to 24 Vdc, Maximum Current: 10 mA ac/dc, Maximum Power: 0.25 W, Relay Output: Form C (SPDT), rated 5A@120/240 Vac; Load Driving Capacity: 1150 Ω max | DC Pulse | 1/2 in | NPT Female | 0.005 | 2 sec | 2 s to 90% (step change in flow rate) | 12 to 35 Vdc | 5 A @ 120/240 Vac | Sensor Transmitter | 0 to 5 cPs | 18.9 l/min | 1.9 l/min | 2.45 in | - | |
FSW205P-PC555,630 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.02 % | 10 m | None | Cable | - | 2.63 in | 3.7 in | Visual Indicator | Polypropylene, Stainless Steel, Epoxy, Nylon, PVC | Acetal Copolymer, Buna-N (NBR), Glass, PEEK, Polycarbonate, Polypropylene, Stainless Steel | Liquids | 150 psi | Load Driving Capacity: 1150 Ω max | Relay | 1/2 in | NPT Female | 0.005 | 2 sec | 2 s to 90% (step change in flow rate) | 12 to 35 Vdc | 5 A @ 120/240 Vac | Flow Switch | 0 to 5 cPs | 56.8 l/min | 5.7 l/min | 2.45 in | SPDT NO/NC, Selectable | |
FSW204P-PC598,400 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.02 % | 10 m | None | Cable | - | 2.63 in | 3.7 in | Visual Indicator | Polypropylene, Stainless Steel, Epoxy, Nylon, PVC | Acetal Copolymer, Buna-N (NBR), Glass, PEEK, Polycarbonate, Polypropylene, Stainless Steel | Liquids | 150 psi | Load Driving Capacity: 1150 Ω max | Relay | 1/2 in | NPT Female | 0.005 | 2 sec | 2 s to 90% (step change in flow rate) | 12 to 35 Vdc | 5 A @ 120/240 Vac | Flow Switch | 0 to 5 cPs | 18.9 l/min | 1.9 l/min | 2.45 in | SPDT NO/NC, Selectable | |
FPR205P-PC647,330 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.02 % | 10 m | None | Cable | 4 to 20 mA | 2.63 in | 3.7 in | Visual Indicator | Polypropylene, Stainless Steel, Epoxy, Nylon, PVC | Acetal Copolymer, Buna-N (NBR), Glass, PEEK, Polycarbonate, Polypropylene, Stainless Steel | Liquids | 150 psi | Load Driving Capacity: 1150 Ω max | Current | 1/2 in | NPT Female | 0.005 | 2 sec | 2 s to 90% (step change in flow rate) | 12 to 35 Vdc | 5 A @ 120/240 Vac | Sensor Transmitter | 0 to 5 cPs | 56.8 l/min | 5.7 l/min | 2.45 in | - | |
FSW207-PC1,024,540 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.02 % | 10 m | None | Cable | - | 2.63 in | 3.7 in | Visual Indicator | Stainless Steel, Epoxy, Nylon, PVC | 316 SS, Acetal Copolymer, Buna-N (NBR), EPR, FKM, PEEK, Polycarbonate | Liquids | 200 psi | Load Driving Capacity: 1150 Ω max | Relay | 1 in | NPT Female | 0.005 | 2 sec | 2 s to 90% (step change in flow rate) | 12 to 35 Vdc | 5 A @ 120/240 Vac | Flow Switch | 0 to 5 cPs | 189.3 l/min | 18.9 l/min | 2.45 in | SPDT NO/NC, Selectable | |
FPR204P-PC778,950 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.02 % | 10 m | None | Cable | 4 to 20 mA | 2.63 in | 3.7 in | Visual Indicator | Polypropylene, Stainless Steel, Epoxy, Nylon, PVC | Acetal Copolymer, Buna-N (NBR), Glass, PEEK, Polycarbonate, Polypropylene, Stainless Steel | Liquids | 150 psi | Load Driving Capacity: 1150 Ω max | Current | 1/2 in | NPT Female | 0.005 | 2 sec | 2 s to 90% (step change in flow rate) | 12 to 35 Vdc | 5 A @ 120/240 Vac | Sensor Transmitter | 0 to 5 cPs | 18.9 l/min | 1.9 l/min | 2.45 in | - | |
FSW205-PC998,610 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.02 % | 10 m | None | Cable | - | 2.63 in | 3.7 in | Visual Indicator | Stainless Steel, Epoxy, Nylon, PVC | 316 SS, Acetal Copolymer, Buna-N (NBR), EPR, FKM, PEEK, Polycarbonate | Liquids | 200 psi | Load Driving Capacity: 1150 Ω max | Relay | 1/2 in | NPT Female | 0.005 | 2 sec | 2 s to 90% (step change in flow rate) | 12 to 35 Vdc | 5 A @ 120/240 Vac | Flow Switch | 0 to 5 cPs | 56.8 l/min | 5.7 l/min | 2.45 in | SPDT NO/NC, Selectable | |
FSW204-PC984,730 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.02 % | 10 m | None | Cable | - | 2.63 in | 3.7 in | Visual Indicator | Stainless Steel, Epoxy, Nylon, PVC | 316 SS, Acetal Copolymer, Buna-N (NBR), EPR, FKM, PEEK, Polycarbonate | Liquids | 200 psi | Load Driving Capacity: 1150 Ω max | Relay | 1/2 in | NPT Female | 0.005 | 2 sec | 2 s to 90% (step change in flow rate) | 12 to 35 Vdc | 5 A @ 120/240 Vac | Flow Switch | 0 to 5 cPs | 18.9 l/min | 1.9 l/min | 2.45 in | SPDT NO/NC, Selectable | |
FSW203-PC1,103,380 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.02 % | 10 m | None | Cable | - | 2.63 in | 3.7 in | Visual Indicator | Stainless Steel, Epoxy, Nylon, PVC | 316 SS, Acetal Copolymer, Buna-N (NBR), EPR, FKM, PEEK, Polycarbonate | Liquids | 200 psi | Load Driving Capacity: 1150 Ω max | Relay | 3/4 in | NPT Female | 0.005 | 2 sec | 2 s to 90% (step change in flow rate) | 12 to 35 Vdc | 5 A @ 120/240 Vac | Flow Switch | 0 to 5 cPs | 113.6 l/min | 11.4 l/min | 2.45 in | SPDT NO/NC, Selectable | |
FPR207-PC2,026,810 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.02 % | 10 m | None | Cable | 4 to 20 mA | 2.63 in | 3.7 in | Visual Indicator | Stainless Steel, Epoxy, Nylon, PVC | 316 SS, Acetal Copolymer, Buna-N (NBR), EPR, FKM, PEEK, Polycarbonate | Liquids | 200 psi | Load Driving Capacity: 1150 Ω max | Current | 1 in | NPT Female | 0.005 | 2 sec | 2 s to 90% (step change in flow rate) | 12 to 35 Vdc | 5 A @ 120/240 Vac | Sensor Transmitter | 0 to 5 cPs | 189.3 l/min | 18.9 l/min | 2.45 in | - | |
FPR207-PS1,004,470 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.02 % | 10 m | None | Cable | Amplified Square Wave | 2.63 in | 3.7 in | No Visual Indicator | Stainless Steel, Epoxy, Nylon, PVC | 316 SS, Acetal Copolymer, Buna-N (NBR), EPR, FKM, PEEK, Polycarbonate | Liquids | 500 psi | Pulse Dry-Contact Output (-PS Models), Maximum Voltage: 5 to 24 Vdc, Maximum Current: 10 mA ac/dc, Maximum Power: 0.25 W, Relay Output: Form C (SPDT), rated 5A@120/240 Vac; Load Driving Capacity: 1150 Ω max | DC Pulse | 1 in | NPT Female | 0.005 | 2 sec | 2 s to 90% (step change in flow rate) | 12 to 35 Vdc | 5 A @ 120/240 Vac | Sensor Transmitter | 0 to 5 cPs | 189.3 l/min | 18.9 l/min | 2.45 in | - | |
FPR206-PS1,004,470 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.02 % | 10 m | None | Cable | Amplified Square Wave | 2.63 in | 3.7 in | No Visual Indicator | Stainless Steel, Epoxy, Nylon, PVC | 316 SS, Acetal Copolymer, Buna-N (NBR), EPR, FKM, PEEK, Polycarbonate | Liquids | 500 psi | Pulse Dry-Contact Output (-PS Models), Maximum Voltage: 5 to 24 Vdc, Maximum Current: 10 mA ac/dc, Maximum Power: 0.25 W, Relay Output: Form C (SPDT), rated 5A@120/240 Vac; Load Driving Capacity: 1150 Ω max | DC Pulse | 3/4 in | NPT Female | 0.005 | 2 sec | 2 s to 90% (step change in flow rate) | 12 to 35 Vdc | 5 A @ 120/240 Vac | Sensor Transmitter | 0 to 5 cPs | 189.3 l/min | 18.9 l/min | 2.45 in | - | |
FPR206-PC1,988,250 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.02 % | 10 m | None | Cable | 4 to 20 mA | 2.63 in | 3.7 in | Visual Indicator | Stainless Steel, Epoxy, Nylon, PVC | 316 SS, Acetal Copolymer, Buna-N (NBR), EPR, FKM, PEEK, Polycarbonate | Liquids | 200 psi | Load Driving Capacity: 1150 Ω max | Current | 3/4 in | NPT Female | 0.005 | 2 sec | 2 s to 90% (step change in flow rate) | 12 to 35 Vdc | 5 A @ 120/240 Vac | Sensor Transmitter | 0 to 5 cPs | 189.3 l/min | 18.9 l/min | 2.45 in | - | |
FPR205-PS857,310 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.02 % | 10 m | None | Cable | Amplified Square Wave | 2.63 in | 3.7 in | No Visual Indicator | Stainless Steel, Epoxy, Nylon, PVC | 316 SS, Acetal Copolymer, Buna-N (NBR), EPR, FKM, PEEK, Polycarbonate | Liquids | 500 psi | Pulse Dry-Contact Output (-PS Models), Maximum Voltage: 5 to 24 Vdc, Maximum Current: 10 mA ac/dc, Maximum Power: 0.25 W, Relay Output: Form C (SPDT), rated 5A@120/240 Vac; Load Driving Capacity: 1150 Ω max | DC Pulse | 1/2 in | NPT Female | 0.005 | 2 sec | 2 s to 90% (step change in flow rate) | 12 to 35 Vdc | 5 A @ 120/240 Vac | Sensor Transmitter | 0 to 5 cPs | 56.8 l/min | 5.7 l/min | 2.45 in | - | |
FPR205-PC1,706,710 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.02 % | 10 m | None | Cable | 4 to 20 mA | 2.63 in | 3.7 in | Visual Indicator | Stainless Steel, Epoxy, Nylon, PVC | 316 SS, Acetal Copolymer, Buna-N (NBR), EPR, FKM, PEEK, Polycarbonate | Liquids | 200 psi | Load Driving Capacity: 1150 Ω max | Current | 1/2 in | NPT Female | 0.005 | 2 sec | 2 s to 90% (step change in flow rate) | 12 to 35 Vdc | 5 A @ 120/240 Vac | Sensor Transmitter | 0 to 5 cPs | 56.8 l/min | 5.7 l/min | 2.45 in | - |
