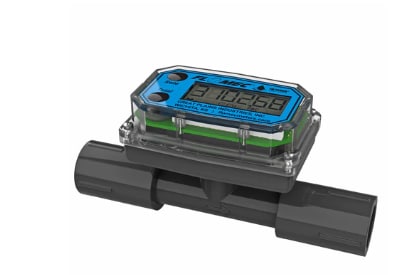

LCD 디스플레이가 장착된 경제적인 터빈 유량계
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 14개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Detail | Approvals | Battery Size and Type | Display Type | Electrical Output | Materials, Wetted | Media Compatibility | Operating Pressure, Max | Operating Temperature, Max | Operating Temperature, Min | Output Detail | Output Signal | Pressure Drop, Max | Process Connection Size | Process Connection Type | Repeatability | Storage Temperature, Max | Storage Temperature, Min | Volumetric Flow Rate, Max | Volumetric Flow Rate, Min | Display Type Note | Weight | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TM30NPOXXD2,790,410 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 3 % | Extended Low flow Range accuracy: ±5.0% rdg (display models only) | RoHS, CE | Li-ion | None | Amplified Square Wave | 316 Stainless Steel, Alumina Ceramic, PVC, PVDF, Tungsten Carbide | Liquids | 225 psi | 60 °C | 0 °C | pulse output (option): Open collector sinking, 9 to 35 Vdc | DC Pulse | 150 psi | 3 in | NPT Female | ±0.1% | 70 °C | -40 °C | 400 GPM | 1 GPM | - | - | |
TM30NQ9GMD2,585,810 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 3 % | Extended Low flow Range accuracy: ±5.0% rdg (display models only) | RoHS, CE | Li-ion | LCD | N/A | 316 Stainless Steel, Alumina Ceramic, PVC, PVDF, Tungsten Carbide | Liquids | 225 psi | 60 °C | 0 °C | pulse output (option): Open collector sinking, 9 to 35 Vdc | DC Pulse | 150 psi | 3 in | NPT Female | ±0.1% | 70 °C | -40 °C | 400 GPM | 1 GPM | 6-digit LCD indicates flow rate, batch and cumulative total | 2.63 kg | |
TM30FQ9GME2,585,810 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 3 % | Extended Low flow Range accuracy: ±5.0% rdg (display models only) | RoHS, CE | Li-ion | LCD | N/A | 316 Stainless Steel, Alumina Ceramic, PVC, PVDF, Tungsten Carbide | Liquids | 225 psi | 60 °C | 0 °C | pulse output (option): Open collector sinking, 9 to 35 Vdc | DC Pulse | 150 psi | 3 in | ANSI Flange | ±0.1% | 70 °C | -40 °C | 50 GPM | 1 GPM | 6-digit LCD indicates flow rate, batch and cumulative total | 1.77 kg | |
TM30FPOXXE2,790,410 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 3 % | Extended Low flow Range accuracy: ±5.0% rdg (display models only) | RoHS, CE | Li-ion | None | Amplified Square Wave | 316 Stainless Steel, Alumina Ceramic, PVC, PVDF, Tungsten Carbide | Liquids | 225 psi | 60 °C | 0 °C | pulse output (option): Open collector sinking, 9 to 35 Vdc | DC Pulse | 150 psi | 3 in | ANSI Flange | ±0.1% | 70 °C | -40 °C | 50 GPM | 1 GPM | - | - | |
TM20NPOXXC1,638,830 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 3 % | Extended Low flow Range accuracy: ±5.0% rdg (display models only) | RoHS, CE | Li-ion | None | Amplified Square Wave | 316 Stainless Steel, Alumina Ceramic, PVC, PVDF, Tungsten Carbide | Liquids | 225 psi | 60 °C | 0 °C | pulse output (option): Open collector sinking, 9 to 35 Vdc | DC Pulse | 150 psi | 2 in | NPT Female | ±0.1% | 70 °C | -40 °C | 200 GPM | 1 GPM | - | - | |
TM20NQ9GMB1,433,990 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 3 % | Extended Low flow Range accuracy: ±5.0% rdg (display models only) | RoHS, CE | Li-ion | LCD | N/A | 316 Stainless Steel, Alumina Ceramic, PVC, PVDF, Tungsten Carbide | Liquids | 225 psi | 60 °C | 0 °C | pulse output (option): Open collector sinking, 9 to 35 Vdc | DC Pulse | 150 psi | 2 in | NPT Female | ±0.1% | 70 °C | -40 °C | 200 GPM | 1 GPM | 6-digit LCD indicates flow rate, batch and cumulative total | 1.68 kg | |
TM15NQ9GMB1,330,460 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 3 % | Extended Low flow Range accuracy: ±5.0% rdg (display models only) | RoHS, CE | Li-ion | LCD | N/A | 316 Stainless Steel, Alumina Ceramic, PVC, PVDF, Tungsten Carbide | Liquids | 225 psi | 60 °C | 0 °C | pulse output (option): Open collector sinking, 9 to 35 Vdc | DC Pulse | 150 psi | 1 1/2 in | NPT Female | ±0.1% | 70 °C | -40 °C | 100 GPM | 1 GPM | 6-digit LCD indicates flow rate, batch and cumulative total | 1.4 kg | |
TM15NPOXXC1,535,340 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 3 % | Extended Low flow Range accuracy: ±5.0% rdg (display models only) | RoHS, CE | Li-ion | None | Amplified Square Wave | 316 Stainless Steel, Alumina Ceramic, PVC, PVDF, Tungsten Carbide | Liquids | 225 psi | 60 °C | 0 °C | pulse output (option): Open collector sinking, 9 to 35 Vdc | DC Pulse | 150 psi | 1 1/2 in | NPT Female | ±0.1% | 70 °C | -40 °C | 100 GPM | 1 GPM | - | - | |
TM10NQ9GMA1,167,450 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 3 % | Extended Low flow Range accuracy: ±5.0% rdg (display models only) | RoHS, CE | Li-ion | LCD | N/A | 316 Stainless Steel, Alumina Ceramic, PVC, PVDF, Tungsten Carbide | Liquids | 225 psi | 60 °C | 0 °C | pulse output (option): Open collector sinking, 9 to 35 Vdc | DC Pulse | 150 psi | 1 in | NPT Female | ±0.1% | 70 °C | -40 °C | 50 GPM | 1 GPM | 6-digit LCD indicates flow rate, batch and cumulative total | 1 kg | |
TM10NPOXXC1,372,330 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 3 % | Extended Low flow Range accuracy: ±5.0% rdg (display models only) | RoHS, CE | Li-ion | None | Amplified Square Wave | 316 Stainless Steel, Alumina Ceramic, PVC, PVDF, Tungsten Carbide | Liquids | 225 psi | 60 °C | 0 °C | pulse output (option): Open collector sinking, 9 to 35 Vdc | DC Pulse | 150 psi | 4 in | NPT Female | ±0.1% | 70 °C | -40 °C | 50 GPM | 1 GPM | - | - | |
TM07NQ9GMA1,013,270 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 3 % | Extended Low flow Range accuracy: ±5.0% rdg (display models only) | RoHS, CE | Li-ion | LCD | N/A | 316 Stainless Steel, Alumina Ceramic, PVC, PVDF, Tungsten Carbide | Liquids | 225 psi | 60 °C | 0 °C | pulse output (option): Open collector sinking, 9 to 35 Vdc | DC Pulse | 150 psi | 3/4 in | NPT Female | ±0.1% | 70 °C | -40 °C | 20 GPM | 1 GPM | 6-digit LCD indicates flow rate, batch and cumulative total | 0.88 kg | |
TM05NQ9GMA927,390 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 3 % | Extended Low flow Range accuracy: ±5.0% rdg (display models only) | RoHS, CE | Li-ion | LCD | N/A | 316 Stainless Steel, Alumina Ceramic, PVC, PVDF, Tungsten Carbide | Liquids | 225 psi | 60 °C | 0 °C | pulse output (option): Open collector sinking, 9 to 35 Vdc | DC Pulse | 150 psi | 1/2 in | NPT Female | ±0.1% | 70 °C | -40 °C | 10 GPM | 1 GPM | 6-digit LCD indicates flow rate, batch and cumulative total | 0.8 kg | |
TM07NPOXXC1,218,120 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 3 % | Extended Low flow Range accuracy: ±5.0% rdg (display models only) | RoHS, CE | Li-ion | None | Amplified Square Wave | 316 Stainless Steel, Alumina Ceramic, PVC, PVDF, Tungsten Carbide | Liquids | 225 psi | 60 °C | 0 °C | pulse output (option): Open collector sinking, 9 to 35 Vdc | DC Pulse | 150 psi | 3/4 in | NPT Female | ±0.1% | 70 °C | -40 °C | 20 GPM | 1 GPM | - | - | |
TM05NPOXXC1,132,230 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 3 % | Extended Low flow Range accuracy: ±5.0% rdg (display models only) | RoHS, CE | Li-ion | None | Amplified Square Wave | 316 Stainless Steel, Alumina Ceramic, PVC, PVDF, Tungsten Carbide | Liquids | 225 psi | 60 °C | 0 °C | pulse output (option): Open collector sinking, 9 to 35 Vdc | DC Pulse | 150 psi | 1/2 in | NPT Female | ±0.1% | 70 °C | -40 °C | 10 GPM | 1 GPM | - | - |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
