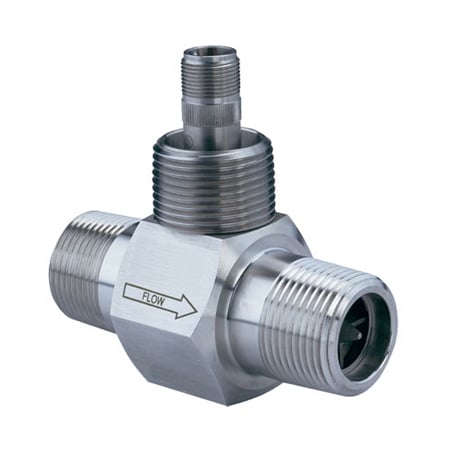

FTB1400-Series | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 30개의 상품 · 1 - 20 표시

제품 번호 / 가격	Brand	Accuracy	Accuracy Detail	Certifications	Electrical Output	K-Factor	Materials, Wetted	Media Compatibility	Operating Pressure, Max	Operating Temperature, Max	Operating Temperature, Min	Output Detail	Output Signal	Pipe Size, Max	Process Connection Size	Process Connection Type	Repeatability	Turndown Ratio	Volumetric Flow Rate, Max	Volumetric Flow Rate, Min
FTB-1441-AMP2,923,010 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	±1% of reading for 1" and larger, ±1% of reading over the upper 70% of the measuring range for 1 ⁄2" meters	NIST Traceable Calibration	Amplified Square Wave	330 pulses/gal	316 Stainless Steel, CD4MCu Stainless Steel, Tungsten Carbide	Liquids	5000 psi	177 °C	-101 °C	Magnetic Pickup: 30 mV/P-P	DC Pulse	2 in	2 in	NPT Male	±1%	10:1	180 GPM	15 GPM
FTB-1431-AMP2,173,360 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	±1% of reading for 1" and larger, ±1% of reading over the upper 70% of the measuring range for 1 ⁄2" meters	NIST Traceable Calibration	Amplified Square Wave	330 pulses/gal	316 Stainless Steel, CD4MCu Stainless Steel, Tungsten Carbide	Liquids	5000 psi	177 °C	-101 °C	Magnetic Pickup: 30 mV/P-P	DC Pulse	1.5 in	1 1/2 in	NPT Male	±1%	10:1	180 GPM	15 GPM
FTB-1425-AMP1,974,820 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	±1% of reading for 1" and larger, ±1% of reading over the upper 70% of the measuring range for 1 ⁄2" meters	NIST Traceable Calibration	Amplified Square Wave	870 pulses/gal	316 Stainless Steel, CD4MCu Stainless Steel, Tungsten Carbide	Liquids	5000 psi	177 °C	-101 °C	Magnetic Pickup: 30 mV/P-P	DC Pulse	1 in	1 in	NPT Male	±1%	10:1	50 GPM	5 GPM
FTB-1423-AMP2,082,850 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	±1% of reading for 1" and larger, ±1% of reading over the upper 70% of the measuring range for 1 ⁄2" meters	NIST Traceable Calibration	Amplified Square Wave	3300 pulses/gal	316 Stainless Steel, CD4MCu Stainless Steel, Tungsten Carbide	Liquids	5000 psi	177 °C	-101 °C	Magnetic Pickup: 30 mV/P-P	DC Pulse	0.75 in	1 in	NPT Male	±1%	10:1	15 GPM	2 GPM
FTB-1424-AMP2,044,180 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	±1% of reading for 1" and larger, ±1% of reading over the upper 70% of the measuring range for 1 ⁄2" meters	NIST Traceable Calibration	Amplified Square Wave	3100 pulses/gal	316 Stainless Steel, CD4MCu Stainless Steel, Tungsten Carbide	Liquids	5000 psi	177 °C	-101 °C	Magnetic Pickup: 30 mV/P-P	DC Pulse	0.875 in	1 in	NPT Male	±1%	10:1	30 GPM	3 GPM
FTB-1422-AMP2,059,410 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	±1% of reading for 1" and larger, ±1% of reading over the upper 70% of the measuring range for 1 ⁄2" meters	NIST Traceable Calibration	Amplified Square Wave	13000 pulses/gal	316 Stainless Steel, CD4MCu Stainless Steel, Tungsten Carbide	Liquids	5000 psi	177 °C	-101 °C	Magnetic Pickup: 30 mV/P-P	DC Pulse	0.5 in	1 in	NPT Male	±1%	10:1	7.5 GPM	0.75 GPM
FTB-1421-AMP2,084,680 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	±1% of reading for 1" and larger, ±1% of reading over the upper 70% of the measuring range for 1 ⁄2" meters	NIST Traceable Calibration	Amplified Square Wave	18000 pulses/gal	316 Stainless Steel, CD4MCu Stainless Steel, Tungsten Carbide	Liquids	5000 psi	177 °C	-101 °C	Magnetic Pickup: 30 mV/P-P	DC Pulse	0.375 in	1 in	NPT Male	±1%	10:1	3 GPM	0.6 GPM
FTB-1412-AMP1,975,040 원4 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	±1% of reading for 1" and larger, ±1% of reading over the upper 70% of the measuring range for 1 ⁄2" meters	NIST Traceable Calibration	Amplified Square Wave	13000 pulses/gal	316 Stainless Steel, CD4MCu Stainless Steel, Tungsten Carbide	Liquids	5000 psi	177 °C	-101 °C	Magnetic Pickup: 30 mV/P-P	DC Pulse	0.5 in	1/2 in	NPT Male	±1%	10:1	7.5 GPM	0.75 GPM
FTB-1413-AMP2,005,260 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	±1% of reading for 1" and larger, ±1% of reading over the upper 70% of the measuring range for 1 ⁄2" meters	NIST Traceable Calibration	Amplified Square Wave	3300 pulses/gal	316 Stainless Steel, CD4MCu Stainless Steel, Tungsten Carbide	Liquids	5000 psi	177 °C	-101 °C	Magnetic Pickup: 30 mV/P-P	DC Pulse	0.75 in	1/2 in	NPT Male	±1%	10:1	15 GPM	2 GPM
FTB-1411-AMP2,066,140 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	±1% of reading for 1" and larger, ±1% of reading over the upper 70% of the measuring range for 1 ⁄2" meters	NIST Traceable Calibration	Amplified Square Wave	18000 pulses/gal	316 Stainless Steel, CD4MCu Stainless Steel, Tungsten Carbide	Liquids	5000 psi	177 °C	-101 °C	Magnetic Pickup: 30 mV/P-P	DC Pulse	0.375 in	1/2 in	NPT Male	±1%	10:1	3 GPM	0.6 GPM
FTB-1441-HT2,796,240 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	±1% of reading for 1" and larger, ±1% of reading over the upper 70% of the measuring range for 1 ⁄2" meters	NIST Traceable Calibration	High Temperature Magnetic Sinusoidal Wave	330 pulses/gal	316 Stainless Steel, CD4MCu Stainless Steel, Tungsten Carbide	Liquids	5000 psi	232 °C	-101 °C	Magnetic Pickup: 30 mV/P-P	DC Pulse	2 in	2 in	NPT Male	±1%	10:1	180 GPM	15 GPM
FTB-1425-HT1,697,040 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	±1% of reading for 1" and larger, ±1% of reading over the upper 70% of the measuring range for 1 ⁄2" meters	NIST Traceable Calibration	High Temperature Magnetic Sinusoidal Wave	870 pulses/gal	316 Stainless Steel, CD4MCu Stainless Steel, Tungsten Carbide	Liquids	5000 psi	232 °C	-101 °C	Magnetic Pickup: 30 mV/P-P	DC Pulse	1 in	1 in	NPT Male	±1%	10:1	50 GPM	5 GPM
FTB-1431-HT2,102,390 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	±1% of reading for 1" and larger, ±1% of reading over the upper 70% of the measuring range for 1 ⁄2" meters	NIST Traceable Calibration	High Temperature Magnetic Sinusoidal Wave	330 pulses/gal	316 Stainless Steel, CD4MCu Stainless Steel, Tungsten Carbide	Liquids	5000 psi	232 °C	-101 °C	Magnetic Pickup: 30 mV/P-P	DC Pulse	1.5 in	1 1/2 in	NPT Male	±1%	10:1	180 GPM	15 GPM
FTB-1424-HT1,975,390 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	±1% of reading for 1" and larger, ±1% of reading over the upper 70% of the measuring range for 1 ⁄2" meters	NIST Traceable Calibration	High Temperature Magnetic Sinusoidal Wave	3100 pulses/gal	316 Stainless Steel, CD4MCu Stainless Steel, Tungsten Carbide	Liquids	5000 psi	232 °C	-101 °C	Magnetic Pickup: 30 mV/P-P	DC Pulse	0.875 in	1 in	NPT Male	±1%	10:1	30 GPM	3 GPM
FTB-1423-HT1,959,310 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	±1% of reading for 1" and larger, ±1% of reading over the upper 70% of the measuring range for 1 ⁄2" meters	NIST Traceable Calibration	High Temperature Magnetic Sinusoidal Wave	3300 pulses/gal	316 Stainless Steel, CD4MCu Stainless Steel, Tungsten Carbide	Liquids	5000 psi	232 °C	-101 °C	Magnetic Pickup: 30 mV/P-P	DC Pulse	0.75 in	1 in	NPT Male	±1%	10:1	15 GPM	2 GPM
FTB-1421-HT1,980,520 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	±1% of reading for 1" and larger, ±1% of reading over the upper 70% of the measuring range for 1 ⁄2" meters	NIST Traceable Calibration	High Temperature Magnetic Sinusoidal Wave	18000 pulses/gal	316 Stainless Steel, CD4MCu Stainless Steel, Tungsten Carbide	Liquids	5000 psi	232 °C	-101 °C	Magnetic Pickup: 30 mV/P-P	DC Pulse	0.375 in	1 in	NPT Male	±1%	10:1	3 GPM	0.6 GPM
FTB-1422-HT2,189,660 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	±1% of reading for 1" and larger, ±1% of reading over the upper 70% of the measuring range for 1 ⁄2" meters	NIST Traceable Calibration	High Temperature Magnetic Sinusoidal Wave	13000 pulses/gal	316 Stainless Steel, CD4MCu Stainless Steel, Tungsten Carbide	Liquids	5000 psi	232 °C	-101 °C	Magnetic Pickup: 30 mV/P-P	DC Pulse	0.5 in	1 in	NPT Male	±1%	10:1	7.5 GPM	0.75 GPM
FTB-1413-HT1,940,010 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	±1% of reading for 1" and larger, ±1% of reading over the upper 70% of the measuring range for 1 ⁄2" meters	NIST Traceable Calibration	High Temperature Magnetic Sinusoidal Wave	3300 pulses/gal	316 Stainless Steel, CD4MCu Stainless Steel, Tungsten Carbide	Liquids	5000 psi	232 °C	-101 °C	Magnetic Pickup: 30 mV/P-P	DC Pulse	0.75 in	1/2 in	NPT Male	±1%	10:1	15 GPM	2 GPM
FTB-1412-HT2,294,140 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	±1% of reading for 1" and larger, ±1% of reading over the upper 70% of the measuring range for 1 ⁄2" meters	NIST Traceable Calibration	High Temperature Magnetic Sinusoidal Wave	13000 pulses/gal	316 Stainless Steel, CD4MCu Stainless Steel, Tungsten Carbide	Liquids	5000 psi	232 °C	-101 °C	Magnetic Pickup: 30 mV/P-P	DC Pulse	0.5 in	1/2 in	NPT Male	±1%	10:1	7.5 GPM	0.75 GPM
FTB-1411-HT1,992,090 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	±1% of reading for 1" and larger, ±1% of reading over the upper 70% of the measuring range for 1 ⁄2" meters	NIST Traceable Calibration	High Temperature Magnetic Sinusoidal Wave	18000 pulses/gal	316 Stainless Steel, CD4MCu Stainless Steel, Tungsten Carbide	Liquids	5000 psi	232 °C	-101 °C	Magnetic Pickup: 30 mV/P-P	DC Pulse	0.375 in	1/2 in	NPT Male	±1%	10:1	3 GPM	0.6 GPM

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Accuracy Detail

Certifications

Electrical Output

K-Factor

Materials, Wetted

Media Compatibility

Operating Pressure, Max

Operating Temperature, Max

Operating Temperature, Min

Output Detail

Output Signal

Pipe Size, Max

Process Connection Size

Process Connection Type

Repeatability

Turndown Ratio

Volumetric Flow Rate, Max

Volumetric Flow Rate, Min

수량 / 장바구니

FTB-1441-AMP2,923,010 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

±1% of reading for 1" and larger, ±1% of reading over the upper 70% of the measuring range for 1 ⁄2" meters

NIST Traceable Calibration

Amplified Square Wave

330 pulses/gal

316 Stainless Steel, CD4MCu Stainless Steel, Tungsten Carbide

Liquids

5000 psi

177 °C

-101 °C

Magnetic Pickup: 30 mV/P-P

DC Pulse

2 in

NPT Male

±1%

10:1

180 GPM

15 GPM

FTB-1431-AMP2,173,360 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

±1% of reading for 1" and larger, ±1% of reading over the upper 70% of the measuring range for 1 ⁄2" meters

NIST Traceable Calibration

Amplified Square Wave

330 pulses/gal

316 Stainless Steel, CD4MCu Stainless Steel, Tungsten Carbide

Liquids

5000 psi

177 °C

-101 °C

Magnetic Pickup: 30 mV/P-P

DC Pulse

1.5 in

1 1/2 in

NPT Male

±1%

10:1

180 GPM

15 GPM

FTB-1425-AMP1,974,820 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

±1% of reading for 1" and larger, ±1% of reading over the upper 70% of the measuring range for 1 ⁄2" meters

NIST Traceable Calibration

Amplified Square Wave

870 pulses/gal

316 Stainless Steel, CD4MCu Stainless Steel, Tungsten Carbide

Liquids

5000 psi

177 °C

-101 °C

Magnetic Pickup: 30 mV/P-P

DC Pulse

1 in

NPT Male

±1%

10:1

50 GPM

5 GPM

FTB-1423-AMP2,082,850 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

±1% of reading for 1" and larger, ±1% of reading over the upper 70% of the measuring range for 1 ⁄2" meters

NIST Traceable Calibration

Amplified Square Wave

3300 pulses/gal

316 Stainless Steel, CD4MCu Stainless Steel, Tungsten Carbide

Liquids

5000 psi

177 °C

-101 °C

Magnetic Pickup: 30 mV/P-P

DC Pulse

0.75 in

1 in

NPT Male

±1%

10:1

15 GPM

2 GPM

FTB-1424-AMP2,044,180 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

±1% of reading for 1" and larger, ±1% of reading over the upper 70% of the measuring range for 1 ⁄2" meters

NIST Traceable Calibration

Amplified Square Wave

3100 pulses/gal

316 Stainless Steel, CD4MCu Stainless Steel, Tungsten Carbide

Liquids

5000 psi

177 °C

-101 °C

Magnetic Pickup: 30 mV/P-P

DC Pulse

0.875 in

1 in

NPT Male

±1%

10:1

30 GPM

3 GPM

FTB-1422-AMP2,059,410 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

±1% of reading for 1" and larger, ±1% of reading over the upper 70% of the measuring range for 1 ⁄2" meters

NIST Traceable Calibration

Amplified Square Wave

13000 pulses/gal

316 Stainless Steel, CD4MCu Stainless Steel, Tungsten Carbide

Liquids

5000 psi

177 °C

-101 °C

Magnetic Pickup: 30 mV/P-P

DC Pulse

0.5 in

1 in

NPT Male

±1%

10:1

7.5 GPM

0.75 GPM

FTB-1421-AMP2,084,680 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

±1% of reading for 1" and larger, ±1% of reading over the upper 70% of the measuring range for 1 ⁄2" meters

NIST Traceable Calibration

Amplified Square Wave

18000 pulses/gal

316 Stainless Steel, CD4MCu Stainless Steel, Tungsten Carbide

Liquids

5000 psi

177 °C

-101 °C

Magnetic Pickup: 30 mV/P-P

DC Pulse

0.375 in

1 in

NPT Male

±1%

10:1

3 GPM

0.6 GPM

FTB-1412-AMP1,975,040 원4 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

±1% of reading for 1" and larger, ±1% of reading over the upper 70% of the measuring range for 1 ⁄2" meters

NIST Traceable Calibration

Amplified Square Wave

13000 pulses/gal

316 Stainless Steel, CD4MCu Stainless Steel, Tungsten Carbide

Liquids

5000 psi

177 °C

-101 °C

Magnetic Pickup: 30 mV/P-P

DC Pulse

0.5 in

1/2 in

NPT Male

±1%

10:1

7.5 GPM

0.75 GPM

FTB-1413-AMP2,005,260 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

±1% of reading for 1" and larger, ±1% of reading over the upper 70% of the measuring range for 1 ⁄2" meters

NIST Traceable Calibration

Amplified Square Wave

3300 pulses/gal

316 Stainless Steel, CD4MCu Stainless Steel, Tungsten Carbide

Liquids

5000 psi

177 °C

-101 °C

Magnetic Pickup: 30 mV/P-P

DC Pulse

0.75 in

1/2 in

NPT Male

±1%

10:1

15 GPM

2 GPM

FTB-1411-AMP2,066,140 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

±1% of reading for 1" and larger, ±1% of reading over the upper 70% of the measuring range for 1 ⁄2" meters

NIST Traceable Calibration

Amplified Square Wave

18000 pulses/gal

316 Stainless Steel, CD4MCu Stainless Steel, Tungsten Carbide

Liquids

5000 psi

177 °C

-101 °C

Magnetic Pickup: 30 mV/P-P

DC Pulse

0.375 in

1/2 in

NPT Male

±1%

10:1

3 GPM

0.6 GPM

FTB-1441-HT2,796,240 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

±1% of reading for 1" and larger, ±1% of reading over the upper 70% of the measuring range for 1 ⁄2" meters

NIST Traceable Calibration

High Temperature Magnetic Sinusoidal Wave

330 pulses/gal

316 Stainless Steel, CD4MCu Stainless Steel, Tungsten Carbide

Liquids

5000 psi

232 °C

-101 °C

Magnetic Pickup: 30 mV/P-P

DC Pulse

2 in

NPT Male

±1%

10:1

180 GPM

15 GPM

FTB-1425-HT1,697,040 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

±1% of reading for 1" and larger, ±1% of reading over the upper 70% of the measuring range for 1 ⁄2" meters

NIST Traceable Calibration

High Temperature Magnetic Sinusoidal Wave

870 pulses/gal

316 Stainless Steel, CD4MCu Stainless Steel, Tungsten Carbide

Liquids

5000 psi

232 °C

-101 °C

Magnetic Pickup: 30 mV/P-P

DC Pulse

1 in

NPT Male

±1%

10:1

50 GPM

5 GPM

FTB-1431-HT2,102,390 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

±1% of reading for 1" and larger, ±1% of reading over the upper 70% of the measuring range for 1 ⁄2" meters

NIST Traceable Calibration

High Temperature Magnetic Sinusoidal Wave

330 pulses/gal

316 Stainless Steel, CD4MCu Stainless Steel, Tungsten Carbide

Liquids

5000 psi

232 °C

-101 °C

Magnetic Pickup: 30 mV/P-P

DC Pulse

1.5 in

1 1/2 in

NPT Male

±1%

10:1

180 GPM

15 GPM

FTB-1424-HT1,975,390 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

±1% of reading for 1" and larger, ±1% of reading over the upper 70% of the measuring range for 1 ⁄2" meters

NIST Traceable Calibration

High Temperature Magnetic Sinusoidal Wave

3100 pulses/gal

316 Stainless Steel, CD4MCu Stainless Steel, Tungsten Carbide

Liquids

5000 psi

232 °C

-101 °C

Magnetic Pickup: 30 mV/P-P

DC Pulse

0.875 in

1 in

NPT Male

±1%

10:1

30 GPM

3 GPM

FTB-1423-HT1,959,310 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

±1% of reading for 1" and larger, ±1% of reading over the upper 70% of the measuring range for 1 ⁄2" meters

NIST Traceable Calibration

High Temperature Magnetic Sinusoidal Wave

3300 pulses/gal

316 Stainless Steel, CD4MCu Stainless Steel, Tungsten Carbide

Liquids

5000 psi

232 °C

-101 °C

Magnetic Pickup: 30 mV/P-P

DC Pulse

0.75 in

1 in

NPT Male

±1%

10:1

15 GPM

2 GPM

FTB-1421-HT1,980,520 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

±1% of reading for 1" and larger, ±1% of reading over the upper 70% of the measuring range for 1 ⁄2" meters

NIST Traceable Calibration

High Temperature Magnetic Sinusoidal Wave

18000 pulses/gal

316 Stainless Steel, CD4MCu Stainless Steel, Tungsten Carbide

Liquids

5000 psi

232 °C

-101 °C

Magnetic Pickup: 30 mV/P-P

DC Pulse

0.375 in

1 in

NPT Male

±1%

10:1

3 GPM

0.6 GPM

FTB-1422-HT2,189,660 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

±1% of reading for 1" and larger, ±1% of reading over the upper 70% of the measuring range for 1 ⁄2" meters

NIST Traceable Calibration

High Temperature Magnetic Sinusoidal Wave

13000 pulses/gal

316 Stainless Steel, CD4MCu Stainless Steel, Tungsten Carbide

Liquids

5000 psi

232 °C

-101 °C

Magnetic Pickup: 30 mV/P-P

DC Pulse

0.5 in

1 in

NPT Male

±1%

10:1

7.5 GPM

0.75 GPM

FTB-1413-HT1,940,010 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

±1% of reading for 1" and larger, ±1% of reading over the upper 70% of the measuring range for 1 ⁄2" meters

NIST Traceable Calibration

High Temperature Magnetic Sinusoidal Wave

3300 pulses/gal

316 Stainless Steel, CD4MCu Stainless Steel, Tungsten Carbide

Liquids

5000 psi

232 °C

-101 °C

Magnetic Pickup: 30 mV/P-P

DC Pulse

0.75 in

1/2 in

NPT Male

±1%

10:1

15 GPM

2 GPM

FTB-1412-HT2,294,140 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

±1% of reading for 1" and larger, ±1% of reading over the upper 70% of the measuring range for 1 ⁄2" meters

NIST Traceable Calibration

High Temperature Magnetic Sinusoidal Wave

13000 pulses/gal

316 Stainless Steel, CD4MCu Stainless Steel, Tungsten Carbide

Liquids

5000 psi

232 °C

-101 °C

Magnetic Pickup: 30 mV/P-P

DC Pulse

0.5 in

1/2 in

NPT Male

±1%

10:1

7.5 GPM

0.75 GPM

FTB-1411-HT1,992,090 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

±1% of reading for 1" and larger, ±1% of reading over the upper 70% of the measuring range for 1 ⁄2" meters

NIST Traceable Calibration

High Temperature Magnetic Sinusoidal Wave

18000 pulses/gal

316 Stainless Steel, CD4MCu Stainless Steel, Tungsten Carbide

Liquids

5000 psi

232 °C

-101 °C

Magnetic Pickup: 30 mV/P-P

DC Pulse

0.375 in

1/2 in

NPT Male

±1%

10:1

3 GPM

0.6 GPM
