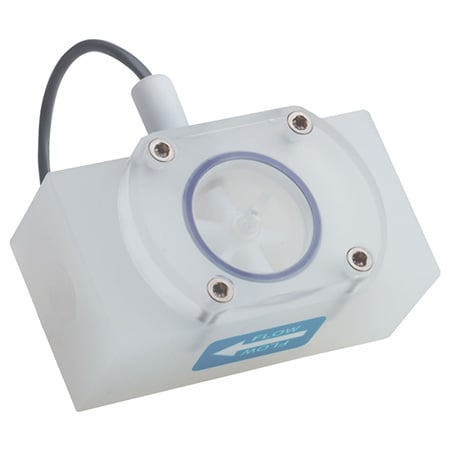

FPR300-Series | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 8개의 상품

제품 번호 / 가격	Brand	Accuracy	Approvals	Cable Length	Electrical Output	Height	K-Factor	Length	Material Construction Option	Materials, Wetted	Media Compatibility	Operating Pressure, Max	Pressure Drop Note	Pressure Drop, Max	Process Connection Size	Process Connection Type	Process Temperature, Max	Supply Current	Supply Power Note	Supply Voltage	Viscosity Range	Volumetric Flow Rate, Max	Volumetric Flow Rate, Min	Width
FPR3141,828,170 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.01 %	RoHS, CE	18 ft	Amplified Square Pulse, NPN Open Collector	2.2 in	215 to 270 pulses/gallon	4.1 in	Tetrafluoroethylene Body	FKM, Polypropylene, Ruby, TFE, Zirconia Ceramic	Oil, Solvents, Water	150 psi	Maximum Pressure Drop: 15 psi on size 2 units 20 psi on all other sizes	20 psi	1 in	NPT Female	70 °C	2 mA	6 to 24 Vdc @ 2 mA	6 to 24 Vdc	1 cSt	40 GPM	0.5 GPM	2.1 in
FPR3131,828,170 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.01 %	RoHS, CE	18 ft	Amplified Square Pulse, NPN Open Collector	2.2 in	375 to 460 pulses/gallon	4.1 in	Tetrafluoroethylene Body	FKM, Polypropylene, Ruby, TFE, Zirconia Ceramic	Oil, Solvents, Water	150 psi	Maximum Pressure Drop: 15 psi on size 2 units 20 psi on all other sizes	20 psi	3/4 in	NPT Female	70 °C	2 mA	6 to 24 Vdc @ 2 mA	6 to 24 Vdc	1 cSt	20 GPM	0.2 GPM	2.1 in
FPR3121,828,170 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.01 %	RoHS, CE	18 ft	Amplified Square Pulse, NPN Open Collector	2.2 in	600 to 680 pulses/gallon	4.1 in	Tetrafluoroethylene Body	FKM, Polypropylene, Ruby, TFE, Zirconia Ceramic	Oil, Solvents, Water	150 psi	Maximum Pressure Drop: 15 psi on size 2 units 20 psi on all other sizes	20 psi	1/2 in	NPT Female	70 °C	2 mA	6 to 24 Vdc @ 2 mA	6 to 24 Vdc	1 cSt	10 GPM	0.1 GPM	2.1 in
FPR3111,828,170 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.01 %	RoHS, CE	18 ft	Amplified Square Pulse, NPN Open Collector	2.2 in	1200 to 1380	4.1 in	Tetrafluoroethylene Body	FKM, Polypropylene, Ruby, TFE, Zirconia Ceramic	Oil, Solvents, Water	150 psi	Maximum Pressure Drop: 15 psi on size 2 units 20 psi on all other sizes	15 psi	3/8 in	NPT Female	70 °C	2 mA	6 to 24 Vdc @ 2 mA	6 to 24 Vdc	1 cSt	5 GPM	0.07 GPM	2.1 in
FPR303848,880 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.01 %	RoHS, CE	18 ft	Amplified Square Pulse, NPN Open Collector	2.2 in	375 to 460 pulses/gallon	4.1 in	Polypropylene Body, Visual Indication	EPDM, Nickel Tungsten Carbide, Polypropylene, Ruby, TFE Acrylic	Oil, Solvents, Water	150 psi	Maximum Pressure Drop: 15 psi on size 2 units 20 psi on all other sizes	20 psi	3/4 in	NPT Female	70 °C	2 mA	6 to 24 Vdc @ 2 mA	6 to 24 Vdc	1 cSt	20 GPM	0.2 GPM	2.1 in
FPR304848,880 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.01 %	RoHS, CE	18 ft	Amplified Square Pulse, NPN Open Collector	2.2 in	215 to 270 pulses/gallon	4.1 in	Polypropylene Body, Visual Indication	EPDM, Nickel Tungsten Carbide, Polypropylene, Ruby, TFE Acrylic	Oil, Solvents, Water	150 psi	Maximum Pressure Drop: 15 psi on size 2 units 20 psi on all other sizes	20 psi	1 in	NPT Female	70 °C	2 mA	6 to 24 Vdc @ 2 mA	6 to 24 Vdc	1 cSt	40 GPM	0.5 GPM	2.1 in
FPR301848,880 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.01 %	RoHS, CE	18 ft	Amplified Square Pulse, NPN Open Collector	2.2 in	1200 to 1380 pulses/gallon	4.1 in	Polypropylene Body, Visual Indication	EPDM, Nickel Tungsten Carbide, Polypropylene, Ruby, TFE Acrylic	Oil, Solvents, Water	150 psi	Maximum Pressure Drop: 15 psi on size 2 units 20 psi on all other sizes	15 psi	3/8 in	NPT Female	70 °C	2 mA	6 to 24 Vdc @ 2 mA	6 to 24 Vdc	1 cSt	5 GPM	0.07 GPM	2.1 in
FPR302671,370 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.01 %	RoHS, CE	18 ft	Amplified Square Pulse, NPN Open Collector	2.2 in	600 to 680 pulses/gallon	4.1 in	Polypropylene Body, Visual Indication	EPDM, Nickel Tungsten Carbide, Polypropylene, Ruby, TFE Acrylic	Oil, Solvents, Water	150 psi	Maximum Pressure Drop: 15 psi on size 2 units 20 psi on all other sizes	20 psi	1/2 in	NPT Female	70 °C	2 mA	6 to 24 Vdc @ 2 mA	6 to 24 Vdc	1 cSt	10 GPM	0.1 GPM	2.1 in

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Approvals

Cable Length

Electrical Output

Height

K-Factor

Length

Material Construction Option

Materials, Wetted

Media Compatibility

Operating Pressure, Max

Operating Pressure, Min

Pressure Drop Note

Pressure Drop, Max

Process Connection Size

Process Connection Type

Process Temperature, Max

Supply Current

Supply Power Note

Supply Voltage

Viscosity Range

Volumetric Flow Rate, Max

Volumetric Flow Rate, Min

Width

수량 / 장바구니

FPR3141,828,170 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.01 %

RoHS, CE

18 ft

Amplified Square Pulse, NPN Open Collector

2.2 in

215 to 270 pulses/gallon

4.1 in

Tetrafluoroethylene Body

FKM, Polypropylene, Ruby, TFE, Zirconia Ceramic

Oil, Solvents, Water

150 psi

0 psi

Maximum Pressure Drop: 15 psi on size 2 units 20 psi on all other sizes

20 psi

1 in

NPT Female

70 °C

2 mA

6 to 24 Vdc @ 2 mA

6 to 24 Vdc

1 cSt

40 GPM

0.5 GPM

2.1 in

FPR3131,828,170 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.01 %

RoHS, CE

18 ft

Amplified Square Pulse, NPN Open Collector

2.2 in

375 to 460 pulses/gallon

4.1 in

Tetrafluoroethylene Body

FKM, Polypropylene, Ruby, TFE, Zirconia Ceramic

Oil, Solvents, Water

150 psi

0 psi

Maximum Pressure Drop: 15 psi on size 2 units 20 psi on all other sizes

20 psi

3/4 in

NPT Female

70 °C

2 mA

6 to 24 Vdc @ 2 mA

6 to 24 Vdc

1 cSt

20 GPM

0.2 GPM

2.1 in

FPR3121,828,170 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.01 %

RoHS, CE

18 ft

Amplified Square Pulse, NPN Open Collector

2.2 in

600 to 680 pulses/gallon

4.1 in

Tetrafluoroethylene Body

FKM, Polypropylene, Ruby, TFE, Zirconia Ceramic

Oil, Solvents, Water

150 psi

0 psi

Maximum Pressure Drop: 15 psi on size 2 units 20 psi on all other sizes

20 psi

1/2 in

NPT Female

70 °C

2 mA

6 to 24 Vdc @ 2 mA

6 to 24 Vdc

1 cSt

10 GPM

0.1 GPM

2.1 in

FPR3111,828,170 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.01 %

RoHS, CE

18 ft

Amplified Square Pulse, NPN Open Collector

2.2 in

1200 to 1380

4.1 in

Tetrafluoroethylene Body

FKM, Polypropylene, Ruby, TFE, Zirconia Ceramic

Oil, Solvents, Water

150 psi

0 psi

Maximum Pressure Drop: 15 psi on size 2 units 20 psi on all other sizes

15 psi

3/8 in

NPT Female

70 °C

2 mA

6 to 24 Vdc @ 2 mA

6 to 24 Vdc

1 cSt

5 GPM

0.07 GPM

2.1 in

FPR303848,880 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.01 %

RoHS, CE

18 ft

Amplified Square Pulse, NPN Open Collector

2.2 in

375 to 460 pulses/gallon

4.1 in

Polypropylene Body, Visual Indication

EPDM, Nickel Tungsten Carbide, Polypropylene, Ruby, TFE Acrylic

Oil, Solvents, Water

150 psi

0 psi

Maximum Pressure Drop: 15 psi on size 2 units 20 psi on all other sizes

20 psi

3/4 in

NPT Female

70 °C

2 mA

6 to 24 Vdc @ 2 mA

6 to 24 Vdc

1 cSt

20 GPM

0.2 GPM

2.1 in

FPR304848,880 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.01 %

RoHS, CE

18 ft

Amplified Square Pulse, NPN Open Collector

2.2 in

215 to 270 pulses/gallon

4.1 in

Polypropylene Body, Visual Indication

EPDM, Nickel Tungsten Carbide, Polypropylene, Ruby, TFE Acrylic

Oil, Solvents, Water

150 psi

0 psi

Maximum Pressure Drop: 15 psi on size 2 units 20 psi on all other sizes

20 psi

1 in

NPT Female

70 °C

2 mA

6 to 24 Vdc @ 2 mA

6 to 24 Vdc

1 cSt

40 GPM

0.5 GPM

2.1 in

FPR301848,880 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.01 %

RoHS, CE

18 ft

Amplified Square Pulse, NPN Open Collector

2.2 in

1200 to 1380 pulses/gallon

4.1 in

Polypropylene Body, Visual Indication

EPDM, Nickel Tungsten Carbide, Polypropylene, Ruby, TFE Acrylic

Oil, Solvents, Water

150 psi

0 psi

Maximum Pressure Drop: 15 psi on size 2 units 20 psi on all other sizes

15 psi

3/8 in

NPT Female

70 °C

2 mA

6 to 24 Vdc @ 2 mA

6 to 24 Vdc

1 cSt

5 GPM

0.07 GPM

2.1 in

FPR302671,370 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.01 %

RoHS, CE

18 ft

Amplified Square Pulse, NPN Open Collector

2.2 in

600 to 680 pulses/gallon

4.1 in

Polypropylene Body, Visual Indication

EPDM, Nickel Tungsten Carbide, Polypropylene, Ruby, TFE Acrylic

Oil, Solvents, Water

150 psi

0 psi

Maximum Pressure Drop: 15 psi on size 2 units 20 psi on all other sizes

20 psi

1/2 in

NPT Female

70 °C

2 mA

6 to 24 Vdc @ 2 mA

6 to 24 Vdc

1 cSt

10 GPM

0.1 GPM

2.1 in
