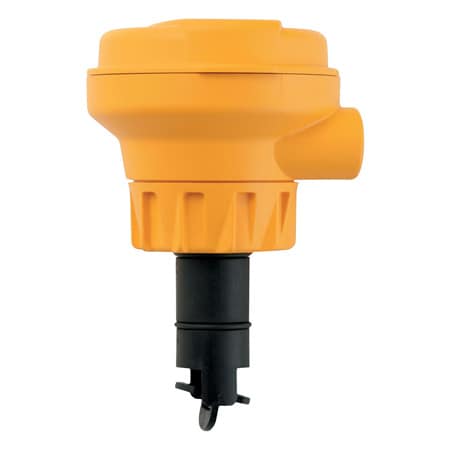

FPB100-Series | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 2개의 상품

제품 번호 / 가격	Brand	Accuracy	Approvals	Cable Length	Circuit Protection	Compatible Connectors	Electrical Output	Enclosure Ratings	Frequency Input Range	Input Note	Linearity Error	Linearity Note	Loop Accuracy	Loop Resistance, Max	Material Construction Option	Materials, Wetted	Measurement Pressure Type	Media Compatibility	Operating Pressure, Max	Operating Pressure, Min	Operating Temperature, Max	Operating Temperature, Min	Output Detail	Over-Voltage Protection	Pipe Size, Max	Pipe Size, Min	Power Supply Rejection	Process Temperature, Max	Process Temperature, Min	Relative Humidity	Repeatability Error	Repeatability Note	Response Time	Storage Temperature, Max	Storage Temperature, Min	Supply Current	Supply Power Note	Supply Voltage	Temperature Drift	Velocity, Max	Velocity, Min	Weight	수량 / 장바구니
FPB1211,200,180 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	CE	1000 ft	Up to 40V for 1 hour	FP-5300 Sensor Installation Fittings	Pulse Divider, SPDT Relay	IP65, NEMA Type 4X	1 to 1000 Hz	-	±1%	±1% of max range at 25°C	-	-	Polypropylene	Black Polypropylene, FKM, FPM, Polypropylene, Titanium	Gauge	Liquids	180 psi	0 psi	85 °C	-18 °C	Relay Rating: 100 mA at 40 Vdc, 70 mA @ 33 Vac; Pulse Rate: 300 Hz; Signal Averaging: Programmable 0 to 100 seconds; Sensitivity Response: Programmable 0 to 9 scale; Pulse Divider Setting: 1.0000 to 99999	>40 Vdc over 1 hour	4 in	0.5 in	-	65 °C	0 °C	0 to 90% RH, non-condensing	±0.5%	±0.5% of max range at 25°C	100 ms	75 °C	-10 °C	30 mA max	With Solid-State Relay: 5 to 24 Vdc nominal (5.0 Vdc min to 26.4 Vdc max) 30 mA max current	5 to 24 Vdc	-	6 m/s	0.1 m/s	0 kg
FPB1511,256,380 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	CE	1000 ft	Up to 40V for 1 hour	FP-5300 Sensor Installation Fittings	Pulse Divider, SPDT Relay	IP65, NEMA Type 4X	1 to 1000 Hz	5 µA	±1%	±1% of max range at 25°C	±32 µA (at 25°C at 24 Vdc)	600 Ω @ 24 Vdc 1K Ω @ 32 Vdc	Polypropylene	Black Polypropylene, FKM, FPM, Polypropylene, Titanium	Gauge	Liquids	180 psi	0 psi	85 °C	-18 °C	Signal Averaging: Programmable 0 to 100 seconds; Sensitivity Response: Programmable 0 to 9 scale	>40 Vdc over 1 hour	4 in	0.5 in	±1 µA per V	65 °C	0 °C	0 to 90% RH, non-condensing	±0.5%	±0.5% of max range at 25°C	100 ms	75 °C	-10 °C	21 mA max	12 Vdc to 32 Vdc nominal (10.8 Vdc min to 35.2 Vdc max) 21 mA max current	12 to 32 Vdc	±1 µA per °C max	6 m/s	0.1 m/s	0 kg

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Approvals

Cable Length

Circuit Protection

Compatible Connectors

Electrical Output

Enclosure Ratings

Frequency Input Range

Input Note

Linearity Error

Linearity Note

Loop Accuracy

Loop Resistance, Max

Material Construction Option

Materials, Wetted

Measurement Pressure Type

Media Compatibility

Operating Pressure, Max

Operating Pressure, Min

Operating Temperature, Max

Operating Temperature, Min

Output Detail

Over-Voltage Protection

Pipe Size, Max

Pipe Size, Min

Power Supply Rejection

Process Temperature, Max

Process Temperature, Min

Relative Humidity

Repeatability Error

Repeatability Note

Response Time

Storage Temperature, Max

Storage Temperature, Min

Supply Current

Supply Power Note

Supply Voltage

Temperature Drift

Velocity, Max

Velocity, Min

Weight

수량 / 장바구니

FPB1211,200,180 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

1000 ft

Up to 40V for 1 hour

FP-5300 Sensor Installation Fittings

Pulse Divider, SPDT Relay

IP65, NEMA Type 4X

1 to 1000 Hz

±1%

±1% of max range at 25°C

Polypropylene

Black Polypropylene, FKM, FPM, Polypropylene, Titanium

Gauge

Liquids

180 psi

0 psi

85 °C

-18 °C

Relay Rating: 100 mA at 40 Vdc, 70 mA @ 33 Vac; Pulse Rate: 300 Hz; Signal Averaging: Programmable 0 to 100 seconds; Sensitivity Response: Programmable 0 to 9 scale; Pulse Divider Setting: 1.0000 to 99999

>40 Vdc over 1 hour

4 in

0.5 in

65 °C

0 °C

0 to 90% RH, non-condensing

±0.5%

±0.5% of max range at 25°C

100 ms

75 °C

-10 °C

30 mA max

With Solid-State Relay: 5 to 24 Vdc nominal (5.0 Vdc min to 26.4 Vdc max) 30 mA max current

5 to 24 Vdc

6 m/s

0.1 m/s

0 kg

FPB1511,256,380 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
