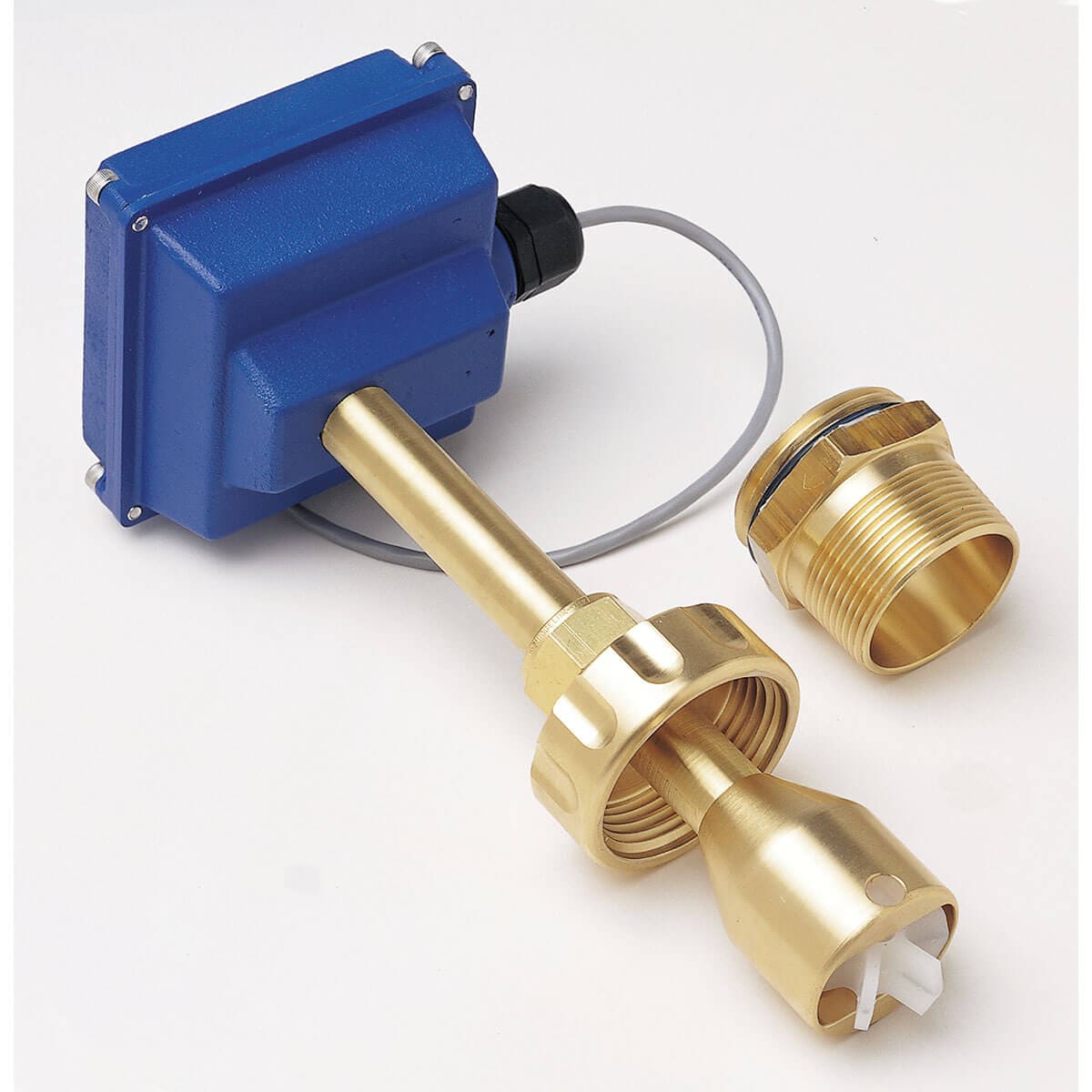

조절 가능한 길이 삽입형 패들휠 유량계
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 8개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Approvals | Cable Length | Cable Length Note | Cable Type | Electrical Output | K-Factor | Material Construction Option | Materials, Wetted | Measurement Pressure Type | Mounting Orientation | Operating Pressure Note | Operating Pressure, Max | Operating Pressure, Min | Output Detail | Pipe Size, Max | Pipe Size, Min | Process Connection Size | Process Connection Type | Process Temperature Note | Process Temperature, Max | Supply Current | Supply Power Note | Supply Voltage | Velocity, Max | Velocity, Min | Weight | Wire Gauge | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FP6511-SS2,372,780 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1.5 % | RoHS, CE | 18 ft | #22 AWG 3-conductor, 5.5 m (18') standard; 610 m (2000') max | 3 Conductor Wire Shielded Cable | Square Wave, current sinking output | 11 Hz/fps | 316 Stainless Steel | Bronze, FKM, Polypropylene, Ruby Ring, Stainless Steel, Tungsten Carbide | Gauge | N/A | 200 psi at 24°C | 200 psi | 0 psi | Square wave, 11 Hz/fps (approx.), current sinking output, 20 mA maximum, NPN (Hall Effect) | 12 in | 3 in | 2 in | NPT Male | 93°C (200°F) at 0 psig | 93 °C | 1.5 mA | 5 to 24 Vdc, 1.5 mA | 5 to 24 Vdc | 30 ft/s | 0.3 ft/s | 1.8 kg | 22 AWG | |
FP6512-SS2,442,440 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1.5 % | RoHS, CE | 18 ft | #22 AWG 3-conductor, 5.5 m (18') standard; 610 m (2000') max | 3 Conductor Wire Shielded Cable | Square Wave, current sinking output | 11 Hz/fps | 316 Stainless Steel | Bronze, FKM, Polypropylene, Ruby Ring, Stainless Steel, Tungsten Carbide | Gauge | N/A | 200 psi at 24°C | 200 psi | 0 psi | Square wave, 11 Hz/fps (approx.), current sinking output, 20 mA maximum, NPN (Hall Effect) | 40 in | 12 in | 2 in | NPT Male | 93°C (200°F) at 0 psig | 93 °C | 1.5 mA | 5 to 24 Vdc, 1.5 mA | 5 to 24 Vdc | 30 ft/s | 0.3 ft/s | 2.3 kg | 22 AWG | |
FP6502-SS1,775,740 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1.5 % | RoHS, CE | 18 ft | #22 AWG 3-conductor, 5.5 m (18') standard; 610 m (2000') max | 3 Conductor Wire Shielded Cable | Square Wave, current sinking output | 11 Hz/fps | 316 Stainless Steel | FKM, Polypropylene, Stainless Steel, Tungsten Carbide | Gauge | N/A | 200 psi at 24°C | 200 psi | 0 psi | Square wave, 11 Hz/fps (approx.), current sinking output, 20 mA maximum, NPN (Hall Effect) | 40 in | 12 in | 1 1/2 in | NPT Male | 93°C (200°F) at 0 psig | 93 °C | 1.5 mA | 5 to 24 Vdc, 1.5 mA | 5 to 24 Vdc | 30 ft/s | 0.3 ft/s | 2.3 kg | 22 AWG | |
FP6501-SS1,619,900 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1.5 % | RoHS, CE | 18 ft | #22 AWG 3-conductor, 5.5 m (18') standard; 610 m (2000') max | 3 Conductor Wire Shielded Cable | Square Wave, current sinking output | 11 Hz/fps | 316 Stainless Steel | FKM, Polypropylene, Stainless Steel, Tungsten Carbide | Gauge | N/A | 200 psi at 24°C | 200 psi | 0 psi | Square wave, 11 Hz/fps (approx.), current sinking output, 20 mA maximum, NPN (Hall Effect) | 12 in | 3 in | 1 1/2 in | NPT Male | 93°C (200°F) at 0 psig | 93 °C | 1.5 mA | 5 to 24 Vdc, 1.5 mA | 5 to 24 Vdc | 30 ft/s | 0.3 ft/s | 1.8 kg | 22 AWG | |
FP65122,383,550 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1.5 % | RoHS, CE | 18 ft | #22 AWG 3-conductor, 5.5 m (18') standard; 610 m (2000') max | 3 Conductor Wire Shielded Cable | Square Wave, current sinking output | 11 Hz/fps | Brass | Brass, Bronze, FKM, Polypropylene, Ruby Ring, Tungsten Carbide | Gauge | N/A | 200 psi at 24°C | 200 psi | 0 psi | Square wave, 11 Hz/fps (approx.), current sinking output, 20 mA maximum, NPN (Hall Effect) | 40 in | 12 in | 2 in | NPT Male | 93°C (200°F) at 0 psig | 93 °C | 1.5 mA | 5 to 24 Vdc, 1.5 mA | 5 to 24 Vdc | 30 ft/s | 0.3 ft/s | 2.3 kg | 22 AWG | |
FP65021,671,980 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1.5 % | RoHS, CE | 18 ft | #22 AWG 3-conductor, 5.5 m (18') standard; 610 m (2000') max | 3 Conductor Wire Shielded Cable | Square Wave, current sinking output | 11 Hz/fps | Brass | Brass, FKM, Polypropylene, Tungsten Carbide | Gauge | N/A | 200 psi at 24°C | 200 psi | 0 psi | Square wave, 11 Hz/fps (approx.), current sinking output, 20 mA maximum, NPN (Hall Effect) | 40 in | 12 in | 1 1/2 in | NPT Male | 93°C (200°F) at 0 psig | 93 °C | 1.5 mA | 5 to 24 Vdc, 1.5 mA | 5 to 24 Vdc | 30 ft/s | 0.3 ft/s | 2.3 kg | 22 AWG | |
FP65112,316,060 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1.5 % | RoHS, CE | 18 ft | #22 AWG 3-conductor, 5.5 m (18') standard; 610 m (2000') max | 3 Conductor Wire Shielded Cable | Square Wave, current sinking output | 11 Hz/fps | Brass | Brass, Bronze, FKM, Polypropylene, Ruby Ring, Tungsten Carbide | Gauge | N/A | 200 psi at 24°C | 200 psi | 0 psi | Square wave, 11 Hz/fps (approx.), current sinking output, 20 mA maximum, NPN (Hall Effect) | 12 in | 3 in | 2 in | NPT Male | 93°C (200°F) at 0 psig | 93 °C | 1.5 mA | 5 to 24 Vdc, 1.5 mA | 5 to 24 Vdc | 30 ft/s | 0.3 ft/s | 1.8 kg | 22 AWG | |
FP65011,504,490 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1.5 % | RoHS, CE | 18 ft | #22 AWG 3-conductor, 5.5 m (18') standard; 610 m (2000') max | 3 Conductor Wire Shielded Cable | Square Wave, current sinking output | 11 Hz/fps | Brass | Brass, FKM, Polypropylene, Tungsten Carbide | Gauge | N/A | 200 psi at 24°C | 200 psi | 0 psi | Square wave, 11 Hz/fps (approx.), current sinking output, 20 mA maximum, NPN (Hall Effect) | 12 in | 3 in | 1 1/2 in | NPT Male | 93°C (200°F) at 0 psig | 93 °C | 1.5 mA | 5 to 24 Vdc, 1.5 mA | 5 to 24 Vdc | 30 ft/s | 0.3 ft/s | 1.8 kg | 22 AWG |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
