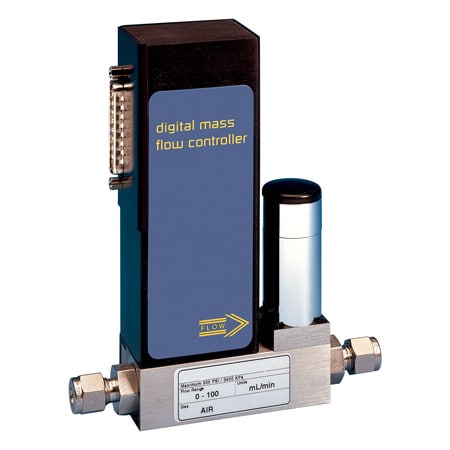

RS485 표준 및 알람 기능이 있는 질량 유량 컨트롤러
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 18개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Detail | Additional Features 1 | Calibration | Circuit Protection | Control Valve | Data Interface | Data Interface Note | Display Type | Electrical Connection | Electrical Output | Enclosure Ratings | Leak Rate Under Vacuum | Materials, Wetted | Measurement Pressure, Max | Media Compatibility | Operating Pressure, Max | Operating Pressure, Min | Operating Temperature, Max | Operating Temperature, Min | Optimum Pressure | Output Detail | Output Signal | Pressure Coefficient | Pressure Drop, Max | Process Connection Size | Process Connection Type | Repeatability | Response Time | Response Time Note | Supply Current | Supply Voltage | Temperature Coefficient | Turndown Ratio | Volumetric Flow Rate, Max | Volumetric Flow Rate, Min | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FMA6542ST4,304,280 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | Accuracy (including linearity): 15 to 25°C (59 to 77°F) and 0.7 to 4 bar (10 to 60 psia): ± 1% of FS, 0 to 50°C (32 to 122°F) and 0.3 to 10 bar (5 to 150 psia): ± 2% of FS, ± 1% of FS at a specific temperature and pressure with special calibration | 2 SPDT 1A Relay | NIST 10-Point Certificate | Reverse polarity, Current Limit, Resettable Fuse | Solenoid Valve | RS485 | RS485, standard; RS232, optional | None | Sub-D Male Miniature Connector | 0 to 5 V | Inst. Level II/Poll. Degree II (IEC 60664) | less than 10^⁻9 cc He/s | 316 Stainless Steel, 416 Stainless Steel, FKM | 50 psi | Air, Gases, Nitrogen, Oxygen | 500 psi | 0 psi | 50 °C | 5 °C | 25 psi | Linear 0 to 5 Vdc (2000 Ω min load impedance); 0 to 10 Vdc (4000 Ω min impedance); 4 to 20 mA optional (0 to 500 Ω loop resistance) | Voltage | 0.01% FS/psi | 18.9 psi | 1/4 in | Compression Fitting | ± 0.15% | 1 sec | 0.6 to 1.0 s to within ± 2% of setpoint over 20% to 100% FS | Up to 450 mA | ± 15 Vdc | 0.05% FS/°C | 50:1 | 100 SLM | 0.2 SCCM, 2 SLM | |
FMA6540ST4,304,280 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | Accuracy (including linearity): 15 to 25°C (59 to 77°F) and 0.7 to 4 bar (10 to 60 psia): ± 1% of FS, 0 to 50°C (32 to 122°F) and 0.3 to 10 bar (5 to 150 psia): ± 2% of FS, ± 1% of FS at a specific temperature and pressure with special calibration | 2 SPDT 1A Relay | NIST 10-Point Certificate | Reverse polarity, Current Limit, Resettable Fuse | Solenoid Valve | RS485 | RS485, standard; RS232, optional | None | Sub-D Male Miniature Connector | 0 to 5 V | Inst. Level II/Poll. Degree II (IEC 60664) | less than 10^⁻9 cc He/s | 316 Stainless Steel, 416 Stainless Steel, FKM | 50 psi | Air, Gases, Nitrogen, Oxygen | 500 psi | 0 psi | 50 °C | 5 °C | 25 psi | Linear 0 to 5 Vdc (2000 Ω min load impedance); 0 to 10 Vdc (4000 Ω min impedance); 4 to 20 mA optional (0 to 500 Ω loop resistance) | Voltage | 0.01% FS/psi | 18.9 psi | 1/4 in | Compression Fitting | ± 0.15% | 1 sec | 0.6 to 1.0 s to within ± 2% of setpoint over 20% to 100% FS | Up to 450 mA | ± 15 Vdc | 0.05% FS/°C | 50:1 | 60 SLM | 0.2 SCCM, 1.2 SLM | |
FMA6541ST4,304,280 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | Accuracy (including linearity): 15 to 25°C (59 to 77°F) and 0.7 to 4 bar (10 to 60 psia): ± 1% of FS, 0 to 50°C (32 to 122°F) and 0.3 to 10 bar (5 to 150 psia): ± 2% of FS, ± 1% of FS at a specific temperature and pressure with special calibration | 2 SPDT 1A Relay | NIST 10-Point Certificate | Reverse polarity, Current Limit, Resettable Fuse | Solenoid Valve | RS485 | RS485, standard; RS232, optional | None | Sub-D Male Miniature Connector | 0 to 5 V | Inst. Level II/Poll. Degree II (IEC 60664) | less than 10^⁻9 cc He/s | 316 Stainless Steel, 416 Stainless Steel, FKM | 50 psi | Air, Gases, Nitrogen, Oxygen | 500 psi | 0 psi | 50 °C | 5 °C | 25 psi | Linear 0 to 5 Vdc (2000 Ω min load impedance); 0 to 10 Vdc (4000 Ω min impedance); 4 to 20 mA optional (0 to 500 Ω loop resistance) | Voltage | 0.01% FS/psi | 18.9 psi | 1/4 in | Compression Fitting | ± 0.15% | 1 sec | 0.6 to 1.0 s to within ± 2% of setpoint over 20% to 100% FS | Up to 450 mA | ± 15 Vdc | 0.05% FS/°C | 50:1 | 80 SLM | 0.2 SCCM, 1.6 SLM | |
FMA6528ST4,043,950 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | Accuracy (including linearity): 15 to 25°C (59 to 77°F) and 0.7 to 4 bar (10 to 60 psia): ± 1% of FS, 0 to 50°C (32 to 122°F) and 0.3 to 10 bar (5 to 150 psia): ± 2% of FS, ± 1% of FS at a specific temperature and pressure with special calibration | 2 SPDT 1A Relay | NIST 10-Point Certificate | Reverse polarity, Current Limit, Resettable Fuse | Solenoid Valve | RS485 | RS485, standard; RS232, optional | None | Sub-D Male Miniature Connector | 0 to 5 V | Inst. Level II/Poll. Degree II (IEC 60664) | less than 10^⁻9 cc He/s | 316 Stainless Steel, 416 Stainless Steel, FKM | 50 psi | Air, Gases, Nitrogen, Oxygen | 500 psi | 0 psi | 50 °C | 5 °C | 25 psi | Linear 0 to 5 Vdc (2000 Ω min load impedance); 0 to 10 Vdc (4000 Ω min impedance); 4 to 20 mA optional (0 to 500 Ω loop resistance) | Voltage | 0.01% FS/psi | 8 psi | 1/4 in | Compression Fitting | ± 0.15% | 1 sec | 0.6 to 1.0 s to within ± 2% of setpoint over 20% to 100% FS | Up to 450 mA | ± 15 Vdc | 0.05% FS/°C | 50:1 | 50 SLM | 0.2 SCCM, 1 SLM | |
FMA6527ST가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | Accuracy (including linearity): 15 to 25°C (59 to 77°F) and 0.7 to 4 bar (10 to 60 psia): ± 1% of FS, 0 to 50°C (32 to 122°F) and 0.3 to 10 bar (5 to 150 psia): ± 2% of FS, ± 1% of FS at a specific temperature and pressure with special calibration | 2 SPDT 1A Relay | NIST 10-Point Certificate | Reverse polarity, Current Limit, Resettable Fuse | Solenoid Valve | RS485 | RS485, standard; RS232, optional | None | Sub-D Male Miniature Connector | 0 to 5 V | Inst. Level II/Poll. Degree II (IEC 60664) | less than 10^⁻9 cc He/s | 316 Stainless Steel, 416 Stainless Steel, FKM | 50 psi | Air, Gases, Nitrogen, Oxygen | 500 psi | 0 psi | 50 °C | 5 °C | 25 psi | Linear 0 to 5 Vdc (2000 Ω min load impedance); 0 to 10 Vdc (4000 Ω min impedance); 4 to 20 mA optional (0 to 500 Ω loop resistance) | Voltage | 0.01% FS/psi | 8 psi | 1/4 in | Compression Fitting | ± 0.15% | 1 sec | 0.6 to 1.0 s to within ± 2% of setpoint over 20% to 100% FS | Up to 450 mA | ± 15 Vdc | 0.05% FS/°C | 50:1 | 40 SCCM | 0.8 SCCM | |
FMA6524ST4,043,950 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | Accuracy (including linearity): 15 to 25°C (59 to 77°F) and 0.7 to 4 bar (10 to 60 psia): ± 1% of FS, 0 to 50°C (32 to 122°F) and 0.3 to 10 bar (5 to 150 psia): ± 2% of FS, ± 1% of FS at a specific temperature and pressure with special calibration | 2 SPDT 1A Relay | NIST 10-Point Certificate | Reverse polarity, Current Limit, Resettable Fuse | Solenoid Valve | RS485 | RS485, standard; RS232, optional | None | Sub-D Male Miniature Connector | 0 to 5 V | Inst. Level II/Poll. Degree II (IEC 60664) | less than 10^⁻9 cc He/s | 316 Stainless Steel, 416 Stainless Steel, FKM | 50 psi | Air, Gases, Nitrogen, Oxygen | 500 psi | 0 psi | 50 °C | 5 °C | 25 psi | Linear 0 to 5 Vdc (2000 Ω min load impedance); 0 to 10 Vdc (4000 Ω min impedance); 4 to 20 mA optional (0 to 500 Ω loop resistance) | Voltage | 0.01% FS/psi | 3.5 psi | 1/4 in | Compression Fitting | ± 0.15% | 1 sec | 0.6 to 1.0 s to within ± 2% of setpoint over 20% to 100% FS | Up to 450 mA | ± 15 Vdc | 0.05% FS/°C | 50:1 | 20 SLM | 0.2 SCCM, 0.4 SLM | |
FMA6526ST4,043,950 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | Accuracy (including linearity): 15 to 25°C (59 to 77°F) and 0.7 to 4 bar (10 to 60 psia): ± 1% of FS, 0 to 50°C (32 to 122°F) and 0.3 to 10 bar (5 to 150 psia): ± 2% of FS, ± 1% of FS at a specific temperature and pressure with special calibration | 2 SPDT 1A Relay | NIST 10-Point Certificate | Reverse polarity, Current Limit, Resettable Fuse | Solenoid Valve | RS485 | RS485, standard; RS232, optional | None | Sub-D Male Miniature Connector | 0 to 5 V | Inst. Level II/Poll. Degree II (IEC 60664) | less than 10^⁻9 cc He/s | 316 Stainless Steel, 416 Stainless Steel, FKM | 50 psi | Air, Gases, Nitrogen, Oxygen | 500 psi | 0 psi | 50 °C | 5 °C | 25 psi | Linear 0 to 5 Vdc (2000 Ω min load impedance); 0 to 10 Vdc (4000 Ω min impedance); 4 to 20 mA optional (0 to 500 Ω loop resistance) | Voltage | 0.01% FS/psi | 8 psi | 1/4 in | Compression Fitting | ± 0.15% | 1 sec | 0.6 to 1.0 s to within ± 2% of setpoint over 20% to 100% FS | Up to 450 mA | ± 15 Vdc | 0.05% FS/°C | 50:1 | 30 SLM | 0.2 SCCM, 0.6 SLM | |
FMA6523ST4,043,950 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | Accuracy (including linearity): 15 to 25°C (59 to 77°F) and 0.7 to 4 bar (10 to 60 psia): ± 1% of FS, 0 to 50°C (32 to 122°F) and 0.3 to 10 bar (5 to 150 psia): ± 2% of FS, ± 1% of FS at a specific temperature and pressure with special calibration | 2 SPDT 1A Relay | NIST 10-Point Certificate | Reverse polarity, Current Limit, Resettable Fuse | Solenoid Valve | RS485 | RS485, standard; RS232, optional | None | Sub-D Male Miniature Connector | 0 to 5 V | Inst. Level II/Poll. Degree II (IEC 60664) | less than 10^⁻9 cc He/s | 316 Stainless Steel, 416 Stainless Steel, FKM | 50 psi | Air, Gases, Nitrogen, Oxygen | 500 psi | 0 psi | 50 °C | 5 °C | 25 psi | Linear 0 to 5 Vdc (2000 Ω min load impedance); 0 to 10 Vdc (4000 Ω min impedance); 4 to 20 mA optional (0 to 500 Ω loop resistance) | Voltage | 0.01% FS/psi | 2 psi | 1/4 in | Compression Fitting | ± 0.15% | 1 sec | 0.6 to 1.0 s to within ± 2% of setpoint over 20% to 100% FS | Up to 450 mA | ± 15 Vdc | 0.05% FS/°C | 50:1 | 15 SLM | 0.2 SCCM, 0.3 SLM | |
FMA6520ST3,791,340 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | Accuracy (including linearity): 15 to 25°C (59 to 77°F) and 0.7 to 4 bar (10 to 60 psia): ± 1% of FS, 0 to 50°C (32 to 122°F) and 0.3 to 10 bar (5 to 150 psia): ± 2% of FS, ± 1% of FS at a specific temperature and pressure with special calibration | 2 SPDT 1A Relay | NIST 10-Point Certificate | Reverse polarity, Current Limit, Resettable Fuse | Solenoid Valve | RS485 | RS485, standard; RS232, optional | None | Sub-D Male Miniature Connector | 0 to 5 V | Inst. Level II/Poll. Degree II (IEC 60664) | less than 10^⁻9 cc He/s | 316 Stainless Steel, 416 Stainless Steel, FKM | 50 psi | Air, Gases, Nitrogen, Oxygen | 500 psi | 0 psi | 50 °C | 5 °C | 25 psi | Linear 0 to 5 Vdc (2000 Ω min load impedance); 0 to 10 Vdc (4000 Ω min impedance); 4 to 20 mA optional (0 to 500 Ω loop resistance) | Voltage | 0.01% FS/psi | 3.87 psi | 1/4 in | Compression Fitting | ± 0.15% | 1 sec | 0.6 to 1.0 s to within ± 2% of setpoint over 20% to 100% FS | Up to 450 mA | ± 15 Vdc | 0.05% FS/°C | 50:1 | 10 SLM | 0.2 SCCM, 0.2 SLM | |
FMA6518ST4,041,350 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | Accuracy (including linearity): 15 to 25°C (59 to 77°F) and 0.7 to 4 bar (10 to 60 psia): ± 1% of FS, 0 to 50°C (32 to 122°F) and 0.3 to 10 bar (5 to 150 psia): ± 2% of FS, ± 1% of FS at a specific temperature and pressure with special calibration | 2 SPDT 1A Relay | NIST 10-Point Certificate | Reverse polarity, Current Limit, Resettable Fuse | Solenoid Valve | RS485 | RS485, standard; RS232, optional | None | Sub-D Male Miniature Connector | 0 to 5 V | Inst. Level II/Poll. Degree II (IEC 60664) | less than 10^⁻9 cc He/s | 316 Stainless Steel, 416 Stainless Steel, FKM | 50 psi | Air, Gases, Nitrogen, Oxygen | 500 psi | 0 psi | 50 °C | 5 °C | 25 psi | Linear 0 to 5 Vdc (2000 Ω min load impedance); 0 to 10 Vdc (4000 Ω min impedance); 4 to 20 mA optional (0 to 500 Ω loop resistance) | Voltage | 0.01% FS/psi | 1.06 psi | 1/4 in | Compression Fitting | ± 0.15% | 1 sec | 0.6 to 1.0 s to within ± 2% of setpoint over 20% to 100% FS | Up to 450 mA | ± 15 Vdc | 0.05% FS/°C | 50:1 | 5 SLM | 0.2 SCCM, 0.1 SLM | |
FMA6516ST4,041,350 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | Accuracy (including linearity): 15 to 25°C (59 to 77°F) and 0.7 to 4 bar (10 to 60 psia): ± 1% of FS, 0 to 50°C (32 to 122°F) and 0.3 to 10 bar (5 to 150 psia): ± 2% of FS, ± 1% of FS at a specific temperature and pressure with special calibration | 2 SPDT 1A Relay | NIST 10-Point Certificate | Reverse polarity, Current Limit, Resettable Fuse | Solenoid Valve | RS485 | RS485, standard; RS232, optional | None | Sub-D Male Miniature Connector | 0 to 5 V | Inst. Level II/Poll. Degree II (IEC 60664) | less than 10^⁻9 cc He/s | 316 Stainless Steel, 416 Stainless Steel, FKM | 50 psi | Air, Gases, Nitrogen, Oxygen | 500 psi | 0 psi | 50 °C | 5 °C | 25 psi | Linear 0 to 5 Vdc (2000 Ω min load impedance); 0 to 10 Vdc (4000 Ω min impedance); 4 to 20 mA optional (0 to 500 Ω loop resistance) | Voltage | 0.01% FS/psi | 1.06 psi | 1/4 in | Compression Fitting | ± 0.15% | 1 sec | 0.6 to 1.0 s to within ± 2% of setpoint over 20% to 100% FS | Up to 450 mA | ± 15 Vdc | 0.05% FS/°C | 50:1 | 2 SLM | 0.2 SCCM, 0.04 SLM | |
FMA6512ST3,791,340 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | Accuracy (including linearity): 15 to 25°C (59 to 77°F) and 0.7 to 4 bar (10 to 60 psia): ± 1% of FS, 0 to 50°C (32 to 122°F) and 0.3 to 10 bar (5 to 150 psia): ± 2% of FS, ± 1% of FS at a specific temperature and pressure with special calibration | 2 SPDT 1A Relay | NIST 10-Point Certificate | Reverse polarity, Current Limit, Resettable Fuse | Solenoid Valve | RS485 | RS485, standard; RS232, optional | None | Sub-D Male Miniature Connector | 0 to 5 V | Inst. Level II/Poll. Degree II (IEC 60664) | less than 10^⁻9 cc He/s | 316 Stainless Steel, 416 Stainless Steel, FKM | 50 psi | Air, Gases, Nitrogen, Oxygen | 500 psi | 0 psi | 50 °C | 5 °C | 25 psi | Linear 0 to 5 Vdc (2000 Ω min load impedance); 0 to 10 Vdc (4000 Ω min impedance); 4 to 20 mA optional (0 to 500 Ω loop resistance) | Voltage | 0.01% FS/psi | 1.06 psi | 1/4 in | Compression Fitting | ± 0.15% | 1 sec | 0.6 to 1.0 s to within ± 2% of setpoint over 20% to 100% FS | Up to 450 mA | ± 15 Vdc | 0.05% FS/°C | 50:1 | 500 SCCM | 10 SCCM | |
FMA6514ST3,791,340 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | Accuracy (including linearity): 15 to 25°C (59 to 77°F) and 0.7 to 4 bar (10 to 60 psia): ± 1% of FS, 0 to 50°C (32 to 122°F) and 0.3 to 10 bar (5 to 150 psia): ± 2% of FS, ± 1% of FS at a specific temperature and pressure with special calibration | 2 SPDT 1A Relay | NIST 10-Point Certificate | Reverse polarity, Current Limit, Resettable Fuse | Solenoid Valve | RS485 | RS485, standard; RS232, optional | None | Sub-D Male Miniature Connector | 0 to 5 V | Inst. Level II/Poll. Degree II (IEC 60664) | less than 10^⁻9 cc He/s | 316 Stainless Steel, 416 Stainless Steel, FKM | 50 psi | Air, Gases, Nitrogen, Oxygen | 500 psi | 0 psi | 50 °C | 5 °C | 25 psi | Linear 0 to 5 Vdc (2000 Ω min load impedance); 0 to 10 Vdc (4000 Ω min impedance); 4 to 20 mA optional (0 to 500 Ω loop resistance) | Voltage | 0.01% FS/psi | 1.06 psi | 1/4 in | Compression Fitting | ± 0.15% | 1 sec | 0.6 to 1.0 s to within ± 2% of setpoint over 20% to 100% FS | Up to 450 mA | ± 15 Vdc | 0.05% FS/°C | 50:1 | 1 SLM | 0.2 SCCM, 0.02 SLM | |
FMA6510ST4,041,350 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | Accuracy (including linearity): 15 to 25°C (59 to 77°F) and 0.7 to 4 bar (10 to 60 psia): ± 1% of FS, 0 to 50°C (32 to 122°F) and 0.3 to 10 bar (5 to 150 psia): ± 2% of FS, ± 1% of FS at a specific temperature and pressure with special calibration | 2 SPDT 1A Relay | NIST 10-Point Certificate | Reverse polarity, Current Limit, Resettable Fuse | Solenoid Valve | RS485 | RS485, standard; RS232, optional | None | Sub-D Male Miniature Connector | 0 to 5 V | Inst. Level II/Poll. Degree II (IEC 60664) | less than 10^⁻9 cc He/s | 316 Stainless Steel, 416 Stainless Steel, FKM | 50 psi | Air, Gases, Nitrogen, Oxygen | 500 psi | 0 psi | 50 °C | 5 °C | 25 psi | Linear 0 to 5 Vdc (2000 Ω min load impedance); 0 to 10 Vdc (4000 Ω min impedance); 4 to 20 mA optional (0 to 500 Ω loop resistance) | Voltage | 0.01% FS/psi | 1.06 psi | 1/4 in | Compression Fitting | ± 0.15% | 1 sec | 0.6 to 1.0 s to within ± 2% of setpoint over 20% to 100% FS | Up to 450 mA | ± 15 Vdc | 0.05% FS/°C | 50:1 | 200 SCCM | 4 SCCM | |
FMA6508ST3,791,340 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | Accuracy (including linearity): 15 to 25°C (59 to 77°F) and 0.7 to 4 bar (10 to 60 psia): ± 1% of FS, 0 to 50°C (32 to 122°F) and 0.3 to 10 bar (5 to 150 psia): ± 2% of FS, ± 1% of FS at a specific temperature and pressure with special calibration | 2 SPDT 1A Relay | NIST 10-Point Certificate | Reverse polarity, Current Limit, Resettable Fuse | Solenoid Valve | RS485 | RS485, standard; RS232, optional | None | Sub-D Male Miniature Connector | 0 to 5 V | Inst. Level II/Poll. Degree II (IEC 60664) | less than 10^⁻9 cc He/s | 316 Stainless Steel, 416 Stainless Steel, FKM | 50 psi | Air, Gases, Nitrogen, Oxygen | 500 psi | 0 psi | 50 °C | 5 °C | 25 psi | Linear 0 to 5 Vdc (2000 Ω min load impedance); 0 to 10 Vdc (4000 Ω min impedance); 4 to 20 mA optional (0 to 500 Ω loop resistance) | Voltage | 0.01% FS/psi | 1.06 psi | 1/4 in | Compression Fitting | ± 0.15% | 1 sec | 0.6 to 1.0 s to within ± 2% of setpoint over 20% to 100% FS | Up to 450 mA | ± 15 Vdc | 0.05% FS/°C | 50:1 | 100 SCCM | 2 SCCM | |
FMA6504ST3,791,340 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | Accuracy (including linearity): 15 to 25°C (59 to 77°F) and 0.7 to 4 bar (10 to 60 psia): ± 1% of FS, 0 to 50°C (32 to 122°F) and 0.3 to 10 bar (5 to 150 psia): ± 2% of FS, ± 1% of FS at a specific temperature and pressure with special calibration | 2 SPDT 1A Relay | NIST 10-Point Certificate | Reverse polarity, Current Limit, Resettable Fuse | Solenoid Valve | RS485 | RS485, standard; RS232, optional | None | Sub-D Male Miniature Connector | 0 to 5 V | Inst. Level II/Poll. Degree II (IEC 60664) | less than 10^⁻9 cc He/s | 316 Stainless Steel, 416 Stainless Steel, FKM | 50 psi | Air, Gases, Nitrogen, Oxygen | 500 psi | 0 psi | 50 °C | 5 °C | 25 psi | Linear 0 to 5 Vdc (2000 Ω min load impedance); 0 to 10 Vdc (4000 Ω min impedance); 4 to 20 mA optional (0 to 500 Ω loop resistance) | Voltage | 0.01% FS/psi | 1.06 psi | 1/4 in | Compression Fitting | ± 0.15% | 1 sec | 0.6 to 1.0 s to within ± 2% of setpoint over 20% to 100% FS | Up to 450 mA | ± 15 Vdc | 0.05% FS/°C | 50:1 | 20 SCCM | 0.4 SCCM | |
FMA6506ST3,791,340 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | Accuracy (including linearity): 15 to 25°C (59 to 77°F) and 0.7 to 4 bar (10 to 60 psia): ± 1% of FS, 0 to 50°C (32 to 122°F) and 0.3 to 10 bar (5 to 150 psia): ± 2% of FS, ± 1% of FS at a specific temperature and pressure with special calibration | 2 SPDT 1A Relay | NIST 10-Point Certificate | Reverse polarity, Current Limit, Resettable Fuse | Solenoid Valve | RS485 | RS485, standard; RS232, optional | None | Sub-D Male Miniature Connector | 0 to 5 V | Inst. Level II/Poll. Degree II (IEC 60664) | less than 10^⁻9 cc He/s | 316 Stainless Steel, 416 Stainless Steel, FKM | 50 psi | Air, Gases, Nitrogen, Oxygen | 500 psi | 0 psi | 50 °C | 5 °C | 25 psi | Linear 0 to 5 Vdc (2000 Ω min load impedance); 0 to 10 Vdc (4000 Ω min impedance); 4 to 20 mA optional (0 to 500 Ω loop resistance) | Voltage | 0.01% FS/psi | 1.06 psi | 1/4 in | Compression Fitting | ± 0.15% | 1 sec | 0.6 to 1.0 s to within ± 2% of setpoint over 20% to 100% FS | Up to 450 mA | ± 15 Vdc | 0.05% FS/°C | 50:1 | 50 SCCM | 1 SCCM | |
FMA6502ST3,791,340 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | Accuracy (including linearity): 15 to 25°C (59 to 77°F) and 0.7 to 4 bar (10 to 60 psia): ± 1% of FS, 0 to 50°C (32 to 122°F) and 0.3 to 10 bar (5 to 150 psia): ± 2% of FS, ± 1% of FS at a specific temperature and pressure with special calibration | 2 SPDT 1A Relay | NIST 10-Point Certificate | Reverse polarity, Current Limit, Resettable Fuse | Solenoid Valve | RS485 | RS485, standard; RS232, optional | None | Sub-D Male Miniature Connector | 0 to 5 V | Inst. Level II/Poll. Degree II (IEC 60664) | less than 10^⁻9 cc He/s | 316 Stainless Steel, 416 Stainless Steel, FKM | 50 psi | Air, Gases, Nitrogen, Oxygen | 500 psi | 0 psi | 50 °C | 5 °C | 25 psi | Linear 0 to 5 Vdc (2000 Ω min load impedance); 0 to 10 Vdc (4000 Ω min impedance); 4 to 20 mA optional (0 to 500 Ω loop resistance) | Voltage | 0.01% FS/psi | 1.06 psi | 1/4 in | Compression Fitting | ± 0.15% | 1 sec | 0.6 to 1.0 s to within ± 2% of setpoint over 20% to 100% FS | Up to 450 mA | ± 15 Vdc | 0.05% FS/°C | 50:1 | 10 SCCM | 0.2 SCCM |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
