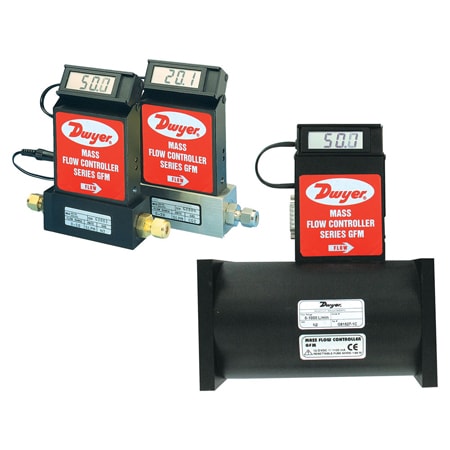

Series-GFM | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 32개의 상품 · 1 - 20 표시

제품 번호 / 가격	Brand	Accuracy	Accuracy Detail	Compliance	Display Note	Display Type	Leak Rate Under Vacuum	Material Construction Option	Materials, Wetted	Measurement Pressure Type	Media Compatibility	Operating Temperature, Max	Operating Temperature, Min	Output Detail	Output Signal	Particulate Size, Max	Pressure Limits	Process Connection Size	Process Connection Type	Repeatability	Response Time	Response Time Note	Supply Power Type	Supply Voltage	Volumetric Flow Rate, Max
GFM-2145가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1.5 %	± 1% FS including linearity over 59 to 77°F (5 to 25°C) and 5 to 60 psia (0.34 to 4 bar); Series GFC X143, X144, X145, ± 1.5% FS	CE	90° tiltable, 3-1/2 digit	LCD	less than 10^⁻9 cc He/s	316 Stainless Steel	316 Stainless Steel, Fluoroelastomer	Gauge	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen	122 °F	32 °F	Linear 0 to 5 VDC and 4 to 20 mA	Current, Voltage	5 microns	Up to 500 psi	3/4 in	Compression Fitting	± 0.25%	2 s	2 s to within ± 2% of actual flow	DC	± 12 Vdc	1000 l/min
GFM-2144가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1.5 %	± 1% FS including linearity over 59 to 77°F (5 to 25°C) and 5 to 60 psia (0.34 to 4 bar); Series GFC X143, X144, X145, ± 1.5% FS	CE	90° tiltable, 3-1/2 digit	LCD	less than 10^⁻9 cc He/s	316 Stainless Steel	316 Stainless Steel, Fluoroelastomer	Gauge	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen	122 °F	32 °F	Linear 0 to 5 VDC and 4 to 20 mA	Current, Voltage	5 microns	Up to 500 psi	1/2 in	Compression Fitting	± 0.25%	2 s	2 s to within ± 2% of actual flow	DC	± 12 Vdc	500 l/min
GFM-2143가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1.5 %	± 1% FS including linearity over 59 to 77°F (5 to 25°C) and 5 to 60 psia (0.34 to 4 bar); Series GFC X143, X144, X145, ± 1.5% FS	CE	90° tiltable, 3-1/2 digit	LCD	less than 10^⁻9 cc He/s	316 Stainless Steel	316 Stainless Steel, Fluoroelastomer	Gauge	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen	122 °F	32 °F	Linear 0 to 5 VDC and 4 to 20 mA	Current, Voltage	5 microns	Up to 500 psi	3/8 in	Compression Fitting	± 0.25%	2 s	2 s to within ± 2% of actual flow	DC	± 12 Vdc	200 l/min
GFM-2133가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% FS including linearity over 59 to 77°F (5 to 25°C) and 5 to 60 psia (0.34 to 4 bar); Series GFC X143, X144, X145, ± 1.5% FS	CE	90° tiltable, 3-1/2 digit	LCD	less than 10^⁻9 cc He/s	316 Stainless Steel	316 Stainless Steel, Fluoroelastomer	Gauge	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen	122 °F	32 °F	Linear 0 to 5 VDC and 4 to 20 mA	Current, Voltage	5 microns	Up to 1000 psi	1/4 in	Compression Fitting	± 0.25%	2 s	2 s to within ± 2% of actual flow	DC	± 12 Vdc	50 l/min
GFM-2142가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% FS including linearity over 59 to 77°F (5 to 25°C) and 5 to 60 psia (0.34 to 4 bar); Series GFC X143, X144, X145, ± 1.5% FS	CE	90° tiltable, 3-1/2 digit	LCD	less than 10^⁻9 cc He/s	316 Stainless Steel	316 Stainless Steel, Fluoroelastomer	Gauge	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen	122 °F	32 °F	Linear 0 to 5 VDC and 4 to 20 mA	Current, Voltage	5 microns	Up to 1000 psi	3/8 in	Compression Fitting	± 0.25%	2 s	2 s to within ± 2% of actual flow	DC	± 12 Vdc	100 l/min
GFM-2131가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% FS including linearity over 59 to 77°F (5 to 25°C) and 5 to 60 psia (0.34 to 4 bar); Series GFC X143, X144, X145, ± 1.5% FS	CE	90° tiltable, 3-1/2 digit	LCD	less than 10^⁻9 cc He/s	316 Stainless Steel	316 Stainless Steel, Fluoroelastomer	Gauge	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen	122 °F	32 °F	Linear 0 to 5 VDC and 4 to 20 mA	Current, Voltage	5 microns	Up to 1000 psi	1/4 in	Compression Fitting	± 0.25%	2 s	2 s to within ± 2% of actual flow	DC	± 12 Vdc	30 l/min
GFM-2111가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% FS including linearity over 59 to 77°F (5 to 25°C) and 5 to 60 psia (0.34 to 4 bar); Series GFC X143, X144, X145, ± 1.5% FS	CE	90° tiltable, 3-1/2 digit	LCD	less than 10^⁻9 cc He/s	316 Stainless Steel	316 Stainless Steel, Fluoroelastomer	Gauge	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen	122 °F	32 °F	Linear 0 to 5 VDC and 4 to 20 mA	Current, Voltage	5 microns	Up to 1000 psi	1/4 in	Compression Fitting	± 0.25%	2 s	2 s to within ± 2% of actual flow	DC	± 12 Vdc	15 l/min
GFM-2108가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% FS including linearity over 59 to 77°F (5 to 25°C) and 5 to 60 psia (0.34 to 4 bar); Series GFC X143, X144, X145, ± 1.5% FS	CE	90° tiltable, 3-1/2 digit	LCD	less than 10^⁻9 cc He/s	316 Stainless Steel	316 Stainless Steel, Fluoroelastomer	Gauge	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen	122 °F	32 °F	Linear 0 to 5 VDC and 4 to 20 mA	Current, Voltage	5 microns	Up to 1000 psi	1/4 in	Compression Fitting	± 0.25%	2 s	2 s to within ± 2% of actual flow	DC	± 12 Vdc	2 l/min
GFM-2109가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% FS including linearity over 59 to 77°F (5 to 25°C) and 5 to 60 psia (0.34 to 4 bar); Series GFC X143, X144, X145, ± 1.5% FS	CE	90° tiltable, 3-1/2 digit	LCD	less than 10^⁻9 cc He/s	316 Stainless Steel	316 Stainless Steel, Fluoroelastomer	Gauge	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen	122 °F	32 °F	Linear 0 to 5 VDC and 4 to 20 mA	Current, Voltage	5 microns	Up to 1000 psi	1/4 in	Compression Fitting	± 0.25%	2 s	2 s to within ± 2% of actual flow	DC	± 12 Vdc	5 l/min
GFM-2107가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% FS including linearity over 59 to 77°F (5 to 25°C) and 5 to 60 psia (0.34 to 4 bar); Series GFC X143, X144, X145, ± 1.5% FS	CE	90° tiltable, 3-1/2 digit	LCD	less than 10^⁻9 cc He/s	316 Stainless Steel	316 Stainless Steel, Fluoroelastomer	Gauge	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen	122 °F	32 °F	Linear 0 to 5 VDC and 4 to 20 mA	Current, Voltage	5 microns	Up to 1000 psi	1/4 in	Compression Fitting	± 0.25%	2 s	2 s to within ± 2% of actual flow	DC	± 12 Vdc	1000 ml/min
GFM-2106가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% FS including linearity over 59 to 77°F (5 to 25°C) and 5 to 60 psia (0.34 to 4 bar); Series GFC X143, X144, X145, ± 1.5% FS	CE	90° tiltable, 3-1/2 digit	LCD	less than 10^⁻9 cc He/s	316 Stainless Steel	316 Stainless Steel, Fluoroelastomer	Gauge	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen	122 °F	32 °F	Linear 0 to 5 VDC and 4 to 20 mA	Current, Voltage	5 microns	Up to 1000 psi	1/4 in	Compression Fitting	± 0.25%	2 s	2 s to within ± 2% of actual flow	DC	± 12 Vdc	500 ml/min
GFM-2105가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% FS including linearity over 59 to 77°F (5 to 25°C) and 5 to 60 psia (0.34 to 4 bar); Series GFC X143, X144, X145, ± 1.5% FS	CE	90° tiltable, 3-1/2 digit	LCD	less than 10^⁻9 cc He/s	316 Stainless Steel	316 Stainless Steel, Fluoroelastomer	Gauge	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen	122 °F	32 °F	Linear 0 to 5 VDC and 4 to 20 mA	Current, Voltage	5 microns	Up to 1000 psi	1/4 in	Compression Fitting	± 0.25%	2 s	2 s to within ± 2% of actual flow	DC	± 12 Vdc	200 ml/min
GFM-2104가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% FS including linearity over 59 to 77°F (5 to 25°C) and 5 to 60 psia (0.34 to 4 bar); Series GFC X143, X144, X145, ± 1.5% FS	CE	90° tiltable, 3-1/2 digit	LCD	less than 10^⁻9 cc He/s	316 Stainless Steel	316 Stainless Steel, Fluoroelastomer	Gauge	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen	122 °F	32 °F	Linear 0 to 5 VDC and 4 to 20 mA	Current, Voltage	5 microns	Up to 1000 psi	1/4 in	Compression Fitting	± 0.25%	2 s	2 s to within ± 2% of actual flow	DC	± 12 Vdc	100 ml/min
GFM-2103가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% FS including linearity over 59 to 77°F (5 to 25°C) and 5 to 60 psia (0.34 to 4 bar); Series GFC X143, X144, X145, ± 1.5% FS	CE	90° tiltable, 3-1/2 digit	LCD	less than 10^⁻9 cc He/s	316 Stainless Steel	316 Stainless Steel, Fluoroelastomer	Gauge	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen	122 °F	32 °F	Linear 0 to 5 VDC and 4 to 20 mA	Current, Voltage	5 microns	Up to 1000 psi	1/4 in	Compression Fitting	± 0.25%	2 s	2 s to within ± 2% of actual flow	DC	± 12 Vdc	50 ml/min
GFM-2101가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% FS including linearity over 59 to 77°F (5 to 25°C) and 5 to 60 psia (0.34 to 4 bar); Series GFC X143, X144, X145, ± 1.5% FS	CE	90° tiltable, 3-1/2 digit	LCD	less than 10^⁻9 cc He/s	316 Stainless Steel	316 Stainless Steel, Fluoroelastomer	Gauge	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen	122 °F	32 °F	Linear 0 to 5 VDC and 4 to 20 mA	Current, Voltage	5 microns	Up to 1000 psi	1/4 in	Compression Fitting	± 0.25%	2 s	2 s to within ± 2% of actual flow	DC	± 12 Vdc	10 ml/min
GFM-2102가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% FS including linearity over 59 to 77°F (5 to 25°C) and 5 to 60 psia (0.34 to 4 bar); Series GFC X143, X144, X145, ± 1.5% FS	CE	90° tiltable, 3-1/2 digit	LCD	less than 10^⁻9 cc He/s	316 Stainless Steel	316 Stainless Steel, Fluoroelastomer	Gauge	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen	122 °F	32 °F	Linear 0 to 5 VDC and 4 to 20 mA	Current, Voltage	5 microns	Up to 1000 psi	1/4 in	Compression Fitting	± 0.25%	2 s	2 s to within ± 2% of actual flow	DC	± 12 Vdc	20 ml/min
GFM-1145가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1.5 %	± 1% FS including linearity over 59 to 77°F (5 to 25°C) and 5 to 60 psia (0.34 to 4 bar); Series GFC X143, X144, X145, ± 1.5% FS	CE	90° tiltable, 3-1/2 digit	LCD	less than 10^⁻9 cc He/s	Aluminum	316 Stainless Steel, Aluminum, Brass, Fluoroelastomer	Gauge	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen	122 °F	32 °F	Linear 0 to 5 VDC and 4 to 20 mA	Current, Voltage	5 microns	Up to 500 psi	3/4 in	Compression Fitting	± 0.25%	2 s	2 s to within ± 2% of actual flow	DC	± 12 Vdc	1000 l/min
GFM-1144가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1.5 %	± 1% FS including linearity over 59 to 77°F (5 to 25°C) and 5 to 60 psia (0.34 to 4 bar); Series GFC X143, X144, X145, ± 1.5% FS	CE	90° tiltable, 3-1/2 digit	LCD	less than 10^⁻9 cc He/s	Aluminum	316 Stainless Steel, Aluminum, Brass, Fluoroelastomer	Gauge	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen	122 °F	32 °F	Linear 0 to 5 VDC and 4 to 20 mA	Current, Voltage	5 microns	Up to 500 psi	1/2 in	Compression Fitting	± 0.25%	2 s	2 s to within ± 2% of actual flow	DC	± 12 Vdc	500 l/min
GFM-1143가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1.5 %	± 1% FS including linearity over 59 to 77°F (5 to 25°C) and 5 to 60 psia (0.34 to 4 bar); Series GFC X143, X144, X145, ± 1.5% FS	CE	90° tiltable, 3-1/2 digit	LCD	less than 10^⁻9 cc He/s	Aluminum	316 Stainless Steel, Aluminum, Brass, Fluoroelastomer	Gauge	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen	122 °F	32 °F	Linear 0 to 5 VDC and 4 to 20 mA	Current, Voltage	5 microns	Up to 500 psi	3/8 in	Compression Fitting	± 0.25%	2 s	2 s to within ± 2% of actual flow	DC	± 12 Vdc	200 l/min
GFM-1133가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	± 1 %	± 1% FS including linearity over 59 to 77°F (5 to 25°C) and 5 to 60 psia (0.34 to 4 bar); Series GFC X143, X144, X145, ± 1.5% FS	CE	90° tiltable, 3-1/2 digit	LCD	less than 10^⁻9 cc He/s	Aluminum	316 Stainless Steel, Aluminum, Brass, Fluoroelastomer	Gauge	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen	122 °F	32 °F	Linear 0 to 5 VDC and 4 to 20 mA	Current, Voltage	5 microns	Up to 1000 psi	1/4 in	Compression Fitting	± 0.25%	2 s	2 s to within ± 2% of actual flow	DC	± 12 Vdc	50 l/min

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Accuracy Detail

Compliance

Display Note

Display Type

Leak Rate Under Vacuum

Material Construction Option

Materials, Wetted

Measurement Pressure Type

Media Compatibility

Operating Temperature, Max

Operating Temperature, Min

Output Detail

Output Signal

Particulate Size, Max

Pressure Limits

Process Connection Size

Process Connection Type

Repeatability

Response Time

Response Time Note

Supply Power Type

Supply Voltage

Volumetric Flow Rate, Max

Volumetric Flow Rate, Min

수량 / 장바구니

GFM-2145가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1.5 %

± 1% FS including linearity over 59 to 77°F (5 to 25°C) and 5 to 60 psia (0.34 to 4 bar); Series GFC X143, X144, X145, ± 1.5% FS

90° tiltable, 3-1/2 digit

LCD

less than 10^⁻9 cc He/s

316 Stainless Steel

316 Stainless Steel, Fluoroelastomer

Gauge

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen

122 °F

32 °F

Linear 0 to 5 VDC and 4 to 20 mA

Current, Voltage

5 microns

Up to 500 psi

3/4 in

Compression Fitting

± 0.25%

2 s

2 s to within ± 2% of actual flow

± 12 Vdc

1000 l/min

0 ml/min

GFM-2144가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1.5 %

± 1% FS including linearity over 59 to 77°F (5 to 25°C) and 5 to 60 psia (0.34 to 4 bar); Series GFC X143, X144, X145, ± 1.5% FS

90° tiltable, 3-1/2 digit

LCD

less than 10^⁻9 cc He/s

316 Stainless Steel

316 Stainless Steel, Fluoroelastomer

Gauge

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen

122 °F

32 °F

Linear 0 to 5 VDC and 4 to 20 mA

Current, Voltage

5 microns

Up to 500 psi

1/2 in

Compression Fitting

± 0.25%

2 s

2 s to within ± 2% of actual flow

± 12 Vdc

500 l/min

0 ml/min

GFM-2143가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1.5 %

± 1% FS including linearity over 59 to 77°F (5 to 25°C) and 5 to 60 psia (0.34 to 4 bar); Series GFC X143, X144, X145, ± 1.5% FS

90° tiltable, 3-1/2 digit

LCD

less than 10^⁻9 cc He/s

316 Stainless Steel

316 Stainless Steel, Fluoroelastomer

Gauge

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen

122 °F

32 °F

Linear 0 to 5 VDC and 4 to 20 mA

Current, Voltage

5 microns

Up to 500 psi

3/8 in

Compression Fitting

± 0.25%

2 s

2 s to within ± 2% of actual flow

± 12 Vdc

200 l/min

0 ml/min

GFM-2133가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% FS including linearity over 59 to 77°F (5 to 25°C) and 5 to 60 psia (0.34 to 4 bar); Series GFC X143, X144, X145, ± 1.5% FS

90° tiltable, 3-1/2 digit

LCD

less than 10^⁻9 cc He/s

316 Stainless Steel

316 Stainless Steel, Fluoroelastomer

Gauge

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen

122 °F

32 °F

Linear 0 to 5 VDC and 4 to 20 mA

Current, Voltage

5 microns

Up to 1000 psi

1/4 in

Compression Fitting

± 0.25%

2 s

2 s to within ± 2% of actual flow

± 12 Vdc

50 l/min

0 ml/min

GFM-2142가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% FS including linearity over 59 to 77°F (5 to 25°C) and 5 to 60 psia (0.34 to 4 bar); Series GFC X143, X144, X145, ± 1.5% FS

90° tiltable, 3-1/2 digit

LCD

less than 10^⁻9 cc He/s

316 Stainless Steel

316 Stainless Steel, Fluoroelastomer

Gauge

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen

122 °F

32 °F

Linear 0 to 5 VDC and 4 to 20 mA

Current, Voltage

5 microns

Up to 1000 psi

3/8 in

Compression Fitting

± 0.25%

2 s

2 s to within ± 2% of actual flow

± 12 Vdc

100 l/min

0 ml/min

GFM-2131가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% FS including linearity over 59 to 77°F (5 to 25°C) and 5 to 60 psia (0.34 to 4 bar); Series GFC X143, X144, X145, ± 1.5% FS

90° tiltable, 3-1/2 digit

LCD

less than 10^⁻9 cc He/s

316 Stainless Steel

316 Stainless Steel, Fluoroelastomer

Gauge

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen

122 °F

32 °F

Linear 0 to 5 VDC and 4 to 20 mA

Current, Voltage

5 microns

Up to 1000 psi

1/4 in

Compression Fitting

± 0.25%

2 s

2 s to within ± 2% of actual flow

± 12 Vdc

30 l/min

0 ml/min

GFM-2111가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% FS including linearity over 59 to 77°F (5 to 25°C) and 5 to 60 psia (0.34 to 4 bar); Series GFC X143, X144, X145, ± 1.5% FS

90° tiltable, 3-1/2 digit

LCD

less than 10^⁻9 cc He/s

316 Stainless Steel

316 Stainless Steel, Fluoroelastomer

Gauge

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen

122 °F

32 °F

Linear 0 to 5 VDC and 4 to 20 mA

Current, Voltage

5 microns

Up to 1000 psi

1/4 in

Compression Fitting

± 0.25%

2 s

2 s to within ± 2% of actual flow

± 12 Vdc

15 l/min

0 ml/min

GFM-2108가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% FS including linearity over 59 to 77°F (5 to 25°C) and 5 to 60 psia (0.34 to 4 bar); Series GFC X143, X144, X145, ± 1.5% FS

90° tiltable, 3-1/2 digit

LCD

less than 10^⁻9 cc He/s

316 Stainless Steel

316 Stainless Steel, Fluoroelastomer

Gauge

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen

122 °F

32 °F

Linear 0 to 5 VDC and 4 to 20 mA

Current, Voltage

5 microns

Up to 1000 psi

1/4 in

Compression Fitting

± 0.25%

2 s

2 s to within ± 2% of actual flow

± 12 Vdc

2 l/min

0 ml/min

GFM-2109가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% FS including linearity over 59 to 77°F (5 to 25°C) and 5 to 60 psia (0.34 to 4 bar); Series GFC X143, X144, X145, ± 1.5% FS

90° tiltable, 3-1/2 digit

LCD

less than 10^⁻9 cc He/s

316 Stainless Steel

316 Stainless Steel, Fluoroelastomer

Gauge

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen

122 °F

32 °F

Linear 0 to 5 VDC and 4 to 20 mA

Current, Voltage

5 microns

Up to 1000 psi

1/4 in

Compression Fitting

± 0.25%

2 s

2 s to within ± 2% of actual flow

± 12 Vdc

5 l/min

0 ml/min

GFM-2107가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% FS including linearity over 59 to 77°F (5 to 25°C) and 5 to 60 psia (0.34 to 4 bar); Series GFC X143, X144, X145, ± 1.5% FS

90° tiltable, 3-1/2 digit

LCD

less than 10^⁻9 cc He/s

316 Stainless Steel

316 Stainless Steel, Fluoroelastomer

Gauge

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen

122 °F

32 °F

Linear 0 to 5 VDC and 4 to 20 mA

Current, Voltage

5 microns

Up to 1000 psi

1/4 in

Compression Fitting

± 0.25%

2 s

2 s to within ± 2% of actual flow

± 12 Vdc

1000 ml/min

0 ml/min

GFM-2106가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% FS including linearity over 59 to 77°F (5 to 25°C) and 5 to 60 psia (0.34 to 4 bar); Series GFC X143, X144, X145, ± 1.5% FS

90° tiltable, 3-1/2 digit

LCD

less than 10^⁻9 cc He/s

316 Stainless Steel

316 Stainless Steel, Fluoroelastomer

Gauge

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen

122 °F

32 °F

Linear 0 to 5 VDC and 4 to 20 mA

Current, Voltage

5 microns

Up to 1000 psi

1/4 in

Compression Fitting

± 0.25%

2 s

2 s to within ± 2% of actual flow

± 12 Vdc

500 ml/min

0 ml/min

GFM-2105가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% FS including linearity over 59 to 77°F (5 to 25°C) and 5 to 60 psia (0.34 to 4 bar); Series GFC X143, X144, X145, ± 1.5% FS

90° tiltable, 3-1/2 digit

LCD

less than 10^⁻9 cc He/s

316 Stainless Steel

316 Stainless Steel, Fluoroelastomer

Gauge

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen

122 °F

32 °F

Linear 0 to 5 VDC and 4 to 20 mA

Current, Voltage

5 microns

Up to 1000 psi

1/4 in

Compression Fitting

± 0.25%

2 s

2 s to within ± 2% of actual flow

± 12 Vdc

200 ml/min

0 ml/min

GFM-2104가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% FS including linearity over 59 to 77°F (5 to 25°C) and 5 to 60 psia (0.34 to 4 bar); Series GFC X143, X144, X145, ± 1.5% FS

90° tiltable, 3-1/2 digit

LCD

less than 10^⁻9 cc He/s

316 Stainless Steel

316 Stainless Steel, Fluoroelastomer

Gauge

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen

122 °F

32 °F

Linear 0 to 5 VDC and 4 to 20 mA

Current, Voltage

5 microns

Up to 1000 psi

1/4 in

Compression Fitting

± 0.25%

2 s

2 s to within ± 2% of actual flow

± 12 Vdc

100 ml/min

0 ml/min

GFM-2103가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% FS including linearity over 59 to 77°F (5 to 25°C) and 5 to 60 psia (0.34 to 4 bar); Series GFC X143, X144, X145, ± 1.5% FS

90° tiltable, 3-1/2 digit

LCD

less than 10^⁻9 cc He/s

316 Stainless Steel

316 Stainless Steel, Fluoroelastomer

Gauge

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen

122 °F

32 °F

Linear 0 to 5 VDC and 4 to 20 mA

Current, Voltage

5 microns

Up to 1000 psi

1/4 in

Compression Fitting

± 0.25%

2 s

2 s to within ± 2% of actual flow

± 12 Vdc

50 ml/min

0 ml/min

GFM-2101가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% FS including linearity over 59 to 77°F (5 to 25°C) and 5 to 60 psia (0.34 to 4 bar); Series GFC X143, X144, X145, ± 1.5% FS

90° tiltable, 3-1/2 digit

LCD

less than 10^⁻9 cc He/s

316 Stainless Steel

316 Stainless Steel, Fluoroelastomer

Gauge

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen

122 °F

32 °F

Linear 0 to 5 VDC and 4 to 20 mA

Current, Voltage

5 microns

Up to 1000 psi

1/4 in

Compression Fitting

± 0.25%

2 s

2 s to within ± 2% of actual flow

± 12 Vdc

10 ml/min

0 ml/min

GFM-2102가격 문의12 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% FS including linearity over 59 to 77°F (5 to 25°C) and 5 to 60 psia (0.34 to 4 bar); Series GFC X143, X144, X145, ± 1.5% FS

90° tiltable, 3-1/2 digit

LCD

less than 10^⁻9 cc He/s

316 Stainless Steel

316 Stainless Steel, Fluoroelastomer

Gauge

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen

122 °F

32 °F

Linear 0 to 5 VDC and 4 to 20 mA

Current, Voltage

5 microns

Up to 1000 psi

1/4 in

Compression Fitting

± 0.25%

2 s

2 s to within ± 2% of actual flow

± 12 Vdc

20 ml/min

0 ml/min

GFM-1145가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1.5 %

± 1% FS including linearity over 59 to 77°F (5 to 25°C) and 5 to 60 psia (0.34 to 4 bar); Series GFC X143, X144, X145, ± 1.5% FS

90° tiltable, 3-1/2 digit

LCD

less than 10^⁻9 cc He/s

Aluminum

316 Stainless Steel, Aluminum, Brass, Fluoroelastomer

Gauge

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen

122 °F

32 °F

Linear 0 to 5 VDC and 4 to 20 mA

Current, Voltage

5 microns

Up to 500 psi

3/4 in

Compression Fitting

± 0.25%

2 s

2 s to within ± 2% of actual flow

± 12 Vdc

1000 l/min

0 ml/min

GFM-1144가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1.5 %

± 1% FS including linearity over 59 to 77°F (5 to 25°C) and 5 to 60 psia (0.34 to 4 bar); Series GFC X143, X144, X145, ± 1.5% FS

90° tiltable, 3-1/2 digit

LCD

less than 10^⁻9 cc He/s

Aluminum

316 Stainless Steel, Aluminum, Brass, Fluoroelastomer

Gauge

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen

122 °F

32 °F

Linear 0 to 5 VDC and 4 to 20 mA

Current, Voltage

5 microns

Up to 500 psi

1/2 in

Compression Fitting

± 0.25%

2 s

2 s to within ± 2% of actual flow

± 12 Vdc

500 l/min

0 ml/min

GFM-1143가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1.5 %

± 1% FS including linearity over 59 to 77°F (5 to 25°C) and 5 to 60 psia (0.34 to 4 bar); Series GFC X143, X144, X145, ± 1.5% FS

90° tiltable, 3-1/2 digit

LCD

less than 10^⁻9 cc He/s

Aluminum

316 Stainless Steel, Aluminum, Brass, Fluoroelastomer

Gauge

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen

122 °F

32 °F

Linear 0 to 5 VDC and 4 to 20 mA

Current, Voltage

5 microns

Up to 500 psi

3/8 in

Compression Fitting

± 0.25%

2 s

2 s to within ± 2% of actual flow

± 12 Vdc

200 l/min

0 ml/min

GFM-1133가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

± 1 %

± 1% FS including linearity over 59 to 77°F (5 to 25°C) and 5 to 60 psia (0.34 to 4 bar); Series GFC X143, X144, X145, ± 1.5% FS

90° tiltable, 3-1/2 digit

LCD

less than 10^⁻9 cc He/s

Aluminum

316 Stainless Steel, Aluminum, Brass, Fluoroelastomer

Gauge

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen

122 °F

32 °F

Linear 0 to 5 VDC and 4 to 20 mA

Current, Voltage

5 microns

Up to 1000 psi

1/4 in

Compression Fitting

± 0.25%

2 s

2 s to within ± 2% of actual flow

± 12 Vdc

50 l/min

0 ml/min
