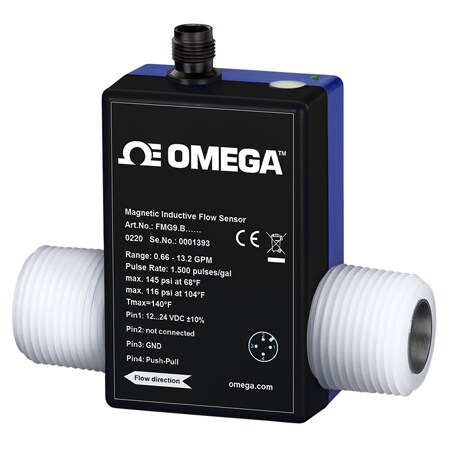

OEM 경량 및 소형 설계 전자기 유량계
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 54개의 상품 · 1 - 20 표시
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Detail | Cable Length | Conductivity | Electrical Connection | Enclosure Ratings | Flow Indication | Flow Indication Note | K-Factor | Material Construction Option | Materials | Materials, Wetted | Media Compatibility | Number of Outputs | Operating Pressure, Max | Operating Temperature, Max | Operating Temperature, Min | Output Detail | Output Signal | Power Consumption | Process Connection Size | Process Connection Type | Process Temperature, Max | Process Temperature, Min | Repeatability | Resolution | Response Time | Storage Temperature, Max | Storage Temperature, Min | Supply Power Note | Supply Power Type | Supply Voltage | Volumetric Flow Rate, Max | Volumetric Flow Rate, Min | Weight | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FMG925B-SS-VO-NPT2,129,800 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.7 % | ± 0.7 % of reading ± 0.3 % of range | 10 m | > 20 µS/cm | M12 4 pin Female | IP65 | LED Green | LED Green, Flow proportional flashing | 300 pulses/gal | Stainless Steel | ABS | EPDM, PVDF, Stainless Steel | Acid Solutions, Conductive Liquids, Saltwater | 1 | 145 psi | 140 °F | 41 °F | 0.5 to 10 V | Voltage | max 3.6 W | 1 1/4 in | NPT Male | 140 °F | 14 °F | ± 1% | 12.5 ml/pulse | < 100 ms | 140 °F | 5 °F | 12 to 24 Vdc(± 10 %) | DC | 12 to 24 Vdc | 66 GPM | 3.3 GPM | 0 lb | |
FMG925B-SS-VO-BSP2,129,800 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.7 % | ± 0.7 % of reading ± 0.3 % of range | 10 m | > 20 µS/cm | M12 4 pin Female | IP65 | LED Green | LED Green, Flow proportional flashing | 300 pulses/gal | Stainless Steel | ABS | EPDM, PVDF, Stainless Steel | Acid Solutions, Conductive Liquids, Saltwater | 1 | 145 psi | 140 °F | 41 °F | 0.5 to 10 V | Voltage | max 3.6 W | 1 1/4 in | BSPP Male | 140 °F | 14 °F | ± 1% | 12.5 ml/pulse | < 100 ms | 140 °F | 5 °F | 12 to 24 Vdc(± 10 %) | DC | 12 to 24 Vdc | 66 GPM | 3.3 GPM | 0 lb | |
FMG925B-SS-PO-NPT2,073,770 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.7 % | ± 0.7 % of reading ± 0.3 % of range | 10 m | > 20 µS/cm | M12 4 pin Female | IP65 | LED Green | LED Green, Flow proportional flashing | 300 pulses/gal | Stainless Steel | ABS | EPDM, PVDF, Stainless Steel | Acid Solutions, Conductive Liquids, Saltwater | 1 | 145 psi | 140 °F | 41 °F | 0.5 to 10 V | DC Pulse | max 3.6 W | 1 1/4 in | NPT Male | 140 °F | 14 °F | ± 1% | 12.5 ml/pulse | < 100 ms | 140 °F | 5 °F | 12 to 24 Vdc(± 10 %) | DC | 12 to 24 Vdc | 66 GPM | 3.3 GPM | 0 lb | |
FMG925B-SS-IO-NPT2,129,800 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.7 % | ± 0.7 % of reading ± 0.3 % of range | 10 m | > 20 µS/cm | M12 4 pin Female | IP65 | LED Green | LED Green, Flow proportional flashing | 300 pulses/gal | Stainless Steel | ABS | EPDM, PVDF, Stainless Steel | Acid Solutions, Conductive Liquids, Saltwater | 1 | 145 psi | 140 °F | 41 °F | 0.5 to 10 V | Current | max 3.6 W | 1 1/4 in | NPT Male | 140 °F | 14 °F | ± 1% | 12.5 ml/pulse | < 100 ms | 140 °F | 5 °F | 12 to 24 Vdc(± 10 %) | DC | 12 to 24 Vdc | 66 GPM | 3.3 GPM | 0 lb | |
FMG925B-SS-PO-BSP2,073,770 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.7 % | ± 0.7 % of reading ± 0.3 % of range | 10 m | > 20 µS/cm | M12 4 pin Female | IP65 | LED Green | LED Green, Flow proportional flashing | 300 pulses/gal | Stainless Steel | ABS | EPDM, PVDF, Stainless Steel | Acid Solutions, Conductive Liquids, Saltwater | 1 | 145 psi | 140 °F | 41 °F | 0.5 to 10 V | DC Pulse | max 3.6 W | 1 1/4 in | BSPP Male | 140 °F | 14 °F | ± 1% | 12.5 ml/pulse | < 100 ms | 140 °F | 5 °F | 12 to 24 Vdc(± 10 %) | DC | 12 to 24 Vdc | 66 GPM | 3.3 GPM | 0 lb | |
FMG925B-SS-IO-BSP2,129,800 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.7 % | ± 0.7 % of reading ± 0.3 % of range | 10 m | > 20 µS/cm | M12 4 pin Female | IP65 | LED Green | LED Green, Flow proportional flashing | 300 pulses/gal | Stainless Steel | ABS | EPDM, PVDF, Stainless Steel | Acid Solutions, Conductive Liquids, Saltwater | 1 | 145 psi | 140 °F | 41 °F | 0.5 to 10 V | Current | max 3.6 W | 1 1/4 in | BSPP Male | 140 °F | 14 °F | ± 1% | 12.5 ml/pulse | < 100 ms | 140 °F | 5 °F | 12 to 24 Vdc(± 10 %) | DC | 12 to 24 Vdc | 66 GPM | 3.3 GPM | 0 lb | |
FMG920B-SS-VO-NPT1,905,620 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.7 % | ± 0.7 % of reading ± 0.3 % of range | 10 m | > 20 µS/cm | M12 4 pin Female | IP65 | LED Green | LED Green, Flow proportional flashing | 750 pulses/gal | Stainless Steel | ABS | EPDM, PVDF, Stainless Steel | Acid Solutions, Conductive Liquids, Saltwater | 1 | 145 psi | 140 °F | 41 °F | 0.5 to 10 V | Voltage | max 3.6 W | 1 in | NPT Male | 140 °F | 14 °F | ± 1% | 5.0 ml/pulse | < 100 ms | 140 °F | 5 °F | 12 to 24 Vdc(± 10 %) | DC | 12 to 24 Vdc | 52.8 GPM | 1.3 GPM | 0 lb | |
FMG920B-SS-PO-NPT1,849,580 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.7 % | ± 0.7 % of reading ± 0.3 % of range | 10 m | > 20 µS/cm | M12 4 pin Female | IP65 | LED Green | LED Green, Flow proportional flashing | 750 pulses/gal | Stainless Steel | ABS | EPDM, PVDF, Stainless Steel | Acid Solutions, Conductive Liquids, Saltwater | 1 | 145 psi | 140 °F | 41 °F | 0.5 to 10 V | DC Pulse | max 3.6 W | 1 in | NPT Male | 140 °F | 14 °F | ± 1% | 5.0 ml/pulse | < 100 ms | 140 °F | 5 °F | 12 to 24 Vdc(± 10 %) | DC | 12 to 24 Vdc | 52.8 GPM | 1.3 GPM | 0 lb | |
FMG920B-SS-VO-BSP1,905,620 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.7 % | ± 0.7 % of reading ± 0.3 % of range | 10 m | > 20 µS/cm | M12 4 pin Female | IP65 | LED Green | LED Green, Flow proportional flashing | 750 pulses/gal | Stainless Steel | ABS | EPDM, PVDF, Stainless Steel | Acid Solutions, Conductive Liquids, Saltwater | 1 | 145 psi | 140 °F | 41 °F | 0.5 to 10 V | Voltage | max 3.6 W | 1 in | BSPP Male | 140 °F | 14 °F | ± 1% | 5.0 ml/pulse | < 100 ms | 140 °F | 5 °F | 12 to 24 Vdc(± 10 %) | DC | 12 to 24 Vdc | 52.8 GPM | 1.3 GPM | 0 lb | |
FMG920B-SS-PO-BSP1,849,580 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.7 % | ± 0.7 % of reading ± 0.3 % of range | 10 m | > 20 µS/cm | M12 4 pin Female | IP65 | LED Green | LED Green, Flow proportional flashing | 750 pulses/gal | Stainless Steel | ABS | EPDM, PVDF, Stainless Steel | Acid Solutions, Conductive Liquids, Saltwater | 1 | 145 psi | 140 °F | 41 °F | 0.5 to 10 V | DC Pulse | max 3.6 W | 1 in | BSPP Male | 140 °F | 14 °F | ± 1% | 5.0 ml/pulse | < 100 ms | 140 °F | 5 °F | 12 to 24 Vdc(± 10 %) | DC | 12 to 24 Vdc | 52.8 GPM | 1.3 GPM | 0 lb | |
FMG920B-SS-IO-BSP1,905,620 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.7 % | ± 0.7 % of reading ± 0.3 % of range | 10 m | > 20 µS/cm | M12 4 pin Female | IP65 | LED Green | LED Green, Flow proportional flashing | 750 pulses/gal | Stainless Steel | ABS | EPDM, PVDF, Stainless Steel | Acid Solutions, Conductive Liquids, Saltwater | 1 | 145 psi | 140 °F | 41 °F | 0.5 to 10 V | Current | max 3.6 W | 1 in | BSPP Male | 140 °F | 14 °F | ± 1% | 5.0 ml/pulse | < 100 ms | 140 °F | 5 °F | 12 to 24 Vdc(± 10 %) | DC | 12 to 24 Vdc | 52.8 GPM | 1.3 GPM | 0 lb | |
FMG920B-SS-IO-NPT1,905,620 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.7 % | ± 0.7 % of reading ± 0.3 % of range | 10 m | > 20 µS/cm | M12 4 pin Female | IP65 | LED Green | LED Green, Flow proportional flashing | 750 pulses/gal | Stainless Steel | ABS | EPDM, PVDF, Stainless Steel | Acid Solutions, Conductive Liquids, Saltwater | 1 | 145 psi | 140 °F | 41 °F | 0.5 to 10 V | Current | max 3.6 W | 1 in | NPT Male | 140 °F | 14 °F | ± 1% | 5.0 ml/pulse | < 100 ms | 140 °F | 5 °F | 12 to 24 Vdc(± 10 %) | DC | 12 to 24 Vdc | 52.8 GPM | 1.3 GPM | 0 lb | |
FMG915B-SS-VO-NPT1,905,620 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.7 % | ± 0.7 % of reading ± 0.3 % of range | 10 m | > 20 µS/cm | M12 4 pin Female | IP65 | LED Green | LED Green, Flow proportional flashing | 1500 pulses/gal | Stainless Steel | ABS | EPDM, PVDF, Stainless Steel | Acid Solutions, Conductive Liquids, Saltwater | 1 | 145 psi | 140 °F | 41 °F | 0.5 to 10 V | Voltage | max 3.6 W | 3/4 in | NPT Male | 140 °F | 14 °F | ± 1% | 2.5 ml/pulse | < 100 ms | 140 °F | 5 °F | 12 to 24 Vdc(± 10 %) | DC | 12 to 24 Vdc | 13.2 GPM | 0.66 GPM | 0 lb | |
FMG915B-SS-VO-BSP1,905,620 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.7 % | ± 0.7 % of reading ± 0.3 % of range | 10 m | > 20 µS/cm | M12 4 pin Female | IP65 | LED Green | LED Green, Flow proportional flashing | 1500 pulses/gal | Stainless Steel | ABS | EPDM, PVDF, Stainless Steel | Acid Solutions, Conductive Liquids, Saltwater | 1 | 145 psi | 140 °F | 41 °F | 0.5 to 10 V | Voltage | max 3.6 W | 3/4 in | BSPP Male | 140 °F | 14 °F | ± 1% | 2.5 ml/pulse | < 100 ms | 140 °F | 5 °F | 12 to 24 Vdc(± 10 %) | DC | 12 to 24 Vdc | 13.2 GPM | 0.66 GPM | 0 lb | |
FMG915B-SS-PO-BSP1,849,580 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.7 % | ± 0.7 % of reading ± 0.3 % of range | 10 m | > 20 µS/cm | M12 4 pin Female | IP65 | LED Green | LED Green, Flow proportional flashing | 1500 pulses/gal | Stainless Steel | ABS | EPDM, PVDF, Stainless Steel | Acid Solutions, Conductive Liquids, Saltwater | 1 | 145 psi | 140 °F | 41 °F | 0.5 to 10 V | DC Pulse | max 3.6 W | 3/4 in | BSPP Male | 140 °F | 14 °F | ± 1% | 2.5 ml/pulse | < 100 ms | 140 °F | 5 °F | 12 to 24 Vdc(± 10 %) | DC | 12 to 24 Vdc | 13.2 GPM | 0.66 GPM | 0 lb | |
FMG915B-SS-PO-NPT1,849,580 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.7 % | ± 0.7 % of reading ± 0.3 % of range | 10 m | > 20 µS/cm | M12 4 pin Female | IP65 | LED Green | LED Green, Flow proportional flashing | 1500 pulses/gal | Stainless Steel | ABS | EPDM, PVDF, Stainless Steel | Acid Solutions, Conductive Liquids, Saltwater | 1 | 145 psi | 140 °F | 41 °F | 0.5 to 10 V | DC Pulse | max 3.6 W | 3/4 in | NPT Male | 140 °F | 14 °F | ± 1% | 2.5 ml/pulse | < 100 ms | 140 °F | 5 °F | 12 to 24 Vdc(± 10 %) | DC | 12 to 24 Vdc | 13.2 GPM | 0.66 GPM | 0 lb | |
FMG915B-SS-IO-NPT1,905,620 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.7 % | ± 0.7 % of reading ± 0.3 % of range | 10 m | > 20 µS/cm | M12 4 pin Female | IP65 | LED Green | LED Green, Flow proportional flashing | 1500 pulses/gal | Stainless Steel | ABS | EPDM, PVDF, Stainless Steel | Acid Solutions, Conductive Liquids, Saltwater | 1 | 145 psi | 140 °F | 41 °F | 0.5 to 10 V | Current | max 3.6 W | 3/4 in | NPT Male | 140 °F | 14 °F | ± 1% | 2.5 ml/pulse | < 100 ms | 140 °F | 5 °F | 12 to 24 Vdc(± 10 %) | DC | 12 to 24 Vdc | 13.2 GPM | 0.66 GPM | 0 lb | |
FMG915B-SS-IO-BSP1,905,620 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.7 % | ± 0.7 % of reading ± 0.3 % of range | 10 m | > 20 µS/cm | M12 4 pin Female | IP65 | LED Green | LED Green, Flow proportional flashing | 1500 pulses/gal | Stainless Steel | ABS | EPDM, PVDF, Stainless Steel | Acid Solutions, Conductive Liquids, Saltwater | 1 | 145 psi | 140 °F | 41 °F | 0.5 to 10 V | Current | max 3.6 W | 3/4 in | BSPP Male | 140 °F | 14 °F | ± 1% | 2.5 ml/pulse | < 100 ms | 140 °F | 5 °F | 12 to 24 Vdc(± 10 %) | DC | 12 to 24 Vdc | 13.2 GPM | 0.66 GPM | 0 lb | |
FMG98B-SS-PO-NPT1,849,580 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.7 % | ± 0.7 % of reading ± 0.3 % of range | 10 m | > 20 µS/cm | M12 4 pin Female | IP65 | LED Green | LED Green, Flow proportional flashing | 3000 pulses/gal | Stainless Steel | ABS | EPDM, PVDF, Stainless Steel | Acid Solutions, Conductive Liquids, Saltwater | 1 | 145 psi | 140 °F | 41 °F | 0.5 to 10 V | DC Pulse | max 3.6 W | 1/2 in | NPT Male | 140 °F | 14 °F | ± 1% | 1.0 ml/pulse | < 100 ms | 140 °F | 5 °F | 12 to 24 Vdc(± 10 %) | DC | 12 to 24 Vdc | 5.3 GPM | 0.26 GPM | 0 lb | |
FMG98B-SS-VO-NPT1,905,620 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.7 % | ± 0.7 % of reading ± 0.3 % of range | 10 m | > 20 µS/cm | M12 4 pin Female | IP65 | LED Green | LED Green, Flow proportional flashing | 3000 pulses/gal | Stainless Steel | ABS | EPDM, PVDF, Stainless Steel | Acid Solutions, Conductive Liquids, Saltwater | 1 | 145 psi | 140 °F | 41 °F | 0.5 to 10 V | Voltage | max 3.6 W | 1/2 in | NPT Male | 140 °F | 14 °F | ± 1% | 1.0 ml/pulse | < 100 ms | 140 °F | 5 °F | 12 to 24 Vdc(± 10 %) | DC | 12 to 24 Vdc | 5.3 GPM | 0.26 GPM | 0 lb |
