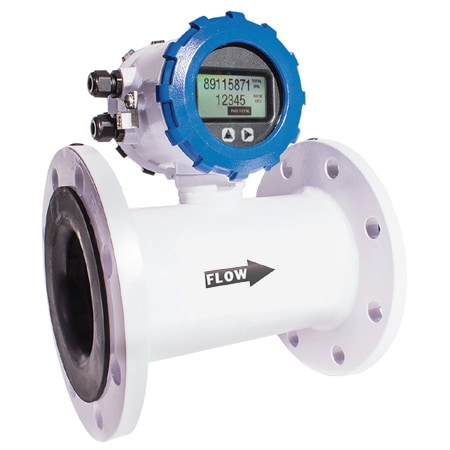

통합 디스플레이, 펄스 및 4~20mA 출력이 포함된 자력식 유량계
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 24개의 상품 · 1 - 20 표시
| 제품 번호 / 가격 | Brand | Accuracy | Approvals | Battery Backup | Cable Length | Conductivity | Display Note | Display Type | Empty Pipe Detection | Enclosure Ratings | Flange Diameter | Material Construction Option | Materials | Materials, Wetted | Media Compatibility | Number of Digits | Number of Outputs | Operating Pressure, Max | Operating Temperature, Max | Operating Temperature, Min | Output Detail | Output Pulse Rate, Max | Output Signal | Pipe Size, Max | Process Connection Size | Process Connection Type | Pulse Rate Note | Storage Temperature, Max | Storage Temperature, Min | Supply Power Note | Supply Power Type | Supply Voltage | Velocity, Max | Volumetric Flow Rate, Max | Volumetric Flow Rate, Min | Weight | Low Flow Cutoff | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FMG480-12-D610,449,810 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.75 % | CE | 9 V Alkaline Battery | 50 ft | > 20 µS/cm | 128 x 64 dot-matrix LCD | LCD | Hardware/software, conductivity-based | IP68, NEMA 6P | 10.55 in | N/A | Steel, Epoxy, Aluminum | Polypropylene, Stainless Steel | Acid Solutions, Conductive Liquids, Saltwater | 8 | 1 | 150 psi | 60 °C | -12 °C | 4 to 20 mA | 200 pulses/sec | Current | 12 in | 12 in | ANSI Flange | User-scalable from 0.1 to 99,999.9 volume units/pulse. Pulse width is one-half of pulse period with minimum pulse width of 2.5 ms, 200 pulses/sec max. For battery option meters, pulse width varies with frequency, 150 pulses/sec max | 70 °C | -40 °C | 9-36 Vdc / 60 Hz @ 250 mA max, 30 mA average | DC | 9 to 36 Vdc / 60 Hz | 10 m/s | 11565 GPM | 57.82 GPM | 170 lb | 0.50 % | |
FMG480-12-A610,750,190 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.75 % | CE | 9 V Alkaline Battery | 50 ft | > 20 µS/cm | 128 x 64 dot-matrix LCD | LCD | Hardware/software, conductivity-based | IP68, NEMA 6P | 10.55 in | N/A | Steel, Epoxy, Aluminum | Polypropylene, Stainless Steel | Acid Solutions, Conductive Liquids, Saltwater | 8 | 1 | 150 psi | 60 °C | -12 °C | 4 to 20 mA | 200 pulses/sec | Current | 12 in | 12 in | ANSI Flange | User-scalable from 0.1 to 99,999.9 volume units/pulse. Pulse width is one-half of pulse period with minimum pulse width of 2.5 ms, 200 pulses/sec max. For battery option meters, pulse width varies with frequency, 150 pulses/sec max | 70 °C | -40 °C | 86-264Vac, 60Hz, 0.12A | AC | 86 to 264 Vac / 60 Hz | 10 m/s | 11565 GPM | 57.82 GPM | 170 lb | 0.50 % | |
FMG480-12-D510,449,810 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.75 % | CE | 9 V Alkaline Battery | 50 ft | > 20 µS/cm | 128 x 64 dot-matrix LCD | LCD | Hardware/software, conductivity-based | IP68, NEMA 6P | 10.55 in | N/A | Steel, Epoxy, Aluminum | Polypropylene, Stainless Steel | Acid Solutions, Conductive Liquids, Saltwater | 8 | 1 | 150 psi | 60 °C | -12 °C | 4 to 20 mA | 200 pulses/sec | Current | 12 in | 12 in | ANSI Flange | User-scalable from 0.1 to 99,999.9 volume units/pulse. Pulse width is one-half of pulse period with minimum pulse width of 2.5 ms, 200 pulses/sec max. For battery option meters, pulse width varies with frequency, 150 pulses/sec max | 70 °C | -40 °C | 9-36 Vdc / 50 Hz @ 250 mA max, 30 mA average | DC | 9 to 36 Vdc / 50 Hz | 10 m/s | 11565 GPM | 57.82 GPM | 170 lb | 0.50 % | |
FMG480-12-A510,750,190 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.75 % | CE | 9 V Alkaline Battery | 50 ft | > 20 µS/cm | 128 x 64 dot-matrix LCD | LCD | Hardware/software, conductivity-based | IP68, NEMA 6P | 10.55 in | N/A | Steel, Epoxy, Aluminum | Polypropylene, Stainless Steel | Acid Solutions, Conductive Liquids, Saltwater | 8 | 1 | 150 psi | 60 °C | -12 °C | 4 to 20 mA | 200 pulses/sec | Current | 12 in | 12 in | ANSI Flange | User-scalable from 0.1 to 99,999.9 volume units/pulse. Pulse width is one-half of pulse period with minimum pulse width of 2.5 ms, 200 pulses/sec max. For battery option meters, pulse width varies with frequency, 150 pulses/sec max | 70 °C | -40 °C | 85-264Vac, 50Hz, 0.12A | AC | 85 to 264 Vac / 50 Hz | 10 m/s | 11565 GPM | 57.82 GPM | 170 lb | 0.50 % | |
FMG480-10-D68,214,440 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.75 % | CE | 9 V Alkaline Battery | 50 ft | > 20 µS/cm | 128 x 64 dot-matrix LCD | LCD | Hardware/software, conductivity-based | IP68, NEMA 6P | 8.61 in | N/A | Steel, Epoxy, Aluminum | Polypropylene, Stainless Steel | Acid Solutions, Conductive Liquids, Saltwater | 8 | 1 | 150 psi | 60 °C | -12 °C | 4 to 20 mA | 200 pulses/sec | Current | 10 in | 10 in | ANSI Flange | User-scalable from 0.1 to 99,999.9 volume units/pulse. Pulse width is one-half of pulse period with minimum pulse width of 2.5 ms, 200 pulses/sec max. For battery option meters, pulse width varies with frequency, 150 pulses/sec max | 70 °C | -40 °C | 9-36 Vdc / 60 Hz @ 250 mA max, 30 mA average | DC | 9 to 36 Vdc / 60 Hz | 10 m/s | 8031 GPM | 40.15 GPM | 130 lb | 0.50 % | |
FMG480-10-D58,214,440 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.75 % | CE | 9 V Alkaline Battery | 50 ft | > 20 µS/cm | 128 x 64 dot-matrix LCD | LCD | Hardware/software, conductivity-based | IP68, NEMA 6P | 8.61 in | N/A | Steel, Epoxy, Aluminum | Polypropylene, Stainless Steel | Acid Solutions, Conductive Liquids, Saltwater | 8 | 1 | 150 psi | 60 °C | -12 °C | 4 to 20 mA | 200 pulses/sec | Current | 10 in | 10 in | ANSI Flange | User-scalable from 0.1 to 99,999.9 volume units/pulse. Pulse width is one-half of pulse period with minimum pulse width of 2.5 ms, 200 pulses/sec max. For battery option meters, pulse width varies with frequency, 150 pulses/sec max | 70 °C | -40 °C | 9-36 Vdc / 50 Hz @ 250 mA max, 30 mA average | DC | 9 to 36 Vdc / 50 Hz | 10 m/s | 8031 GPM | 40.15 GPM | 130 lb | 0.50 % | |
FMG480-10-A68,514,830 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.75 % | CE | 9 V Alkaline Battery | 50 ft | > 20 µS/cm | 128 x 64 dot-matrix LCD | LCD | Hardware/software, conductivity-based | IP68, NEMA 6P | 8.61 in | N/A | Steel, Epoxy, Aluminum | Polypropylene, Stainless Steel | Acid Solutions, Conductive Liquids, Saltwater | 8 | 1 | 150 psi | 60 °C | -12 °C | 4 to 20 mA | 200 pulses/sec | Current | 10 in | 10 in | ANSI Flange | User-scalable from 0.1 to 99,999.9 volume units/pulse. Pulse width is one-half of pulse period with minimum pulse width of 2.5 ms, 200 pulses/sec max. For battery option meters, pulse width varies with frequency, 150 pulses/sec max | 70 °C | -40 °C | 86-264Vac, 60Hz, 0.12A | AC | 86 to 264 Vac / 60 Hz | 10 m/s | 8031 GPM | 40.15 GPM | 130 lb | 0.50 % | |
FMG480-10-A58,514,830 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.75 % | CE | 9 V Alkaline Battery | 50 ft | > 20 µS/cm | 128 x 64 dot-matrix LCD | LCD | Hardware/software, conductivity-based | IP68, NEMA 6P | 8.61 in | N/A | Steel, Epoxy, Aluminum | Polypropylene, Stainless Steel | Acid Solutions, Conductive Liquids, Saltwater | 8 | 1 | 150 psi | 60 °C | -12 °C | 4 to 20 mA | 200 pulses/sec | Current | 10 in | 10 in | ANSI Flange | User-scalable from 0.1 to 99,999.9 volume units/pulse. Pulse width is one-half of pulse period with minimum pulse width of 2.5 ms, 200 pulses/sec max. For battery option meters, pulse width varies with frequency, 150 pulses/sec max | 70 °C | -40 °C | 85-264Vac, 50Hz, 0.12A | AC | 85 to 264 Vac / 50 Hz | 10 m/s | 8031 GPM | 40.15 GPM | 130 lb | 0.50 % | |
FMG480-08-D57,130,520 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.75 % | CE | 9 V Alkaline Battery | 50 ft | > 20 µS/cm | 128 x 64 dot-matrix LCD | LCD | Hardware/software, conductivity-based | IP68, NEMA 6P | 6.44 in | N/A | Steel, Epoxy, Aluminum | Polypropylene, Stainless Steel | Acid Solutions, Conductive Liquids, Saltwater | 8 | 1 | 150 psi | 60 °C | -12 °C | 4 to 20 mA | 200 pulses/sec | Current | 8 in | 8 in | ANSI Flange | User-scalable from 0.1 to 99,999.9 volume units/pulse. Pulse width is one-half of pulse period with minimum pulse width of 2.5 ms, 200 pulses/sec max. For battery option meters, pulse width varies with frequency, 150 pulses/sec max | 70 °C | -40 °C | 9-36 Vdc / 50 Hz @ 250 mA max, 30 mA average | DC | 9 to 36 Vdc / 50 Hz | 10 m/s | 5140 GPM | 25.7 GPM | 71 lb | 0.50 % | |
FMG480-08-D67,130,520 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.75 % | CE | 9 V Alkaline Battery | 50 ft | > 20 µS/cm | 128 x 64 dot-matrix LCD | LCD | Hardware/software, conductivity-based | IP68, NEMA 6P | 6.44 in | N/A | Steel, Epoxy, Aluminum | Polypropylene, Stainless Steel | Acid Solutions, Conductive Liquids, Saltwater | 8 | 1 | 150 psi | 60 °C | -12 °C | 4 to 20 mA | 200 pulses/sec | Current | 8 in | 8 in | ANSI Flange | User-scalable from 0.1 to 99,999.9 volume units/pulse. Pulse width is one-half of pulse period with minimum pulse width of 2.5 ms, 200 pulses/sec max. For battery option meters, pulse width varies with frequency, 150 pulses/sec max | 70 °C | -40 °C | 9-36 Vdc / 60 Hz @ 250 mA max, 30 mA average | DC | 9 to 36 Vdc / 60 Hz | 10 m/s | 5140 GPM | 25.7 GPM | 71 lb | 0.50 % | |
FMG480-08-A67,430,880 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.75 % | CE | 9 V Alkaline Battery | 50 ft | > 20 µS/cm | 128 x 64 dot-matrix LCD | LCD | Hardware/software, conductivity-based | IP68, NEMA 6P | 6.44 in | N/A | Steel, Epoxy, Aluminum | Polypropylene, Stainless Steel | Acid Solutions, Conductive Liquids, Saltwater | 8 | 1 | 150 psi | 60 °C | -12 °C | 4 to 20 mA | 200 pulses/sec | Current | 8 in | 8 in | ANSI Flange | User-scalable from 0.1 to 99,999.9 volume units/pulse. Pulse width is one-half of pulse period with minimum pulse width of 2.5 ms, 200 pulses/sec max. For battery option meters, pulse width varies with frequency, 150 pulses/sec max | 70 °C | -40 °C | 86-264Vac, 60Hz, 0.12A | AC | 86 to 264 Vac / 60 Hz | 10 m/s | 5140 GPM | 25.7 GPM | 71 lb | 0.50 % | |
FMG480-08-A57,430,880 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.75 % | CE | 9 V Alkaline Battery | 50 ft | > 20 µS/cm | 128 x 64 dot-matrix LCD | LCD | Hardware/software, conductivity-based | IP68, NEMA 6P | 6.44 in | N/A | Steel, Epoxy, Aluminum | Polypropylene, Stainless Steel | Acid Solutions, Conductive Liquids, Saltwater | 8 | 1 | 150 psi | 60 °C | -12 °C | 4 to 20 mA | 200 pulses/sec | Current | 8 in | 8 in | ANSI Flange | User-scalable from 0.1 to 99,999.9 volume units/pulse. Pulse width is one-half of pulse period with minimum pulse width of 2.5 ms, 200 pulses/sec max. For battery option meters, pulse width varies with frequency, 150 pulses/sec max | 70 °C | -40 °C | 85-264Vac, 50Hz, 0.12A | AC | 85 to 264 Vac / 50 Hz | 10 m/s | 5140 GPM | 25.7 GPM | 71 lb | 0.50 % | |
FMG480-06-D66,647,310 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.75 % | CE | 9 V Alkaline Battery | 50 ft | > 20 µS/cm | 128 x 64 dot-matrix LCD | LCD | Hardware/software, conductivity-based | IP68, NEMA 6P | 5.05 in | N/A | Steel, Epoxy, Aluminum | Polypropylene, Stainless Steel | Acid Solutions, Conductive Liquids, Saltwater | 8 | 1 | 150 psi | 60 °C | -12 °C | 4 to 20 mA | 200 pulses/sec | Current | 6 in | 6 in | ANSI Flange | User-scalable from 0.1 to 99,999.9 volume units/pulse. Pulse width is one-half of pulse period with minimum pulse width of 2.5 ms, 200 pulses/sec max. For battery option meters, pulse width varies with frequency, 150 pulses/sec max | 70 °C | -40 °C | 9-36 Vdc / 60 Hz @ 250 mA max, 30 mA average | DC | 9 to 36 Vdc / 60 Hz | 10 m/s | 2891 GPM | 14.46 GPM | 50 lb | 0.50 % | |
FMG480-06-D56,647,310 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.75 % | CE | 9 V Alkaline Battery | 50 ft | > 20 µS/cm | 128 x 64 dot-matrix LCD | LCD | Hardware/software, conductivity-based | IP68, NEMA 6P | 5.05 in | N/A | Steel, Epoxy, Aluminum | Polypropylene, Stainless Steel | Acid Solutions, Conductive Liquids, Saltwater | 8 | 1 | 150 psi | 60 °C | -12 °C | 4 to 20 mA | 200 pulses/sec | Current | 6 in | 6 in | ANSI Flange | User-scalable from 0.1 to 99,999.9 volume units/pulse. Pulse width is one-half of pulse period with minimum pulse width of 2.5 ms, 200 pulses/sec max. For battery option meters, pulse width varies with frequency, 150 pulses/sec max | 70 °C | -40 °C | 9-36 Vdc / 50 Hz @ 250 mA max, 30 mA average | DC | 9 to 36 Vdc / 50 Hz | 10 m/s | 2891 GPM | 14.46 GPM | 50 lb | 0.50 % | |
FMG480-06-A56,947,680 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.75 % | CE | 9 V Alkaline Battery | 50 ft | > 20 µS/cm | 128 x 64 dot-matrix LCD | LCD | Hardware/software, conductivity-based | IP68, NEMA 6P | 5.05 in | N/A | Steel, Epoxy, Aluminum | Polypropylene, Stainless Steel | Acid Solutions, Conductive Liquids, Saltwater | 8 | 1 | 150 psi | 60 °C | -12 °C | 4 to 20 mA | 200 pulses/sec | Current | 6 in | 6 in | ANSI Flange | User-scalable from 0.1 to 99,999.9 volume units/pulse. Pulse width is one-half of pulse period with minimum pulse width of 2.5 ms, 200 pulses/sec max. For battery option meters, pulse width varies with frequency, 150 pulses/sec max | 70 °C | -40 °C | 85-264Vac, 50Hz, 0.12A | AC | 85 to 264 Vac / 50 Hz | 10 m/s | 2891 GPM | 14.46 GPM | 50 lb | 0.50 % | |
FMG480-06-A66,947,680 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.75 % | CE | 9 V Alkaline Battery | 50 ft | > 20 µS/cm | 128 x 64 dot-matrix LCD | LCD | Hardware/software, conductivity-based | IP68, NEMA 6P | 5.05 in | N/A | Steel, Epoxy, Aluminum | Polypropylene, Stainless Steel | Acid Solutions, Conductive Liquids, Saltwater | 8 | 1 | 150 psi | 60 °C | -12 °C | 4 to 20 mA | 200 pulses/sec | Current | 6 in | 6 in | ANSI Flange | User-scalable from 0.1 to 99,999.9 volume units/pulse. Pulse width is one-half of pulse period with minimum pulse width of 2.5 ms, 200 pulses/sec max. For battery option meters, pulse width varies with frequency, 150 pulses/sec max | 70 °C | -40 °C | 86-264Vac, 60Hz, 0.12A | AC | 86 to 264 Vac / 60 Hz | 10 m/s | 2891 GPM | 14.46 GPM | 50 lb | 0.50 % | |
FMG480-04-D66,272,950 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.75 % | CE | 9 V Alkaline Battery | 50 ft | > 20 µS/cm | 128 x 64 dot-matrix LCD | LCD | Hardware/software, conductivity-based | IP68, NEMA 6P | 3.12 in | N/A | Steel, Epoxy, Aluminum | Polypropylene, Stainless Steel | Acid Solutions, Conductive Liquids, Saltwater | 8 | 1 | 150 psi | 60 °C | -12 °C | 4 to 20 mA | 200 pulses/sec | Current | 4 in | 4 in | ANSI Flange | User-scalable from 0.1 to 99,999.9 volume units/pulse. Pulse width is one-half of pulse period with minimum pulse width of 2.5 ms, 200 pulses/sec max. For battery option meters, pulse width varies with frequency, 150 pulses/sec max | 70 °C | -40 °C | 9-36 Vdc / 60 Hz @ 250 mA max, 30 mA average | DC | 9 to 36 Vdc / 60 Hz | 10 m/s | 1285 GPM | 6.43 GPM | 34 lb | 0.50 % | |
FMG480-04-D56,272,950 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.75 % | CE | 9 V Alkaline Battery | 50 ft | > 20 µS/cm | 128 x 64 dot-matrix LCD | LCD | Hardware/software, conductivity-based | IP68, NEMA 6P | 3.12 in | N/A | Steel, Epoxy, Aluminum | Polypropylene, Stainless Steel | Acid Solutions, Conductive Liquids, Saltwater | 8 | 1 | 150 psi | 60 °C | -12 °C | 4 to 20 mA | 200 pulses/sec | Current | 4 in | 4 in | ANSI Flange | User-scalable from 0.1 to 99,999.9 volume units/pulse. Pulse width is one-half of pulse period with minimum pulse width of 2.5 ms, 200 pulses/sec max. For battery option meters, pulse width varies with frequency, 150 pulses/sec max | 70 °C | -40 °C | 9-36 Vdc / 50 Hz @ 250 mA max, 30 mA average | DC | 9 to 36 Vdc / 50 Hz | 10 m/s | 1285 GPM | 6.43 GPM | 34 lb | 0.50 % | |
FMG480-04-A66,573,300 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.75 % | CE | 9 V Alkaline Battery | 50 ft | > 20 µS/cm | 128 x 64 dot-matrix LCD | LCD | Hardware/software, conductivity-based | IP68, NEMA 6P | 3.12 in | N/A | Steel, Epoxy, Aluminum | Polypropylene, Stainless Steel | Acid Solutions, Conductive Liquids, Saltwater | 8 | 1 | 150 psi | 60 °C | -12 °C | 4 to 20 mA | 200 pulses/sec | Current | 4 in | 4 in | ANSI Flange | User-scalable from 0.1 to 99,999.9 volume units/pulse. Pulse width is one-half of pulse period with minimum pulse width of 2.5 ms, 200 pulses/sec max. For battery option meters, pulse width varies with frequency, 150 pulses/sec max | 70 °C | -40 °C | 86-264Vac, 60Hz, 0.12A | AC | 86 to 264 Vac / 60 Hz | 10 m/s | 1285 GPM | 6.43 GPM | 34 lb | - | |
FMG480-04-A56,573,300 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.75 % | CE | 9 V Alkaline Battery | 50 ft | > 20 µS/cm | 128 x 64 dot-matrix LCD | LCD | Hardware/software, conductivity-based | IP68, NEMA 6P | 3.12 in | N/A | Steel, Epoxy, Aluminum | Polypropylene, Stainless Steel | Acid Solutions, Conductive Liquids, Saltwater | 8 | 1 | 150 psi | 60 °C | -12 °C | 4 to 20 mA | 200 pulses/sec | Current | 4 in | 4 in | ANSI Flange | User-scalable from 0.1 to 99,999.9 volume units/pulse. Pulse width is one-half of pulse period with minimum pulse width of 2.5 ms, 200 pulses/sec max. For battery option meters, pulse width varies with frequency, 150 pulses/sec max | 70 °C | -40 °C | 85-264Vac, 50Hz, 0.12A | AC | 85 to 264 Vac / 50 Hz | 10 m/s | 1285 GPM | 6.43 GPM | 34 lb | - |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
