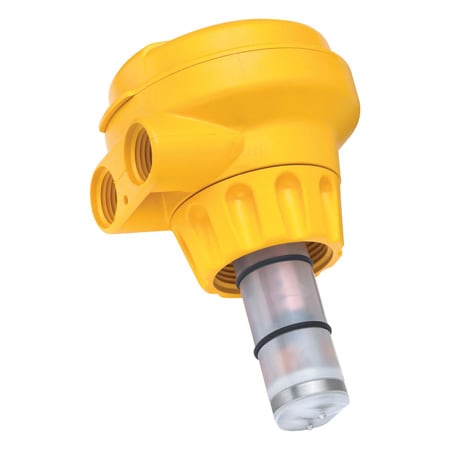

고정 깊이, 폴리프로필렌, 삽입형 전자기 유량계
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 4개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Approvals | Cable Length | Conductivity | Current Sink, Max | Enclosure Ratings | Error Condition | Isolation | Linearity | Linearity Note | Loop Accuracy | Loop Resistance | Materials | Materials, Wetted | Media Compatibility | Number of Outputs | Operating Pressure, Max | Operating Temperature, Max | Operating Temperature, Min | Output Detail | Output Pulse Rate, Max | Output Signal | Pipe Size, Max | Pipe Size, Min | Power Supply Rejection | Process Connection Type | Process Temperature, Max | Process Temperature, Min | Pull Up Voltage, Max | Relative Humidity | Repeatability | Repeatability Note | Storage Temperature, Max | Storage Temperature, Min | Supply Power Note | Supply Power Type | Supply Voltage | Temperature Drift Note | Velocity, Max | Velocity, Min | Volumetric Flow Rate, Max | Volumetric Flow Rate, Min | Display Note | Display Type | Solid State Relay | Switch Rating | Switch Type | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FMG3102-PP-D3,945,590 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | CE | 1000 ft | > 20 µS/cm | 50 mA | IP65, NEMA Type 4X | 22.1 mA | Low voltage <48 Vac/Vdc from electrodes and auxiliary power | ± 1% | ± 1% reading + 0.01 m/s (± 1% reading + 0.033 ft/s) | 32 µA maximum error (25°C @ 24 Vdc) | 300 Ω | PBT, Ployamide | 316L Stainless Steel, FKM, Polypropylene | Acid Solutions, Conductive Liquids, Saltwater | 1 | 150 psi | 70 °C | -10 °C | Amplified Square Wave | 1000 Hz | Current | 8 in | 5 in | ± 1 µA/V | N/A | 85 °C | 0 °C | 30 Vdc | 0.95 | ± 0.5% | ± 0.5% of rdg @ 25°C (77°F) | 70 °C | -20 °C | 21.6 to 26.4 Vdc, 22.1 mA maximum | DC | 21.6 to 26.4 Vdc | ± 1 μA | 16.4 ft/s | 0.15 ft/s | 0 GPM | 0 GPM | 2 x 16 Display | LCD | 50 mA @ 30 Vdc, 50 mA @ 42 Vac | 5 A @ 30 Vdc maximum, 5 A @ 250 VAC maximum | SPDT NO/NC, Selectable | |
FMG3002-PP-D3,901,230 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | CE | 1000 ft | > 20 µS/cm | 50 mA | IP65, NEMA Type 4X | 22.1 mA | Low voltage <48 Vac/Vdc from electrodes and auxiliary power | ± 1% | ± 1% reading + 0.01 m/s (± 1% reading + 0.033 ft/s) | 32 µA maximum error (25°C @ 24 Vdc) | 300 Ω | PBT, Ployamide | 316L Stainless Steel, FKM, Polypropylene | Acid Solutions, Conductive Liquids, Saltwater | 1 | 150 psi | 70 °C | -10 °C | current 4-20 mA | 1000 Hz | Current | 4 in | 0.5 in | ± 1 µA/V | N/A | 85 °C | 0 °C | 30 Vdc | 0.95 | ± 0.5% | ± 0.5% of rdg @ 25°C (77°F) | 70 °C | -20 °C | 21.6 to 26.4 Vdc, 22.1 mA maximum | DC | 21.6 to 26.4 Vdc | ± 1 μA | 16.4 ft/s | 0.15 ft/s | 0 GPM | 0 GPM | 2 x 16 Display | LCD | 50 mA @ 30 Vdc, 50 mA @ 42 Vac | 5 A @ 30 Vdc maximum, 5 A @ 250 VAC maximum | SPDT NO/NC, Selectable | |
FMG3102-PP2,128,410 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | CE | 1000 ft | > 20 µS/cm | 50 mA | IP65, NEMA Type 4X | 22.1 mA | Low voltage <48 Vac/Vdc from electrodes and auxiliary power | ± 1% | ± 1% reading + 0.01 m/s (± 1% reading + 0.033 ft/s) | 32 µA maximum error (25°C @ 24 Vdc) | 300 Ω | PBT | 316L Stainless Steel, FKM, Polypropylene | Acid Solutions, Conductive Liquids, Saltwater | 1 | 150 psi | 70 °C | -10 °C | Amplified Square Wave | 1000 Hz | Current | 8 in | 5 in | ± 1 µA/V | N/A | 85 °C | 0 °C | 30 Vdc | 0.95 | ± 0.5% | ± 0.5% of rdg @ 25°C (77°F) | 70 °C | -20 °C | 21.6 to 26.4 Vdc, 22.1 mA maximum | DC | 21.6 to 26.4 Vdc | ± 1 μA | 16.4 ft/s | 0.15 ft/s | 0 GPM | 0 GPM | - | - | - | - | - | |
FMG3002-PP2,099,040 원Limited Stock리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | CE | 1000 ft | > 20 µS/cm | 50 mA | IP65, NEMA Type 4X | 22.1 mA | Low voltage <48 Vac/Vdc from electrodes and auxiliary power | ± 1% | ± 1% reading + 0.01 m/s (± 1% reading + 0.033 ft/s) | 32 µA maximum error (25°C @ 24 Vdc) | 300 Ω | PBT | 316L Stainless Steel, FKM, Polypropylene | Acid Solutions, Conductive Liquids, Saltwater | 1 | 150 psi | 70 °C | -10 °C | current 4-20 mA | 1000 Hz | Current | 4 in | 0.5 in | ± 1 µA/V | N/A | 85 °C | 0 °C | 30 Vdc | 0.95 | ± 0.5% | ± 0.5% of rdg @ 25°C (77°F) | 70 °C | -20 °C | 21.6 to 26.4 Vdc, 22.1 mA maximum | DC | 21.6 to 26.4 Vdc | ± 1 μA | 16.4 ft/s | 0.15 ft/s | 0 GPM | 0 GPM | - | - | - | - | - |
