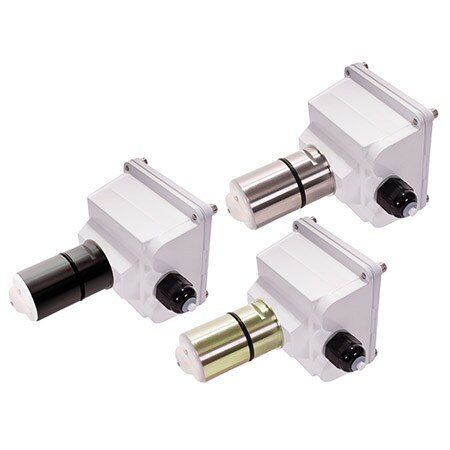

FMG980-Series | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 11개의 상품

제품 번호 / 가격	Brand	Accuracy	Accuracy Detail	Approvals	Conductivity	Display Type	Empty Pipe Detection	Insertion Type	Material Construction Option	Materials	Materials, Wetted	Media Compatibility	Number of Outputs	Operating Pressure, Max	Operating Temperature, Max	Operating Temperature, Min	Output Detail	Output Signal	Pipe Size, Max	Pipe Size, Min	Process Connection Type	Process Temperature, Max	Supply Power Note	Supply Power Type	Supply Voltage	Velocity, Max	Velocity, Min	Volumetric Flow Rate, Max	Volumetric Flow Rate, Min	Enclosure Ratings
FMG983M-P2,323,780 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	± 1% of full scale	CE	> 20 µS/cm	LCD	Defaults to zero flow	Standard	PVC	Aluminum	EPDM, Hastelloy, PVC, PVDF	Acid Solutions, Conductive Liquids, Saltwater	1	150 psi	72 °C	-17 °C	Square wave pulse, opto isolated, 550 Hz @ 20 ft/sec	DC Pulse	12 in	-	Saddle	55 °C	Full Power: 12 to 25 Vdc, 250 mA , Low Power: 12 to 25 Vdc, 40 mA average with 250 mA peaks	DC	12 to 25 Vdc	20 ft/s	0.28 ft/s	7050 GPM	99 GPM	IP66, NEMA Type 4X
FMG983-S2,520,480 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	± 1% of full scale	CE	> 20 µS/cm	N/A	Defaults to zero flow	Standard	316 Stainless Steel	Aluminum, 316 Stainless Steel	316 Stainless Steel, EPDM, Hastelloy, PVDF	Acid Solutions, Conductive Liquids, Saltwater	1	200 psi	72 °C	-17 °C	Square wave pulse, opto isolated, 550 Hz @ 20 ft/sec	DC Pulse	12 in	-	Saddle	93 °C	Full Power: 12 to 25 Vdc, 250 mA , Low Power: 12 to 25 Vdc, 40 mA average with 250 mA peaks	DC	12 to 25 Vdc	20 ft/s	0.28 ft/s	7050 GPM	99 GPM	-
FMG983M-B2,535,930 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	± 1% of full scale	CE	> 20 µS/cm	LCD	Defaults to zero flow	Standard	Brass	Aluminum	Brass, EPDM, Hastelloy, PVDF	Acid Solutions, Conductive Liquids, Saltwater	1	200 psi	72 °C	-17 °C	Square wave pulse, opto isolated, 550 Hz @ 20 ft/sec	DC Pulse	12 in	-	Saddle	93 °C	Full Power: 12 to 25 Vdc, 250 mA , Low Power: 12 to 25 Vdc, 40 mA average with 250 mA peaks	DC	12 to 25 Vdc	20 ft/s	0.28 ft/s	7050 GPM	99 GPM	IP66, NEMA Type 4X
FMG983-P1,825,380 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	± 1% of full scale	CE	> 20 µS/cm	N/A	Defaults to zero flow	Standard	PVC	Aluminum	EPDM, Hastelloy, PVC, PVDF	Acid Solutions, Conductive Liquids, Saltwater	1	150 psi	72 °C	-17 °C	Square wave pulse, opto isolated, 550 Hz @ 20 ft/sec	DC Pulse	12 in	-	Saddle	55 °C	Full Power: 12 to 25 Vdc, 250 mA , Low Power: 12 to 25 Vdc, 40 mA average with 250 mA peaks	DC	12 to 25 Vdc	20 ft/s	0.28 ft/s	7050 GPM	99 GPM	-
FMG983-B2,105,870 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	± 1% of full scale	CE	> 20 µS/cm	N/A	Defaults to zero flow	Standard	Brass	Aluminum	Brass, EPDM, Hastelloy, PVDF	Acid Solutions, Conductive Liquids, Saltwater	1	200 psi	72 °C	-17 °C	Square wave pulse, opto isolated, 550 Hz @ 20 ft/sec	DC Pulse	12 in	-	Saddle	93 °C	Full Power: 12 to 25 Vdc, 250 mA , Low Power: 12 to 25 Vdc, 40 mA average with 250 mA peaks	DC	12 to 25 Vdc	20 ft/s	0.28 ft/s	7050 GPM	99 GPM	-
FMG982-S2,290,990 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	± 1% of full scale	CE	> 20 µS/cm	N/A	Defaults to zero flow	Standard	316 Stainless Steel	Aluminum, 316 Stainless Steel	316 Stainless Steel, EPDM, Hastelloy, PVDF	Acid Solutions, Conductive Liquids, Saltwater	1	200 psi	72 °C	-17 °C	Square wave pulse, opto isolated, 550 Hz @ 20 ft/sec	DC Pulse	10 in	4 in	Saddle	93 °C	Full Power: 12 to 25 Vdc, 250 mA , Low Power: 12 to 25 Vdc, 40 mA average with 250 mA peaks	DC	12 to 25 Vdc	20 ft/s	0.28 ft/s	4900 GPM	68 GPM	-
FMG982-B1,927,480 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	± 1% of full scale	CE	> 20 µS/cm	N/A	Defaults to zero flow	Standard	Brass	Aluminum	Brass, EPDM, Hastelloy, PVDF	Acid Solutions, Conductive Liquids, Saltwater	1	200 psi	72 °C	-17 °C	Square wave pulse, opto isolated, 550 Hz @ 20 ft/sec	DC Pulse	10 in	4 in	Saddle	93 °C	Full Power: 12 to 25 Vdc, 250 mA , Low Power: 12 to 25 Vdc, 40 mA average with 250 mA peaks	DC	12 to 25 Vdc	20 ft/s	0.28 ft/s	4900 GPM	68 GPM	-
FMG982-P1,867,530 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	± 1% of full scale	CE	> 20 µS/cm	N/A	Defaults to zero flow	Standard	PVC	Aluminum	EPDM, Hastelloy, PVC, PVDF	Acid Solutions, Conductive Liquids, Saltwater	1	150 psi	72 °C	-17 °C	Square wave pulse, opto isolated, 550 Hz @ 20 ft/sec	DC Pulse	10 in	4 in	Saddle	55 °C	Full Power: 12 to 25 Vdc, 250 mA , Low Power: 12 to 25 Vdc, 40 mA average with 250 mA peaks	DC	12 to 25 Vdc	20 ft/s	0.28 ft/s	4900 GPM	68 GPM	-
FMG981-S1,822,390 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	± 1% of full scale	CE	> 20 µS/cm	N/A	Defaults to zero flow	Standard	316 Stainless Steel	Aluminum, 316 Stainless Steel	316 Stainless Steel, EPDM, Hastelloy, PVDF	Acid Solutions, Conductive Liquids, Saltwater	1	200 psi	72 °C	-17 °C	Square wave pulse, opto isolated, 550 Hz @ 20 ft/sec	DC Pulse	3 in	1 in	Saddle	93 °C	Full Power: 12 to 25 Vdc, 250 mA , Low Power: 12 to 25 Vdc, 40 mA average with 250 mA peaks	DC	12 to 25 Vdc	20 ft/s	0.28 ft/s	440 GPM	6.2 GPM	-
FMG981-P1,607,360 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	± 1% of full scale	CE	> 20 µS/cm	N/A	Defaults to zero flow	Standard	PVC	Aluminum	EPDM, Hastelloy, PVC, PVDF	Acid Solutions, Conductive Liquids, Saltwater	1	150 psi	72 °C	-17 °C	Square wave pulse, opto isolated, 550 Hz @ 20 ft/sec	DC Pulse	3 in	1 in	Saddle	55 °C	Full Power: 12 to 25 Vdc, 250 mA , Low Power: 12 to 25 Vdc, 40 mA average with 250 mA peaks	DC	12 to 25 Vdc	20 ft/s	0.28 ft/s	440 GPM	6.2 GPM	-
FMG981-B1,785,760 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	± 1% of full scale	CE	> 20 µS/cm	N/A	Defaults to zero flow	Standard	Brass	Aluminum	Brass, EPDM, Hastelloy, PVDF	Acid Solutions, Conductive Liquids, Saltwater	1	200 psi	72 °C	-17 °C	Square wave pulse, opto isolated, 550 Hz @ 20 ft/sec	DC Pulse	3 in	1 in	Saddle	93 °C	Full Power: 12 to 25 Vdc, 250 mA , Low Power: 12 to 25 Vdc, 40 mA average with 250 mA peaks	DC	12 to 25 Vdc	20 ft/s	0.28 ft/s	440 GPM	6.2 GPM	-

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Accuracy Detail

Approvals

Conductivity

Display Type

Empty Pipe Detection

Insertion Type

Material Construction Option

Materials

Materials, Wetted

Media Compatibility

Number of Outputs

Operating Pressure, Max

Operating Temperature, Max

Operating Temperature, Min

Output Detail

Output Signal

Pipe Size, Max

Pipe Size, Min

Process Connection Type

Process Temperature, Max

Process Temperature, Min

Supply Power Note

Supply Power Type

Supply Voltage

Velocity, Max

Velocity, Min

Volumetric Flow Rate, Max

Volumetric Flow Rate, Min

Enclosure Ratings

수량 / 장바구니

FMG983M-P2,323,780 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

± 1% of full scale

> 20 µS/cm

LCD

Defaults to zero flow

Standard

PVC

Aluminum

EPDM, Hastelloy, PVC, PVDF

Acid Solutions, Conductive Liquids, Saltwater

150 psi

72 °C

-17 °C

Square wave pulse, opto isolated, 550 Hz @ 20 ft/sec

DC Pulse

12 in

Saddle

55 °C

0 °C

Full Power: 12 to 25 Vdc, 250 mA , Low Power: 12 to 25 Vdc, 40 mA average with 250 mA peaks

12 to 25 Vdc

20 ft/s

0.28 ft/s

7050 GPM

99 GPM

IP66, NEMA Type 4X

FMG983-S2,520,480 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

± 1% of full scale

> 20 µS/cm

N/A

Defaults to zero flow

Standard

316 Stainless Steel

Aluminum, 316 Stainless Steel

316 Stainless Steel, EPDM, Hastelloy, PVDF

Acid Solutions, Conductive Liquids, Saltwater

200 psi

72 °C

-17 °C

Square wave pulse, opto isolated, 550 Hz @ 20 ft/sec

DC Pulse

12 in

Saddle

93 °C

0 °C

Full Power: 12 to 25 Vdc, 250 mA , Low Power: 12 to 25 Vdc, 40 mA average with 250 mA peaks

12 to 25 Vdc

20 ft/s

0.28 ft/s

7050 GPM

99 GPM

FMG983M-B2,535,930 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

± 1% of full scale

> 20 µS/cm

LCD

Defaults to zero flow

Standard

Brass

Aluminum

Brass, EPDM, Hastelloy, PVDF

Acid Solutions, Conductive Liquids, Saltwater

200 psi

72 °C

-17 °C

Square wave pulse, opto isolated, 550 Hz @ 20 ft/sec

DC Pulse

12 in

Saddle

93 °C

0 °C

Full Power: 12 to 25 Vdc, 250 mA , Low Power: 12 to 25 Vdc, 40 mA average with 250 mA peaks

12 to 25 Vdc

20 ft/s

0.28 ft/s

7050 GPM

99 GPM

IP66, NEMA Type 4X

FMG983-P1,825,380 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

± 1% of full scale

> 20 µS/cm

N/A

Defaults to zero flow

Standard

PVC

Aluminum

EPDM, Hastelloy, PVC, PVDF

Acid Solutions, Conductive Liquids, Saltwater

150 psi

72 °C

-17 °C

Square wave pulse, opto isolated, 550 Hz @ 20 ft/sec

DC Pulse

12 in

Saddle

55 °C

0 °C

Full Power: 12 to 25 Vdc, 250 mA , Low Power: 12 to 25 Vdc, 40 mA average with 250 mA peaks

12 to 25 Vdc

20 ft/s

0.28 ft/s

7050 GPM

99 GPM

FMG983-B2,105,870 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

± 1% of full scale

> 20 µS/cm

N/A

Defaults to zero flow

Standard

Brass

Aluminum

Brass, EPDM, Hastelloy, PVDF

Acid Solutions, Conductive Liquids, Saltwater

200 psi

72 °C

-17 °C

Square wave pulse, opto isolated, 550 Hz @ 20 ft/sec

DC Pulse

12 in

Saddle

93 °C

0 °C

Full Power: 12 to 25 Vdc, 250 mA , Low Power: 12 to 25 Vdc, 40 mA average with 250 mA peaks

12 to 25 Vdc

20 ft/s

0.28 ft/s

7050 GPM

99 GPM

FMG982-S2,290,990 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

± 1% of full scale

> 20 µS/cm

N/A

Defaults to zero flow

Standard

316 Stainless Steel

Aluminum, 316 Stainless Steel

316 Stainless Steel, EPDM, Hastelloy, PVDF

Acid Solutions, Conductive Liquids, Saltwater

200 psi

72 °C

-17 °C

Square wave pulse, opto isolated, 550 Hz @ 20 ft/sec

DC Pulse

10 in

4 in

Saddle

93 °C

0 °C

Full Power: 12 to 25 Vdc, 250 mA , Low Power: 12 to 25 Vdc, 40 mA average with 250 mA peaks

12 to 25 Vdc

20 ft/s

0.28 ft/s

4900 GPM

68 GPM

FMG982-B1,927,480 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

± 1% of full scale

> 20 µS/cm

N/A

Defaults to zero flow

Standard

Brass

Aluminum

Brass, EPDM, Hastelloy, PVDF

Acid Solutions, Conductive Liquids, Saltwater

200 psi

72 °C

-17 °C

Square wave pulse, opto isolated, 550 Hz @ 20 ft/sec

DC Pulse

10 in

4 in

Saddle

93 °C

0 °C

Full Power: 12 to 25 Vdc, 250 mA , Low Power: 12 to 25 Vdc, 40 mA average with 250 mA peaks

12 to 25 Vdc

20 ft/s

0.28 ft/s

4900 GPM

68 GPM

FMG982-P1,867,530 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

± 1% of full scale

> 20 µS/cm

N/A

Defaults to zero flow

Standard

PVC

Aluminum

EPDM, Hastelloy, PVC, PVDF

Acid Solutions, Conductive Liquids, Saltwater

150 psi

72 °C

-17 °C

Square wave pulse, opto isolated, 550 Hz @ 20 ft/sec

DC Pulse

10 in

4 in

Saddle

55 °C

0 °C

Full Power: 12 to 25 Vdc, 250 mA , Low Power: 12 to 25 Vdc, 40 mA average with 250 mA peaks

12 to 25 Vdc

20 ft/s

0.28 ft/s

4900 GPM

68 GPM

FMG981-S1,822,390 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

± 1% of full scale

> 20 µS/cm

N/A

Defaults to zero flow

Standard

316 Stainless Steel

Aluminum, 316 Stainless Steel

316 Stainless Steel, EPDM, Hastelloy, PVDF

Acid Solutions, Conductive Liquids, Saltwater

200 psi

72 °C

-17 °C

Square wave pulse, opto isolated, 550 Hz @ 20 ft/sec

DC Pulse

3 in

1 in

Saddle

93 °C

0 °C

Full Power: 12 to 25 Vdc, 250 mA , Low Power: 12 to 25 Vdc, 40 mA average with 250 mA peaks

12 to 25 Vdc

20 ft/s

0.28 ft/s

440 GPM

6.2 GPM

FMG981-P1,607,360 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

± 1% of full scale

> 20 µS/cm

N/A

Defaults to zero flow

Standard

PVC

Aluminum

EPDM, Hastelloy, PVC, PVDF

Acid Solutions, Conductive Liquids, Saltwater

150 psi

72 °C

-17 °C

Square wave pulse, opto isolated, 550 Hz @ 20 ft/sec

DC Pulse

3 in

1 in

Saddle

55 °C

0 °C

Full Power: 12 to 25 Vdc, 250 mA , Low Power: 12 to 25 Vdc, 40 mA average with 250 mA peaks

12 to 25 Vdc

20 ft/s

0.28 ft/s

440 GPM

6.2 GPM

FMG981-B1,785,760 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

± 1% of full scale

> 20 µS/cm

N/A

Defaults to zero flow

Standard

Brass

Aluminum

Brass, EPDM, Hastelloy, PVDF

Acid Solutions, Conductive Liquids, Saltwater

200 psi

72 °C

-17 °C

Square wave pulse, opto isolated, 550 Hz @ 20 ft/sec

DC Pulse

3 in

1 in

Saddle

93 °C

0 °C

Full Power: 12 to 25 Vdc, 250 mA , Low Power: 12 to 25 Vdc, 40 mA average with 250 mA peaks

12 to 25 Vdc

20 ft/s

0.28 ft/s

440 GPM

6.2 GPM
