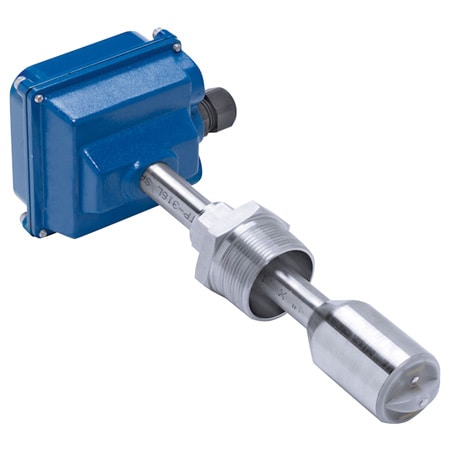

조절 가능한 삽입형 전자기 유량계
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 8개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Detail | Approvals | Conductivity | Empty Pipe Detection | Insertion Type | Material Construction Option | Materials | Materials, Wetted | Media Compatibility | Number of Outputs | Operating Pressure, Max | Operating Temperature, Max | Operating Temperature, Min | Output Detail | Output Signal | Pipe Size, Max | Pipe Size, Min | Process Connection Size | Process Connection Type | Process Temperature, Max | Process Temperature, Min | Supply Power Note | Supply Power Type | Supply Voltage | Velocity, Max | Velocity, Min | Volumetric Flow Rate, Max | Volumetric Flow Rate, Min | Weight | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FMG907가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | ± 1% of full scale | CE | > 20 µS/cm | Defaults to zero flow | Hot Tap Insertion | 316 Stainless Steel | Aluminum, Bronze, 316 Stainless Steel | 316 Stainless Steel, EPDM, Hastelloy, PVDF | Acid Solutions, Conductive Liquids, Saltwater | 1 | 200 psi | 72 °C | -17 °C | Square wave pulse, opto isolated, 550 Hz @ 20 ft/second 6 mA maximum, 30 Vdc forward flow standard (reverse flow optional) | DC Pulse | 10 in | 3 in | 2 in | NPT Male | 93 °C | 0 °C | 12 to 24 Vdc, 250 mA | DC | 12 to 24 Vdc | 20 ft/s | 0.28 ft/s | 4895 GPM | 69 GPM | 0 lb | |
FMG908가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | ± 1% of full scale | CE | > 20 µS/cm | Defaults to zero flow | Hot Tap Insertion | 316 Stainless Steel | Aluminum, Bronze, 316 Stainless Steel | 316 Stainless Steel, EPDM, Hastelloy, PVDF | Acid Solutions, Conductive Liquids, Saltwater | 1 | 200 psi | 72 °C | -17 °C | Square wave pulse, opto isolated, 550 Hz @ 20 ft/second 6 mA maximum, 30 Vdc forward flow standard (reverse flow optional) | DC Pulse | 48 in | 10 in | 2 in | NPT Male | 93 °C | 0 °C | 12 to 24 Vdc, 250 mA | DC | 12 to 24 Vdc | 20 ft/s | 0.28 ft/s | 112804 GPM | 1580 GPM | 0 lb | |
FMG906가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | ± 1% of full scale | CE | > 20 µS/cm | Defaults to zero flow | Hot Tap Insertion | Brass | Aluminum, Bronze, Brass | Brass, Bronze, EPDM, Hastelloy, PVDF | Acid Solutions, Conductive Liquids, Saltwater | 1 | 200 psi | 72 °C | -17 °C | Square wave pulse, opto isolated, 550 Hz @ 20 ft/second 6 mA maximum, 30 Vdc forward flow standard (reverse flow optional) | DC Pulse | 48 in | 10 in | 2 in | NPT Male | 93 °C | 0 °C | 12 to 24 Vdc, 250 mA | DC | 12 to 24 Vdc | 20 ft/s | 0.28 ft/s | 112804 GPM | 1580 GPM | 0 lb | |
FMG905가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | ± 1% of full scale | CE | > 20 µS/cm | Defaults to zero flow | Hot Tap Insertion | Brass | Aluminum, Bronze, Brass | Brass, Bronze, EPDM, Hastelloy, PVDF | Acid Solutions, Conductive Liquids, Saltwater | 1 | 200 psi | 72 °C | -17 °C | Square wave pulse, opto isolated, 550 Hz @ 20 ft/second 6 mA maximum, 30 Vdc forward flow standard (reverse flow optional) | DC Pulse | 10 in | 3 in | 2 in | NPT Male | 93 °C | 0 °C | 12 to 24 Vdc, 250 mA | DC | 12 to 24 Vdc | 20 ft/s | 0.28 ft/s | 4895 GPM | 69 GPM | 0 lb | |
FMG903가격 문의9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | ± 1% of full scale | CE | > 20 µS/cm | Defaults to zero flow | Standard | 316 Stainless Steel | Aluminum, Bronze, 316 Stainless Steel | 316 Stainless Steel, EPDM, Hastelloy, PVDF | Acid Solutions, Conductive Liquids, Saltwater | 1 | 200 psi | 72 °C | -17 °C | Square wave pulse, opto isolated, 550 Hz @ 20 ft/second 6 mA maximum, 30 Vdc forward flow standard (reverse flow optional) | DC Pulse | 10 in | 3 in | 1 1/2 in | NPT Male | 93 °C | 0 °C | 12 to 24 Vdc, 250 mA | DC | 12 to 24 Vdc | 20 ft/s | 0.28 ft/s | 4895 GPM | 69 GPM | 0 lb | |
FMG904가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | ± 1% of full scale | CE | > 20 µS/cm | Defaults to zero flow | Standard | 316 Stainless Steel | Aluminum, Bronze, 316 Stainless Steel | 316 Stainless Steel, EPDM, Hastelloy, PVDF | Acid Solutions, Conductive Liquids, Saltwater | 1 | 200 psi | 72 °C | -17 °C | Square wave pulse, opto isolated, 550 Hz @ 20 ft/second 6 mA maximum, 30 Vdc forward flow standard (reverse flow optional) | DC Pulse | 48 in | 10 in | 1 1/2 in | NPT Male | 93 °C | 0 °C | 12 to 24 Vdc, 250 mA | DC | 12 to 24 Vdc | 20 ft/s | 0.28 ft/s | 112804 GPM | 1580 GPM | 0 lb | |
FMG902가격 문의8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | ± 1% of full scale | CE | > 20 µS/cm | Defaults to zero flow | Standard | Brass | Aluminum, Bronze, Brass | Brass, EPDM, Hastelloy, PVDF | Acid Solutions, Conductive Liquids, Saltwater | 1 | 200 psi | 72 °C | -17 °C | Square wave pulse, opto isolated, 550 Hz @ 20 ft/second 6 mA maximum, 30 Vdc forward flow standard (reverse flow optional) | DC Pulse | 48 in | 10 in | 1 1/2 in | NPT Male | 93 °C | 0 °C | 12 to 24 Vdc, 250 mA | DC | 12 to 24 Vdc | 20 ft/s | 0.28 ft/s | 112804 GPM | 1580 GPM | 0 lb | |
FMG901가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | ± 1% of full scale | CE | > 20 µS/cm | Defaults to zero flow | Standard | Brass | Aluminum, Bronze, Brass | Brass, EPDM, Hastelloy, PVDF | Acid Solutions, Conductive Liquids, Saltwater | 1 | 200 psi | 72 °C | -17 °C | Square wave pulse, opto isolated, 550 Hz @ 20 ft/second 6 mA maximum, 30 Vdc forward flow standard (reverse flow optional) | DC Pulse | 10 in | 3 in | 1 1/2 in | NPT Male | 93 °C | 0 °C | 12 to 24 Vdc, 250 mA | DC | 12 to 24 Vdc | 20 ft/s | 0.28 ft/s | 4895 GPM | 69 GPM | 0 lb |
