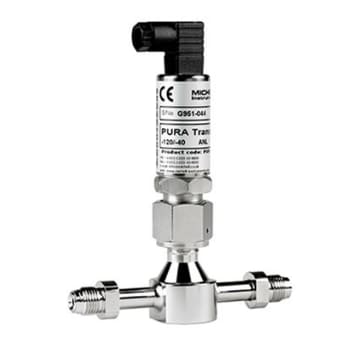

PUR-IS-2W | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 2개의 상품

제품 번호 / 가격	Accuracy	Compliance Note	Electrical Connection	Electrical Output	Enclosure Ratings	Factory Setting	Flow Rate Note	Galvanic Isolation	Housing Material	Load Resistance	Measurement Type	Number of Wires	Operating Humidity	Operating Pressure, Max	Operating Temperature, Max	Operating Temperature, Min	Process Connection Type	Repeatability	Series ID	Supply Current	Supply Voltage	Temperature Measurement Range	수량 / 장바구니
PUR-IS-2W-BA가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다.	± 1 °C (± 1.8 °F)	ATEX - II 1 G Ex ia IIC T4 (-20°C ≤ Ta ≤ +70°C) FM - IS / I / 1 / ABCD / T4 Ta = +70°C CSA - IS Class 1 Div 1 Groups ABCD T4 IECEx - Ex ia IIC T4 (-20°C ≤ Ta ≤ +70°C)	Screw Terminal	4 to 20 mA	IP66, NEMA Type 4	Sensor fault: 23 mA; Under-range dew point: 4 mA; Over-range dew point: 20 mA	1 to 10 Nl/min (2.1 to 21.2 scfh), (5 Nl/min (10.6 scfh) optimum)	KFD2-CR-Ex1.20200 / KFD2-CR-Ex1.30200, KFD0-CS-Ex1.50P / KFD0-CS-Ex2.50P, KFD2-STC4-Ex1 H / MTL5041, MTL5040, MTL5541	Stainless Steel	Max 250 Ω @ 12 V (500 Ω @ 24 V)	Moisture	2	0 to 100% RH	24 MPa	60 °C	-40 °C	VCR Male	0.5ºCdp (0.9ºFdp)	PUR-IS-2W	23 mA	12 to 28 Vdc	-120 to -40 °C
PUR-IS-2W-CA가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	± 1 °C (± 1.8 °F)	ATEX - II 1 G Ex ia IIC T4 (-20°C ≤ Ta ≤ +70°C) FM - IS / I / 1 / ABCD / T4 Ta = +70°C CSA - IS Class 1 Div 1 Groups ABCD T4 IECEx - Ex ia IIC T4 (-20°C ≤ Ta ≤ +70°C)	Screw Terminal	4 to 20 mA	IP66, NEMA Type 4	Sensor fault: 23 mA; Under-range dew point: 4 mA; Over-range dew point: 20 mA	1 to 10 Nl/min (2.1 to 21.2 scfh), (5 Nl/min (10.6 scfh) optimum)	KFD2-CR-Ex1.20200 / KFD2-CR-Ex1.30200, KFD0-CS-Ex1.50P / KFD0-CS-Ex2.50P, KFD2-STC4-Ex1 H / MTL5041, MTL5040, MTL5541	Stainless Steel	Max 250 Ω @ 12 V (500 Ω @ 24 V)	Moisture	2	0 to 100% RH	24 MPa	60 °C	-40 °C	VCR Male	0.5ºCdp (0.9ºFdp)	PUR-IS-2W	23 mA	12 to 28 Vdc	-120 to -40 °C

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Accuracy

Compliance Note

Electrical Connection

Electrical Output

Enclosure Ratings

Factory Setting

Flow Rate Note

Galvanic Isolation

Housing Material

Load Resistance

Measurement Type

Number of Wires

Operating Humidity

Operating Pressure, Max

Operating Temperature, Max

Operating Temperature, Min

Process Connection Type

Repeatability

Series ID

Supply Current

Supply Voltage

Temperature Measurement Range

수량 / 장바구니

PUR-IS-2W-BA가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다.

± 1 °C (± 1.8 °F)

ATEX - II 1 G Ex ia IIC T4 (-20°C ≤ Ta ≤ +70°C) FM - IS / I / 1 / ABCD / T4 Ta = +70°C CSA - IS Class 1 Div 1 Groups ABCD T4 IECEx - Ex ia IIC T4 (-20°C ≤ Ta ≤ +70°C)

Screw Terminal

4 to 20 mA

IP66, NEMA Type 4

Sensor fault: 23 mA; Under-range dew point: 4 mA; Over-range dew point: 20 mA

1 to 10 Nl/min (2.1 to 21.2 scfh), (5 Nl/min (10.6 scfh) optimum)

KFD2-CR-Ex1.20200 / KFD2-CR-Ex1.30200, KFD0-CS-Ex1.50P / KFD0-CS-Ex2.50P, KFD2-STC4-Ex1 H / MTL5041, MTL5040, MTL5541

Stainless Steel

Max 250 Ω @ 12 V (500 Ω @ 24 V)

Moisture

0 to 100% RH

24 MPa

60 °C

-40 °C

VCR Male

0.5ºCdp (0.9ºFdp)

PUR-IS-2W

23 mA

12 to 28 Vdc

-120 to -40 °C

PUR-IS-2W-CA가격 문의7 weeks리드타임은 상황에 따라 달라질 수 있습니다.
