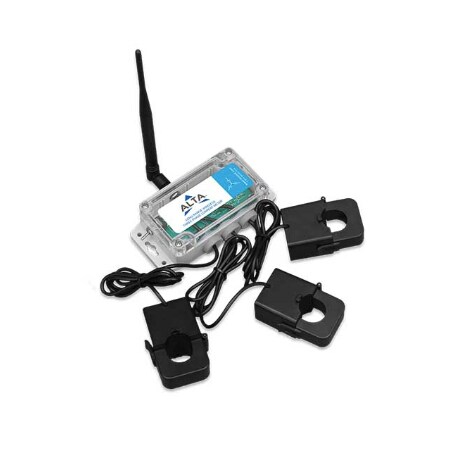

Monnit Alta 무선 3상 150암페어 AC 전류 계량기
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 1개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Detail | Approvals | Approvals Note | Battery Size and Type | Battery life | Cable Length | Calibration | Current Measurement Range | Current, Max | Data Interface | Electrical Connection | Enclosure Ratings | Form factor | Frequency | Height | Inner Diameter | Length | Measurement Type | Memory | Number of Channels | Number of Sensors | Operating Temperature Note | Operating Temperature, Max | Operating Temperature, Min | Power Consumption | Power Consumption Note | Resolution | Resolution Note | Sensor Length | Sensor Thickness | Sensor Width | Supply Power Note | Supply Power Type | Supply Voltage | Use With Sensor Type | Weight | Width | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MNS2-9-IN-3P-150가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 2 % | Current Transformer: ± 2% @ 2 to 150 Arms, ± 0.4 Arms @ < 15 Arms; Calibration Accuracy: Current Transformer: ±1% @ 2 to 150 Arms, ± 0.2 Arms @ < 2 Arms | CE, FCC, UL | FCC ID: ZTL- G2SC1 and IC: 9794A-G2SC1, UL Listed to UL508-4x specifications (File E194432) | Alkaline AA | up to 10 yr | 3 ft | Calibrate at a current between 30% and 90% of max accurate range | 0 to 150 A | 200 Amps RMS | Wireless | Cable | NEMA 4, NEMA Type 1, NEMA Type 12, NEMA Type 13, NEMA Type 2, NEMA Type 4X, Weatherproof | Wall Mount | 50 to 100 Hz | 2.559 in | 0.94 in | 1.579 in | 3 Phase AC Current | Upto 3200 sensor messages | 1 | 3 | -40°C to +85°C (board circuitry and battery) | 85 °C | -40 °C | 22.6 mA | Sleep Mode:0.2 µA, RTC Mode:0.7 µA, MCU Idle:570 µa, MCU Active:2.5 mA, Radio RX Mode:5.5 mA, Radio TX Mode:22.6 mA | Current Transformer: 1 Arms | Current Transformer: Average: 0.01 Arms, Max: 1 Arms, Min: 1 Arms, Duty: 1%, Amp Hours: 0.1 Amp Hours | 2.63 in | 1.65 in | 1.92 in | DC: 2.0 - 3.8 VDC (3.0 - 3.8 VDC using power supply), Solar panel: 5VDC/30mA (53mm x 30mm), Charging temperature range: 0°C to 45°C (32°F to 113°F), Max temperature range: -20°C to 60°C (-4°F to 140°F), Included rechargeable battery: 600 mAh/>2000 charge cycles (80% of initial capacity), Solar efficiency: Optimized for high and low-light operation | DC/Battery | 2.0 to 3.8 Vdc | Clamp-On Transformer | 28.7 oz | 7.07 in |
