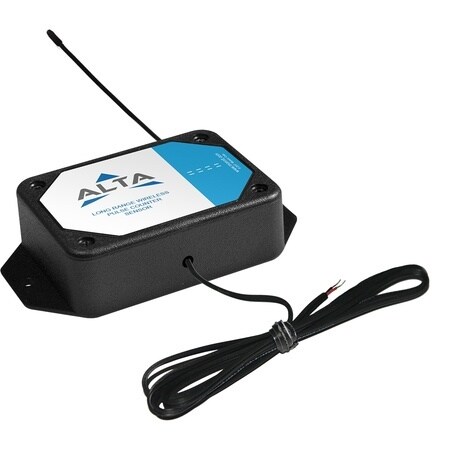

Alta-Pulse-Count | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 2개의 상품

제품 번호 / 가격	Brand	Approvals	Approvals Note	Battery Operating Temperature	Battery life	Electrical Connection	Enclosure Ratings	Form factor	Height	Length	Number of Channels	Operating Temperature, Max	Operating Temperature, Min	Power Consumption	Power Consumption Note	Sensor Type	Supply Power Note	Supply Power Type	Supply Voltage	Use With Sensor Type	Weight	Width	Operating Temperature Note	수량 / 장바구니
MNS2-9-W2-PC-01가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	CE, FCC	FCC ID: ZTL- G2SC1 and IC: 9794A-G2SC1	10 to 50 °C	up to 12 yr	N/A	-	General Purpose	2.47 in	1.111 in	1	85 °C	-40 °C	22.6 mA	Sleep Mode:0.2 µA, RTC Mode:0.7 µA, MCU Idle:570 µa, MCU Active:2.5 mA, Radio RX Mode:5.5 mA, Radio TX Mode:22.6 mA	Pulse Counter	DC: 2.0 - 3.8 VDC (3.0 - 3.8 VDC Using Power Supply), Battery: Two replaceable 1.5 V AA sized batteries (included with purchase)	DC/Battery	2.0 to 3.8 Vdc	Magnet	0.7 oz	4.375 in	-18°C to 55°C (0°F to 130°F) using alkaline, -40°C to 85°C (-40°F to 185°F) using lithium
MNS2-9-IN-PC-01가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	CE, FCC, UL	FCC ID: ZTL- G2SC1 and IC: 9794A-G2SC1, UL Listed to UL508-4x specifications (File E194432)	-40 to 85 °C	up to 10 yr	N/A	NEMA Type 1, NEMA Type 12, NEMA Type 13, NEMA Type 2, NEMA Type 4, NEMA Type 4X	NEMA Type 4x, IP65	2.316 in	1.378 in	1	85 °C	-40 °C	22.6 mA	Sleep Mode:0.2 µA, RTC Mode:0.7 µA, MCU Idle:570 µa, MCU Active:2.5 mA, Radio RX Mode:5.5 mA, Radio TX Mode:22.6 mA	Pulse Counter	DC: 2.0 - 3.8 VDC (3.0 - 3.8 VDC using power supply), Solar panel: 5VDC/30mA (53mm x 30mm), Charging temperature range: 0°C to 45°C (32°F to 113°F), Max temperature range: -20°C to 60°C (-4°F to 140°F), Included rechargeable battery: 600 mAh/>2000 charge cycles (80% of initial capacity), Solar efficiency: Optimized for high and low-light operation	DC/Battery	2.0 to 3.8 Vdc	Magnet	4.7 oz	3.701 in	-

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Approvals

Approvals Note

Battery Operating Temperature

Battery life

Electrical Connection

Enclosure Ratings

Form factor

Height

Length

Number of Channels

Operating Temperature, Max

Operating Temperature, Min

Power Consumption

Power Consumption Note

Sensor Type

Supply Power Note

Supply Power Type

Supply Voltage

Use With Sensor Type

Weight

Width

Operating Temperature Note

수량 / 장바구니

MNS2-9-W2-PC-01가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

CE, FCC

FCC ID: ZTL- G2SC1 and IC: 9794A-G2SC1

10 to 50 °C

up to 12 yr

N/A

General Purpose

2.47 in

1.111 in

85 °C

-40 °C

22.6 mA

Sleep Mode:0.2 µA, RTC Mode:0.7 µA, MCU Idle:570 µa, MCU Active:2.5 mA, Radio RX Mode:5.5 mA, Radio TX Mode:22.6 mA

Pulse Counter

DC: 2.0 - 3.8 VDC (3.0 - 3.8 VDC Using Power Supply), Battery: Two replaceable 1.5 V AA sized batteries (included with purchase)

DC/Battery

2.0 to 3.8 Vdc

Magnet

0.7 oz

4.375 in

-18°C to 55°C (0°F to 130°F) using alkaline, -40°C to 85°C (-40°F to 185°F) using lithium

MNS2-9-IN-PC-01가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

CE, FCC, UL

FCC ID: ZTL- G2SC1 and IC: 9794A-G2SC1, UL Listed to UL508-4x specifications (File E194432)

-40 to 85 °C

up to 10 yr

N/A

NEMA Type 1, NEMA Type 12, NEMA Type 13, NEMA Type 2, NEMA Type 4, NEMA Type 4X

NEMA Type 4x, IP65

2.316 in

1.378 in
