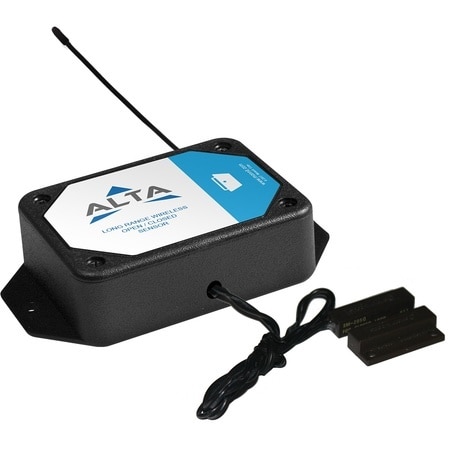

모닛 알타 무선 개폐 감지 센서
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 2개의 상품
| 제품 번호 / 가격 | Brand | Approvals | Approvals Note | Battery Operating Temperature | Battery life | Cable Length | Data Interface | Enclosure Ratings | Form factor | Height | Length | Memory | Number of Channels | Operating Temperature, Max | Operating Temperature, Min | Power Consumption | Power Consumption Note | Sensor Note | Supply Power Note | Supply Power Type | Supply Voltage | Use With Sensor Type | Weight | Width | Wire Gauge | Operating Temperature Note | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MNS2-9-W2-OC-ST가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | CE, FCC | FCC ID: ZTL- G2SC1 and IC: 9794A-G2SC1 | 10 to 50 °C | up to 12 yr | 15 in | Wireless | - | General Purpose | 2.47 in | 1.111 in | Upto 512 sensor messages | 1 | 85 °C | -40 °C | 22.6 mA | Sleep Mode:0.2 µA, RTC Mode:0.7 µA, MCU Idle:570 µa, MCU Active:2.5 mA, Radio RX Mode:5.5 mA, Radio TX Mode:22.6 mA | Magnetic Switch: SPST, gold under -plating with Deactivated Rhodium outer-plating (capable of 50 million activations); Operation Gap: Upto 3/4 inch; Magnet: Alnico magnet / Weatherproof, high-impact ABS plastic covering with self-adhesive backing | DC: 2.0 - 3.8 VDC (3.0 - 3.8 VDC using power supply), Solar panel: 5VDC/30mA (53mm x 30mm), Charging temperature range: 0°C to 45°C (32°F to 113°F), Max temperature range: -20°C to 60°C (-4°F to 140°F), Included rechargeable battery: 600 mAh/>2000 charge cycles (80% of initial capacity), Solar efficiency: Optimized for high and low-light operation | DC/Battery | 2.0 to 3.8 Vdc | Magnet | 3.7 oz | 4.375 in | 22 AWG | -18°C to 55°C (0°F to 130°F) using alkaline, -40°C to 85°C (-40°F to 185°F) using lithium | |
MNS2-9-IN-OC-ST가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | CE, FCC, UL | FCC ID: ZTL- G2SC1 and IC: 9794A-G2SC1, UL Listed to UL508-4x specifications (File E194432) | -40 to 85 °C | up to 10 yr | 15 in | Wireless | NEMA Type 1, NEMA Type 13, NEMA Type 2, NEMA Type 4, NEMA Type 4X | NEMA Type 4x, IP65 | 2.316 in | 1.378 in | Upto 512 sensor messages | 1 | 85 °C | -40 °C | 22.6 mA | Sleep Mode:0.2 µA, RTC Mode:0.7 µA, MCU Idle:570 µa, MCU Active:2.5 mA, Radio RX Mode:5.5 mA, Radio TX Mode:22.6 mA | Magnetic Switch: SPST, gold under -plating with Deactivated Rhodium outer-plating (capable of 50 million activations); Operation Gap: Upto 3/4 inch; Magnet: Alnico magnet / Weatherproof, high-impact ABS plastic covering with self-adhesive backing | DC: 2.0 - 3.8 VDC (3.0 - 3.8 VDC using power supply), Solar panel: 5VDC/30mA (53mm x 30mm), Charging temperature range: 0°C to 45°C (32°F to 113°F), Max temperature range: -20°C to 60°C (-4°F to 140°F), Included rechargeable battery: 600 mAh/>2000 charge cycles (80% of initial capacity), Solar efficiency: Optimized for high and low-light operation | DC/Battery | 2.0 to 3.8 Vdc | Magnet | 4.8 oz | 3.701 in | 22 AWG | - |
