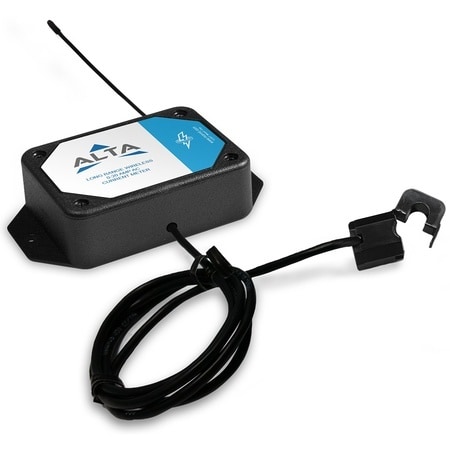

Monnit Alta 무선 20 및 150암페어 AC 전류 계측기
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 4개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Detail | Approvals | Approvals Note | Battery Operating Temperature | Battery Size and Type | Battery life | Cable Length | Current Measurement Range | Current, Max | Data Interface | Electrical Connection | Enclosure Ratings | Form factor | Frequency | Height | Inner Diameter | Length | Measurement Type | Memory | Number of Channels | Operating Temperature, Max | Operating Temperature, Min | Power Consumption | Power Consumption Note | Resolution | Sensor Length | Sensor Thickness | Sensor Width | Supply Power Note | Supply Power Type | Supply Voltage | Use With Sensor Type | Weight | Width | Operating Temperature Note | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MNS2-9-W2-CM-150가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 2 % | Current Transformer: ±2% @ 2 to 150 Arms, ± .4 Arms @ < 15 Arm; Calibration Accuracy: Current Transformer: ± 1% @ 2 to 150 Arms, ± .2 Arms @ < 2 Arms * | CE, FCC | FCC ID: ZTL- G2SC1 and IC: 9794A-G2SC1 | 10 to 50 °C | Alkaline AA | up to 12 yr | 3 ft | 0 to 150 A | 200 Amps RMS | Wireless | Cable | - | General Purpose | 50 to 100 Hz | 2.47 in | 0.94 in | 1.111 in | Process Current | Upto 512 sensor messages | 1 | 85 °C | -40 °C | 22.6 mA | Sleep Mode:0.2 µA, RTC Mode:0.7 µA, MCU Idle:570 µa, MCU Active:2.5 mA, Radio RX Mode:5.5 mA, Radio TX Mode:22.6 mA | Current Transformer: ~.1 Arms | 2.63 in | 1.65 in | 1.92 in | DC: 2.0 - 3.8 VDC (3.0 - 3.8 VDC using power supply), Solar panel: 5VDC/30mA (53mm x 30mm), Charging temperature range: 0°C to 45°C (32°F to 113°F), Max temperature range: -20°C to 60°C (-4°F to 140°F), Included rechargeable battery: 600 mAh/>2000 charge cycles (80% of initial capacity), Solar efficiency: Optimized for high and low-light operation | DC/Battery | 2.0 to 3.8 Vdc | Clamp-On Transformer | 3.7 oz | 4.375 in | -18°C to 55°C (0°F to 130°F) using alkaline, -40°C to 85°C (-40°F to 185°F) using lithium | |
MNS2-9-IN-CM-150가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 2 % | Current Transformer: ±2% @ 2 to 150 Arms, ± .4 Arms @ < 15 Arm; Calibration Accuracy: Current Transformer: ± 1% @ 2 to 150 Arms, ± .2 Arms @ < 2 Arms * | CE, FCC, UL | FCC ID: ZTL- G2SC1 and IC: 9794A-G2SC1, UL Listed to UL508-4x specifications (File E194432) | -40 to 85 °C | Alkaline AA | up to 10 yr | 3 ft | 0 to 150 A | 200 Amps RMS | Wireless | Cable | NEMA 4, NEMA Type 1, NEMA Type 12, NEMA Type 13, NEMA Type 2, NEMA Type 4X, Weatherproof | NEMA Type 4x, IP65 | 50 to 100 Hz | 2.316 in | 0.94 in | 1.378 in | Process Current | Upto 512 sensor messages | 1 | 85 °C | -40 °C | 22.6 mA | Sleep Mode:0.2 µA, RTC Mode:0.7 µA, MCU Idle:570 µa, MCU Active:2.5 mA, Radio RX Mode:5.5 mA, Radio TX Mode:22.6 mA | Current Transformer: ~.1 Arms | 2.63 in | 1.65 in | 1.92 in | DC: 2.0 - 3.8 VDC (3.0 - 3.8 VDC using power supply), Solar panel: 5VDC/30mA (53mm x 30mm), Charging temperature range: 0°C to 45°C (32°F to 113°F), Max temperature range: -20°C to 60°C (-4°F to 140°F), Included rechargeable battery: 600 mAh/>2000 charge cycles (80% of initial capacity), Solar efficiency: Optimized for high and low-light operation | DC/Battery | 2.0 to 3.8 Vdc | Clamp-On Transformer | 4.7 oz | 3.701 in | - | |
MNS2-9-W2-CM-020가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 2 % | Current Transformer: ±2% @ 2 to 20 Arms, ±.07 Arms @ < 2 Arm; Calibration Accuracy: Current Transformer: ±1% @ 2 to 20 Arms,±1 .035 Arms @ < 2 Arms | CE, FCC | FCC ID: ZTL- G2SC1 and IC: 9794A-G2SC1 | 10 to 50 °C | Alkaline AA | up to 12 yr | 3 ft | 0 to 20 A | 50 Amps | Wireless | Cable | - | General Purpose | 50 to 100 Hz | 2.47 in | 0.39 in | 1.111 in | Process Current | Upto 512 sensor messages | 1 | 85 °C | -40 °C | 22.6 mA | Sleep Mode:0.2 µA, RTC Mode:0.7 µA, MCU Idle:570 µa, MCU Active:2.5 mA, Radio RX Mode:5.5 mA, Radio TX Mode:22.6 mA | Current Transformer: ~.01 Arms | 1.58 in | 1.02 in | 0.98 in | DC: 2.0 - 3.8 VDC (3.0 - 3.8 VDC using power supply), Solar panel: 5VDC/30mA (53mm x 30mm), Charging temperature range: 0°C to 45°C (32°F to 113°F), Max temperature range: -20°C to 60°C (-4°F to 140°F), Included rechargeable battery: 600 mAh/>2000 charge cycles (80% of initial capacity), Solar efficiency: Optimized for high and low-light operation | DC/Battery | 2.0 to 3.8 Vdc | Clamp-On Transformer | 3.7 oz | 4.375 in | -18°C to 55°C (0°F to 130°F) using alkaline, -40°C to 85°C (-40°F to 185°F) using lithium | |
MNS2-9-IN-CM-020가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 2 % | Current Transformer: ±2% @ 2 to 20 Arms, ±.07 Arms @ < 2 Arm; Calibration Accuracy: Current Transformer: ±1% @ 2 to 20 Arms,±1 .035 Arms @ < 2 Arms | CE, FCC, UL | FCC ID: ZTL- G2SC1 and IC: 9794A-G2SC1, UL Listed to UL508-4x specifications (File E194432) | -40 to 85 °C | Alkaline AA | up to 10 yr | 3 ft | 0 to 20 A | 50 Amps | Wireless | Cable | NEMA 4, NEMA Type 1, NEMA Type 12, NEMA Type 13, NEMA Type 2, NEMA Type 4X, Weatherproof | NEMA Type 4x, IP65 | 50 to 100 Hz | 2.316 in | 0.39 in | 1.378 in | Process Current | Upto 512 sensor messages | 1 | 85 °C | -40 °C | 22.6 mA | Sleep Mode:0.2 µA, RTC Mode:0.7 µA, MCU Idle:570 µa, MCU Active:2.5 mA, Radio RX Mode:5.5 mA, Radio TX Mode:22.6 mA | Current Transformer: ~.01 Arms | 1.58 in | 1.02 in | 0.98 in | DC: 2.0 - 3.8 VDC (3.0 - 3.8 VDC using power supply), Solar panel: 5VDC/30mA (53mm x 30mm), Charging temperature range: 0°C to 45°C (32°F to 113°F), Max temperature range: -20°C to 60°C (-4°F to 140°F), Included rechargeable battery: 600 mAh/>2000 charge cycles (80% of initial capacity), Solar efficiency: Optimized for high and low-light operation | DC/Battery | 2.0 to 3.8 Vdc | Clamp-On Transformer | 4.7 oz | 3.701 in | - |
