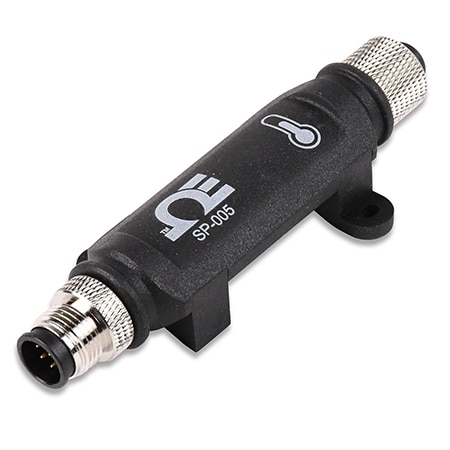

SP-005-Series | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 1개의 상품

제품 번호 / 가격	Brand	Accuracy	Approvals	Configuration	Digital Input	Digital Output	Enclosure Ratings	Measurement Type	Number of Channels	Number of I/O	Operating Temperature, Max	Operating Temperature, Min	Process Temperature Note	Process Temperature, Max	Process Temperature, Min	Software	Supply Power Type	Supply Voltage	Width	수량 / 장바구니
SP-005-1가격 문의101 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.3 °C	CE, UKCA	Configurable via Omega Link Smart Interface and SYNC configuration software	VinHighThreshold = 2.2 VMAX, VinLowThreshold = 0.3 VMIN, VinMAX = 30 VDC	2x Open Drain 100 mA max, VMAX = 30 VDC	IP67	Temperature	2	2	85 °C	-40 °C	Thermocouple: J: -210°C to 1200°C, K: -160°C to 1372°C, T: -190°C to 400°C, E: -200°C to 1000°C, N :-100°C to 1300°C, R: 40°C to 1788°C, S: 100°C to 1768°C, B: 640°C to 1820°C, C: 0°C to 2320°C RTD: 385: -200°C to 850°C, 392: -200°C to 660°C	1372 °C	-160 °C	Compatible with OEG, SYNC, and OMEGA Cloud	DC	2.8 to 3.3 Vdc	22.1 mm

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Approvals

Configuration

Digital Input

Digital Output

Enclosure Ratings

Measurement Type

Number of Channels

Number of I/O

Operating Temperature, Max

Operating Temperature, Min

Process Temperature Note

Process Temperature, Max

Process Temperature, Min

Software

Supply Power Type

Supply Voltage

Width

수량 / 장바구니

SP-005-1가격 문의101 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.3 °C

CE, UKCA

Configurable via Omega Link Smart Interface and SYNC configuration software

VinHighThreshold = 2.2 VMAX, VinLowThreshold = 0.3 VMIN, VinMAX = 30 VDC

2x Open Drain 100 mA max, VMAX = 30 VDC

IP67

Temperature

85 °C

-40 °C

Thermocouple: J: -210°C to 1200°C, K: -160°C to 1372°C, T: -190°C to 400°C, E: -200°C to 1000°C, N :-100°C to 1300°C, R: 40°C to 1788°C, S: 100°C to 1768°C, B: 640°C to 1820°C, C: 0°C to 2320°C RTD: 385: -200°C to 850°C, 392: -200°C to 660°C

1372 °C

-160 °C

Compatible with OEG, SYNC, and OMEGA Cloud

2.8 to 3.3 Vdc

22.1 mm
