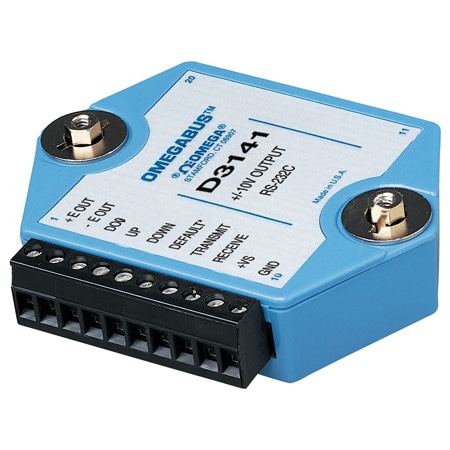

OMEGABUS® PC 아날로그 출력 모듈 | 디지털 입력, 아날로그 출력
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 6개의 상품
| 제품 번호 / 가격 | Brand | Analog I/O Note | Baud Rate | Data Interface | Data Interface Note | Electrical Connection | Electrical Output | Height | Input Range | Input Type | Length | Materials | Memory | Number of Channels, Input | Number of Channels, Output | Operating Temperature, Max | Operating Temperature, Min | Output Resolution | Output Settling Time | Output Signal | Relative Humidity | Slew Rate | Storage Temperature, Max | Storage Temperature, Min | Supply Power Note | Supply Power Type | Supply Voltage | Width | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
D4181가격 문의Limited Stock리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Single channel analog output Voltage: 0 to 1V, ± 1V, 0 to 5V, ± 5V, 0 to 10V, ± 10V Current: 0 to 20 mA Input isolation to 500 V rms 12-bit measurement resolution Accuracy (integral and differential non-linearity): 0.1% FSR (maximum) Zero drift: ± 30 mV/°C (voltage output) ± 1.0mA/°C (current output) 1000 conversions per second Settling time to 0.1% FS 300 ms typical(1 ms maximum) Programmable output slew rate: 0.01V/s (mA/s) to 10,000 V/s (mA/s) (D4000 only) Autozero and autocalibration-no adjustment pots Voltage compliance: ± 12V Output current, short circuit current: 5 mA minimum, 10 mA maximum | 300 to 38,400 | RS232 | Up to 124 modules with A1000 converter/repeater, 32 without A1000, User selectable channel address (via software command), ASCII format command/response protocol, Parity: odd, even, none, All communications setups (address, baud rate,parity) stored in nonvolatile memory using EEPROM, Checksum can be added to any command or response, Communications distance up to 10,000 feet with RS485 modules | Screw Terminal | 0 to 10 Vdc | 6.223 mm | Digital: ± 30 V | Digital | 9.144 mm | ABS | EEPROM | Digital: 3 | Voltage: 1 | 70 °C | -25 °C | Voltage: 12-bits | 0.1% FS 300 ms Typical (1 ms maximum) | Voltage | 0 to 95% RH non-condensing | 0.01V/s (mA/s) to 10,000 V/s (mA/s) | 85 °C | -25 °C | Unregulated 10V to 30 Vdc, 0.75 W maximum (voltage output), 1.0 W maximum (current output) | DC | 10 to 30 Vdc, 0.75 W | 2.794 mm | |
D3252721,030 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Single channel analog output Voltage: 0 to 1V, ± 1V, 0 to 5V, ± 5V, 0 to 10V, ± 10V Current: 0 to 20 mA Input isolation to 500 V rms 12-bit measurement resolution Accuracy (integral and differential non-linearity): 0.1% FSR (maximum) Zero drift: ± 30 mV/°C (voltage output) ± 1.0mA/°C (current output) 1000 conversions per second Settling time to 0.1% FS 300 ms typical(1 ms maximum) Programmable output slew rate: 0.01V/s (mA/s) to 10,000 V/s (mA/s) (D4000 only) Autozero and autocalibration-no adjustment pots Voltage compliance: ± 12V Output current, short circuit current: 5 mA minimum, 10 mA maximum | 300 to 38,400 | RS485 | Up to 124 modules with A1000 converter/repeater, 32 without A1000, User selectable channel address (via software command), ASCII format command/response protocol, Parity: odd, even, none, All communications setups (address, baud rate,parity) stored in nonvolatile memory using EEPROM, Checksum can be added to any command or response, Communications distance up to 10,000 feet with RS485 modules | Screw Terminal | 0 to 20 mA | 6.223 mm | Digital: ± 30 V | Digital | 9.144 mm | ABS | EEPROM | Digital: 3 | Current: 1 | 70 °C | -25 °C | Current: 12-bits | 0.1% FS 300 ms Typical (1 ms maximum) | Current | 0 to 95% RH non-condensing | Fixed | 85 °C | -25 °C | Unregulated 10V to 30 Vdc, 0.75 W maximum (voltage output), 1.0 W maximum (current output) | DC | 10 to 30 Vdc, 0.75 W | 2.794 mm | |
D3251721,030 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Single channel analog output Voltage: 0 to 1V, ± 1V, 0 to 5V, ± 5V, 0 to 10V, ± 10V Current: 0 to 20 mA Input isolation to 500 V rms 12-bit measurement resolution Accuracy (integral and differential non-linearity): 0.1% FSR (maximum) Zero drift: ± 30 mV/°C (voltage output) ± 1.0mA/°C (current output) 1000 conversions per second Settling time to 0.1% FS 300 ms typical(1 ms maximum) Programmable output slew rate: 0.01V/s (mA/s) to 10,000 V/s (mA/s) (D4000 only) Autozero and autocalibration-no adjustment pots Voltage compliance: ± 12V Output current, short circuit current: 5 mA minimum, 10 mA maximum | 300 to 38,400 | RS232 | Up to 124 modules with A1000 converter/repeater, 32 without A1000, User selectable channel address (via software command), ASCII format command/response protocol, Parity: odd, even, none, All communications setups (address, baud rate,parity) stored in nonvolatile memory using EEPROM, Checksum can be added to any command or response, Communications distance up to 10,000 feet with RS485 modules | Screw Terminal | 0 to 20 mA | 6.223 mm | Digital: ± 30 V | Digital | 9.144 mm | ABS | EEPROM | Digital: 3 | Current: 1 | 70 °C | -25 °C | Current: 12-bits | 0.1% FS 300 ms Typical (1 ms maximum) | Current | 0 to 95% RH non-condensing | Fixed | 85 °C | -25 °C | Unregulated 10V to 30 Vdc, 0.75 W maximum (voltage output), 1.0 W maximum (current output) | DC | 10 to 30 Vdc, 0.75 W | 2.794 mm | |
D3182721,030 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Single channel analog output Voltage: 0 to 1V, ± 1V, 0 to 5V, ± 5V, 0 to 10V, ± 10V Current: 0 to 20 mA Input isolation to 500 V rms 12-bit measurement resolution Accuracy (integral and differential non-linearity): 0.1% FSR (maximum) Zero drift: ± 30 mV/°C (voltage output) ± 1.0mA/°C (current output) 1000 conversions per second Settling time to 0.1% FS 300 ms typical(1 ms maximum) Programmable output slew rate: 0.01V/s (mA/s) to 10,000 V/s (mA/s) (D4000 only) Autozero and autocalibration-no adjustment pots Voltage compliance: ± 12V Output current, short circuit current: 5 mA minimum, 10 mA maximum | 300 to 38,400 | RS485 | Up to 124 modules with A1000 converter/repeater, 32 without A1000, User selectable channel address (via software command), ASCII format command/response protocol, Parity: odd, even, none, All communications setups (address, baud rate,parity) stored in nonvolatile memory using EEPROM, Checksum can be added to any command or response, Communications distance up to 10,000 feet with RS485 modules | Screw Terminal | 0 to 10 Vdc | 6.223 mm | Digital: ± 30 V | Digital | 9.144 mm | ABS | EEPROM | Digital: 3 | Voltage: 1 | 70 °C | -25 °C | Voltage: 12-bits | 0.1% FS 300 ms Typical (1 ms maximum) | Voltage | 0 to 95% RH non-condensing | Fixed | 85 °C | -25 °C | Unregulated 10V to 30 Vdc, 0.75 W maximum (voltage output), 1.0 W maximum (current output) | DC | 10 to 30 Vdc, 0.75 W | 2.794 mm | |
D3181721,030 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Single channel analog output Voltage: 0 to 1V, ± 1V, 0 to 5V, ± 5V, 0 to 10V, ± 10V Current: 0 to 20 mA Input isolation to 500 V rms 12-bit measurement resolution Accuracy (integral and differential non-linearity): 0.1% FSR (maximum) Zero drift: ± 30 mV/°C (voltage output) ± 1.0mA/°C (current output) 1000 conversions per second Settling time to 0.1% FS 300 ms typical(1 ms maximum) Programmable output slew rate: 0.01V/s (mA/s) to 10,000 V/s (mA/s) (D4000 only) Autozero and autocalibration-no adjustment pots Voltage compliance: ± 12V Output current, short circuit current: 5 mA minimum, 10 mA maximum | 300 to 38,400 | RS232 | Up to 124 modules with A1000 converter/repeater, 32 without A1000, User selectable channel address (via software command), ASCII format command/response protocol, Parity: odd, even, none, All communications setups (address, baud rate,parity) stored in nonvolatile memory using EEPROM, Checksum can be added to any command or response, Communications distance up to 10,000 feet with RS485 modules | Screw Terminal | 0 to 10 Vdc | 6.223 mm | Digital: ± 30 V | Digital | 9.144 mm | ABS | EEPROM | Digital: 3 | Voltage: 1 | 70 °C | -25 °C | Voltage: 12-bits | 0.1% FS 300 ms Typical (1 ms maximum) | Voltage | 0 to 95% RH non-condensing | Fixed | 85 °C | -25 °C | Unregulated 10V to 30 Vdc, 0.75 W maximum (voltage output), 1.0 W maximum (current output) | DC | 10 to 30 Vdc, 0.75 W | 2.794 mm | |
D3171733,180 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Single channel analog output Voltage: 0 to 1V, ± 1V, 0 to 5V, ± 5V, 0 to 10V, ± 10V Current: 0 to 20 mA Input isolation to 500 V rms 12-bit measurement resolution Accuracy (integral and differential non-linearity): 0.1% FSR (maximum) Zero drift: ± 30 mV/°C (voltage output) ± 1.0mA/°C (current output) 1000 conversions per second Settling time to 0.1% FS 300 ms typical(1 ms maximum) Programmable output slew rate: 0.01V/s (mA/s) to 10,000 V/s (mA/s) (D4000 only) Autozero and autocalibration-no adjustment pots Voltage compliance: ± 12V Output current, short circuit current: 5 mA minimum, 10 mA maximum | 300 to 38,400 | RS232 | Up to 124 modules with A1000 converter/repeater, 32 without A1000, User selectable channel address (via software command), ASCII format command/response protocol, Parity: odd, even, none, All communications setups (address, baud rate,parity) stored in nonvolatile memory using EEPROM, Checksum can be added to any command or response, Communications distance up to 10,000 feet with RS485 modules | Screw Terminal | 0 to 5 Vdc | 6.223 mm | Digital: ± 30 V | Digital | 9.144 mm | ABS | EEPROM | Digital: 3 | Voltage: 1 | 70 °C | -25 °C | Voltage: 12-bits | 0.1% FS 300 ms Typical (1 ms maximum) | Voltage | 0 to 95% RH non-condensing | Fixed | 85 °C | -25 °C | Unregulated 10V to 30 Vdc, 0.75 W maximum (voltage output), 1.0 W maximum (current output) | DC | 10 to 30 Vdc, 0.75 W | 2.794 mm |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
