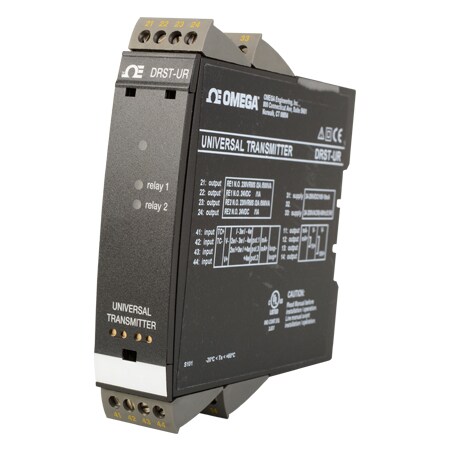

DRST-UR-Univ-Sig-Cond

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

Brand

OMEGA Engineering(1)

Accuracy

± 0.1 %(1)

Approvals

UL: UL 508/C22.2 no. 14; DNV-GL Marine Stand. f. Certific. No. 2.4; EU RO Mutual Recognition Type; Approval: MRA000000Z SIL Hardware assessed for use in SIL applications; Authority Requirements:EMC: 2014/30/EU, LVD: 2014/35/EU, EAC: TR-CU 020/2011(1)

Calibration Temperature, Max

Calibration Temperature, Min

Cold Junction Compensation

EMC Immunity Note

EMC Standard

Electrical Output

Enclosure Ratings

Fuse Rating

Height

Input Control Signal

Input Control Signal Note

Input Current

Input Resistance

Input Type

Input_Current Note

Isolation

Length

Operating Temperature, Max

Operating Temperature, Min

Output Detail

Output Signal

Potentiometer Input Range

Power Consumption

RTD Input Note

RTD Type

Relative Humidity

Relay Output

Relay Output Note

Response Time

Response Time Note

Screw Terminal Torque

Sensor/Transmitter Power

Signal/Noise Ratio

Storage Temperature, Max

Storage Temperature, Min

Supply Power Note

Supply Power Type

Supply Voltage

Temperature Coefficient

Temperature Measurement Range

Thermocouple Type

Vibration

Vibration Note

Weight

Width

Wire Type

총 1개의 상품

제품 번호 / 가격	Brand	Accuracy	Approvals	Calibration Temperature, Max	Calibration Temperature, Min	Cold Junction Compensation	EMC Immunity Note	EMC Standard	Electrical Output	Enclosure Ratings	Fuse Rating	Height	Input Control Signal	Input Control Signal Note	Input Current	Input Resistance	Input Type	Input_Current Note	Isolation	Length	Operating Temperature, Max	Operating Temperature, Min	Output Detail	Output Signal	Potentiometer Input Range	Power Consumption	RTD Input Note	RTD Type	Relative Humidity	Relay Output	Relay Output Note	Response Time	Response Time Note	Screw Terminal Torque	Sensor/Transmitter Power	Signal/Noise Ratio	Storage Temperature, Max	Storage Temperature, Min	Supply Power Note	Supply Power Type	Supply Voltage	Temperature Coefficient	Temperature Measurement Range	Thermocouple Type	Vibration	Vibration Note	Weight	Width	Wire Type	수량 / 장바구니
DRST-UR551,600 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.1 %	UL: UL 508/C22.2 no. 14; DNV-GL Marine Stand. f. Certific. No. 2.4; EU RO Mutual Recognition Type; Approval: MRA000000Z SIL Hardware assessed for use in SIL applications; Authority Requirements:EMC: 2014/30/EU, LVD: 2014/35/EU, EAC: TR-CU 020/2011	28 °C	20 °C	20 to 28°C = ±1°C, -20 to 20°C/28 to 70°C = 2°C	Standard EMC Imunity: <±0.5% of span; Extended EMC Immunity: NAMUR, NE21, A Criterion, Burst: <±1% of span; Wire Size: 1 x 2.5 mm²	EN61010-1, EN61326-1	0 to 20 mA, 0 to 10 Vdc	IP20	250 Vac/400 mA	109 mm	0 to 12 Vdc	Measurement Range: 0 to 12 Vdc; Programmable Measurement Ranges: 0/0.2 to 1, 0/1 to 5, 0/2 to 10 Vdc	0 to 20 mA	Voltage : Nom. 10 MΩ,Current: Nom. 20 Ω + PTC 50 Ω	Thermocouple, RTD, Resistance, Potentiometer, Current, Voltage	Programmable Measurement Ranges: 0 to 20 and 4 to 20 mA; Input Resistance: Nom. 20 Ω + PTC 50 Ω Sensor Error Detection: Loop; Break 4 to 20 mA: Yes	Test/Working: 2.3 kVac/250Vac	104 mm	60 °C	-20 °C	Signal Range: 0 to 20 mA; Programmable Signal Ranges: 0 to 20/4 to 20/20 to 0/20 to 4 mA; NAMUR NE43 Upscale/Downscale: 23 mA/3.5 mA; Output Limitation, on 4 to 20 and 20 to 4 mA signals: 3.8 to 20.5 mA; Output Limitation, on 0 to 20 and 20 to 0 mA signals: 0 to 20.5 mA; Signal Range: 0 to 10 Vdc; Programmable Signal Ranges: 0/0.2 to 1; 0/1 to 5 ; 0/2 to 10; 1 to 0.2/0; 5 to 1/0; 10 to 2/0 V	Current, Voltage, 2 Relays	10 to 100 kΩ	2.5 W	Effect of Sensor Cable Resistance: < 0.002 Ω/Ω (3/4-wire); Cable Resistance, Per Wire: 50 Ω; Sensor Current: 0.2 mA; Short Circuit Protection: < 15 Ω; Sensor Error Current: 2 µA / 0 µA	10/20/50/100/200/250/300/400/500/1000 Ω Pt Sensor, 50/100/120/1000 Ω Ni Sensor, 10/20/50/100 Ω Cu Sensor	< 95% RH Non-Condensing	2 A @ 250 Vac	Relay Functions: Setpoint, Window, Sensor error, Latch, Power and Off	1 sec	Thermocouple: 1 sec, Current/Voltage: 400msec	0.5 Nm	25 to 16 Vdc/0 to 20 mA	> 60 dB	85 °C	-20 °C	21.6 to 253 Vac, 50 to 60 Hz or 19.2 to 300 Vdc	AC/DC	21.6 to 253 Vac, 19.2 to 300 Vdc	≤±0.01% of span/°C	J: -100 to 1200°C, K: -180 to 1370 °C, T: -200 to 400 °C, E: -100 to 1000 °C, R: -50 to 1760 °C, S: -50 to 1760 °C, N: -180 to 1300 °C, B: 0 to 1820 °C, W3: 0 to 2300 °C, W5: 0 to 2300 °C, L: -200 to 900 °C, LR: -200 to 800 °C, RTD: -200 to 850 °C	J, K, T, E, R, S, B, C, N, L, U, D, LR	±0.7 g	IEC 60068-2-6; 2 to 13.2 Hz: ±1 mm; 13.2 to 100 Hz: ±0.7 g	170 g	23.5 mm	Stranded

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Approvals

Calibration Temperature, Max

Calibration Temperature, Min

Cold Junction Compensation

EMC Immunity Note

EMC Standard

Electrical Output

Enclosure Ratings

Fuse Rating

Height

Input Control Signal

Input Control Signal Note

Input Current

Input Resistance

Input Type

Input_Current Note

Isolation

Length

Operating Temperature, Max

Operating Temperature, Min

Output Detail

Output Signal

Potentiometer Input Range

Power Consumption

RTD Input Note

RTD Type

Relative Humidity

Relay Output

Relay Output Note

Response Time

Response Time Note

Screw Terminal Torque

Sensor/Transmitter Power

Signal/Noise Ratio

Storage Temperature, Max

Storage Temperature, Min

Supply Power Note

Supply Power Type

Supply Voltage

Temperature Coefficient

Temperature Measurement Range

Thermocouple Type

Vibration

Vibration Note

Weight

Width

Wire Type

수량 / 장바구니

DRST-UR551,600 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.1 %

28 °C

20 °C

20 to 28°C = ±1°C, -20 to 20°C/28 to 70°C = 2°C

Standard EMC Imunity: <±0.5% of span; Extended EMC Immunity: NAMUR, NE21, A Criterion, Burst: <±1% of span; Wire Size: 1 x 2.5 mm²

EN61010-1, EN61326-1

0 to 20 mA, 0 to 10 Vdc

IP20

250 Vac/400 mA

109 mm

0 to 12 Vdc

Measurement Range: 0 to 12 Vdc; Programmable Measurement Ranges: 0/0.2 to 1, 0/1 to 5, 0/2 to 10 Vdc

0 to 20 mA

Voltage : Nom. 10 MΩ,Current: Nom. 20 Ω + PTC 50 Ω

Thermocouple, RTD, Resistance, Potentiometer, Current, Voltage

Programmable Measurement Ranges: 0 to 20 and 4 to 20 mA; Input Resistance: Nom. 20 Ω + PTC 50 Ω Sensor Error Detection: Loop; Break 4 to 20 mA: Yes

Test/Working: 2.3 kVac/250Vac

104 mm

60 °C

-20 °C

Signal Range: 0 to 20 mA; Programmable Signal Ranges: 0 to 20/4 to 20/20 to 0/20 to 4 mA; NAMUR NE43 Upscale/Downscale: 23 mA/3.5 mA; Output Limitation, on 4 to 20 and 20 to 4 mA signals: 3.8 to 20.5 mA; Output Limitation, on 0 to 20 and 20 to 0 mA signals: 0 to 20.5 mA; Signal Range: 0 to 10 Vdc; Programmable Signal Ranges: 0/0.2 to 1; 0/1 to 5 ; 0/2 to 10; 1 to 0.2/0; 5 to 1/0; 10 to 2/0 V

Current, Voltage, 2 Relays

10 to 100 kΩ

2.5 W

Effect of Sensor Cable Resistance: < 0.002 Ω/Ω (3/4-wire); Cable Resistance, Per Wire: 50 Ω; Sensor Current: 0.2 mA; Short Circuit Protection: < 15 Ω; Sensor Error Current: 2 µA / 0 µA

10/20/50/100/200/250/300/400/500/1000 Ω Pt Sensor, 50/100/120/1000 Ω Ni Sensor, 10/20/50/100 Ω Cu Sensor

< 95% RH Non-Condensing

2 A @ 250 Vac

Relay Functions: Setpoint, Window, Sensor error, Latch, Power and Off

1 sec

Thermocouple: 1 sec, Current/Voltage: 400msec

0.5 Nm

25 to 16 Vdc/0 to 20 mA

> 60 dB

85 °C

-20 °C

21.6 to 253 Vac, 50 to 60 Hz or 19.2 to 300 Vdc

AC/DC

21.6 to 253 Vac, 19.2 to 300 Vdc

≤±0.01% of span/°C

J: -100 to 1200°C, K: -180 to 1370 °C, T: -200 to 400 °C, E: -100 to 1000 °C, R: -50 to 1760 °C, S: -50 to 1760 °C, N: -180 to 1300 °C, B: 0 to 1820 °C, W3: 0 to 2300 °C, W5: 0 to 2300 °C, L: -200 to 900 °C, LR: -200 to 800 °C, RTD: -200 to 850 °C

J, K, T, E, R, S, B, C, N, L, U, D, LR

±0.7 g

IEC 60068-2-6; 2 to 13.2 Hz: ±1 mm; 13.2 to 100 Hz: ±0.7 g

170 g

23.5 mm

Stranded
