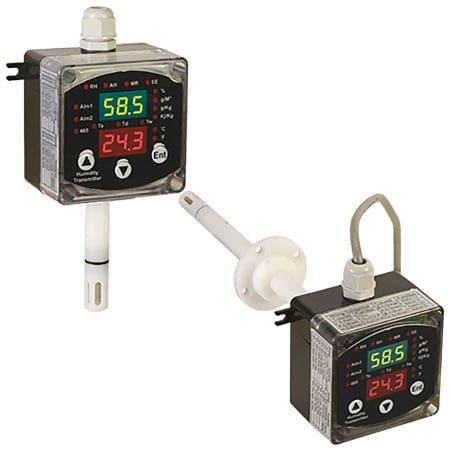

HX400-Srs-TRH-Sig-Cond

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 6개의 상품

제품 번호 / 가격	Brand	Accuracy	Accuracy Detail	Cable Diameter	Cable Length	Calibration Option	Current, Max	Data Interface	Dew Point Temperature, Max	Dew Point Temperature, Min	Display Accuracy	Display Type	Electrical Output	Enclosure Ratings	Filter	Height	Length	Materials, Wetted	Measurement Type	Media Compatibility	Mounting Orientation	Operating Temperature, Max	Operating Temperature, Min	Probe Diameter	Probe Length	Reading Rate	Relative Humidity	Relative Humidity Accuracy	Repeatability	Resolution	Response Time	Supply Power Note	Supply Power Type	Supply Voltage	Temperature Measurement, Max	Temperature Measurement, Min	Weight	Wet Bulb Temperature, Max	Wet Bulb Temperature, Min	Width
HX402W1,600,180 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.02 mA	Accuracy @ 23°C and Scaleable Measurement Range: Without field Calibration	-	-	Front 3 pushbutton with dual high bright 3-digit LED module	Dual 4 to 20 mA	N/A	2 °C	-2 °C	±2 % RH, ±0.5 °C (1 °F)	Dual 3 Digit LED (Green)	4 to 20 mA	IP40, IP65, NEMA Type 4	Stainless Steel wire mesh; 0.05 mm	56 mm	80 mm	Polycarbonate, POM	Temperature, Humidity	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen	Wall Mount	100 °C	-40 °C	15.5 mm	73 mm	1 /sec	0 to 100% RH	± 2% RH	± 1% RH	0.1% RH	10 sec	Loop Power: 12 to 32 Vdc; dual 4 to 20 mA loop current; reverse polarity protected (Vloop = 24 Vdc, Tamb = 23 ± 2°C, Rload = 250 Ω)	Loop Powered	12 to 32 Vdc	70 °C	-20 °C	250 g	80 °C	-20 °C	110 mm
HX402D1,744,480 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.02 mA	Accuracy @ 23°C and Scaleable Measurement Range: Without field Calibration	-	-	Front 3 pushbutton with dual high bright 3-digit LED module	Dual 4 to 20 mA	N/A	2 °C	-2 °C	±2 % RH, ±0.5 °C (1 °F)	Dual 3 Digit LED (Green)	4 to 20 mA	IP40, IP65, NEMA Type 4	Stainless Steel wire mesh; 0.05 mm	56 mm	80 mm	Polycarbonate, POM	Temperature, Humidity	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen	Duct Mount	100 °C	-40 °C	15.5 mm	200 mm	1 /sec	0 to 100% RH	± 2% RH	± 1% RH	0.1% RH	10 sec	Loop Power: 12 to 32 Vdc; dual 4 to 20 mA loop current; reverse polarity protected (Vloop = 24 Vdc, Tamb = 23 ± 2°C, Rload = 250 Ω)	Loop Powered	12 to 32 Vdc	70 °C	-20 °C	250 g	80 °C	-20 °C	110 mm
HX401W1,329,700 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.02 mA	Accuracy @ 23°C and Scaleable Measurement Range: Without field Calibration	-	-	Front 3 pushbutton with dual high bright 3-digit LED module	Dual 4 to 20 mA	N/A	2 °C	-2 °C	±2.0 % RH	Dual 3 Digit LED (Green)	4 to 20 mA	IP40, IP65, NEMA Type 4	Stainless Steel wire mesh; 0.05 mm	56 mm	80 mm	Polycarbonate, POM	Humidity	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen	Wall Mount	100 °C	-40 °C	15.5 mm	73 mm	1 /sec	0 to 100% RH	± 2% RH	± 1% RH	0.1% RH	10 sec	Loop Power: 12 to 32 Vdc; dual 4 to 20 mA loop current; reverse polarity protected (Vloop = 24 Vdc, Tamb = 23 ± 2°C, Rload = 250 Ω)	Loop Powered	12 to 32 Vdc	70 °C	-20 °C	250 g	80 °C	-20 °C	110 mm
HX401R1,415,100 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.02 mA	Accuracy @ 23°C and Scaleable Measurement Range: Without field Calibration	0.21 in	39.4 in	Front 3 pushbutton with dual high bright 3-digit LED module	Dual 4 to 20 mA	N/A	2 °C	-2 °C	±2.0 % RH	Dual 3 Digit LED (Green)	4 to 20 mA	IP40, IP65, NEMA Type 4	Stainless Steel wire mesh; 0.05 mm	56 mm	80 mm	Polycarbonate, POM	Humidity	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen	Remote Mount	100 °C	-40 °C	15.5 mm	100 mm	1 /sec	0 to 100% RH	± 2% RH	± 1% RH	0.1% RH	10 sec	Loop Power: 12 to 32 Vdc; dual 4 to 20 mA loop current; reverse polarity protected (Vloop = 24 Vdc, Tamb = 23 ± 2°C, Rload = 250 Ω)	Loop Powered	12 to 32 Vdc	70 °C	-20 °C	250 g	80 °C	-20 °C	110 mm
HX401D1,488,340 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.02 mA	Accuracy @ 23°C and Scaleable Measurement Range: Without field Calibration	-	-	Front 3 pushbutton with dual high bright 3-digit LED module	Dual 4 to 20 mA	N/A	2 °C	-2 °C	±2.0 % RH	Dual 3 Digit LED (Green)	4 to 20 mA	IP40, IP65, NEMA Type 4	Stainless Steel wire mesh; 0.05 mm	56 mm	80 mm	Polycarbonate, POM	Humidity	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen	Duct Mount	100 °C	-40 °C	15.5 mm	200 mm	1 /sec	0 to 100% RH	± 2% RH	± 1% RH	0.1% RH	10 sec	Loop Power: 12 to 32 Vdc; dual 4 to 20 mA loop current; reverse polarity protected (Vloop = 24 Vdc, Tamb = 23 ± 2°C, Rload = 250 Ω)	Loop Powered	12 to 32 Vdc	70 °C	-20 °C	250 g	80 °C	-20 °C	110 mm
HX402R1,683,510 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.02 mA	Accuracy @ 23°C and Scaleable Measurement Range: Without field Calibration	0.21 in	39.4 in	Front 3 pushbutton with dual high bright 3-digit LED module	Dual 4 to 20 mA	N/A	2 °C	-2 °C	±2 % RH, ±0.5 °C (1 °F)	Dual 3 Digit LED (Green)	4 to 20 mA	IP40, IP65, NEMA Type 4	Stainless Steel wire mesh; 0.05 mm	56 mm	80 mm	Polycarbonate, POM	Temperature, Humidity	Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen	Remote Mount	100 °C	-40 °C	15.5 mm	100 mm	1 /sec	0 to 100% RH	± 2% RH	± 1% RH	0.1% RH	10 sec	Loop Power: 12 to 32 Vdc; dual 4 to 20 mA loop current; reverse polarity protected (Vloop = 24 Vdc, Tamb = 23 ± 2°C, Rload = 250 Ω)	Loop Powered	12 to 32 Vdc	70 °C	-20 °C	250 g	80 °C	-20 °C	110 mm

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Accuracy Detail

Cable Diameter

Cable Length

Calibration Option

Current, Max

Data Interface

Dew Point Temperature, Max

Dew Point Temperature, Min

Display Accuracy

Display Type

Electrical Output

Enclosure Ratings

Filter

Height

Length

Materials, Wetted

Measurement Pressure, Min

Measurement Type

Media Compatibility

Mounting Orientation

Operating Temperature, Max

Operating Temperature, Min

Probe Diameter

Probe Length

Reading Rate

Relative Humidity

Relative Humidity Accuracy

Repeatability

Resolution

Response Time

Supply Power Note

Supply Power Type

Supply Voltage

Temperature Measurement, Max

Temperature Measurement, Min

Weight

Wet Bulb Temperature, Max

Wet Bulb Temperature, Min

Width

수량 / 장바구니

HX402W1,600,180 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.02 mA

Accuracy @ 23°C and Scaleable Measurement Range: Without field Calibration

Front 3 pushbutton with dual high bright 3-digit LED module

Dual 4 to 20 mA

N/A

2 °C

-2 °C

±2 % RH, ±0.5 °C (1 °F)

Dual 3 Digit LED (Green)

4 to 20 mA

IP40, IP65, NEMA Type 4

Stainless Steel wire mesh; 0.05 mm

56 mm

80 mm

Polycarbonate, POM

0 psi

Temperature, Humidity

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen

Wall Mount

100 °C

-40 °C

15.5 mm

73 mm

1 /sec

0 to 100% RH

± 2% RH

± 1% RH

0.1% RH

10 sec

Loop Power: 12 to 32 Vdc; dual 4 to 20 mA loop current; reverse polarity protected (Vloop = 24 Vdc, Tamb = 23 ± 2°C, Rload = 250 Ω)

Loop Powered

12 to 32 Vdc

70 °C

-20 °C

250 g

80 °C

-20 °C

110 mm

HX402D1,744,480 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.02 mA

Accuracy @ 23°C and Scaleable Measurement Range: Without field Calibration

Front 3 pushbutton with dual high bright 3-digit LED module

Dual 4 to 20 mA

N/A

2 °C

-2 °C

±2 % RH, ±0.5 °C (1 °F)

Dual 3 Digit LED (Green)

4 to 20 mA

IP40, IP65, NEMA Type 4

Stainless Steel wire mesh; 0.05 mm

56 mm

80 mm

Polycarbonate, POM

0 psi

Temperature, Humidity

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen

Duct Mount

100 °C

-40 °C

15.5 mm

200 mm

1 /sec

0 to 100% RH

± 2% RH

± 1% RH

0.1% RH

10 sec

Loop Power: 12 to 32 Vdc; dual 4 to 20 mA loop current; reverse polarity protected (Vloop = 24 Vdc, Tamb = 23 ± 2°C, Rload = 250 Ω)

Loop Powered

12 to 32 Vdc

70 °C

-20 °C

250 g

80 °C

-20 °C

110 mm

HX401W1,329,700 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.02 mA

Accuracy @ 23°C and Scaleable Measurement Range: Without field Calibration

Front 3 pushbutton with dual high bright 3-digit LED module

Dual 4 to 20 mA

N/A

2 °C

-2 °C

±2.0 % RH

Dual 3 Digit LED (Green)

4 to 20 mA

IP40, IP65, NEMA Type 4

Stainless Steel wire mesh; 0.05 mm

56 mm

80 mm

Polycarbonate, POM

0 psi

Humidity

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen

Wall Mount

100 °C

-40 °C

15.5 mm

73 mm

1 /sec

0 to 100% RH

± 2% RH

± 1% RH

0.1% RH

10 sec

Loop Power: 12 to 32 Vdc; dual 4 to 20 mA loop current; reverse polarity protected (Vloop = 24 Vdc, Tamb = 23 ± 2°C, Rload = 250 Ω)

Loop Powered

12 to 32 Vdc

70 °C

-20 °C

250 g

80 °C

-20 °C

110 mm

HX401R1,415,100 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.02 mA

Accuracy @ 23°C and Scaleable Measurement Range: Without field Calibration

0.21 in

39.4 in

Front 3 pushbutton with dual high bright 3-digit LED module

Dual 4 to 20 mA

N/A

2 °C

-2 °C

±2.0 % RH

Dual 3 Digit LED (Green)

4 to 20 mA

IP40, IP65, NEMA Type 4

Stainless Steel wire mesh; 0.05 mm

56 mm

80 mm

Polycarbonate, POM

0 psi

Humidity

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen

Remote Mount

100 °C

-40 °C

15.5 mm

100 mm

1 /sec

0 to 100% RH

± 2% RH

± 1% RH

0.1% RH

10 sec

Loop Power: 12 to 32 Vdc; dual 4 to 20 mA loop current; reverse polarity protected (Vloop = 24 Vdc, Tamb = 23 ± 2°C, Rload = 250 Ω)

Loop Powered

12 to 32 Vdc

70 °C

-20 °C

250 g

80 °C

-20 °C

110 mm

HX401D1,488,340 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.02 mA

Accuracy @ 23°C and Scaleable Measurement Range: Without field Calibration

Front 3 pushbutton with dual high bright 3-digit LED module

Dual 4 to 20 mA

N/A

2 °C

-2 °C

±2.0 % RH

Dual 3 Digit LED (Green)

4 to 20 mA

IP40, IP65, NEMA Type 4

Stainless Steel wire mesh; 0.05 mm

56 mm

80 mm

Polycarbonate, POM

0 psi

Humidity

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen

Duct Mount

100 °C

-40 °C

15.5 mm

200 mm

1 /sec

0 to 100% RH

± 2% RH

± 1% RH

0.1% RH

10 sec

Loop Power: 12 to 32 Vdc; dual 4 to 20 mA loop current; reverse polarity protected (Vloop = 24 Vdc, Tamb = 23 ± 2°C, Rload = 250 Ω)

Loop Powered

12 to 32 Vdc

70 °C

-20 °C

250 g

80 °C

-20 °C

110 mm

HX402R1,683,510 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.02 mA

Accuracy @ 23°C and Scaleable Measurement Range: Without field Calibration

0.21 in

39.4 in

Front 3 pushbutton with dual high bright 3-digit LED module

Dual 4 to 20 mA

N/A

2 °C

-2 °C

±2 % RH, ±0.5 °C (1 °F)

Dual 3 Digit LED (Green)

4 to 20 mA

IP40, IP65, NEMA Type 4

Stainless Steel wire mesh; 0.05 mm

56 mm

80 mm

Polycarbonate, POM

0 psi

Temperature, Humidity

Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen

Remote Mount

100 °C

-40 °C

15.5 mm

100 mm

1 /sec

0 to 100% RH

± 2% RH

± 1% RH

0.1% RH

10 sec

Loop Power: 12 to 32 Vdc; dual 4 to 20 mA loop current; reverse polarity protected (Vloop = 24 Vdc, Tamb = 23 ± 2°C, Rload = 250 Ω)

Loop Powered

12 to 32 Vdc

70 °C

-20 °C

250 g

80 °C

-20 °C

110 mm
