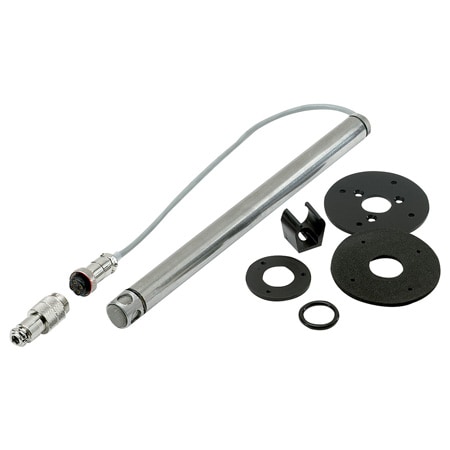

HX94-Srs-Temp-RH-Sig-Cond

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 6개의 상품

제품 번호 / 가격	Brand	Accuracy	Cable Length	Electrical Connection	Electrical Output	Enclosure Material	Enclosure Ratings	Flange Note	Flange Size	Lead Length	Measurement Type	Probe Diameter	Probe Length	Process Connection Size	Relative Humidity	Relative Humidity Accuracy	Repeatability	Supply Power Type	Supply Voltage	Temperature Measurement, Max	Temperature Measurement, Min	Time Constant	Time Constant, Relative Humidity	Weight	Wire Gauge	Process Connection Type
HX94VNPT834,310 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	±0.6 °C	305 mm	Cable	0 to 1 Vdc	Stainless Steel	NEMA Type 4	Removable, variable 25.4 to 227 mm (1 to 9") depth; 70 mm (2.75") dia., duct hole 21 mm (0.812") dia. 4 mtg holes. 4 mm (0.156") dia. (for #6 sheet metal screws) on 51 mm (2.00") dia. circle; wall mounting bracket included	227 mm	1 m	Temperature, Humidity	19 mm	254 mm	1/2 in	3 to 95%	± 2% RH	± 0.3°C	DC	6 to 30 Vdc	85 °C	-20 °C	(for 60% response) Less than 2 sec in moving air (1m/sec) less than 10 sec in still air	(for 90% response at 25°C; in moving air, 1m/sec.) Less than 20 seconds, 10 to 90% RH Less than 30 seconds, 90 to 10% RH	198 g	N/A	NPT Male
HX94CNPT811,790 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	±0.6 °C	305 mm	Cable	4 to 20 mA	Stainless Steel	NEMA Type 4	Removable, variable 25.4 to 227 mm (1 to 9") depth; 70 mm (2.75") dia., duct hole 21 mm (0.812") dia. 4 mtg holes. 4 mm (0.156") dia. (for #6 sheet metal screws) on 51 mm (2.00") dia. circle; wall mounting bracket included	227 mm	1 m	Temperature, Humidity	19 mm	254 mm	1/2 in	3 to 95%	± 2% RH	± 0.3°C	DC	6 to 30 Vdc	85 °C	-20 °C	(for 60% response) Less than 2 sec in moving air (1m/sec) less than 10 sec in still air	(for 90% response at 25°C; in moving air, 1m/sec.) Less than 20 seconds, 10 to 90% RH Less than 30 seconds, 90 to 10% RH	198 g	N/A	NPT Male
HX94VW가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	±0.6 °C	305 mm	Cable	0 to 1 Vdc	Stainless Steel	NEMA Type 4	Removable, variable 25.4 to 227 mm (1 to 9") depth; 70 mm (2.75") dia., duct hole 21 mm (0.812") dia. 4 mtg holes. 4 mm (0.156") dia. (for #6 sheet metal screws) on 51 mm (2.00") dia. circle; wall mounting bracket included	227 mm	1 m	Temperature, Humidity	19 mm	254 mm	N/A	3 to 95%	± 2% RH	± 0.3°C	DC	6 to 30 Vdc	85 °C	-20 °C	(for 60% response) Less than 2 sec in moving air (1m/sec) less than 10 sec in still air	(for 90% response at 25°C; in moving air, 1m/sec.) Less than 20 seconds, 10 to 90% RH Less than 30 seconds, 90 to 10% RH	198 g	N/A	-
HX94C786,510 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	±0.6 °C	305 mm	GX16 4-pin female	4 to 20 mA	Stainless Steel	NEMA Type 4	Removable, variable 25.4 to 227 mm (1 to 9") depth; 70 mm (2.75") dia., duct hole 21 mm (0.812") dia. 4 mtg holes. 4 mm (0.156") dia. (for #6 sheet metal screws) on 51 mm (2.00") dia. circle; wall mounting bracket included	227 mm	-	Temperature, Humidity	19 mm	254 mm	N/A	3 to 95%	± 2% RH	± 0.3°C	DC	6 to 30 Vdc	85 °C	-20 °C	(for 60% response) Less than 2 sec in moving air (1m/sec) less than 10 sec in still air	(for 90% response at 25°C; in moving air, 1m/sec.) Less than 20 seconds, 10 to 90% RH Less than 30 seconds, 90 to 10% RH	198 g	26 to 18 AWG	-
HX94V792,220 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	±0.6 °C	305 mm	GX16 4-pin female	0 to 1 Vdc	Stainless Steel	NEMA Type 4	Removable, variable 25.4 to 227 mm (1 to 9") depth; 70 mm (2.75") dia., duct hole 21 mm (0.812") dia. 4 mtg holes. 4 mm (0.156") dia. (for #6 sheet metal screws) on 51 mm (2.00") dia. circle; wall mounting bracket included	227 mm	-	Temperature, Humidity	19 mm	254 mm	N/A	3 to 95%	± 2% RH	± 0.3°C	DC	6 to 30 Vdc	85 °C	-20 °C	(for 60% response) Less than 2 sec in moving air (1m/sec) less than 10 sec in still air	(for 90% response at 25°C; in moving air, 1m/sec.) Less than 20 seconds, 10 to 90% RH Less than 30 seconds, 90 to 10% RH	198 g	26 to 18 AWG	-
HX94CW1,799,440 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	±0.6 °C	305 mm	Cable	4 to 20 mA	Stainless Steel	NEMA Type 4	Removable, variable 25.4 to 227 mm (1 to 9") depth; 70 mm (2.75") dia., duct hole 21 mm (0.812") dia. 4 mtg holes. 4 mm (0.156") dia. (for #6 sheet metal screws) on 51 mm (2.00") dia. circle; wall mounting bracket included	227 mm	1 m	Temperature, Humidity	19 mm	254 mm	N/A	3 to 95%	± 2% RH	± 0.3°C	DC	6 to 30 Vdc	85 °C	-20 °C	(for 60% response) Less than 2 sec in moving air (1m/sec) less than 10 sec in still air	(for 90% response at 25°C; in moving air, 1m/sec.) Less than 20 seconds, 10 to 90% RH Less than 30 seconds, 90 to 10% RH	198 g	N/A	-

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Cable Length

Electrical Connection

Electrical Output

Enclosure Material

Enclosure Ratings

Flange Note

Flange Size

Lead Length

Measurement Type

Probe Diameter

Probe Length

Process Connection Size

Relative Humidity

Relative Humidity Accuracy

Repeatability

Supply Power Type

Supply Voltage

Temperature Measurement, Max

Temperature Measurement, Min

Time Constant

Time Constant, Relative Humidity

Weight

Wire Gauge

Process Connection Type

수량 / 장바구니

HX94VNPT834,310 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

±0.6 °C

305 mm

Cable

0 to 1 Vdc

Stainless Steel

NEMA Type 4

Removable, variable 25.4 to 227 mm (1 to 9") depth; 70 mm (2.75") dia., duct hole 21 mm (0.812") dia. 4 mtg holes. 4 mm (0.156") dia. (for #6 sheet metal screws) on 51 mm (2.00") dia. circle; wall mounting bracket included

227 mm

1 m

Temperature, Humidity

19 mm

254 mm

1/2 in

3 to 95%

± 2% RH

± 0.3°C

6 to 30 Vdc

85 °C

-20 °C

(for 60% response) Less than 2 sec in moving air (1m/sec) less than 10 sec in still air

(for 90% response at 25°C; in moving air, 1m/sec.) Less than 20 seconds, 10 to 90% RH Less than 30 seconds, 90 to 10% RH

198 g

N/A

NPT Male

HX94CNPT811,790 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

±0.6 °C

305 mm

Cable

4 to 20 mA

Stainless Steel

NEMA Type 4

227 mm

1 m

Temperature, Humidity

19 mm

254 mm

1/2 in

3 to 95%

± 2% RH

± 0.3°C

6 to 30 Vdc

85 °C

-20 °C

(for 60% response) Less than 2 sec in moving air (1m/sec) less than 10 sec in still air

(for 90% response at 25°C; in moving air, 1m/sec.) Less than 20 seconds, 10 to 90% RH Less than 30 seconds, 90 to 10% RH

198 g

N/A

NPT Male

HX94VW가격 문의10 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

±0.6 °C

305 mm

Cable

0 to 1 Vdc

Stainless Steel

NEMA Type 4

227 mm

1 m

Temperature, Humidity

19 mm

254 mm

N/A

3 to 95%

± 2% RH

± 0.3°C

6 to 30 Vdc

85 °C

-20 °C

(for 60% response) Less than 2 sec in moving air (1m/sec) less than 10 sec in still air

(for 90% response at 25°C; in moving air, 1m/sec.) Less than 20 seconds, 10 to 90% RH Less than 30 seconds, 90 to 10% RH

198 g

N/A

HX94C786,510 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

±0.6 °C

305 mm

GX16 4-pin female

4 to 20 mA

Stainless Steel

NEMA Type 4

227 mm

Temperature, Humidity

19 mm

254 mm

N/A

3 to 95%

± 2% RH

± 0.3°C

6 to 30 Vdc

85 °C

-20 °C

(for 60% response) Less than 2 sec in moving air (1m/sec) less than 10 sec in still air

(for 90% response at 25°C; in moving air, 1m/sec.) Less than 20 seconds, 10 to 90% RH Less than 30 seconds, 90 to 10% RH

198 g

26 to 18 AWG

HX94V792,220 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

±0.6 °C

305 mm

GX16 4-pin female

0 to 1 Vdc

Stainless Steel

NEMA Type 4

227 mm

Temperature, Humidity

19 mm

254 mm

N/A

3 to 95%

± 2% RH

± 0.3°C

6 to 30 Vdc

85 °C

-20 °C

(for 60% response) Less than 2 sec in moving air (1m/sec) less than 10 sec in still air

(for 90% response at 25°C; in moving air, 1m/sec.) Less than 20 seconds, 10 to 90% RH Less than 30 seconds, 90 to 10% RH

198 g

26 to 18 AWG

HX94CW1,799,440 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

±0.6 °C

305 mm

Cable

4 to 20 mA

Stainless Steel

NEMA Type 4

227 mm

1 m

Temperature, Humidity

19 mm

254 mm

N/A

3 to 95%

± 2% RH

± 0.3°C

6 to 30 Vdc

85 °C

-20 °C

(for 60% response) Less than 2 sec in moving air (1m/sec) less than 10 sec in still air

(for 90% response at 25°C; in moving air, 1m/sec.) Less than 20 seconds, 10 to 90% RH Less than 30 seconds, 90 to 10% RH

198 g

N/A
