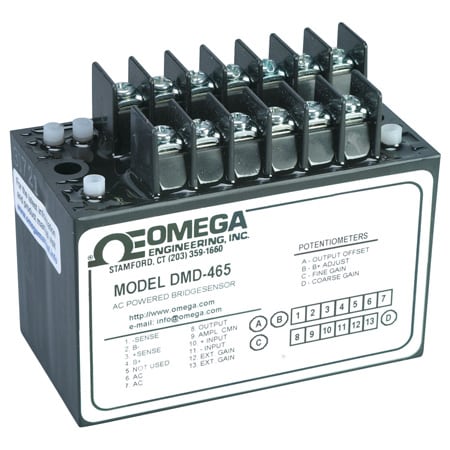

DMD-465-Series-Str-Amp

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 3개의 상품

제품 번호 / 가격	Brand	Bandwidth	CMRR	Capacitance	Common Mode Voltage	Compliance Voltage	Electrical Output	Excitation Voltage Note	Gain Range	Height	Impedance Input	Impedance Output	Input Bias Current	Input Range	Input Resistance	Input Type	Length	Linearity	Loop Resistance, Max	Operating Temperature, Max	Output Detail	Output Noise	Output Signal	Sensor Excitation	Storage Temperature, Max	Storage Temperature, Min	Supply Power	Supply Power Note	Supply Power Type	Temperature Coefficient	Weight	Width
DMD-466가격 문의28 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	3 Hz (-3 dB)	90 dB	50 pF	± 15V	10 Vdc	4 to 20 mA	Excitation Voltage Range: 4 to 15 Vdc Current Output: 120 mA max Line and Load Regulation: (0 to 100 mA) 0.05% max Output Noise: 0.5 mVrms	40 to 250	73 mm	1000 MΩ	1 Ω	30 nA	10 mV to 50 mV	4_to_20_ma_1_to_5_vdc	Voltage	96 mm	± 0.05%	500 Ω	70 °C	± 10 Vdc @ 2 kΩ Load	1 µA rms @ gain 0.2 mA/mV, 1 to 100 Hz	Current	4 to 15 Vdc	85 °C	-25 °C	115 Vac	Standard 115 Vac or optional 220 Vac ± 10% 50/60 Hz or 10 to 36 Vdc 0.7 A @ 10V, 0.17 A @ 36V at maximum excitation load	AC	Gain: 200 ppm/°C	510 g	51 mm
DMD-465가격 문의39 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	3 Hz (-3 dB)	90 dB @ gain 40, 100 dB @ gain 250	50 pF	± 15V	10 Vdc	± 10 Vdc	Excitation Voltage Range: 4 to 15 Vdc Current Output: 120 mA max Line and Load Regulation: (0 to 100 mA) 0.05% max Output Noise: 0.5 mVrms	40 to 250	73 mm	3000 MΩ	1 Ω	30 nA	10 mV to 50 mV	4_to_20_ma_1_to_5_vdc	Voltage	96 mm	± 0.05%	500 Ω	70 °C	± 10 Vdc @ 2 kΩ Load	120 µVrms	Voltage	4 to 15 Vdc	85 °C	-25 °C	115 Vac	Standard 115 Vac or optional 220 Vac ± 10% 50/60 Hz or 10 to 36 Vdc 0.7 A @ 10V, 0.17 A @ 36V at maximum excitation load	AC	Gain: 200 ppm/°C	510 g	51 mm
DMD-465WB가격 문의	OMEGA Engineering	2 kHz (-3 dB)	90 dB @ gain 40, 100 dB @ gain 250	50 pF	± 15V	10 Vdc	± 10 Vdc	Excitation Voltage Range: 4 to 15 Vdc Current Output: 120 mA max Line and Load Regulation: (0 to 100 mA) 0.05% max Output Noise: 0.5 mVrms	40 to 250	73 mm	3000 MΩ	1 Ω	30 nA	10 mV to 50 mV	4_to_20_ma_1_to_5_vdc	Voltage	96 mm	± 0.05%	500 Ω	70 °C	± 10 Vdc @ 2 kΩ Load	2 mV @ 1 Hz to 2 kHz	High-frequency Voltage	4 to 15 Vdc	85 °C	-25 °C	115 Vac	Standard 115 Vac or optional 220 Vac ± 10% 50/60 Hz or 10 to 36 Vdc 0.7 A @ 10V, 0.17 A @ 36V at maximum excitation load	AC	Gain: 200 ppm/°C	510 g	51 mm

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Bandwidth

CMRR

Capacitance

Common Mode Voltage

Compliance Voltage

Electrical Output

Excitation Voltage Note

Gain Range

Height

Impedance Input

Impedance Output

Input Bias Current

Input Range

Input Resistance

Input Type

Length

Linearity

Loop Resistance, Max

Operating Temperature, Max

Operating Temperature, Min

Output Detail

Output Noise

Output Signal

Sensor Excitation

Storage Temperature, Max

Storage Temperature, Min

Supply Power

Supply Power Note

Supply Power Type

Temperature Coefficient

Weight

Width

수량 / 장바구니

DMD-466가격 문의28 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

3 Hz (-3 dB)

90 dB

50 pF

± 15V

10 Vdc

4 to 20 mA

Excitation Voltage Range: 4 to 15 Vdc Current Output: 120 mA max Line and Load Regulation: (0 to 100 mA) 0.05% max Output Noise: 0.5 mVrms

40 to 250

73 mm

1000 MΩ

1 Ω

30 nA

10 mV to 50 mV

4_to_20_ma_1_to_5_vdc

Voltage

96 mm

± 0.05%

500 Ω

70 °C

0 °C

± 10 Vdc @ 2 kΩ Load

1 µA rms @ gain 0.2 mA/mV, 1 to 100 Hz

Current

4 to 15 Vdc

85 °C

-25 °C

115 Vac

Standard 115 Vac or optional 220 Vac ± 10% 50/60 Hz or 10 to 36 Vdc 0.7 A @ 10V, 0.17 A @ 36V at maximum excitation load

Gain: 200 ppm/°C

510 g

51 mm

DMD-465가격 문의39 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

3 Hz (-3 dB)

90 dB @ gain 40, 100 dB @ gain 250

50 pF

± 15V

10 Vdc

± 10 Vdc

Excitation Voltage Range: 4 to 15 Vdc Current Output: 120 mA max Line and Load Regulation: (0 to 100 mA) 0.05% max Output Noise: 0.5 mVrms

40 to 250

73 mm

3000 MΩ

1 Ω

30 nA

10 mV to 50 mV

4_to_20_ma_1_to_5_vdc

Voltage

96 mm

± 0.05%

500 Ω

70 °C

0 °C

± 10 Vdc @ 2 kΩ Load

120 µVrms

Voltage

4 to 15 Vdc

85 °C

-25 °C

115 Vac

Standard 115 Vac or optional 220 Vac ± 10% 50/60 Hz or 10 to 36 Vdc 0.7 A @ 10V, 0.17 A @ 36V at maximum excitation load

Gain: 200 ppm/°C

510 g

51 mm

DMD-465WB가격 문의

OMEGA Engineering

2 kHz (-3 dB)

90 dB @ gain 40, 100 dB @ gain 250

50 pF

± 15V

10 Vdc

± 10 Vdc

Excitation Voltage Range: 4 to 15 Vdc Current Output: 120 mA max Line and Load Regulation: (0 to 100 mA) 0.05% max Output Noise: 0.5 mVrms

40 to 250

73 mm

3000 MΩ

1 Ω

30 nA

10 mV to 50 mV

4_to_20_ma_1_to_5_vdc

Voltage

96 mm

± 0.05%

500 Ω

70 °C

0 °C

± 10 Vdc @ 2 kΩ Load

2 mV @ 1 Hz to 2 kHz

High-frequency Voltage

4 to 15 Vdc

85 °C

-25 °C

115 Vac

Standard 115 Vac or optional 220 Vac ± 10% 50/60 Hz or 10 to 36 Vdc 0.7 A @ 10V, 0.17 A @ 36V at maximum excitation load

Gain: 200 ppm/°C

510 g

51 mm
