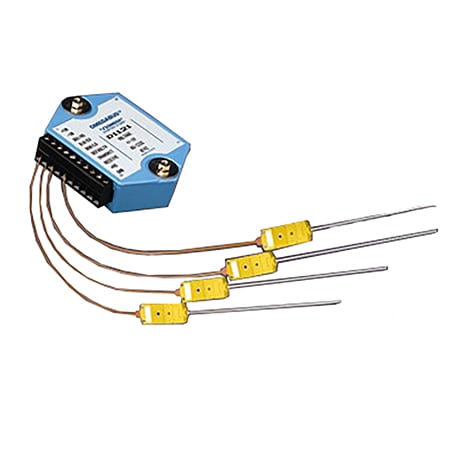

OMEGABUS® 4채널 아날로그 입력-디지털 출력 인터페이스 모듈
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 10개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Analog I/O Note | Baud Rate | CMRR | Calibration | Common Mode Voltage | Conversion Rate | Current Measurement Range | Data Interface | Data Interface Note | Drift | Electrical Connection | Height | Impedance Input | Input Type | Leakage Current | Length | Materials | Memory | Mounting | Number of Channels, Input | Operating Temperature, Max | Operating Temperature, Min | Protection | Relative Humidity | Resolution | Sampling Rate | Sensor Type | Storage Temperature, Max | Storage Temperature, Min | Supply Power Type | Supply Voltage | Temperature Coefficient | Voltage Measurement Range | Width | Lead resistance effect | Temperature Measurement Range | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
D5451616,760 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ±1.0°C | THERMISTOR INPUTS Thermistor Types: 2252Ω at 25°C Range: 0 to 100°C Resolution: 0.01°C or °F Accuracy: ± 0.1°C Input Protection: to 30 Vdc User Selectable: °C or °F | 300 to 115200 | 100 dB at 50/60 Hz | Autozero, no adjustment pots | Input to Output at 60 Hz: 500 V rms | 8 conversions/sec | N/A | RS232C | Data Format: NRZ asynchronous; 1 start bit, 7 data bits, 1 parity bit and 1 stop bit Parity: Odd, even, none Address: User selectable address Protocol: ASCII format Multidrop Modules:Up to 30 per host serial port Communications: Distance up to 1219 m (4000') (RS-485) Transient Suppression: On RS-485 communication lines Communications Error:Checking via checksum | - | Screw Terminal | 6.223 mm | - | Thermistor | < 2 μA | 9.144 mm | ABS | EEPROM | Spacing for mounting screws = 2.700" (6.858 cm).Screw threads = 6 X 32 | Analog: 4 | 70 °C | -25 °C | Input Protection: 30 Vdc | 0 to 95% RH non-condensing | 0.01°C | 1 Hz (1 update/second) | 2252 Ω Thermistor | 85 °C | -25 °C | DC | 10 to 30 Vdc, 0.75 W | - | N/A | 2.794 mm | - | Thermistor: 0 to 100°C | |
D5332686,630 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ±1.0°C | THERMOCOUPLE INPUTS Thermocouple Types: J Ranges: J = -200 to 760°C Resolution: ±1° Overall Accuracy (Error from all sources) from 0 to 40°C Ambient: ±1.0°C Typical Input Impedance: 100 MΩ minimum Lead Resistance Effect: <20µV per 350Ω Open thermocouple and overrange indication Input Burnout: Protection to 250 Vac User Selectable: °C or °F | 300 to 115200 | 100 dB at 50/60 Hz | Autozero, no adjustment pots | Input to Output at 60 Hz: 500 V rms | 8 conversions/sec | N/A | RS485 | Data Format: NRZ asynchronous; 1 start bit, 7 data bits, 1 parity bit and 1 stop bit Parity: Odd, even, none Address: User selectable address Protocol: ASCII format Multidrop Modules:Up to 30 per host serial port Communications: Distance up to 1219 m (4000') (RS-485) Transient Suppression: On RS-485 communication lines Communications Error:Checking via checksum | - | Screw Terminal | 6.223 mm | 100 MΩ | Thermocouple | < 2 μA | 9.144 mm | ABS | EEPROM | Spacing for mounting screws = 2.700" (6.858 cm).Screw threads = 6 X 32 | Analog: 4 | 70 °C | -25 °C | Input Protection: 250 Vac | 0 to 95% RH non-condensing | ±1.0°C | 1 Hz (1 update/second) | Thermocouple Type T | 85 °C | -25 °C | DC | 10 to 30 Vdc, 0.75 W | - | N/A | 2.794 mm | Thermocouple: <20µ V/350Ω | Type T TC: -200 to 400°C | |
D5321668,060 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ±1.0°C | THERMOCOUPLE INPUTS Thermocouple Types: J Ranges: J = -200 to 760°C Resolution: ±1° Overall Accuracy (Error from all sources) from 0 to 40°C Ambient: ±1.0°C Typical Input Impedance: 100 MΩ minimum Lead Resistance Effect: <20µV per 350Ω Open thermocouple and overrange indication Input Burnout: Protection to 250 Vac User Selectable: °C or °F | 300 to 115200 | 100 dB at 50/60 Hz | Autozero, no adjustment pots | Input to Output at 60 Hz: 500 V rms | 8 conversions/sec | N/A | RS232C | Data Format: NRZ asynchronous; 1 start bit, 7 data bits, 1 parity bit and 1 stop bit Parity: Odd, even, none Address: User selectable address Protocol: ASCII format Multidrop Modules:Up to 30 per host serial port Communications: Distance up to 1219 m (4000') (RS-485) Transient Suppression: On RS-485 communication lines Communications Error:Checking via checksum | - | Screw Terminal | 6.223 mm | 100 MΩ | Thermocouple | < 2 μA | 9.144 mm | ABS | EEPROM | Spacing for mounting screws = 2.700" (6.858 cm).Screw threads = 6 X 32 | Analog: 4 | 70 °C | -25 °C | Input Protection: 250 Vac | 0 to 95% RH non-condensing | ±1.0°C | 1 Hz (1 update/second) | Thermocouple Type K | 85 °C | -25 °C | DC | 10 to 30 Vdc, 0.75 W | - | N/A | 2.794 mm | Thermocouple: <20µ V/350Ω | Type K TC: -150 to 1250°C | |
D5312686,630 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ±1.0°C | THERMOCOUPLE INPUTS Thermocouple Types: J Ranges: J = -200 to 760°C Resolution: ±1° Overall Accuracy (Error from all sources) from 0 to 40°C Ambient: ±1.0°C Typical Input Impedance: 100 MΩ minimum Lead Resistance Effect: <20µV per 350Ω Open thermocouple and overrange indication Input Burnout: Protection to 250 Vac User Selectable: °C or °F | 300 to 115200 | 100 dB at 50/60 Hz | Autozero, no adjustment pots | Input to Output at 60 Hz: 500 V rms | 8 conversions/sec | N/A | RS485 | Data Format: NRZ asynchronous; 1 start bit, 7 data bits, 1 parity bit and 1 stop bit Parity: Odd, even, none Address: User selectable address Protocol: ASCII format Multidrop Modules:Up to 30 per host serial port Communications: Distance up to 1219 m (4000') (RS-485) Transient Suppression: On RS-485 communication lines Communications Error:Checking via checksum | - | Screw Terminal | 6.223 mm | 100 MΩ | Thermocouple | < 2 μA | 9.144 mm | ABS | EEPROM | Spacing for mounting screws = 2.700" (6.858 cm).Screw threads = 6 X 32 | Analog: 4 | 70 °C | -25 °C | Input Protection: 250 Vac | 0 to 95% RH non-condensing | ±1.0°C | 1 Hz (1 update/second) | Thermocouple Type J | 85 °C | -25 °C | DC | 10 to 30 Vdc, 0.75 W | - | N/A | 2.794 mm | Thermocouple: <20µ V/350Ω | Type J TC: -200 to 760°C | |
D5251616,760 원Limited Stock리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.04 % | CURRENT INPUT Current: 4-20 mAdc Resolution: 0.04% of FS Accuracy: 0.04% of FS Zero Drift: ±1 count maximum (autozero) Span Tempco: ±50ppm/°C maximum Voltage Drop: ±1.0V max | 300 to 115200 | 100 dB at 50/60 Hz | Autozero, no adjustment pots | Input to Output at 60 Hz: 500 V rms | 8 conversions/sec | 4 to 20 mA | RS232C | Data Format: NRZ asynchronous; 1 start bit, 7 data bits, 1 parity bit and 1 stop bit Parity: Odd, even, none Address: User selectable address Protocol: ASCII format Multidrop Modules:Up to 30 per host serial port Communications: Distance up to 1219 m (4000') (RS-485) Transient Suppression: On RS-485 communication lines Communications Error:Checking via checksum | Zero: ±1 Count | Screw Terminal | 6.223 mm | - | Current | < 2 μA | 9.144 mm | ABS | EEPROM | Spacing for mounting screws = 2.700" (6.858 cm).Screw threads = 6 X 32 | Analog: 4 | 70 °C | -25 °C | - | 0 to 95% RH non-condensing | 0.0004 | 1 Hz (1 update/second) | N/A | 85 °C | -25 °C | DC | 10 to 30 Vdc, 0.75 W | ±50 ppm/°C | N/A | 2.794 mm | - | - | |
D5151616,760 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.02 % | Voltage: Input Ranges: ±100 mV, ±1 V, ±5 V, ±10 V, ±100 Vdc, Resolution: 0.01% of FS (4 digits), Accuracy: ±0.02% of FS max, Zero Drift: ±1 count maximum (autozero), Span Tempco: ±50ppm/°C maximum, Input Burnout Protection: To 250 Vac, Input Impedance: ≤ +1 V input = 100 MΩ min, ≥ +5 V input = 1 MΩ min | 300 to 115200 | 100 dB at 50/60 Hz | Autozero, no adjustment pots | Input to Output at 60 Hz: 500 V rms | 8 conversions/sec | N/A | RS232C | Data Format: NRZ asynchronous; 1 start bit, 7 data bits, 1 parity bit and 1 stop bit Parity: Odd, even, none Address: User selectable address Protocol: ASCII format Multidrop Modules:Up to 30 per host serial port Communications: Distance up to 1219 m (4000') (RS-485) Transient Suppression: On RS-485 communication lines Communications Error:Checking via checksum | Zero: ±1 Count | Screw Terminal | 6.223 mm | >1 MΩ | Voltage | < 2 μA | 9.144 mm | ABS | EEPROM | Spacing for mounting screws = 2.700" (6.858 cm).Screw threads = 6 X 32 | Analog: 4 | 70 °C | -25 °C | Input Protection: 250 Vac | 0 to 95% RH non-condensing | 0.0001 | 1 Hz (1 update/second) | N/A | 85 °C | -25 °C | DC | 10 to 30 Vdc, 0.75 W | ±50 ppm/°C | ±100 V | 2.794 mm | - | - | |
D5142627,140 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.02 % | Voltage: Input Ranges: ±100 mV, ±1 V, ±5 V, ±10 V, ±100 Vdc, Resolution: 0.01% of FS (4 digits), Accuracy: ±0.02% of FS max, Zero Drift: ±1 count maximum (autozero), Span Tempco: ±50ppm/°C maximum, Input Burnout Protection: To 250 Vac, Input Impedance: ≤ +1 V input = 100 MΩ min, ≥ +5 V input = 1 MΩ min | 300 to 115200 | 100 dB at 50/60 Hz | Autozero, no adjustment pots | Input to Output at 60 Hz: 500 V rms | 8 conversions/sec | N/A | RS485 | Data Format: NRZ asynchronous; 1 start bit, 7 data bits, 1 parity bit and 1 stop bit Parity: Odd, even, none Address: User selectable address Protocol: ASCII format Multidrop Modules:Up to 30 per host serial port Communications: Distance up to 1219 m (4000') (RS-485) Transient Suppression: On RS-485 communication lines Communications Error:Checking via checksum | Zero: ±1 Count | Screw Terminal | 6.223 mm | >1 MΩ | Voltage | < 2 μA | 9.144 mm | ABS | EEPROM | Spacing for mounting screws = 2.700" (6.858 cm).Screw threads = 6 X 32 | Analog: 4 | 70 °C | -25 °C | Input Protection: 250 Vac | 0 to 95% RH non-condensing | 0.0001 | 1 Hz (1 update/second) | N/A | 85 °C | -25 °C | DC | 10 to 30 Vdc, 0.75 W | ±50 ppm/°C | ±10 V | 2.794 mm | - | - | |
D5131616,760 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.02 % | Voltage: Input Ranges: ±100 mV, ±1 V, ±5 V, ±10 V, ±100 Vdc, Resolution: 0.01% of FS (4 digits), Accuracy: ±0.02% of FS max, Zero Drift: ±1 count maximum (autozero), Span Tempco: ±50ppm/°C maximum, Input Burnout Protection: To 250 Vac, Input Impedance: ≤ +1 V input = 100 MΩ min, ≥ +5 V input = 1 MΩ min | 300 to 115200 | 100 dB at 50/60 Hz | Autozero, no adjustment pots | Input to Output at 60 Hz: 500 V rms | 8 conversions/sec | N/A | RS232C | Data Format: NRZ asynchronous; 1 start bit, 7 data bits, 1 parity bit and 1 stop bit Parity: Odd, even, none Address: User selectable address Protocol: ASCII format Multidrop Modules:Up to 30 per host serial port Communications: Distance up to 1219 m (4000') (RS-485) Transient Suppression: On RS-485 communication lines Communications Error:Checking via checksum | Zero: ±1 Count | Screw Terminal | 6.223 mm | >1 MΩ | Voltage | < 2 μA | 9.144 mm | ABS | EEPROM | Spacing for mounting screws = 2.700" (6.858 cm).Screw threads = 6 X 32 | Analog: 4 | 70 °C | -25 °C | Input Protection: 250 Vac | 0 to 95% RH non-condensing | 0.0001 | 1 Hz (1 update/second) | N/A | 85 °C | -25 °C | DC | 10 to 30 Vdc, 0.75 W | ±50 ppm/°C | ±5 V | 2.794 mm | - | - | |
D5132616,760 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.02 % | Voltage: Input Ranges: ±100 mV, ±1 V, ±5 V, ±10 V, ±100 Vdc, Resolution: 0.01% of FS (4 digits), Accuracy: ±0.02% of FS max, Zero Drift: ±1 count maximum (autozero), Span Tempco: ±50ppm/°C maximum, Input Burnout Protection: To 250 Vac, Input Impedance: ≤ +1 V input = 100 MΩ min, ≥ +5 V input = 1 MΩ min | 300 to 115200 | 100 dB at 50/60 Hz | Autozero, no adjustment pots | Input to Output at 60 Hz: 500 V rms | 8 conversions/sec | N/A | RS485 | Data Format: NRZ asynchronous; 1 start bit, 7 data bits, 1 parity bit and 1 stop bit Parity: Odd, even, none Address: User selectable address Protocol: ASCII format Multidrop Modules:Up to 30 per host serial port Communications: Distance up to 1219 m (4000') (RS-485) Transient Suppression: On RS-485 communication lines Communications Error:Checking via checksum | Zero: ±1 Count | Screw Terminal | 6.223 mm | >1 MΩ | Voltage | < 2 μA | 9.144 mm | ABS | EEPROM | Spacing for mounting screws = 2.700" (6.858 cm).Screw threads = 6 X 32 | Analog: 4 | 70 °C | -25 °C | Input Protection: 250 Vac | 0 to 95% RH non-condensing | 0.0001 | 1 Hz (1 update/second) | N/A | 85 °C | -25 °C | DC | 10 to 30 Vdc, 0.75 W | ±50 ppm/°C | ±5 V | 2.794 mm | - | - | |
D5111616,760 원 | OMEGA Engineering | ± 0.02 % | Voltage: Input Ranges: ±100 mV, ±1 V, ±5 V, ±10 V, ±100 Vdc, Resolution: 0.01% of FS (4 digits), Accuracy: ±0.02% of FS max, Zero Drift: ±1 count maximum (autozero), Span Tempco: ±50ppm/°C maximum, Input Burnout Protection: To 250 Vac, Input Impedance: ≤ +1 V input = 100 MΩ min, ≥ +5 V input = 1 MΩ min | 300 to 115200 | 100 dB at 50/60 Hz | Autozero, no adjustment pots | Input to Output at 60 Hz: 500 V rms | 8 conversions/sec | N/A | RS232C | Data Format: NRZ asynchronous; 1 start bit, 7 data bits, 1 parity bit and 1 stop bit Parity: Odd, even, none Address: User selectable address Protocol: ASCII format Multidrop Modules:Up to 30 per host serial port Communications: Distance up to 1219 m (4000') (RS-485) Transient Suppression: On RS-485 communication lines Communications Error:Checking via checksum | Zero: ±1 Count | Screw Terminal | 6.223 mm | 100 MΩ | Voltage | < 2 μA | 9.144 mm | ABS | EEPROM | Spacing for mounting screws = 2.700" (6.858 cm).Screw threads = 6 X 32 | Analog: 4 | 70 °C | -25 °C | Input Protection: 250 Vac | 0 to 95% RH non-condensing | 0.0001 | 1 Hz (1 update/second) | N/A | 85 °C | -25 °C | DC | 10 to 30 Vdc, 0.75 W | ±50 ppm/°C | ±100 mV | 2.794 mm | - | - |
