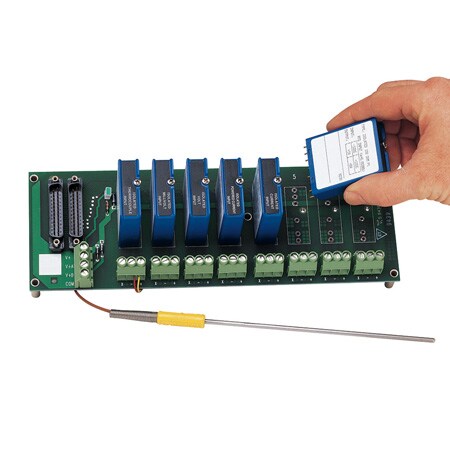

OM7-Srs-Modular-Sig-Cond

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 5개의 상품

제품 번호 / 가격	Brand	Accuracy	Accuracy Detail	Approvals	Bandwidth	Electrical Output	Height	Input Bias Current	Input Range	Input Type	Isolation	Length	Load Resistance	Non-Linearity	Operating Temperature, Max	Operating Temperature, Min	Output Resistance	Output Signal	Protection	Relative Humidity	Response Time	Storage Temperature, Max	Storage Temperature, Min	Supply Power	Supply Power Type	Weight	Width	Input Resistance
OM7-47-J-02-1-C가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.1 %, CJC: ± 1.0 °C	Accuracy: ± 0.1%, CJC: ± 1.0°C	CE, UL	3 Hz	1 to 5 V	54 mm	1 nA	-100 to 300°C	Linearized Thermocouple (Type J)	1500 Vrms	14 mm	0 to 850 Ω	± 0.02 %	85 °C	-40 °C	<1 Ω	Voltage	Output Protection: Short to Ground, Input Protection: 120 Vrms	90% non-condensing	150 ms	85 °C	-40 °C	14 to 35 Vdc @ 25 mA	DC	60 g	42 mm	10 MΩ
OM7-37-T-03-2-C가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.1 %, CJC: ± 1.0 °C	Accuracy: ± 0.1%, CJC: ± 1.0°C	CE, UL	3 Hz	0 to 10 V	54 mm	1 nA	-100 to 400°C	Non-Linearized Thermocouple (Type T)	1500 Vrms	14 mm	-	± 0.02 %	85 °C	-40 °C	<1 Ω	Voltage	Output Protection: Short to Ground, Input Protection: 120 Vrms	90% non-condensing	150 ms	85 °C	-40 °C	14 to 35 Vdc @ 25 mA	DC	60 g	42 mm	10 MΩ
OM7-37-K-22-1-C가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.1 %, CJC: ± 1.0 °C	Accuracy: ± 0.1%, CJC: ± 1.0°C	CE, UL	3 Hz	1 to 5 V	54 mm	1 nA	0 to 1200°C	Non-Linearized Thermocouple (Type T)	1500 Vrms	14 mm	-	± 0.02 %	85 °C	-40 °C	<1 Ω	Voltage	Output Protection: Short to Ground, Input Protection: 120 Vrms	90% non-condensing	150 ms	85 °C	-40 °C	14 to 35 Vdc @ 25 mA	DC	60 g	42 mm	10 MΩ
OM7-30-02-1-C가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.1 %	Accuracy: ± 0.1%	CE, UL	3 Hz	1 to 5 V	54 mm	1 nA	0 to 100 mV	Voltage	1500 Vrms	14 mm	-	± 0.02 %	85 °C	-40 °C	<1 Ω	Voltage	Output Protection: Short to Ground, Input Protection: 120 Vrms	90% non-condensing	150 ms	85 °C	-40 °C	14 to 35 Vdc @ 25 mA	DC	60 g	42 mm	10 MΩ
OM7-39-01-C가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.1 %	Accuracy: ± 0.1%	CE, UL	100 Hz	4 to 20 mA	54 mm	1 nA	1 to 5 V	Voltage	1500 Vrms	14 mm	0 to 850 Ω	± 0.02 %	85 °C	-40 °C	<1 Ω	Current	Output Protection: Short to Ground, Input Protection: 120 Vrms	90% non-condensing	3 ms	85 °C	-40 °C	14 to 35 Vdc @ 60 mA	DC	60 g	42 mm	-

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Accuracy Detail

Approvals

Bandwidth

Electrical Output

Height

Input Bias Current

Input Range

Input Type

Isolation

Length

Load Resistance

Non-Linearity

Operating Temperature, Max

Operating Temperature, Min

Output Resistance

Output Signal

Protection

Relative Humidity

Response Time

Storage Temperature, Max

Storage Temperature, Min

Supply Power

Supply Power Type

Weight

Width

Input Resistance

수량 / 장바구니

OM7-47-J-02-1-C가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.1 %, CJC: ± 1.0 °C

Accuracy: ± 0.1%, CJC: ± 1.0°C

CE, UL

3 Hz

1 to 5 V

54 mm

1 nA

-100 to 300°C

Linearized Thermocouple (Type J)

1500 Vrms

14 mm

0 to 850 Ω

± 0.02 %

85 °C

-40 °C

<1 Ω

Voltage

Output Protection: Short to Ground, Input Protection: 120 Vrms

90% non-condensing

150 ms

85 °C

-40 °C

14 to 35 Vdc @ 25 mA

60 g

42 mm

10 MΩ

OM7-37-T-03-2-C가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.1 %, CJC: ± 1.0 °C

Accuracy: ± 0.1%, CJC: ± 1.0°C

CE, UL

3 Hz

0 to 10 V

54 mm

1 nA

-100 to 400°C

Non-Linearized Thermocouple (Type T)

1500 Vrms

14 mm

± 0.02 %

85 °C

-40 °C

<1 Ω

Voltage

Output Protection: Short to Ground, Input Protection: 120 Vrms

90% non-condensing

150 ms

85 °C

-40 °C

14 to 35 Vdc @ 25 mA

60 g

42 mm

10 MΩ

OM7-37-K-22-1-C가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.1 %, CJC: ± 1.0 °C

Accuracy: ± 0.1%, CJC: ± 1.0°C

CE, UL

3 Hz

1 to 5 V

54 mm

1 nA

0 to 1200°C

Non-Linearized Thermocouple (Type T)

1500 Vrms

14 mm

± 0.02 %

85 °C

-40 °C

<1 Ω

Voltage

Output Protection: Short to Ground, Input Protection: 120 Vrms

90% non-condensing

150 ms

85 °C

-40 °C

14 to 35 Vdc @ 25 mA

60 g

42 mm

10 MΩ

OM7-30-02-1-C가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.1 %

Accuracy: ± 0.1%

CE, UL

3 Hz

1 to 5 V

54 mm

1 nA

0 to 100 mV

Voltage

1500 Vrms

14 mm

± 0.02 %

85 °C

-40 °C

<1 Ω

Voltage

Output Protection: Short to Ground, Input Protection: 120 Vrms

90% non-condensing

150 ms

85 °C

-40 °C

14 to 35 Vdc @ 25 mA

60 g

42 mm

10 MΩ

OM7-39-01-C가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.1 %

Accuracy: ± 0.1%

CE, UL

100 Hz

4 to 20 mA

54 mm

1 nA

1 to 5 V

Voltage

1500 Vrms

14 mm

0 to 850 Ω

± 0.02 %

85 °C

-40 °C

<1 Ω

Current

Output Protection: Short to Ground, Input Protection: 120 Vrms

90% non-condensing

3 ms

85 °C

-40 °C

14 to 35 Vdc @ 60 mA

60 g

42 mm
