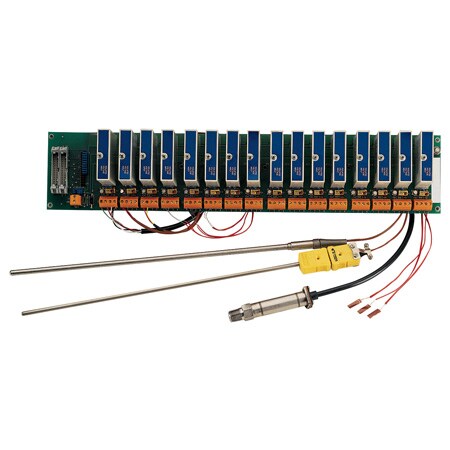

OM5-Srs-Modular-Sig-Cond | Britestone

산업용 측정 장비 · 제어 부품 · 글로벌 브랜드 통합 쇼핑몰

로딩 중...

산업용 측정 장비 · 제어 부품 · 글로벌 브랜드 통합 쇼핑몰

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 12개의 상품

제품 번호 / 가격	Brand	Accuracy	Accuracy Detail	Approvals	Bandwidth	Common Mode Voltage	Electrical Output	Height	Input Range	Input Type	Length	Mounting	Non-Linearity	Operating Temperature, Max	Operating Temperature, Min	Output Resistance	Output Signal	Power Consumption	Protection	Width	Bridge Resistance	Sensitivity	Series ID	수량 / 장바구니
OM5-IP4-N100-C가격 문의	-	-	-	CE, UL	-	Common Mode Voltage, Input to Output: 1500 Vrms	-	58 mm	-	-	15 mm	Rack, Surface Mount	0.0002	85 °C	-40 °C	50 Ω	-	-	Input Protection: 240 Vrms	57 mm	-	-	OM5-Srs-Modular-Sig-Cond
OM5-IP4-100-C481,370 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.36 °C	Accuracy: ± 0.36°C	CE, UL	4 Hz	Common Mode Voltage, Input to Output: 1500 Vrms	0 to 5 Vdc	58 mm	0 to 100°C	RTD	15 mm	Rack, Surface Mount	0.0002	85 °C	-40 °C	50 Ω	Voltage	30 mA	Input Protection: 240 Vrms	57 mm	-	-	-
OM5-IMV-100A-C354,720 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	±0.05 % span, ± 10 µV RTI1, ± 0.05 % (VZ3)	Accuracy: ± 0.05% span ± 10µV RTI1 ± 0.05% (VZ3)	CE, UL	4 Hz	Common Mode Voltage, Input to Output: 1500 Vrms	± 5 Vdc	58 mm	±100 mV	Voltage	15 mm	Rack, Surface Mount	0.0002	85 °C	-40 °C	50 Ω	Voltage	30 mA	Input Protection: 240 Vrms	57 mm	-	-	-
OM5-IMV-50A-C518,670 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	±0.05 % span, ± 10 µV RTI1, ± 0.05 % (VZ3)	Accuracy: ± 0.05% span ± 10µV RTI1 ± 0.05% (VZ3)	CE, UL	4 Hz	Common Mode Voltage, Input to Output: 1500 Vrms	± 5 Vdc	58 mm	±50 mV	Voltage	15 mm	Rack, Surface Mount	0.0002	85 °C	-40 °C	50 Ω	Voltage	30 mA	Input Protection: 240 Vrms	57 mm	-	-	-
OM5-II-0/20-C354,720 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.05% span, ± 0.05 %( /-IZ2)	Accuracy: ± 0.05% span +0.05%(/-IZ2)	CE, UL	4 Hz	Common Mode Voltage, Input to Output: 1500 Vrms	0 to 5 Vdc	58 mm	0 to 20 mA	Current	15 mm	Rack, Surface Mount	0.0002	85 °C	-40 °C	50 Ω	Voltage	30 mA	Input Protection: 240 Vrms	57 mm	-	-	-
OM5-IMV-10A-C354,720 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	±0.05 % span, ± 10 µV RTI1, ± 0.05 % (VZ3)	Accuracy: ± 0.05% span ± 10µV RTI1 ± 0.05% (VZ3)	CE, UL	4 Hz	Common Mode Voltage, Input to Output: 1500 Vrms	± 5 Vdc	58 mm	±10 mV	Voltage	15 mm	Rack, Surface Mount	0.0002	85 °C	-40 °C	50 Ω	Voltage	30 mA	Input Protection: 240 Vrms	57 mm	-	-	-
OM5-LTC-T2-C481,370 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.25 °C	Accuracy: ± 0.25°C	CE, UL	4 Hz	Common Mode Voltage, Input to Output: 1500 Vrms	0 to 5 Vdc	58 mm	0 to 200°C	Linearized Thermocouple (Type T)	15 mm	Rack, Surface Mount	0.0002	85 °C	-40 °C	50 Ω	Voltage	30 mA	Input Protection: 240 Vrms	57 mm	-	-	-
OM5-LTC-K2-C481,370 원3 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.38 °C	Accuracy: ± 0.38°C	CE, UL	4 Hz	Common Mode Voltage, Input to Output: 1500 Vrms	0 to 5 Vdc	58 mm	0 to 500°C	Linearized Thermocouple (Type K)	15 mm	Rack, Surface Mount	0.0002	85 °C	-40 °C	50 Ω	Voltage	30 mA	Input Protection: 240 Vrms	57 mm	-	-	-
OM5-WV-5A-C354,720 원3 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	±0.05 % span, ± 10 µV RTI1, ± 0.05 % (VZ3)	Accuracy: ± 0.05% span ± 0.2mV RTI1 ± 0.05% (VZ3)	CE, UL	10 kHz	Common Mode Voltage, Input to Output: 1500 Vrms	± 5 Vdc	58 mm	±5 V	Wideband Voltage	15 mm	Rack, Surface Mount	0.0002	85 °C	-40 °C	50 Ω	Voltage	30 mA	Input Protection: 240 Vrms	57 mm	-	-	-
OM5-WBS-1-C663,860 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.08 % span, ± 10 µV RTI1	Accuracy: ± 0.08% span ± 10µV RTI1	CE, UL	10 kHz	Common Mode Voltage, Input to Output: 1500 Vrms	± 5 Vdc	58 mm	±30 mV @ 10 V Exc	Strain Gage	15 mm	Rack, Surface Mount	0.0002	85 °C	-40 °C	50 Ω	Voltage	200 mA	Input Protection: 240 Vrms	57 mm	300 to 10kΩ	10.0V at 3mV/V Sensitivity	-
OM5-WBS-2-C422,240 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.08 % span, ± 10 µV RTI1	Accuracy: ± 0.08% span ± 10µV RTI1	CE, UL	10 kHz	Common Mode Voltage, Input to Output: 1500 Vrms	± 5 Vdc	58 mm	±20 mV @ 10 V Exc	Strain Gage	15 mm	Rack, Surface Mount	0.0002	85 °C	-40 °C	50 Ω	Voltage	200 mA	Input Protection: 240 Vrms	57 mm	300 to 10kΩ	10.0V at 2mV/V Sensitivity	-
OM5-IV-5A-C354,720 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	±0.05 % span, ±0.2 mV RTI1, ± 0.05 % (VZ3)	Accuracy: ± 0.05% span ± 0.2mV RTI1 ± 0.05% (VZ3)	CE, UL	4 Hz	Common Mode Voltage, Input to Output: 1500 Vrms	± 5 Vdc	58 mm	±5 V	Voltage	15 mm	Rack, Surface Mount	0.0002	85 °C	-40 °C	50 Ω	Voltage	30 mA	Input Protection: 240 Vrms	57 mm	-	-	-

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
