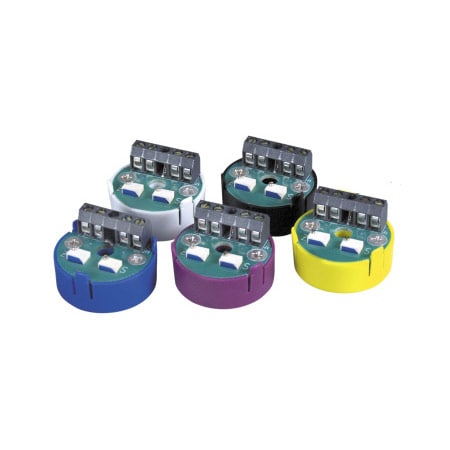

초소형 열전쌍 또는 RTD 온도 변환기
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 10개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Detail | Bandwidth | Diameter | Dimensions Note | Electrical Connection | Electrical Output | Height | Hysteresis | Input Type | Linearity | Loop Resistance, Max | Operating Temperature, Max | Operating Temperature, Min | Probe Length | Repeatability | Sensor Type | Sheath Material | Storage Temperature, Max | Storage Temperature, Min | Supply Power Note | Supply Power Type | Supply Voltage | Temperature Input Range | Thermocouple Type | Weight | Zero Setting Adjustable Range | Additional Features 1 | RTD Type | Temperature Coefficient | Wiring/Connector Table | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TX93A-K5-P가격 문의103 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.1 % | ±0.1% FS (includes effects of linearity, hysteresis and repeatability) | 3 dB @ 3Hz | 35.6 mm | 23.6 H x 35.6 mm D (0.93 x 1.40") (height includes terminal strip) | Screw Terminal | 4 to 20 mA | 23.6 mm | ±0.1% | Thermocouple | ±0.1% | (Vs-8V)/0.02A | 85 °C | -25 °C | 0 mm | ±0.1% | Transmitter | N/A | 125 °C | -65 °C | 8 to 35 Vdc; 24 Vdc recommended | DC | 8 to 35 Vdc | -18 to 399 °C | K | 25 g | ±25% | epoxy-potted | - | - | - | |
TX93A-T3-P가격 문의103 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.1 % | ±0.1% FS (includes effects of linearity, hysteresis and repeatability) | 3 dB @ 3Hz | 35.6 mm | 23.6 H x 35.6 mm D (0.93 x 1.40") (height includes terminal strip) | Screw Terminal | 4 to 20 mA | 23.6 mm | ±0.1% | Thermocouple | ±0.1% | (Vs-8V)/0.02A | 85 °C | -25 °C | 0 mm | ±0.1% | Transmitter | N/A | 125 °C | -65 °C | 8 to 35 Vdc; 24 Vdc recommended | DC | 8 to 35 Vdc | -18 to 149 °C | T | 25 g | ±25% | epoxy-potted | - | - | - | |
TX93A-J5-P가격 문의103 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.1 % | ±0.1% FS (includes effects of linearity, hysteresis and repeatability) | 3 dB @ 3Hz | 35.6 mm | 23.6 H x 35.6 mm D (0.93 x 1.40") (height includes terminal strip) | Screw Terminal | 4 to 20 mA | 23.6 mm | ±0.1% | Thermocouple | ±0.1% | (Vs-8V)/0.02A | 85 °C | -25 °C | 0 mm | ±0.1% | Transmitter | N/A | 125 °C | -65 °C | 8 to 35 Vdc; 24 Vdc recommended | DC | 8 to 35 Vdc | -18 to 399 °C | J | 25 g | ±25% | epoxy-potted | - | - | - | |
TX94A-6-P가격 문의103 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.1 % | ±0.1% FS (includes effects of linearity, hysteresis and repeatability) | 3 dB @ 3Hz | 35.6 mm | 23.6 H x 35.6 mm D (0.93 x 1.40") (height includes terminal strip) | Screw Terminal | 4 to 20 mA | 23.6 mm | ±0.1% | RTD | ±0.1% | (Vs-8V)/0.02A | 85 °C | -25 °C | 0 mm | ±0.1% | Transmitter | N/A | 125 °C | -65 °C | 8 to 35 Vdc; 24 Vdc recommended | DC | 8 to 35 Vdc | -18 to 538 °C | N/A | 25 g | ±25% | epoxy-potted | Pt100 | 0.00385 Ω/°C | 3-Wire | |
TX94A-4-P가격 문의103 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.1 % | ±0.1% FS (includes effects of linearity, hysteresis and repeatability) | 3 dB @ 3Hz | 35.6 mm | 23.6 H x 35.6 mm D (0.93 x 1.40") (height includes terminal strip) | Screw Terminal | 4 to 20 mA | 23.6 mm | ±0.1% | RTD | ±0.1% | (Vs-8V)/0.02A | 85 °C | -25 °C | 0 mm | ±0.1% | Transmitter | N/A | 125 °C | -65 °C | 8 to 35 Vdc; 24 Vdc recommended | DC | 8 to 35 Vdc | -18 to 260 °C | N/A | 25 g | ±25% | epoxy-potted | Pt100 | 0.00385 Ω/°C | 3-Wire | |
TX94A-3-P가격 문의103 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.1 % | ±0.1% FS (includes effects of linearity, hysteresis and repeatability) | 3 dB @ 3Hz | 35.6 mm | 23.6 H x 35.6 mm D (0.93 x 1.40") (height includes terminal strip) | Screw Terminal | 4 to 20 mA | 23.6 mm | ±0.1% | RTD | ±0.1% | (Vs-8V)/0.02A | 85 °C | -25 °C | 0 mm | ±0.1% | Transmitter | N/A | 125 °C | -65 °C | 8 to 35 Vdc; 24 Vdc recommended | DC | 8 to 35 Vdc | -18 to 149 °C | N/A | 25 g | ±25% | epoxy-potted | Pt100 | 0.00385 Ω/°C | 3-Wire | |
TX93A-T5가격 문의103 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.1 % | ±0.1% FS (includes effects of linearity, hysteresis and repeatability) | 3 dB @ 3Hz | 35.6 mm | 23.6 H x 35.6 mm D (0.93 x 1.40") (height includes terminal strip) | Screw Terminal | 4 to 20 mA | 23.6 mm | ±0.1% | Thermocouple | ±0.1% | (Vs-8V)/0.02A | 85 °C | -25 °C | 0 mm | ±0.1% | Transmitter | N/A | 125 °C | -65 °C | 8 to 35 Vdc; 24 Vdc recommended | DC | 8 to 35 Vdc | -18 to 399 °C | T | 15 g | ±25% | - | - | - | - | |
TX93A-E5가격 문의103 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.1 % | ±0.1% FS (includes effects of linearity, hysteresis and repeatability) | 3 dB @ 3Hz | 35.6 mm | 23.6 H x 35.6 mm D (0.93 x 1.40") (height includes terminal strip) | Screw Terminal | 4 to 20 mA | 23.6 mm | ±0.1% | Thermocouple | ±0.1% | (Vs-8V)/0.02A | 85 °C | -25 °C | 0 mm | ±0.1% | Transmitter | N/A | 125 °C | -65 °C | 8 to 35 Vdc; 24 Vdc recommended | DC | 8 to 35 Vdc | -18 to 399 °C | E | 15 g | ±25% | - | - | - | - | |
TX93A-K5가격 문의Limited Stock리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.1 % | ±0.1% FS (includes effects of linearity, hysteresis and repeatability) | 3 dB @ 3Hz | 35.6 mm | 23.6 H x 35.6 mm D (0.93 x 1.40") (height includes terminal strip) | Screw Terminal | 4 to 20 mA | 23.6 mm | ±0.1% | Thermocouple | ±0.1% | (Vs-8V)/0.02A | 85 °C | -25 °C | 0 mm | ±0.1% | Transmitter | N/A | 125 °C | -65 °C | 8 to 35 Vdc; 24 Vdc recommended | DC | 8 to 35 Vdc | -18 to 399 °C | K | 15 g | ±25% | - | - | - | - | |
TX93A-E3가격 문의Limited Stock리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.1 % | ±0.1% FS (includes effects of linearity, hysteresis and repeatability) | 3 dB @ 3Hz | 35.6 mm | 23.6 H x 35.6 mm D (0.93 x 1.40") (height includes terminal strip) | Screw Terminal | 4 to 20 mA | 23.6 mm | ±0.1% | Thermocouple | ±0.1% | (Vs-8V)/0.02A | 85 °C | -25 °C | 0 mm | ±0.1% | Transmitter | N/A | 125 °C | -65 °C | 8 to 35 Vdc; 24 Vdc recommended | DC | 8 to 35 Vdc | -18 to 149 °C | E | 15 g | ±25% | - | - | - | - |
