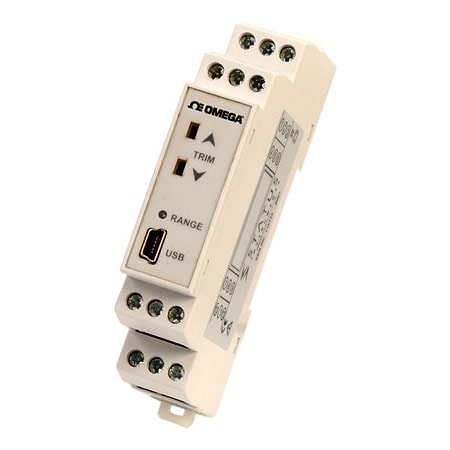

TXDIN1600-Series-Tx | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 2개의 상품

제품 번호 / 가격	Brand	Accuracy	Approvals	Approvals Note	Cable Length	Calibration Accuracy	Electrical Connection	Height	Input Type	Isolation	Length	Materials	Mounting	Number of Inputs	Operating Temperature, Max	Operating Temperature, Min	Output Detail	Output Signal	Output Value	RTD Accuracy	Relative Humidity	Relay Output	Response Time	Response Time Note	Serial Number	Shell Color	Software	Storage Temperature, Max	Storage Temperature, Min	Temperature Measurement Range	Thermocouple Accuracy	Voltage Measurement Range	Voltage Output Range	Width	수량 / 장바구니
TXDIN1630718,660 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.04 mV, ± 0.008 mA	CE, RoHS	CE tested to BS EN 61326	2.5 mm	-	Screw Terminal	17.5 mm	Thermocouple, RTD, Voltage, Current	500 Vdc	90 mm	Polyimide 6.6	DIN Rail Mount	3	70 °C	-20 °C	Type: 3-wire voltage output with programmable ranges: 0 to 10, 0 to 5, 2 to 10, 1 to 5, and 0 to 1V. Output Drive: 2 mA driving 5 kΩ @ 10V. User Trim: Raise and lower buttons, active for offset when output is at offset and span, trim lock option	Dual form C relay contacts	Process	±0.1 °C	10 to 95% RH non-condensing	250 Vac @ 1 A	<500 ms	<500 ms to reach 95% of final value; start up time <3 s	Reverse connection and over-voltage protection, max over voltage current 100 mA	Gray	Windows PC Software	85 °C	-40 °C	K: 200 to 1370°C, J: -100 to 1200°C, E: -100 to 1000°C, N: -180 to 1300 °C, T:-100 to 400°C, R:-10 to 1760°C, S:-10 to 1760°C,Pt100: -200 to 850°C	Type K,J,E,N,T: ± 0.1 %, Type R,S: ± 0.5 °C	-40 to 75 mV	-	17.5 mm
TXDIN1620524,060 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.04 mV, ± 0.008 mA	CE, RoHS	CE tested to BS EN 61326	2.5 mm	±5 mV	Screw Terminal	17.5 mm	Thermocouple, RTD, Voltage, Current	500 Vdc	90 mm	Polyimide 6.6	DIN Rail Mount	3	70 °C	-20 °C	Type: 3-wire voltage output with programmable ranges: 0 to 10, 0 to 5, 2 to 10, 1 to 5, and 0 to 1V. Output Drive: 2 mA driving 5 kΩ @ 10V. User Trim: Raise and lower buttons, active for offset when output is at offset and span, trim lock option	Voltage	Process	±0.1 °C	10 to 95% RH non-condensing	N/A	<500 ms	<500 ms to reach 95% of final value; start up time <3 s	Reverse connection and over-voltage protection, max over voltage current 100 mA	Gray	Windows PC Software	85 °C	-40 °C	K: 200 to 1370°C, J: -100 to 1200°C, E: -100 to 1000°C, N: -180 to 1300 °C, T:-100 to 400°C, R:-10 to 1760°C, S:-10 to 1760°C,Pt100: -200 to 850°C	Type K,J,E,N,T: ± 0.1 %, Type R,S: ± 0.5 °C	-40 to 75 mV	0 to 10 Vdc	17.5 mm

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Approvals

Approvals Note

Cable Length

Calibration Accuracy

Electrical Connection

Height

Input Type

Isolation

Length

Materials

Mounting

Number of Inputs

Operating Temperature, Max

Operating Temperature, Min

Output Detail

Output Signal

Output Value

RTD Accuracy

Relative Humidity

Relay Output

Response Time

Response Time Note

Serial Number

Shell Color

Software

Storage Temperature, Max

Storage Temperature, Min

Temperature Measurement Range

Thermocouple Accuracy

Voltage Measurement Range

Voltage Output Range

Width

수량 / 장바구니

TXDIN1630718,660 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.04 mV, ± 0.008 mA

CE, RoHS

CE tested to BS EN 61326

2.5 mm

Screw Terminal

17.5 mm

Thermocouple, RTD, Voltage, Current

500 Vdc

90 mm

Polyimide 6.6

DIN Rail Mount

70 °C

-20 °C

Type: 3-wire voltage output with programmable ranges: 0 to 10, 0 to 5, 2 to 10, 1 to 5, and 0 to 1V. Output Drive: 2 mA driving 5 kΩ @ 10V. User Trim: Raise and lower buttons, active for offset when output is at offset and span, trim lock option

Dual form C relay contacts

Process

±0.1 °C

10 to 95% RH non-condensing

250 Vac @ 1 A

<500 ms

<500 ms to reach 95% of final value; start up time <3 s

Reverse connection and over-voltage protection, max over voltage current 100 mA

Gray

Windows PC Software

85 °C

-40 °C

K: 200 to 1370°C, J: -100 to 1200°C, E: -100 to 1000°C, N: -180 to 1300 °C, T:-100 to 400°C, R:-10 to 1760°C, S:-10 to 1760°C,Pt100: -200 to 850°C

Type K,J,E,N,T: ± 0.1 %, Type R,S: ± 0.5 °C

-40 to 75 mV

17.5 mm

TXDIN1620524,060 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.04 mV, ± 0.008 mA

CE, RoHS

CE tested to BS EN 61326

2.5 mm

±5 mV

Screw Terminal

17.5 mm

Thermocouple, RTD, Voltage, Current

500 Vdc

90 mm

Polyimide 6.6

DIN Rail Mount

70 °C

-20 °C

Voltage

Process

±0.1 °C

10 to 95% RH non-condensing

N/A

<500 ms

<500 ms to reach 95% of final value; start up time <3 s

Reverse connection and over-voltage protection, max over voltage current 100 mA

Gray

Windows PC Software

85 °C

-40 °C

K: 200 to 1370°C, J: -100 to 1200°C, E: -100 to 1000°C, N: -180 to 1300 °C, T:-100 to 400°C, R:-10 to 1760°C, S:-10 to 1760°C,Pt100: -200 to 850°C

Type K,J,E,N,T: ± 0.1 %, Type R,S: ± 0.5 °C

-40 to 75 mV

0 to 10 Vdc

17.5 mm
