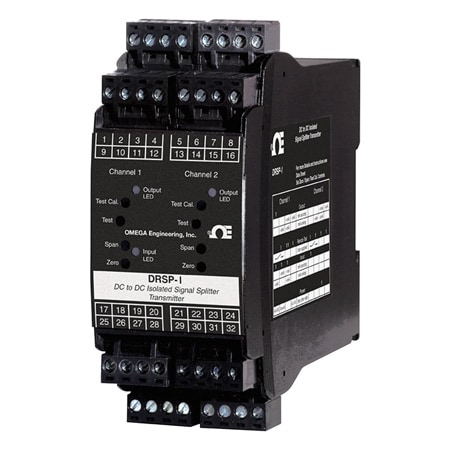

DRSP-I-Srs-DC-Splitter

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 2개의 상품

제품 번호 / 가격	Brand	CMRR	Current Measurement Range	Electrical Connection	Electrical Output	Enclosure Ratings	Height	Impedance Input	Input Range Note	Input Type	Isolation	LED Indicators	Length	Linearity	Mounting	Number of Inputs	Operating Temperature, Max	Operating Temperature, Min	Output Detail	Output Ripple	Output Signal	Output Value	Response Time	Stability	Supply Power Note	Supply Power Type	Supply Voltage	Width	Wire Gauge	수량 / 장바구니
DRSP-I1,163,440 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	120 dB minimum	4 to 20 mA	Screw Terminal	4 to 20 mA	IP40	117 mm	50 Ω typical	Input Loop Power Supply:15 Vdc ±10%, regulated, 25 mA;May be selectively wired for sinking or sourcing mA input;Loop Status LEDs: Variable brightness LEDs indicate I/O loop level and status; One for input, one for each output.	Current	Isolation (Full 4-Way Isolation):input 1, output 1, output 2, power;1200 VRMS minimum	Loop Status LEDs: Variable brightness LEDs indicate I/O loop level and status; One for input, one for each output	122 mm	Output Linearity: ±0.1% of span	DIN Rail 35 mm Standard	1	60 °C	-10 °C	(Output 1 and Output 2): 4 to 20 mA;20V compliance, 1000 Ω at 20 mA Output Zero and Span: Multi-turn zero and span potentiometers for each output channel to compensate for load and lead variations; ±15% of span adjustment range typical Output Loop Power Supplies: One for each output channel; 20 Vdc nominal, regulated, 25 mA may be selectively wired for sinking or sourcing mA output. Output Functional Test: Front buttons set each output to test level when pressed; Each test level potentiometer adjustable 0 to 100% of span	Output Ripple and Noise: <10 mVRMS	Current	Splitter	70 ms typical	±0.04% of span per °C	60 to 265 Vac, 50/60 Hz or 85 to 300 Vdc, 6 W maximum	AC	60 to 265 Vac	45 mm	14 AWG
DRSP-I-DC1,141,920 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	120 dB minimum	4 to 20 mA	Screw Terminal	4 to 20 mA	IP40	117 mm	50 Ω typical	Input Loop Power Supply:15 Vdc ±10%, regulated, 25 mA;May be selectively wired for sinking or sourcing mA input;Loop Status LEDs: Variable brightness LEDs indicate I/O loop level and status; One for input, one for each output.	Current	Isolation (Full 4-Way Isolation):input 1, output 1, output 2, power;1200 VRMS minimum	Loop Status LEDs: Variable brightness LEDs indicate I/O loop level and status; One for input, one for each output	122 mm	Output Linearity: ±0.1% of span	DIN Rail 35 mm Standard	1	60 °C	-10 °C	(Output 1 and Output 2): 4 to 20 mA;20V compliance, 1000 Ω at 20 mA Output Zero and Span: Multi-turn zero and span potentiometers for each output channel to compensate for load and lead variations; ±15% of span adjustment range typical Output Loop Power Supplies: One for each output channel; 20 Vdc nominal, regulated, 25 mA may be selectively wired for sinking or sourcing mA output. Output Functional Test: Front buttons set each output to test level when pressed; Each test level potentiometer adjustable 0 to 100% of span	Output Ripple and Noise: <10 mVRMS	Current	Splitter	70 ms typical	±0.04% of span per °C	9 to 30 Vdc or10 to 32 Vac 50/60 Hz,6 W maximum	DC	9 to 30 Vdc	45 mm	14 AWG

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

CMRR

Current Measurement Range

Electrical Connection

Electrical Output

Enclosure Ratings

Height

Impedance Input

Input Range Note

Input Type

Isolation

LED Indicators

Length

Linearity

Mounting

Number of Inputs

Operating Temperature, Max

Operating Temperature, Min

Output Detail

Output Ripple

Output Signal

Output Value

Response Time

Stability

Supply Power Note

Supply Power Type

Supply Voltage

Width

Wire Gauge

수량 / 장바구니

DRSP-I1,163,440 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

120 dB minimum

4 to 20 mA

Screw Terminal

4 to 20 mA

IP40

117 mm

50 Ω typical

Input Loop Power Supply:15 Vdc ±10%, regulated, 25 mA;May be selectively wired for sinking or sourcing mA input;Loop Status LEDs: Variable brightness LEDs indicate I/O loop level and status; One for input, one for each output.

Current

Isolation (Full 4-Way Isolation):input 1, output 1, output 2, power;1200 VRMS minimum

Loop Status LEDs: Variable brightness LEDs indicate I/O loop level and status; One for input, one for each output

122 mm

Output Linearity: ±0.1% of span

DIN Rail 35 mm Standard

60 °C

-10 °C

(Output 1 and Output 2): 4 to 20 mA;20V compliance, 1000 Ω at 20 mA Output Zero and Span: Multi-turn zero and span potentiometers for each output channel to compensate for load and lead variations; ±15% of span adjustment range typical Output Loop Power Supplies: One for each output channel; 20 Vdc nominal, regulated, 25 mA may be selectively wired for sinking or sourcing mA output. Output Functional Test: Front buttons set each output to test level when pressed; Each test level potentiometer adjustable 0 to 100% of span

Output Ripple and Noise: <10 mVRMS

Current

Splitter

70 ms typical

±0.04% of span per °C

60 to 265 Vac, 50/60 Hz or 85 to 300 Vdc, 6 W maximum

60 to 265 Vac

45 mm

14 AWG

DRSP-I-DC1,141,920 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

120 dB minimum

4 to 20 mA

Screw Terminal

4 to 20 mA

IP40

117 mm

50 Ω typical

Current

Isolation (Full 4-Way Isolation):input 1, output 1, output 2, power;1200 VRMS minimum

Loop Status LEDs: Variable brightness LEDs indicate I/O loop level and status; One for input, one for each output

122 mm

Output Linearity: ±0.1% of span

DIN Rail 35 mm Standard

60 °C

-10 °C

Output Ripple and Noise: <10 mVRMS

Current

Splitter

70 ms typical

±0.04% of span per °C

9 to 30 Vdc or10 to 32 Vac 50/60 Hz,6 W maximum

9 to 30 Vdc

45 mm

14 AWG
