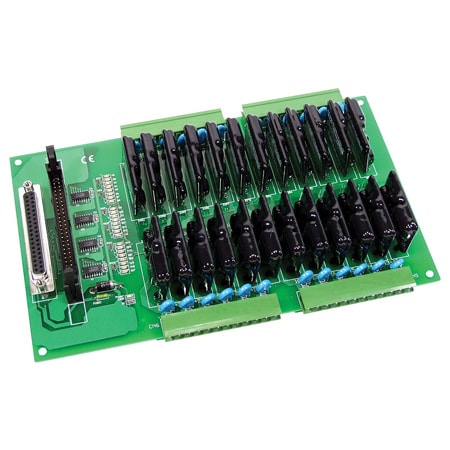

OME-DB-24SSR-series | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 4개의 상품

제품 번호 / 가격	Brand	Additional Features 1	Control Output	Cycle Time	Electrical Connection	Form factor	Height	Inrush Current	Leakage Current	Number of Channels	Operating Temperature, Max	Power Consumption	Relative Humidity	Relay Current	Storage Temperature, Max	Storage Temperature, Min	Supply Power Note	Supply Voltage	Switching Voltage	Voltage Source	Width
OME-DB-24SSR/D/DIN2,470,070 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	1 m 37-pin D-sub Cable	SSR	1 ms	1 m 37-pin D-sub Cable	DIN-Rail Mounting Kit	130 mm	50 A	5 mA	24	60 °C	+5 V @ 0.4 A	5 to 90 % RH non-condensing	4 A	70 °C	-20 °C	Repetitive Peak-off Voltage: 600 V	5 Vdc	250 Vac	50 to 250 Vac	220 mm
OME-DB-24SSR/DIN2,441,660 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	1.5 m 50-Pin Flat Cable	SSR	1 ms	1.5 m 50-Pin Flat Cable	DIN-Rail Mounting Kit	130 mm	50 A	5 mA	24	60 °C	+5 V @ 0.4 A	5 to 90 % RH non-condensing	4 A	70 °C	-20 °C	Repetitive Peak-off Voltage: 600 V	5 Vdc	250 Vac	50 to 250 Vac	220 mm
OME-DB-24SSR/D2,441,660 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	1 m 37-pin D-sub Cable	SSR	1 ms	1 m 37-pin D-sub Cable	Panel Mount	130 mm	50 A	5 mA	24	60 °C	+5 V @ 0.4 A	5 to 90 % RH non-condensing	4 A	70 °C	-20 °C	Repetitive Peak-off Voltage: 600 V	5 Vdc	250 Vac	50 to 250 Vac	220 mm
OME-DB-24SSR2,409,170 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	1.5 m 50-Pin Flat Cable	SSR	1 ms	1.5 m 50-Pin Flat Cable	Panel Mount	130 mm	50 A	5 mA	24	60 °C	+5 V @ 0.4 A	5 to 90 % RH non-condensing	4 A	70 °C	-20 °C	Repetitive Peak-off Voltage: 600 V	5 Vdc	250 Vac	50 to 250 Vac	220 mm

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Additional Features 1

Control Output

Cycle Time

Electrical Connection

Form factor

Height

Inrush Current

Leakage Current

Number of Channels

Operating Temperature, Max

Operating Temperature, Min

Power Consumption

Relative Humidity

Relay Current

Storage Temperature, Max

Storage Temperature, Min

Supply Power Note

Supply Voltage

Switching Voltage

Voltage Source

Width

수량 / 장바구니

OME-DB-24SSR/D/DIN2,470,070 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

1 m 37-pin D-sub Cable

SSR

1 ms

1 m 37-pin D-sub Cable

DIN-Rail Mounting Kit

130 mm

50 A

5 mA

60 °C

0 °C

+5 V @ 0.4 A

5 to 90 % RH non-condensing

4 A

70 °C

-20 °C

Repetitive Peak-off Voltage: 600 V

5 Vdc

250 Vac

50 to 250 Vac

220 mm

OME-DB-24SSR/DIN2,441,660 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

1.5 m 50-Pin Flat Cable

SSR

1 ms

1.5 m 50-Pin Flat Cable

DIN-Rail Mounting Kit

130 mm

50 A

5 mA

60 °C

0 °C

+5 V @ 0.4 A

5 to 90 % RH non-condensing

4 A

70 °C

-20 °C

Repetitive Peak-off Voltage: 600 V

5 Vdc

250 Vac

50 to 250 Vac

220 mm

OME-DB-24SSR/D2,441,660 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

1 m 37-pin D-sub Cable

SSR

1 ms

1 m 37-pin D-sub Cable

Panel Mount

130 mm

50 A

5 mA

60 °C

0 °C

+5 V @ 0.4 A

5 to 90 % RH non-condensing

4 A

70 °C

-20 °C

Repetitive Peak-off Voltage: 600 V

5 Vdc

250 Vac

50 to 250 Vac

220 mm

OME-DB-24SSR2,409,170 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

1.5 m 50-Pin Flat Cable

SSR

1 ms

1.5 m 50-Pin Flat Cable

Panel Mount

130 mm

50 A

5 mA

60 °C

0 °C

+5 V @ 0.4 A

5 to 90 % RH non-condensing

4 A

70 °C

-20 °C

Repetitive Peak-off Voltage: 600 V

5 Vdc

250 Vac

50 to 250 Vac

220 mm
