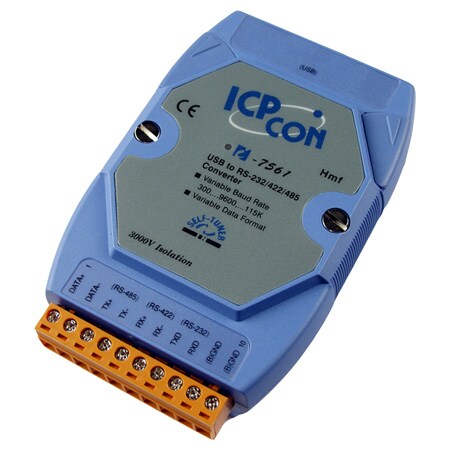

I-7561-Series | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 1개의 상품

제품 번호 / 가격	Brand	Baud Rate	Baud Rate Note	Cable Length	Cable Note	Cable Type	Compliance	Data Interface	Data Interface Note	Height	Input Cable Connector Type	Input Type	Isolation	LED Indicators	Length	Materials	Mounting	Number of Channels	Operating Temperature, Max	Operating Temperature, Min	Output Cable Connector Type	Power Consumption	Relative Humidity	Self Tuner	Storage Temperature, Max	Storage Temperature, Min	Supply Power Type	Supply Voltage	Supported Devices	Transmission Distance	Width	수량 / 장바구니
I-7561375,930 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	300 to 115200	Max. 1,200 m for at speed 9.6 kbps; Max. 400 m at 115.2 kbps	6 ft	Belden 8941 (2P twisted-pair cable)/Belden 8942 (4P twisted-pair cable), if different cables are used, the transmission distance may change.	2P Twisted-Pair Cable, 4P Twisted-Pair Cable	UL94-V0	RS232, RS422, RS485	RS232: TxD, RxD, GND, TxD+, RS422: TxD-, RxD+, RxD-, RS485: Data+, Data-	4.8 in	RS232 / RS422 / RS485: 10 - Pins Terminal Block, Removable	USB	Three Way Protection: 3000 Vdc	Power LED	1.5 in	ABS	DIN-Rail Mounting	1	75 °C	-25 °C	USB: Type B	0.8 W	10 to 90% RH, Non-Condensing	Yes, Asic Inside	75 °C	-30 °C	DC	5 Vdc	256 (Without repeater)	4000 ft	2.83 in

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Baud Rate

Baud Rate Note

Cable Length

Cable Note

Cable Type

Compliance

Data Interface

Data Interface Note

Height

Input Cable Connector Type

Input Type

Isolation

LED Indicators

Length

Materials

Mounting

Number of Channels

Operating Temperature, Max

Operating Temperature, Min

Output Cable Connector Type

Power Consumption

Relative Humidity

Self Tuner

Storage Temperature, Max

Storage Temperature, Min

Supply Power Type

Supply Voltage

Supported Devices

Transmission Distance

Width

수량 / 장바구니

I-7561375,930 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

300 to 115200

Max. 1,200 m for at speed 9.6 kbps; Max. 400 m at 115.2 kbps

6 ft

Belden 8941 (2P twisted-pair cable)/Belden 8942 (4P twisted-pair cable), if different cables are used, the transmission distance may change.

2P Twisted-Pair Cable, 4P Twisted-Pair Cable

UL94-V0

RS232, RS422, RS485

RS232: TxD, RxD, GND, TxD+, RS422: TxD-, RxD+, RxD-, RS485: Data+, Data-

4.8 in

RS232 / RS422 / RS485: 10 - Pins Terminal Block, Removable

USB

Three Way Protection: 3000 Vdc

Power LED

1.5 in

ABS

DIN-Rail Mounting

75 °C

-25 °C

USB: Type B

0.8 W

10 to 90% RH, Non-Condensing

Yes, Asic Inside

75 °C

-30 °C

5 Vdc

256 (Without repeater)

4000 ft

2.83 in
