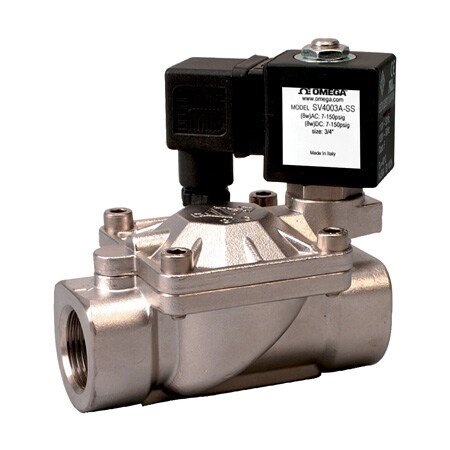

2-웨이, NO, NC, 파일럿 작동식, 온수/스팀 솔레노이드 밸브
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 9개의 상품
| 제품 번호 / 가격 | Brand | Close Response Time | Coil Molding Material | Coil Power | Cv Factor | Cycling Rate | Duty Cycle | Enclosure Ratings | Materials | Materials, Wetted | Media Compatibility | Media Type | Mounting | Open Response Time | Operating Pressure Note | Operating Pressure, Max | Operating Pressure, Min | Orifice Size | Process Connection Size | Process Connection Type | Process Temperature, Max | Process Temperature, Min | Valve Position | Valve Type | Voltage Tolerance | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SV4004A-SS1,925,650 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 200 to 1200 ms | Black Polyphenylensulphide (Class H): SV8COIL-115/60 HZ, SV8COIL-220/60 HZ Black Epoxy Resin (Class H): All 14 W coils, NEMA 4 | 8 W | 9 gal/min | 1000 cpm | 100% | NEMA Type 4 | 316 Stainless Steel, PTFE, Stainless Steel 300, Stainless Steel 400, Gold-Plated Copper | 316 Stainless Steel, Copper, PTFE, Stainless Steel | Hot Water, Steam | N/A | Any (preferably with solenoid system upright) | 100 to 200 ms | AC 150 psi, DC 150 psi | 150 psi | 7 psi | 1 in | 1 in | NPT Male | 182 °C | 60 °C | Normally Closed | Pilot Operated | ±10% | |
SV4004A-NO1,112,040 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 200 to 1200 ms | Black Polyphenylensulphide (Class H): SV8COIL-115/60 HZ, SV8COIL-220/60 HZ Black Epoxy Resin (Class H): All 14 W coils, NEMA 4 | 8 W | 11.08 gal/min | 1000 cpm | 100% | NEMA Type 4 | Brass, PTFE, Stainless Steel 300, Stainless Steel 400, Copper | Brass, Copper, PTFE, Stainless Steel | Hot Water, Steam | N/A | Any (preferably with solenoid system upright) | 100 to 200 ms | AC 150 psi, DC 150 psi | 150 psi | 7 psi | 1 in | 1 in | NPT Male | 182 °C | 60 °C | Normally Open | Pilot Operated | ±10% | |
SV4003A-SS1,925,650 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 200 to 1200 ms | Black Polyphenylensulphide (Class H): SV8COIL-115/60 HZ, SV8COIL-220/60 HZ Black Epoxy Resin (Class H): All 14 W coils, NEMA 4 | 8 W | 8 gal/min | 1000 cpm | 100% | NEMA Type 4 | 316 Stainless Steel, PTFE, Stainless Steel 300, Stainless Steel 400, Gold-Plated Copper | 316 Stainless Steel, Copper, PTFE, Stainless Steel | Hot Water, Steam | N/A | Any (preferably with solenoid system upright) | 100 to 200 ms | AC 150 psi, DC 150 psi | 150 psi | 7 psi | 3/4 in | 3/4 in | NPT Male | 182 °C | 60 °C | Normally Closed | Pilot Operated | ±10% | |
SV4002A-SS1,261,580 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 200 to 1200 ms | Black Polyphenylensulphide (Class H): SV8COIL-115/60 HZ, SV8COIL-220/60 HZ Black Epoxy Resin (Class H): All 14 W coils, NEMA 4 | 8 W | 2.4 gal/min | 1000 cpm | 100% | NEMA Type 4 | 316 Stainless Steel, PTFE, Stainless Steel 300, Stainless Steel 400, Gold-Plated Copper | 316 Stainless Steel, Copper, PTFE, Stainless Steel | Hot Water, Steam | N/A | Any (preferably with solenoid system upright) | 100 to 200 ms | AC 150 psi, DC 150 psi | 150 psi | 7 psi | 7/16 in | 1/2 in | NPT Male | 182 °C | 60 °C | Normally Closed | Pilot Operated | ±10% | |
SV4003A-NO1,051,310 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 200 to 1200 ms | Black Polyphenylensulphide (Class H): SV8COIL-115/60 HZ, SV8COIL-220/60 HZ Black Epoxy Resin (Class H): All 14 W coils, NEMA 4 | 8 W | 6.2 gal/min | 1000 cpm | 100% | NEMA Type 4 | Brass, PTFE, Stainless Steel 300, Stainless Steel 400, Copper | Brass, Copper, PTFE, Stainless Steel | Hot Water, Steam | N/A | Any (preferably with solenoid system upright) | 100 to 200 ms | AC 150 psi, DC 150 psi | 150 psi | 7 psi | 3/4 in | 3/4 in | NPT Male | 182 °C | 60 °C | Normally Open | Pilot Operated | ±10% | |
SV4002A-NO951,710 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 200 to 1200 ms | Black Polyphenylensulphide (Class H): SV8COIL-115/60 HZ, SV8COIL-220/60 HZ Black Epoxy Resin (Class H): All 14 W coils, NEMA 4 | 8 W | 3.4 gal/min | 1000 cpm | 100% | NEMA Type 4 | Brass, PTFE, Stainless Steel 300, Stainless Steel 400, Copper | Brass, Copper, PTFE, Stainless Steel | Hot Water, Steam | N/A | Any (preferably with solenoid system upright) | 100 to 200 ms | AC 150 psi, DC 150 psi | 150 psi | 7 psi | 7/16 in | 1/2 in | NPT Male | 182 °C | 60 °C | Normally Open | Pilot Operated | ±10% | |
SV4004A929,600 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 200 to 1200 ms | Black Polyphenylensulphide (Class H): SV8COIL-115/60 HZ, SV8COIL-220/60 HZ Black Epoxy Resin (Class H): All 14 W coils, NEMA 4 | 8 W | 11.08 gal/min | 1000 cpm | 100% | NEMA Type 4 | Brass, PTFE, Stainless Steel 300, Stainless Steel 400, Copper | Brass, Copper, PTFE, Stainless Steel | Hot Water, Steam | N/A | Any (preferably with solenoid system upright) | 100 to 200 ms | AC 150 psi, DC 150 psi | 150 psi | 7 psi | 1 in | 1 in | NPT Male | 182 °C | 60 °C | Normally Closed | Pilot Operated | ±10% | |
SV4003A807,880 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 200 to 1200 ms | Black Polyphenylensulphide (Class H): SV8COIL-115/60 HZ, SV8COIL-220/60 HZ Black Epoxy Resin (Class H): All 14 W coils, NEMA 4 | 8 W | 6.2 gal/min | 1000 cpm | 100% | NEMA Type 4 | Brass, PTFE, Stainless Steel 300, Stainless Steel 400, Copper | Brass, Copper, PTFE, Stainless Steel | Hot Water, Steam | N/A | Any (preferably with solenoid system upright) | 100 to 200 ms | AC 150 psi, DC 150 psi | 150 psi | 7 psi | 3/4 in | 3/4 in | NPT Male | 182 °C | 60 °C | Normally Closed | Pilot Operated | ±10% | |
SV4002A608,690 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 200 to 1200 ms | Black Polyphenylensulphide (Class H): SV8COIL-115/60 HZ, SV8COIL-220/60 HZ Black Epoxy Resin (Class H): All 14 W coils, NEMA 4 | 8 W | 3.4 gal/min | 1000 cpm | 100% | NEMA Type 4 | Brass, PTFE, Stainless Steel 300, Stainless Steel 400, Copper | Brass, Copper, PTFE, Stainless Steel | Hot Water, Steam | N/A | Any (preferably with solenoid system upright) | 100 to 200 ms | AC 150 psi, DC 150 psi | 150 psi | 7 psi | 7/16 in | 1/2 in | NPT Male | 182 °C | 60 °C | Normally Closed | Pilot Operated | ±10% |
