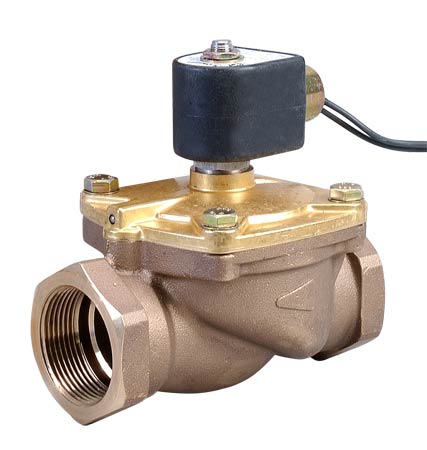

SV280-Series | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 5개의 상품

제품 번호 / 가격	Brand	Additional Features 1	Close Response Time	Coil Power	Cv Factor	Enclosure Ratings	Materials	Materials, Wetted	Media Compatibility	Media Type	Mounting	Open Response Time	Operating Pressure, Max	Operating Pressure, Min	Operating Temperature, Max	Operating Temperature, Min	Orifice Size	Process Connection Size	Process Connection Type	Process Temperature, Max	Static Pressure	Supply Power Note	Supply Voltage	Valve Position	Valve Type
SV2872,672,490 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Slow Closing	1.5 to 9.5 s	10 W	38.6 gal/min	IP65, NEMA Type 4	Brass, Nitrile Rubber	Brass, Buna-N (NBR), Copper, Stainless Steel	Water	N/A	Pipe mounting, any direction	0.25 to 0.45 s	230 psi	5 psi	50 °C	-9 °C	1 9/16 in	2 in	NPT Male	85 °C	5 times max psid	10 W, 120 Vac, Class F	120 Vac	Normally Closed	Pilot Operated
SV2862,334,920 원19 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Slow Closing	1.5 to 9.0 s	10 W	29 gal/min	IP65, NEMA Type 4	Brass, Nitrile Rubber	Brass, Buna-N (NBR), Copper, Stainless Steel	Water	N/A	Pipe mounting, any direction	0.2 to 0.4 s	230 psi	5 psi	50 °C	-9 °C	1 9/16 in	1 1/2 in	NPT Male	85 °C	5 times max psid	10 W, 120 Vac, Class F	120 Vac	Normally Closed	Pilot Operated
SV284가격 문의33 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Slow Closing	0.5 to 4.5 s	10 W	12.5 gal/min	IP65, NEMA Type 4	Brass, Nitrile Rubber	Brass, Buna-N (NBR), Copper, Stainless Steel	Water	N/A	Pipe mounting, any direction	0.1 to 0.25 s	230 psi	5 psi	50 °C	-9 °C	1 in	1 in	NPT Male	85 °C	5 times max psid	10 W, 120 Vac, Class F	120 Vac	Normally Closed	Pilot Operated
SV282726,150 원16 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Slow Closing	0.850 s	10 W	2.5 gal/min	IP65, NEMA Type 4	Brass, Nitrile Rubber	Brass, Buna-N (NBR), Copper, Stainless Steel	Water	N/A	Pipe mounting, any direction	0.015 s	150 psi	3 psi	50 °C	-9 °C	7/16 in	1/2 in	NPT Male	85 °C	5 times max psid	10 W, 120 Vac, Class F	120 Vac	Normally Closed	Pilot Operated
SV283936,980 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Slow Closing	0.6 to 4.5 s	10 W	9.6 gal/min	IP65, NEMA Type 4	Brass, Nitrile Rubber	Brass, Buna-N (NBR), Copper, Stainless Steel	Water	N/A	Pipe mounting, any direction	0.1 to 0.25 s	230 psi	5 psi	50 °C	-9 °C	3/4 in	3/4 in	NPT Male	85 °C	5 times max psid	10 W, 120 Vac, Class F	120 Vac	Normally Closed	Pilot Operated

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Additional Features 1

Close Response Time

Coil Power

Cv Factor

Enclosure Ratings

Materials

Materials, Wetted

Media Compatibility

Media Type

Mounting

Open Response Time

Operating Pressure, Max

Operating Pressure, Min

Operating Temperature, Max

Operating Temperature, Min

Orifice Size

Process Connection Size

Process Connection Type

Process Temperature, Max

Static Pressure

Supply Power Note

Supply Voltage

Valve Position

Valve Type

수량 / 장바구니

SV2872,672,490 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Slow Closing

1.5 to 9.5 s

10 W

38.6 gal/min

IP65, NEMA Type 4

Brass, Nitrile Rubber

Brass, Buna-N (NBR), Copper, Stainless Steel

Water

N/A

Pipe mounting, any direction

0.25 to 0.45 s

230 psi

5 psi

50 °C

-9 °C

1 9/16 in

2 in

NPT Male

85 °C

5 times max psid

10 W, 120 Vac, Class F

120 Vac

Normally Closed

Pilot Operated

SV2862,334,920 원19 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Slow Closing

1.5 to 9.0 s

10 W

29 gal/min

IP65, NEMA Type 4

Brass, Nitrile Rubber

Brass, Buna-N (NBR), Copper, Stainless Steel

Water

N/A

Pipe mounting, any direction

0.2 to 0.4 s

230 psi

5 psi

50 °C

-9 °C

1 9/16 in

1 1/2 in

NPT Male

85 °C

5 times max psid

10 W, 120 Vac, Class F

120 Vac

Normally Closed

Pilot Operated

SV284가격 문의33 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Slow Closing

0.5 to 4.5 s

10 W

12.5 gal/min

IP65, NEMA Type 4

Brass, Nitrile Rubber

Brass, Buna-N (NBR), Copper, Stainless Steel

Water

N/A

Pipe mounting, any direction

0.1 to 0.25 s

230 psi

5 psi

50 °C

-9 °C

1 in

NPT Male

85 °C

5 times max psid

10 W, 120 Vac, Class F

120 Vac

Normally Closed

Pilot Operated

SV282726,150 원16 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Slow Closing

0.850 s

10 W

2.5 gal/min

IP65, NEMA Type 4

Brass, Nitrile Rubber

Brass, Buna-N (NBR), Copper, Stainless Steel

Water

N/A

Pipe mounting, any direction

0.015 s

150 psi

3 psi

50 °C

-9 °C

7/16 in

1/2 in

NPT Male

85 °C

5 times max psid

10 W, 120 Vac, Class F

120 Vac

Normally Closed

Pilot Operated

SV283936,980 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Slow Closing

0.6 to 4.5 s

10 W

9.6 gal/min

IP65, NEMA Type 4

Brass, Nitrile Rubber

Brass, Buna-N (NBR), Copper, Stainless Steel

Water

N/A

Pipe mounting, any direction

0.1 to 0.25 s

230 psi

5 psi

50 °C

-9 °C

3/4 in

NPT Male

85 °C

5 times max psid

10 W, 120 Vac, Class F

120 Vac

Normally Closed

Pilot Operated
