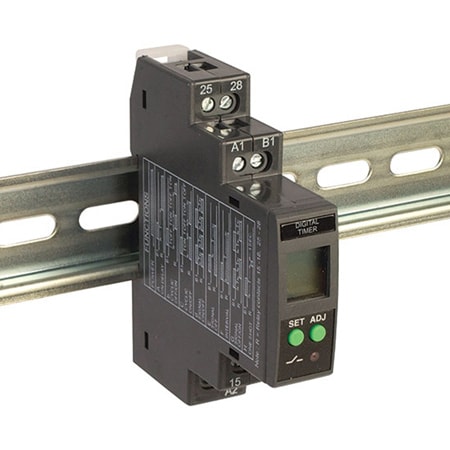

AU-AMT-Series | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 4개의 상품

제품 번호 / 가격	Brand	Accuracy	Contact Rating	Control Output	Display Type	Electrical Life	Enclosure Ratings	Form factor	Frequency	Height	Length	Measurement Type	Mechanical Life	Number of Relays	Number of Timer Functions	Operating Temperature, Max	Operating Temperature, Min	Power Consumption	Reset	Samples,Max	Screw Terminal Torque	Storage Temperature, Max	Storage Temperature, Min	Supply Power Type	Supply Voltage	Terminal Protection	Timer Range	Weight	Width	Wire Gauge
AU-AMT12-S1209,800 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	8A @ 240 Vac/24 Vdc (resistive)	2 NO	3 Digit Display	10,000 switching cycles	IP30	DIN Rail	50/60 Hz	89 mm	76 mm	Time	2,000,000 switching cycles	1	18	55 °C	-10 °C	10 VA	200 ms	1 Hz	0.40 Nm	65 °C	-20 °C	AC/DC	24 to 265 Vac/Vdc	IP29	0.1 second to 999 hours	85 g	17.5 mm	22 to 14 AWG
AU-AMT12-D2209,800 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	8A @ 240 Vac/24 Vdc (resistive)	NO/NC	3 Digit Display	10,000 switching cycles	IP30	DIN Rail	50/60 Hz	89 mm	76 mm	Time	2,000,000 switching cycles	1	18	55 °C	-10 °C	10 VA	200 ms	1 Hz	0.40 Nm	65 °C	-20 °C	AC/DC	24 to 265 Vac/Vdc	IP29	0.1 second to 999 hours	85 g	17.5 mm	22 to 14 AWG
AU-AMT8-D2184,090 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	8A @ 240 Vac/24 Vdc (resistive)	NO/NC	3 Digit Display	10,000 switching cycles	IP30	DIN Rail	50/60 Hz	89 mm	76 mm	Time	2,000,000 switching cycles	1	8	55 °C	-10 °C	10 VA	200 ms	1 Hz	0.40 Nm	65 °C	-20 °C	AC/DC	24 to 265 Vac/Vdc	IP29	0.1 second to 999 hours	85 g	17.5 mm	22 to 14 AWG
AU-AMT8-S1184,090 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.5 %	8A @ 240 Vac/24 Vdc (resistive)	2 NO	3 Digit Display	10,000 switching cycles	IP30	DIN Rail	50/60 Hz	89 mm	76 mm	Time	2,000,000 switching cycles	1	8	55 °C	-10 °C	10 VA	200 ms	1 Hz	0.40 Nm	65 °C	-20 °C	AC/DC	24 to 265 Vac/Vdc	IP29	0.1 second to 999 hours	85 g	17.5 mm	22 to 14 AWG

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Contact Rating

Control Output

Display Type

Electrical Life

Enclosure Ratings

Form factor

Frequency

Height

Length

Measurement Type

Mechanical Life

Number of Relays

Number of Timer Functions

Operating Temperature, Max

Operating Temperature, Min

Power Consumption

Reset

Samples,Max

Screw Terminal Torque

Storage Temperature, Max

Storage Temperature, Min

Supply Power Type

Supply Voltage

Terminal Protection

Timer Range

Weight

Width

Wire Gauge

수량 / 장바구니

AU-AMT12-S1209,800 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

8A @ 240 Vac/24 Vdc (resistive)

2 NO

3 Digit Display

10,000 switching cycles

IP30

DIN Rail

50/60 Hz

89 mm

76 mm

Time

2,000,000 switching cycles

55 °C

-10 °C

10 VA

200 ms

1 Hz

0.40 Nm

65 °C

-20 °C

AC/DC

24 to 265 Vac/Vdc

IP29

0.1 second to 999 hours

85 g

17.5 mm

22 to 14 AWG

AU-AMT12-D2209,800 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

8A @ 240 Vac/24 Vdc (resistive)

NO/NC

3 Digit Display

10,000 switching cycles

IP30

DIN Rail

50/60 Hz

89 mm

76 mm

Time

2,000,000 switching cycles

55 °C

-10 °C

10 VA

200 ms

1 Hz

0.40 Nm

65 °C

-20 °C

AC/DC

24 to 265 Vac/Vdc

IP29

0.1 second to 999 hours

85 g

17.5 mm

22 to 14 AWG

AU-AMT8-D2184,090 원12 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

8A @ 240 Vac/24 Vdc (resistive)

NO/NC

3 Digit Display

10,000 switching cycles

IP30

DIN Rail

50/60 Hz

89 mm

76 mm

Time

2,000,000 switching cycles

55 °C

-10 °C

10 VA

200 ms

1 Hz

0.40 Nm

65 °C

-20 °C

AC/DC

24 to 265 Vac/Vdc

IP29

0.1 second to 999 hours

85 g

17.5 mm

22 to 14 AWG

AU-AMT8-S1184,090 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.5 %

8A @ 240 Vac/24 Vdc (resistive)

2 NO

3 Digit Display

10,000 switching cycles

IP30

DIN Rail

50/60 Hz

89 mm

76 mm

Time

2,000,000 switching cycles

55 °C

-10 °C

10 VA

200 ms

1 Hz

0.40 Nm

65 °C

-20 °C

AC/DC

24 to 265 Vac/Vdc

IP29

0.1 second to 999 hours

85 g

17.5 mm

22 to 14 AWG
