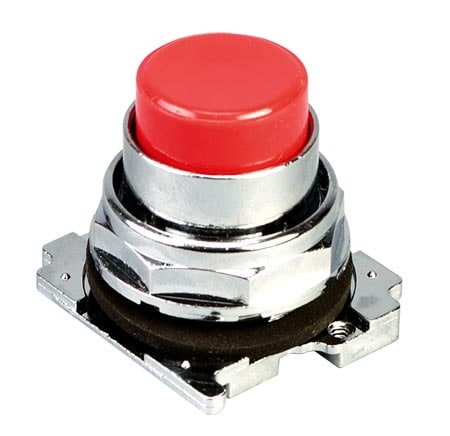

헤비듀티 30.5mm 메탈 푸시 버튼, 접점 블록/라벨 플레이트
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 66개의 상품 · 1 - 20 표시
| 제품 번호 / 가격 | Brand | Accessory Type | Additional Features 1 | Altitude | Approvals | Color Options | Contact Blocks | Current, Max | Electrical Rating | Enclosure Ratings | Mechanical Life | Mounting Torque (Front-of-Panel) | Operating Forces (Front-of-Panel) | Operating Temperature, Max | Operating Temperature, Min | Pushbutton Material | Pushbutton Size | Relative Humidity, Max | Source of Light | Storage Temperature, Max | Storage Temperature, Min | Supply Voltage | Switch Operation | Switch Type | Voltage, Max | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
10250T17213217,610 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Momentary Pushbutton operators | E-Stop mushroom operator | 2000 m | CE EN60947-5-1 UL 508: File No. 131568 CSA C22.2 No. 14: File No. LR68551 | N/A | N/A | 0.5 A | Ui = 660 Vac or Vdc | IP65, NEMA Type 1, NEMA Type 12, NEMA Type 13, NEMA Type 2, NEMA Type 3, NEMA Type 3R, NEMA Type 4, NEMA Type 4X | 10 x 10⁶ operations | N/A | N/A | 66 °C | -17 °C | N/A | N/A | 95% RH @ 60°C (140°F) | N/A | 80 °C | -40 °C | N/A | Momentary | Emergency Stop, Jumbo Operator | 120 Vac/Vdc | |
10250T15112282,720 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 2 Position Selector Switch | 2-position maintained selector switch, keyed | 2000 m | CE EN60947-5-1 UL 508: File No. 131568 CSA C22.2 No. 14: File No. LR68551 | N/A | N/A | 0.5 A | Ui = 660 Vac or Vdc | IP65, NEMA Type 1, NEMA Type 12, NEMA Type 13, NEMA Type 2, NEMA Type 3, NEMA Type 3R, NEMA Type 4, NEMA Type 4X | 0.25 x 10⁶ operations | N/A | N/A | 66 °C | -17 °C | N/A | N/A | 95% RH @ 60°C (140°F) | N/A | 80 °C | -40 °C | N/A | Keyed | General | 120 Vac/Vdc | |
10250TC19N22,690 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Lens for Indicating Lights | Amber, plastic (for indicating lights) | 2000 m | CE EN60947-5-1 UL 508: File No. 131568 CSA C22.2 No. 14: File No. LR68551 | Amber | N/A | 0.5 A | Ui = 660 Vac or Vdc | IP65, NEMA Type 1, NEMA Type 12, NEMA Type 13, NEMA Type 2, NEMA Type 3, NEMA Type 3R, NEMA Type 3s, NEMA Type 4, NEMA Type 4X | 10 x 10⁶ operations | N/A | N/A | 66 °C | -17 °C | Plastic | N/A | 95% RH @ 60°C (140°F) | N/A | 80 °C | -40 °C | N/A | N/A | General | 120 Vac/Vdc | |
10250TC15N40,780 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Lens for Indicating Lights | Amber, glass (for PresTest or illuminated pushbuttons) | 2000 m | CE EN60947-5-1 UL 508: File No. 131568 CSA C22.2 No. 14: File No. LR68551 | Amber | N/A | 0.5 A | Ui = 660 Vac or Vdc | IP65, NEMA Type 1, NEMA Type 12, NEMA Type 13, NEMA Type 2, NEMA Type 3, NEMA Type 3R, NEMA Type 3s, NEMA Type 4, NEMA Type 4X | 10 x 10⁶ operations | N/A | N/A | 66 °C | -17 °C | Glass | N/A | 95% RH @ 60°C (140°F) | N/A | 80 °C | -40 °C | N/A | Press-test, Pushbutton | General | 120 Vac/Vdc | |
10250TC13N40,780 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Lens for Indicating Lights | Red, glass (for PresTest or illuminated pushbuttons) | 2000 m | CE EN60947-5-1 UL 508: File No. 131568 CSA C22.2 No. 14: File No. LR68551 | Red | N/A | 0.5 A | Ui = 660 Vac or Vdc | IP65, NEMA Type 1, NEMA Type 12, NEMA Type 13, NEMA Type 2, NEMA Type 3, NEMA Type 3R, NEMA Type 3s, NEMA Type 4, NEMA Type 4X | 10 x 10⁶ operations | N/A | N/A | 66 °C | -17 °C | Glass | N/A | 95% RH @ 60°C (140°F) | N/A | 80 °C | -40 °C | N/A | Press-test, Pushbutton | General | 120 Vac/Vdc | |
10250TC14N40,780 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Lens for Indicating Lights | Green, glass (for PresTest or illuminated pushbuttons) | 2000 m | CE EN60947-5-1 UL 508: File No. 131568 CSA C22.2 No. 14: File No. LR68551 | Green | N/A | 0.5 A | Ui = 660 Vac or Vdc | IP65, NEMA Type 1, NEMA Type 12, NEMA Type 13, NEMA Type 2, NEMA Type 3, NEMA Type 3R, NEMA Type 3s, NEMA Type 4, NEMA Type 4X | 10 x 10⁶ operations | N/A | N/A | 66 °C | -17 °C | Glass | N/A | 95% RH @ 60°C (140°F) | N/A | 80 °C | -40 °C | N/A | Press-test, Pushbutton | General | 120 Vac/Vdc | |
10250TC12N40,780 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Lens for Indicating Lights | White, glass (for indicating lights) | 2000 m | CE EN60947-5-1 UL 508: File No. 131568 CSA C22.2 No. 14: File No. LR68551 | White | N/A | 0.5 A | Ui = 660 Vac or Vdc | IP65, NEMA Type 1, NEMA Type 12, NEMA Type 13, NEMA Type 2, NEMA Type 3, NEMA Type 3R, NEMA Type 3s, NEMA Type 4, NEMA Type 4X | 10 x 10⁶ operations | N/A | N/A | 66 °C | -17 °C | Glass | N/A | 95% RH @ 60°C (140°F) | N/A | 80 °C | -40 °C | N/A | N/A | General | 120 Vac/Vdc | |
10250T3023118,110 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 3 Position Selector Switch | 3-position maintained selector switch, lever | 2000 m | CE EN60947-5-1 UL 508: File No. 131568 CSA C22.2 No. 14: File No. LR68551 | N/A | N/A | 0.5 A | Ui = 660 Vac or Vdc | IP65, NEMA Type 1, NEMA Type 12, NEMA Type 13, NEMA Type 2, NEMA Type 3, NEMA Type 3R, NEMA Type 4, NEMA Type 4X | 0.25 x 10⁶ operations | N/A | N/A | 66 °C | -17 °C | N/A | N/A | 95% RH @ 60°C (140°F) | N/A | 80 °C | -40 °C | N/A | Lever | General | 120 Vac/Vdc | |
10250T3011118,110 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 2 Position Selector Switch | 2-position maintained selector switch, lever | 2000 m | CE EN60947-5-1 UL 508: File No. 131568 CSA C22.2 No. 14: File No. LR68551 | N/A | N/A | 0.5 A | Ui = 660 Vac or Vdc | IP65, NEMA Type 1, NEMA Type 12, NEMA Type 13, NEMA Type 2, NEMA Type 3, NEMA Type 3R, NEMA Type 4, NEMA Type 4X | 0.25 x 10⁶ operations | N/A | N/A | 66 °C | -17 °C | N/A | N/A | 95% RH @ 60°C (140°F) | N/A | 80 °C | -40 °C | N/A | Lever | General | 120 Vac/Vdc | |
10250T231N322,670 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Indicating Lights | Pres-test 120V full voltage/resistor type, no lens | 2000 m | CE EN60947-5-1 UL 508: File No. 131568 CSA C22.2 No. 14: File No. LR68551 | N/A | N/A | 0.5 A | Ui = 660 Vac or Vdc | IP65, NEMA Type 1, NEMA Type 12, NEMA Type 13, NEMA Type 2, NEMA Type 3, NEMA Type 3R, NEMA Type 4, NEMA Type 4X | 10 x 10⁶ operations | N/A | N/A | 66 °C | -17 °C | N/A | N/A | 95% RH @ 60°C (140°F) | Resistor/Direct Lamp | 80 °C | -40 °C | 120 Vac | Press-test | General | 120 Vac/Vdc | |
10250T221N381,830 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Indicating Lights | Pres-test 120V transformer type, no lens | 2000 m | CE EN60947-5-1 UL 508: File No. 131568 CSA C22.2 No. 14: File No. LR68551 | N/A | N/A | 0.5 A | Ui = 660 Vac or Vdc | IP65, NEMA Type 1, NEMA Type 12, NEMA Type 13, NEMA Type 2, NEMA Type 3, NEMA Type 3R, NEMA Type 4, NEMA Type 4X | 10 x 10⁶ operations | N/A | N/A | 66 °C | -17 °C | N/A | N/A | 95% RH @ 60°C (140°F) | Transformer lamp | 80 °C | -40 °C | 120 Vac | Press-test | General | 120 Vac/Vdc | |
10250T21LB216,530 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Common Complete Devices | H-O-A switch (black lever switch comes with 2 NO/2 NC contact blocks) | 2000 m | CE EN60947-5-1 UL 508: File No. 131568 CSA C22.2 No. 14: File No. LR68551 | N/A | 2 NO/NC Contact | 0.5 A | Ui = 660 Vac or Vdc | IP65, NEMA Type 1, NEMA Type 12, NEMA Type 13, NEMA Type 2, NEMA Type 3, NEMA Type 3R, NEMA Type 4, NEMA Type 4X | 10 x 10⁶ operations | N/A | N/A | 66 °C | -17 °C | N/A | N/A | 95% RH @ 60°C (140°F) | N/A | 80 °C | -40 °C | N/A | N/A | H-O-A | 120 Vac/Vdc | |
10250T201N206,300 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Indicating Lights | 120V full voltage/resistor type, no lens | 2000 m | CE EN60947-5-1 UL 508: File No. 131568 CSA C22.2 No. 14: File No. LR68551 | N/A | N/A | 0.5 A | Ui = 660 Vac or Vdc | IP65, NEMA Type 1, NEMA Type 12, NEMA Type 13, NEMA Type 2, NEMA Type 3, NEMA Type 3R, NEMA Type 4, NEMA Type 4X | 10 x 10⁶ operations | N/A | N/A | 66 °C | -17 °C | N/A | N/A | 95% RH @ 60°C (140°F) | Resistor/Direct Lamp | 80 °C | -40 °C | 120 Vac | N/A | General | 120 Vac/Vdc | |
10250T20LB257,530 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Common Complete Devices | On/Off switch (black knob switch comes with NO/NC contact block) | 2000 m | CE EN60947-5-1 UL 508: File No. 131568 CSA C22.2 No. 14: File No. LR68551 | N/A | NO/NC Contact | 0.5 A | Ui = 660 Vac or Vdc | IP65, NEMA Type 1, NEMA Type 12, NEMA Type 13, NEMA Type 2, NEMA Type 3, NEMA Type 3R, NEMA Type 4, NEMA Type 4X | 10 x 10⁶ operations | N/A | N/A | 66 °C | -17 °C | N/A | N/A | 95% RH @ 60°C (140°F) | N/A | 80 °C | -40 °C | N/A | N/A | On/Off switch | 120 Vac/Vdc | |
10250T181N288,660 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Indicating Lights | 120V transformer type, no lens | 2000 m | CE EN60947-5-1 UL 508: File No. 131568 CSA C22.2 No. 14: File No. LR68551 | N/A | N/A | 0.5 A | Ui = 660 Vac or Vdc | IP65, NEMA Type 1, NEMA Type 12, NEMA Type 13, NEMA Type 2, NEMA Type 3, NEMA Type 3R, NEMA Type 4, NEMA Type 4X | 10 x 10⁶ operations | N/A | N/A | 66 °C | -17 °C | N/A | N/A | 95% RH @ 60°C (140°F) | Transformer lamp | 80 °C | -40 °C | 120 Vac | N/A | General | 120 Vac/Vdc | |
10250T1323118,110 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 3 Position Selector Switch | - | 2000 m | CE EN60947-5-1 UL 508: File No. 131568 CSA C22.2 No. 14: File No. LR68551 | N/A | N/A | 0.5 A | Ui = 660 Vac or Vdc | IP65, NEMA Type 1, NEMA Type 12, NEMA Type 13, NEMA Type 2, NEMA Type 3, NEMA Type 3R, NEMA Type 4, NEMA Type 4X | 0.25 x 10⁶ operations | N/A | N/A | 66 °C | -17 °C | N/A | N/A | 95% RH @ 60°C (140°F) | N/A | 80 °C | -40 °C | N/A | Knob | General | 120 Vac/Vdc | |
10250T1311100,250 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 2 Position Selector Switch | 2-position maintained selector switch, knob | 2000 m | CE EN60947-5-1 UL 508: File No. 131568 CSA C22.2 No. 14: File No. LR68551 | N/A | N/A | 0.5 A | Ui = 660 Vac or Vdc | IP65, NEMA Type 1, NEMA Type 12, NEMA Type 13, NEMA Type 2, NEMA Type 3, NEMA Type 3R, NEMA Type 4, NEMA Type 4X | 0.25 x 10⁶ operations | N/A | N/A | 66 °C | -17 °C | N/A | N/A | 95% RH @ 60°C (140°F) | N/A | 80 °C | -40 °C | N/A | Knob | General | 120 Vac/Vdc | |
10250TM8010,960 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Legend Plates | Power On | 2000 m | CE EN60947-5-1 UL 508: File No. 131568 CSA C22.2 No. 14: File No. LR68551 | N/A | N/A | 0.5 A | Ui = 660 Vac or Vdc | IP65, NEMA Type 1, NEMA Type 12, NEMA Type 13, NEMA Type 2, NEMA Type 3, NEMA Type 3R, NEMA Type 4, NEMA Type 4X | 10 x 10⁶ operations | N/A | N/A | 66 °C | -17 °C | N/A | N/A | 95% RH @ 60°C (140°F) | N/A | 80 °C | -40 °C | N/A | N/A | Power On | 120 Vac/Vdc | |
10250TM5110,960 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Legend Plates | H-O-A | 2000 m | CE EN60947-5-1 UL 508: File No. 131568 CSA C22.2 No. 14: File No. LR68551 | N/A | N/A | 0.5 A | Ui = 660 Vac or Vdc | IP65, NEMA Type 1, NEMA Type 12, NEMA Type 13, NEMA Type 2, NEMA Type 3, NEMA Type 3R, NEMA Type 4, NEMA Type 4X | 10 x 10⁶ operations | N/A | N/A | 66 °C | -17 °C | N/A | N/A | 95% RH @ 60°C (140°F) | N/A | 80 °C | -40 °C | N/A | N/A | H-O-A | 120 Vac/Vdc | |
10250TM5010,960 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | Legend Plates | F-O-R | 2000 m | CE EN60947-5-1 UL 508: File No. 131568 CSA C22.2 No. 14: File No. LR68551 | N/A | N/A | 0.5 A | Ui = 660 Vac or Vdc | IP65, NEMA Type 1, NEMA Type 12, NEMA Type 13, NEMA Type 2, NEMA Type 3, NEMA Type 3R, NEMA Type 4, NEMA Type 4X | 10 x 10⁶ operations | N/A | N/A | 66 °C | -17 °C | N/A | N/A | 95% RH @ 60°C (140°F) | N/A | 80 °C | -40 °C | N/A | N/A | F-O-R | 120 Vac/Vdc |
