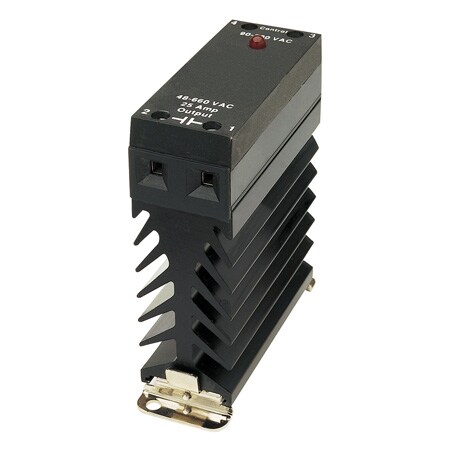

SSRDIN | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 2개의 상품

제품 번호 / 가격	Brand	Control Output	Current Output	Current, Min	Dropout Voltage	Form factor	Frequency	Housing Material	Input Control Signal	Input Resistance	Input-to-Output Capacitance	Input/Output-to-Ground Isolation	Isolated Analog Voltage	Leakage Current	Leakage Current Note	Measurement Current, Max	Measurement Current, Min	Number of Phases	Operating Voltage, Min	Power Cycle	Signal fail-safe	Storage Temperature, Max	Storage Temperature, Min	Surge Current Rating	Thermal Sensitivity	Voltage Output	Voltage, Max	Weight	Wire Gauge Note	수량 / 장바구니
SSRDIN660AC45A가격 문의Limited Stock리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	SCR	45 A	100 mArms	10 Vac	45 mm DIN Rail	40 to 63 Hz	UL 940VD (self-extinguishing)	90 to 140 Vac	Current Regulated	8 pF	4000 Vrms, 4000 V	4000 Vrms	250 µArms	Off-State Leakage µArms (@ Max Line Voltage and Ta = 25ºC)@ 48 to 600 Vac	6 mA	5 mA	1	1.35 V	Turn-On Time: 20 ms; Turn-Off Time: 30 ms	500 Vµs	100 °C	-40 °C	1 Cycle, Max: 800 A; 1 s, Max: 160 A	2600	48 to 600 Vac	1100 V	600 g	Input Strandard Wire Gauge: 24 to 16 AWG; Input Solid Wire Gauge: 24 to 16 AWG; Output Stranded Wire Gauge: 16 to 8 AWG; Output Solid Wire Gauge: 16 to 10 AWG
SSRDIN660AC55A가격 문의Limited Stock리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	-	55 A	-	10 Vac	-	40 to 63 Hz	UL 940VD (self-extinguishing)	90 to 140 Vac	None	8 pF	4000 Vrms, 4000 V	4000 Vrms	-	-	-	-	1	-	Turn-On Time: None; Turn-Off Time: None	None	100 °C	-40 °C	-	None	48 to 660	-	600 g	Input Strandard Wire Gauge: None; Input Solid Wire Gauge: None; Output Stranded Wire Gauge: None; Output Solid Wire Gauge: None

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Control Output

Current Output

Current, Min

Dropout Voltage

Form factor

Frequency

Housing Material

Input Control Signal

Input Resistance

Input-to-Output Capacitance

Input/Output-to-Ground Isolation

Isolated Analog Voltage

Leakage Current

Leakage Current Note

Measurement Current, Max

Measurement Current, Min

Number of Phases

Operating Voltage, Min

Power Cycle

Signal fail-safe

Storage Temperature, Max

Storage Temperature, Min

Surge Current Rating

Thermal Sensitivity

Voltage Output

Voltage, Max

Weight

Wire Gauge Note

수량 / 장바구니

SSRDIN660AC45A가격 문의Limited Stock리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

SCR

45 A

100 mArms

10 Vac

45 mm DIN Rail

40 to 63 Hz

UL 940VD (self-extinguishing)

90 to 140 Vac

Current Regulated

8 pF

4000 Vrms, 4000 V

4000 Vrms

250 µArms

Off-State Leakage µArms (@ Max Line Voltage and Ta = 25ºC)@ 48 to 600 Vac

6 mA

5 mA

1.35 V

Turn-On Time: 20 ms; Turn-Off Time: 30 ms

500 Vµs

100 °C

-40 °C

1 Cycle, Max: 800 A; 1 s, Max: 160 A

2600

48 to 600 Vac

1100 V

600 g

Input Strandard Wire Gauge: 24 to 16 AWG; Input Solid Wire Gauge: 24 to 16 AWG; Output Stranded Wire Gauge: 16 to 8 AWG; Output Solid Wire Gauge: 16 to 10 AWG

SSRDIN660AC55A가격 문의Limited Stock리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

55 A

10 Vac

40 to 63 Hz

UL 940VD (self-extinguishing)

90 to 140 Vac

None

8 pF

4000 Vrms, 4000 V

4000 Vrms

Turn-On Time: None; Turn-Off Time: None

None

100 °C

-40 °C

None

48 to 660

600 g

Input Strandard Wire Gauge: None; Input Solid Wire Gauge: None; Output Stranded Wire Gauge: None; Output Solid Wire Gauge: None
