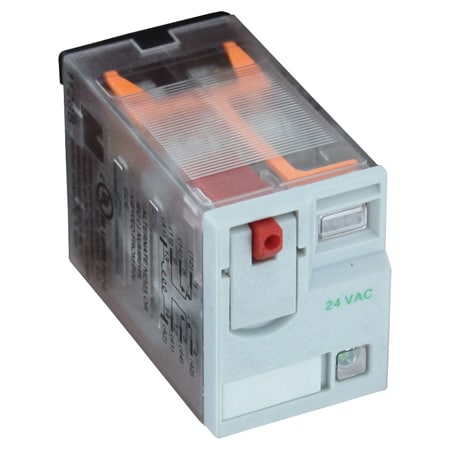

Series-782 | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 1개의 상품

제품 번호 / 가격	Brand	Applications	Coil Resistance	Compliance	Electrical Connection	Electrical Output	Input Control Signal	Life Cycle	Materials	Operating Temperature, Max	Operating Temperature, Min	Operating and Load Voltage	Power Consumption	Storage Temperature, Max	Storage Temperature, Min	Supply Current	Switch Rating	Switch Type	Trigger Voltage	Weight	수량 / 장바구니
782XBXM4L-240A가격 문의29 weeks리드타임은 상황에 따라 달라질 수 있습니다.	Dwyer a DwyerOmega Brand	HVAC, Industrial and Manufacturing, Pump Control, Refrigeration, Refrigeration Equipment	15720 Ω	CE, CSA, cULus, cURus	Screw Terminal	N/A	240 Vac	Electrical : 100,000 cycles; Mechanical : 10,000,000 cycles	Polycarbonate	131 °F	-40 °F	24 to 240 Vac, 24 Vdc	1.2 VA; 0.9 W	185 °F	-40 °F	15 A	15 A @ 120 VAC ; 12 A @ 277 VAC or 28 VDC (UL); 10 A @ 277 VAC (CSA)	SPDT or DPDT	24 to 240 Vac, 24 Vdc	1.3 oz

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Applications

Coil Resistance

Compliance

Electrical Connection

Electrical Output

Input Control Signal

Life Cycle

Materials

Operating Temperature, Max

Operating Temperature, Min

Operating and Load Voltage

Power Consumption

Storage Temperature, Max

Storage Temperature, Min

Supply Current

Switch Rating

Switch Type

Trigger Voltage

Weight

수량 / 장바구니

782XBXM4L-240A가격 문의29 weeks리드타임은 상황에 따라 달라질 수 있습니다.

Dwyer a DwyerOmega Brand

HVAC, Industrial and Manufacturing, Pump Control, Refrigeration, Refrigeration Equipment

15720 Ω

CE, CSA, cULus, cURus

Screw Terminal

N/A

240 Vac

Electrical : 100,000 cycles; Mechanical : 10,000,000 cycles

Polycarbonate

131 °F

-40 °F

24 to 240 Vac, 24 Vdc

1.2 VA; 0.9 W

185 °F

-40 °F

15 A

15 A @ 120 VAC ; 12 A @ 277 VAC or 28 VDC (UL); 10 A @ 277 VAC (CSA)

SPDT or DPDT

24 to 240 Vac, 24 Vdc

1.3 oz
